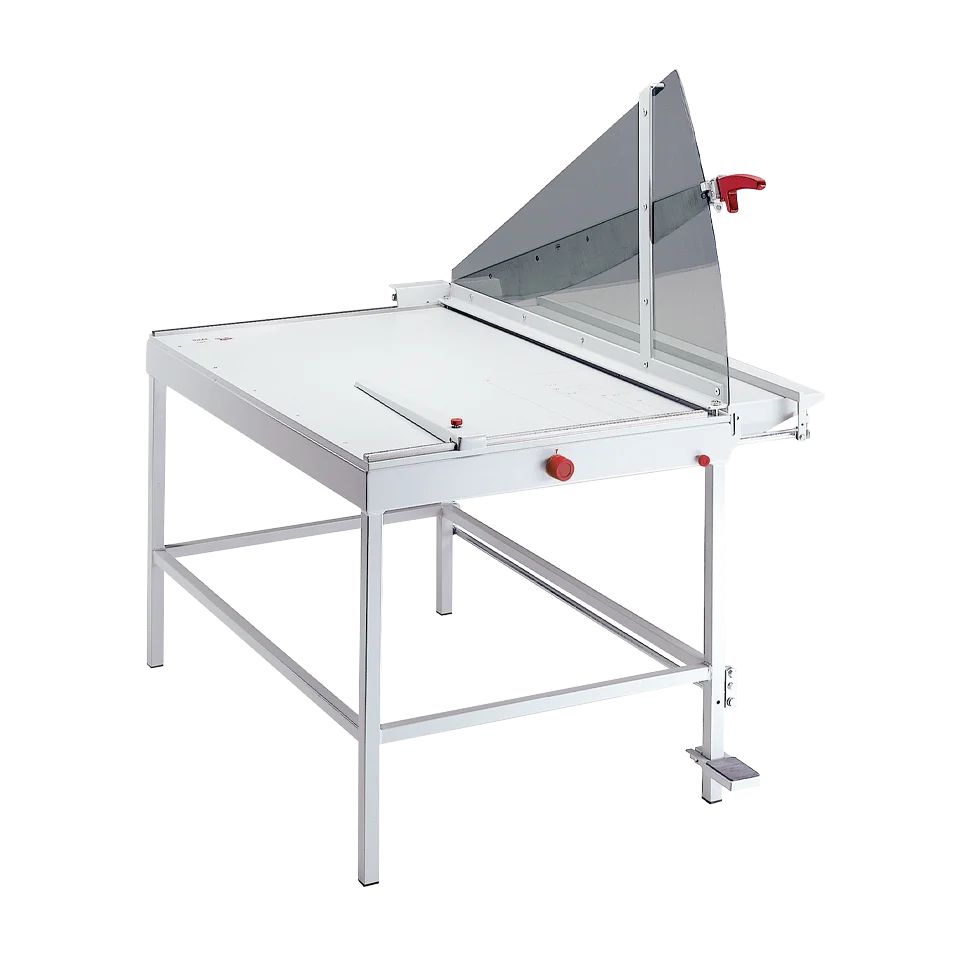

MBM Triumph 1110

Large Format Floor Model Trimmer

Specification Sheet

Operating Manual

Features

• Guillotine Paper Trimmer
• Cutting Width: 43 1/4″
• Sheet Capacity: 20* (5/32″ cutting height)

Product Details

• Blade Material: Solingen steel
• Table Size (D x W): 43 1/4″ x 30″
• Dimensions (D x W x H): 55 3/4” x 32 1/2” x 53 1/2” (41 3/4″ W with fold-away extension table in working position)
• Shipping Weight: 182 lbs.

*May vary due to variations in paper

Characteristics

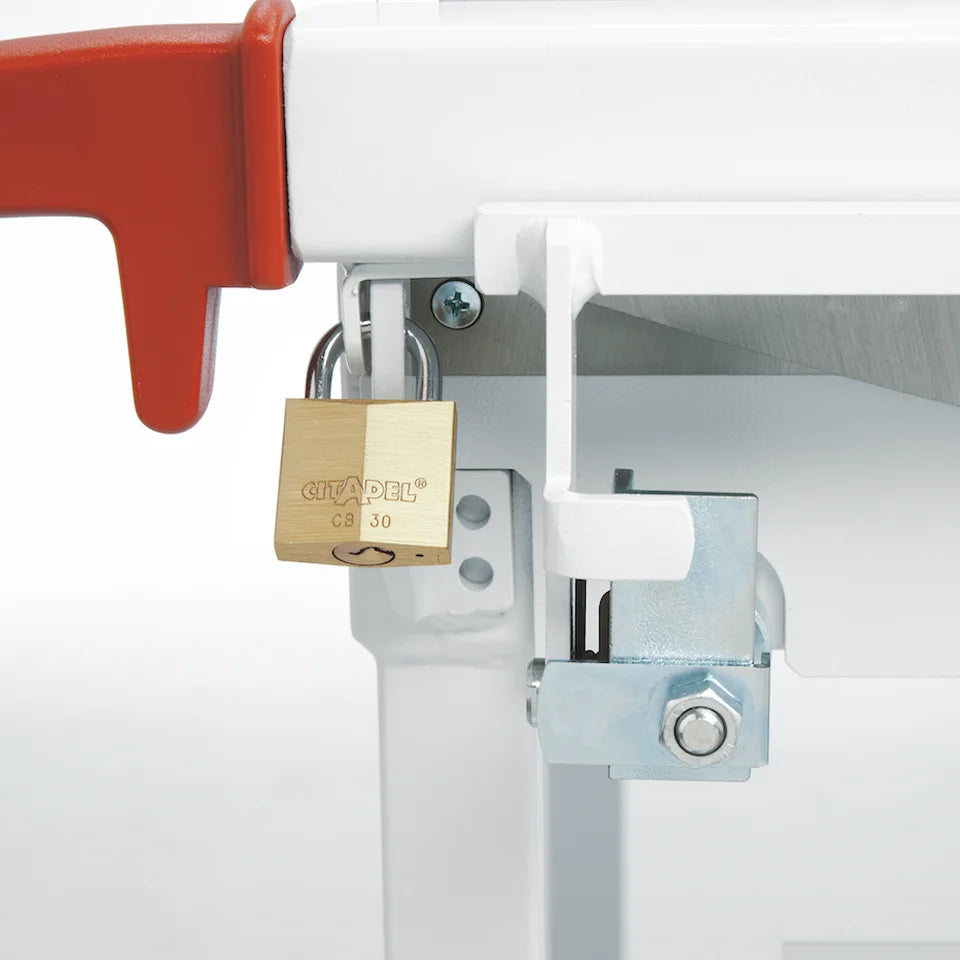

• Transparent Lexan safety guard blade lock
• Large-format floor model trimmer
• Solingen steel blade set may be resharpened
• The special wide-angle blade cuts heavy materials such as mat board, plastic, and metal foil

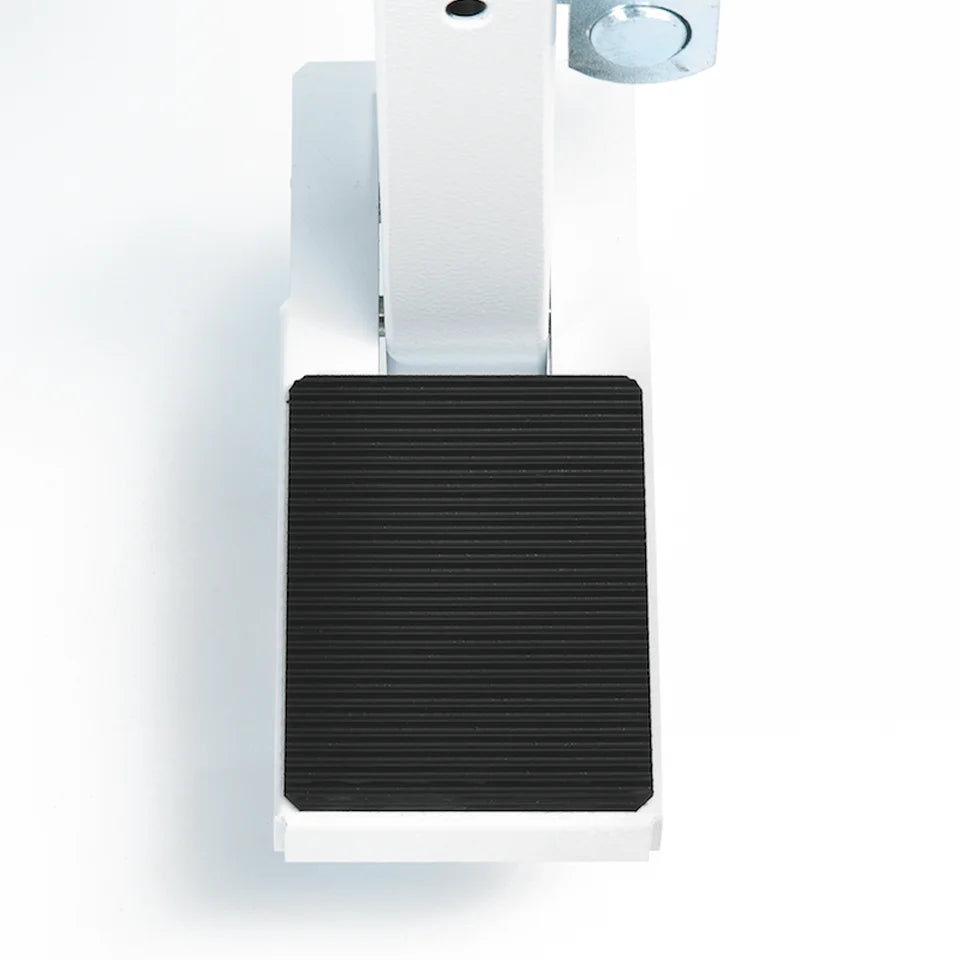

• Foot pedal for positive clamping

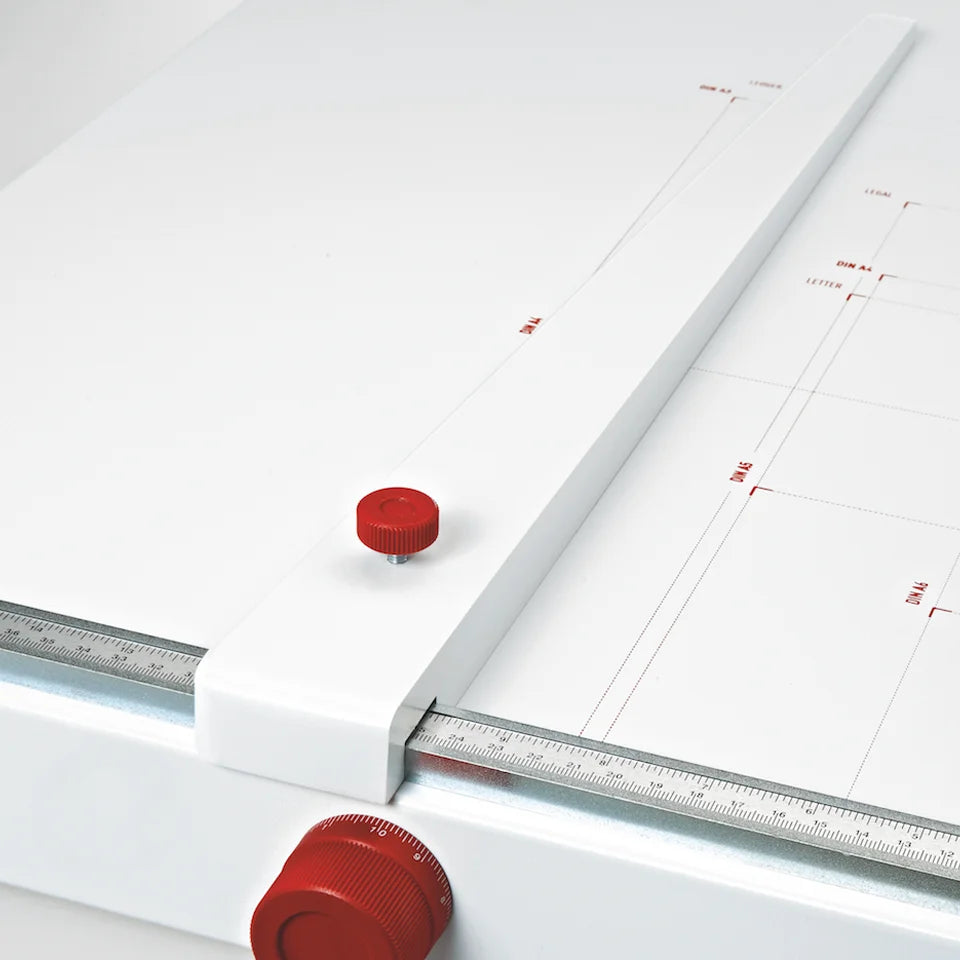

• Precision side guides scaled in inches and the metric system
• • Adjustable back gauge
• • Front gauge is adjustable using a calibrated rotary knob with fine adjustment scale, lockable in every position
• Narrow-strip cutting device

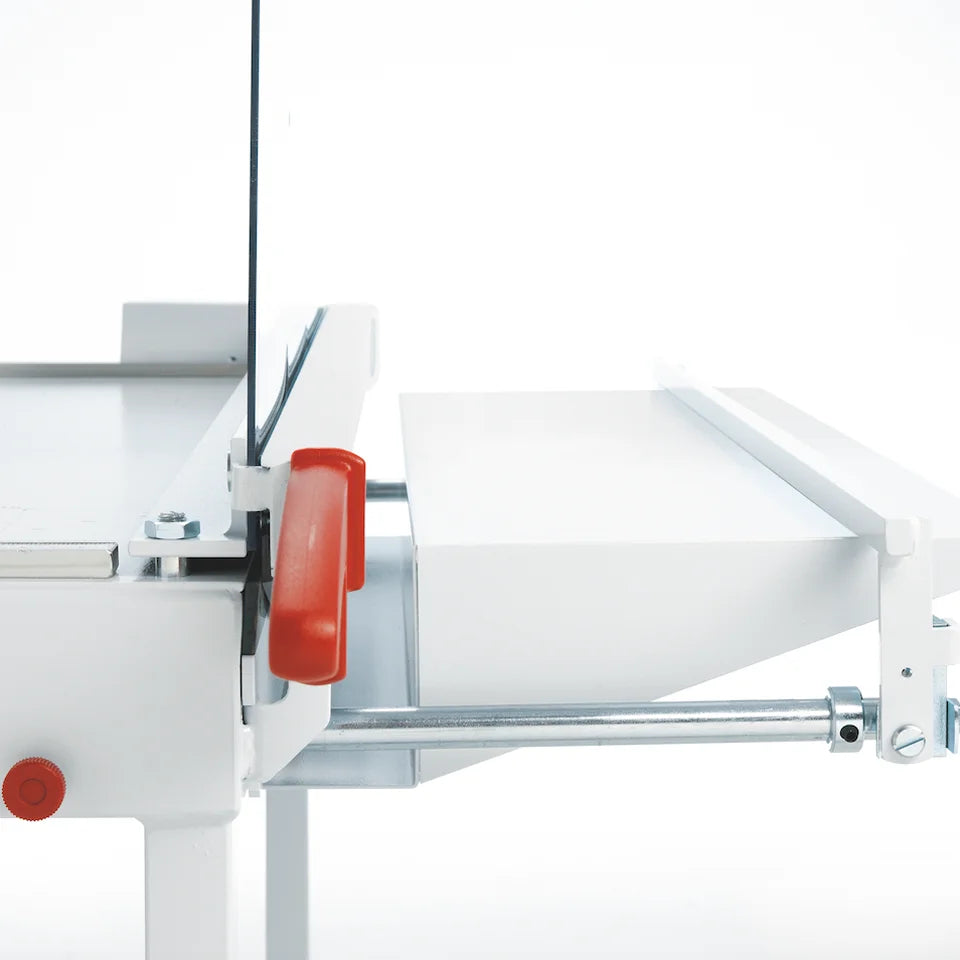

• Fold-down extension table provides support for large cutting jobs
• Standard paper sizes indicated on the table
• Solid cast aluminum blade mounting bracket with double pivot bearings for blade axle
• All-metal construction
