MBM FoilGlazer II Laminator & Foil Fuser
MBM FoilGlazer II Laminator & Foil Fuser
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370

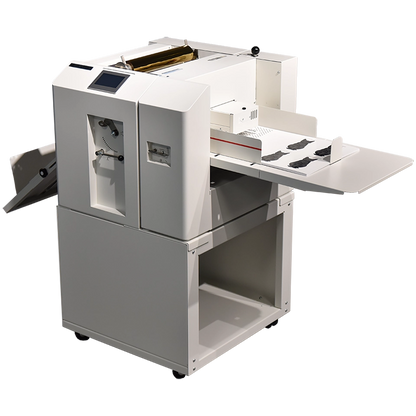

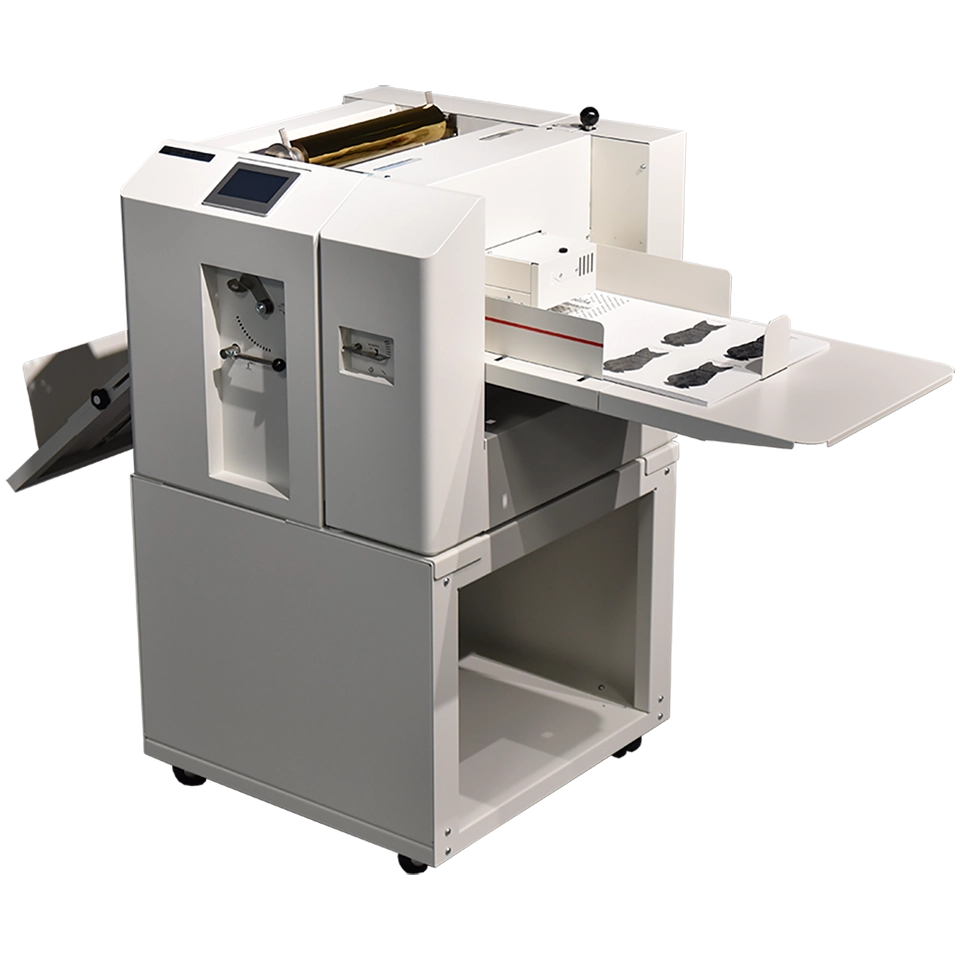

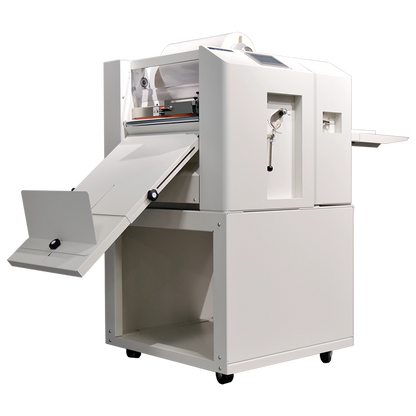

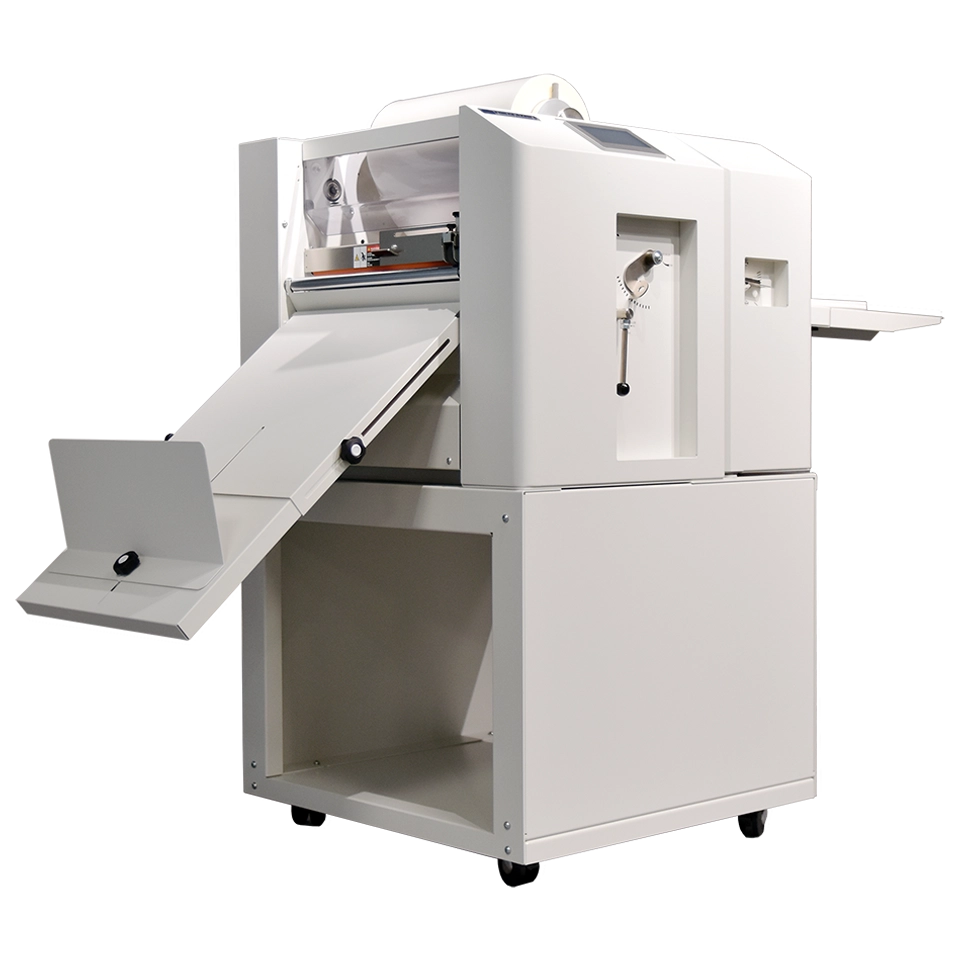

The FoilGlazer II is a compact, high-performance laminating and foil fusing machine designed for short-run, on-demand digital print enhancement. With the ability to laminate and foilglaze in a single machine, this unit delivers premium embellishment effects like spot foiling on black toner, while also performing traditional lamination. Ideal for digital printers, commercial shops, and boutique packaging, it handles a wide range of films and stocks with automated feeding, burst cutting, and intuitive operation.
Key Features
🔷 Dual Functionality – Performs both laminating and foil fusing (foilglazing) on a wide variety of substrates.

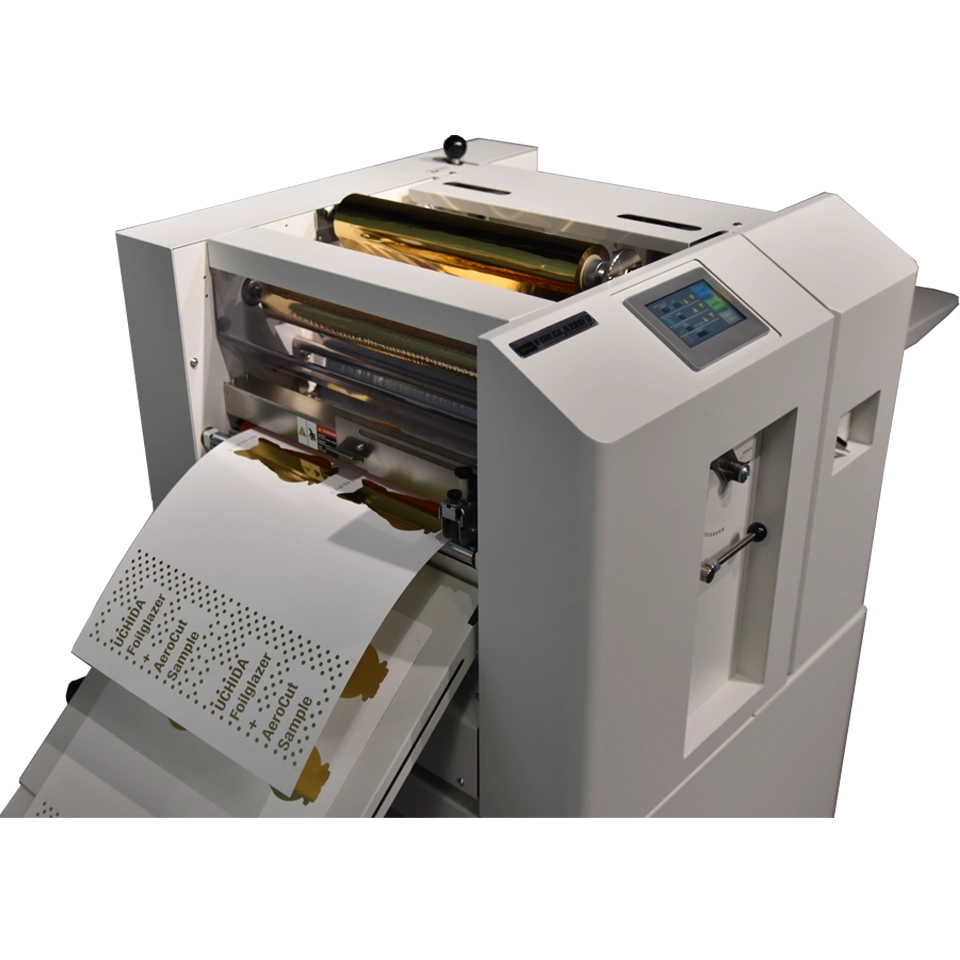

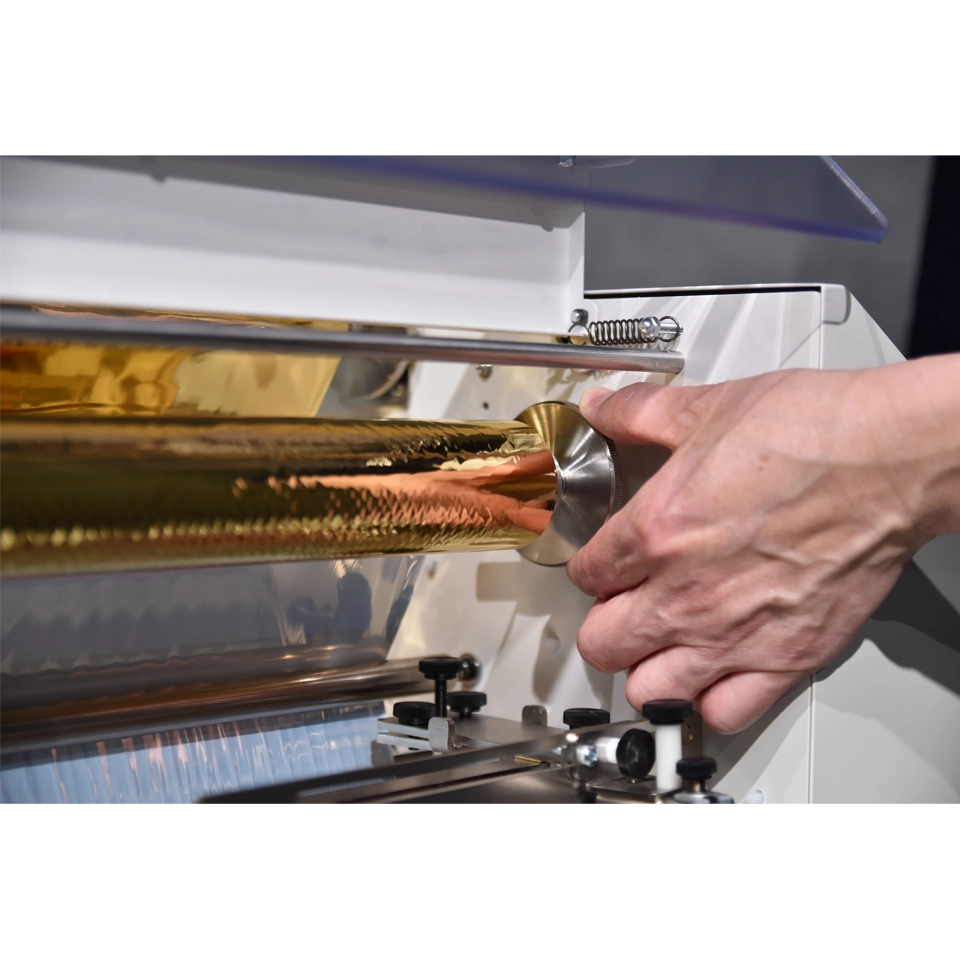

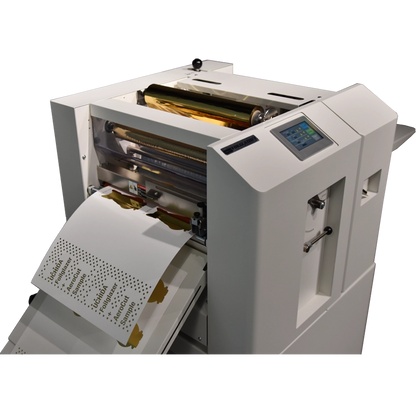

🔷 FoilGlazing Capability – Applies colored foil to black toner for elegant, high-impact effects on digital prints.

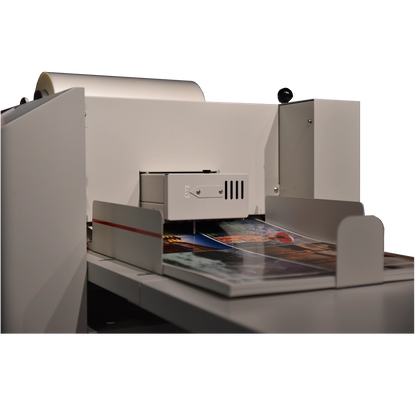

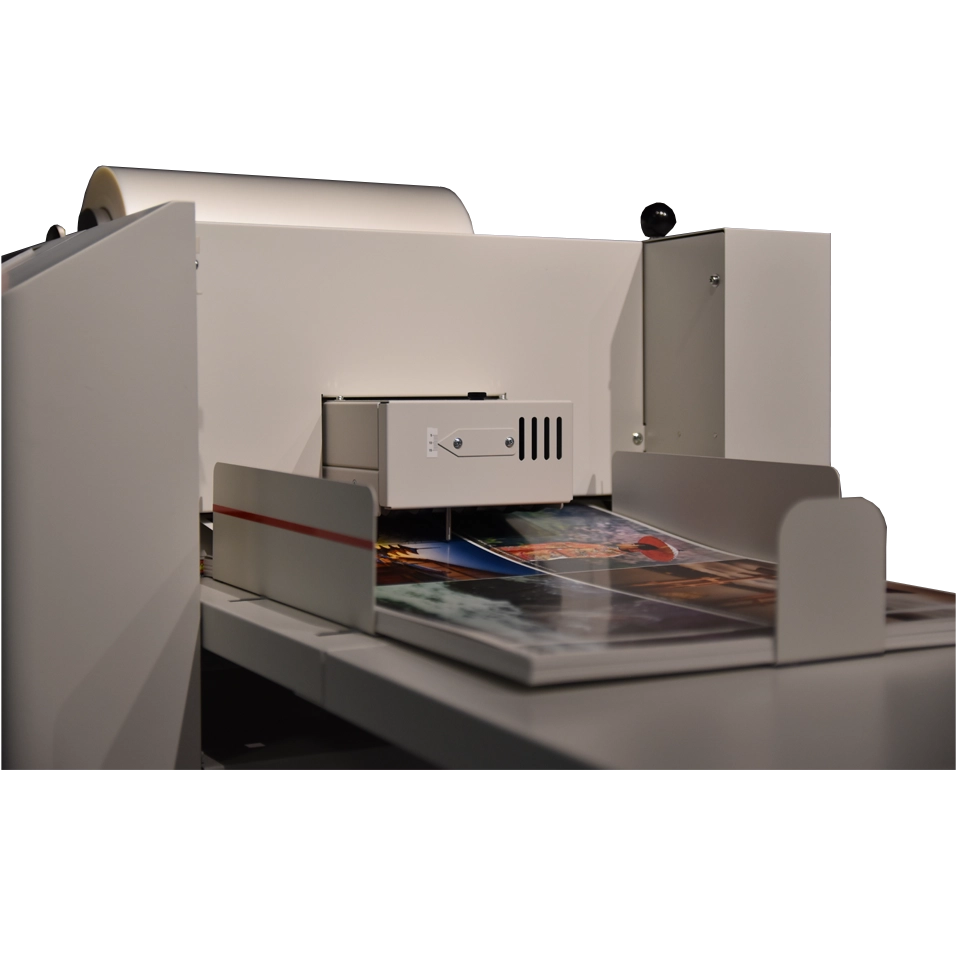

🔷 Automatic Air Suction Feeding – Consistently feeds stock from 110 – 400 gsm, including textured and specialty films.
🔷 High-Speed Operation – Laminates at up to 16.4 ft/min, and foilglazes at 9.84 ft/min for quick turnaround jobs.
🔷 Compact Yet Robust – Fits small spaces but delivers heavy-duty performance with 254 lbs of steel-framed reliability.
🔷 Easy Setup & Maintenance – Folding feeder design makes film setup and maintenance fast and intuitive.

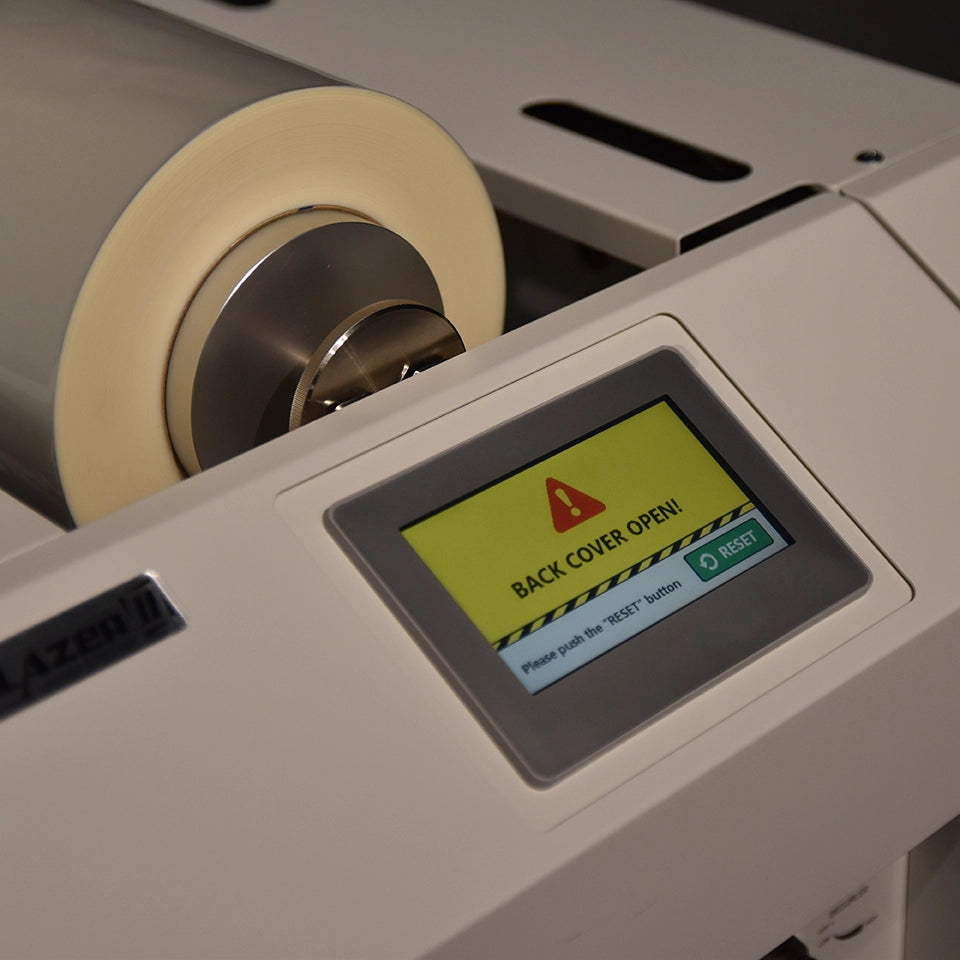

🔷 User-Friendly Color Touchscreen – 4.3” display provides easy control with forward/reverse and pressure roller lift functions.
🔷 Burst Cutting – Automatic film separation boosts productivity and enables walk-away operation.

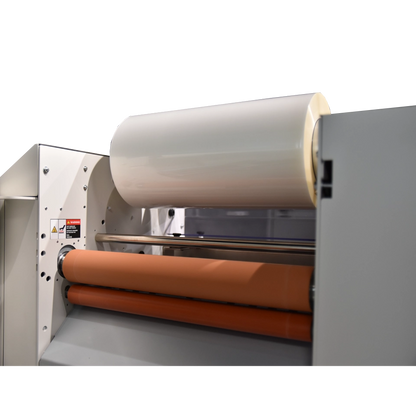

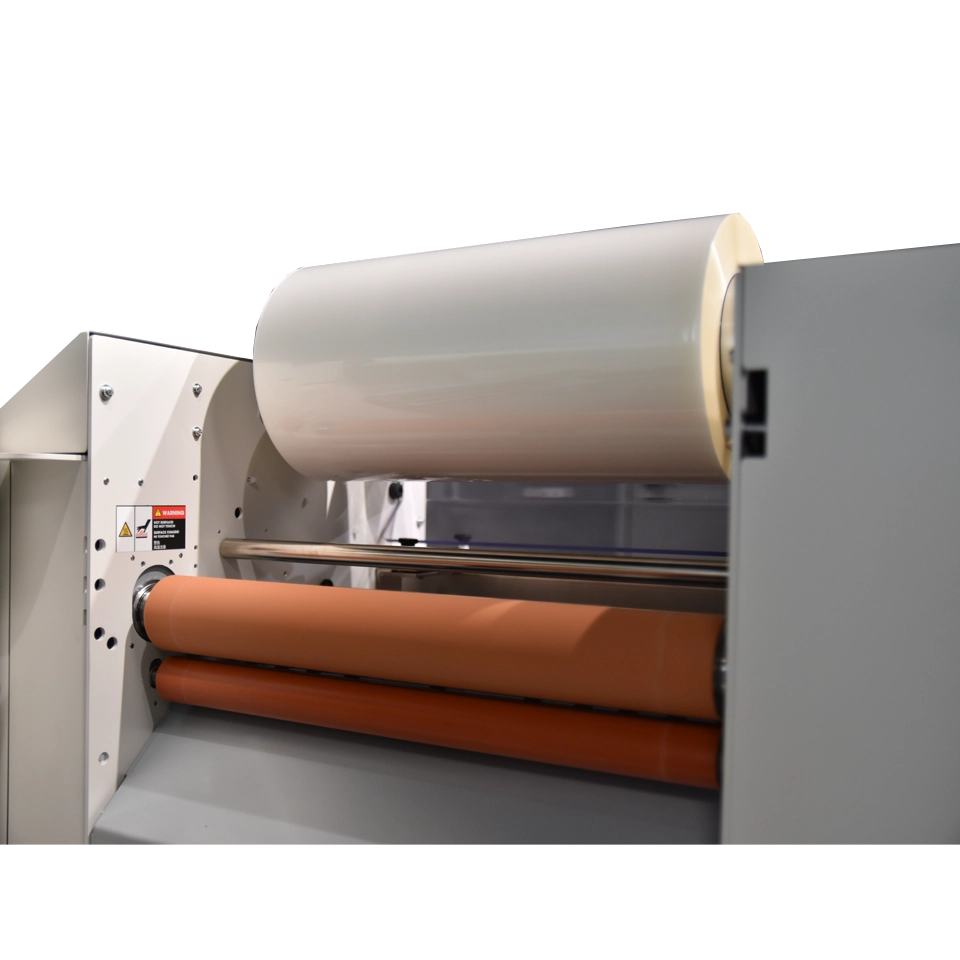

🔷 Supports a Variety of Films – Compatible with digital laminating films, soft-touch films, and anti-scuff coatings.
Specifications
| Specification | Details |
|---|---|
| Laminating Speed | 16.4 ft/min |
| FoilGlazing Speed | 9.84 ft/min |
| Sheet Capacity | 2” stack |
| Paper Weight Range | 110 – 400 gsm (32 lb bond – 150 lb cover) |
| Paper Size | Laminating: 11.69” x 8.26” to 14.37” x 23.62”FoilGlazing: 5.82” x 8.26” to 14.37” x 23.62” |
| Separation Method | Burst cutting |
| Electrical Requirements | 100–120V, 50–60 Hz |
| Machine Dimensions | 67.6” x 24.45” x 47.48” (with tables) |
| Net Weight | 254 lbs |
| Required Compressor | ≥ .18 cfm, ≥ 1.1 gal tank, min 87 psi, 6mm OD / 4mm ID tubing |
| Film Specs | Laminating: 7.87"–13.38" width, 20–45 microns thickFoil: 12.44”–13” width, 1” core, 2.36” max OD |
Applications
🎨 Digital Print Enhancement – Add foil accents to toner-based designs for premium business cards, invitations, and covers.
📚 Short-Run Packaging – Laminate and embellish custom cartons, labels, and packaging sleeves.
📈 Marketing Materials – Elevate brochures, menus, and handouts with soft touch or anti-scuff finishes.
🏷 Label & Tag Production – Foil small-format pieces for luxury branding and specialty print runs.
Available Options
📍 Compressor (Required) – Minimum 87 psi, .18 cfm, 1.1 gal tank (not included).

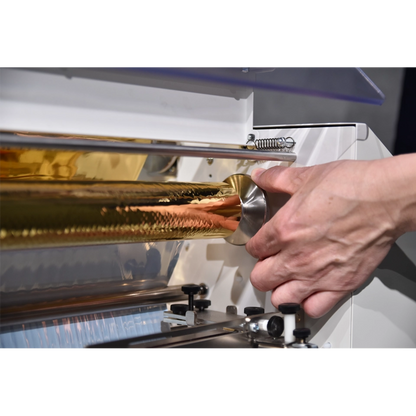

📍 Laminating & Foil Rolls – Accepts a wide variety of finishing films and foil types.
Benefits
✅ Delivers high-end print finishes in-house without outsourcing.
✅ Enhances customer value with eye-catching metallic foil effects.
✅ Saves time with automatic feeding and cutting features.
✅ Handles a wide range of substrates and finishes with easy setup.
✅ Compact size fits into small spaces without sacrificing functionality.
