Mitsubishi TDP-459II / TDP-324II
Chemistry-free 2-up CTP & film imager. 1204 dpi, up to 75 plates/hr, fast plate-to-press, simple wipe maintenance, dual-mode output for plates or film.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications

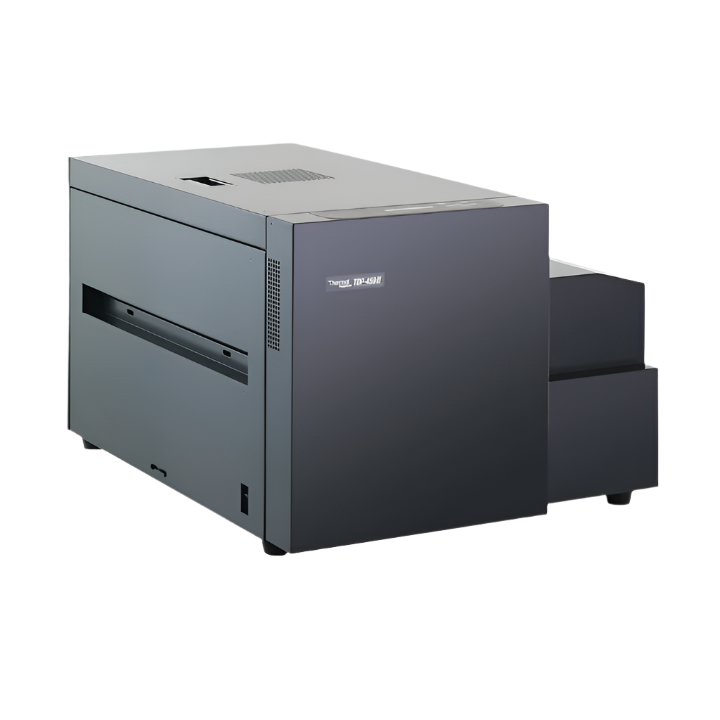

Mitsubishi Thermal DigiPlate system
The Mitsubishi TDP-459II and TDP-324II are chemistry-free, processless 2-up computer-to-plate and film imaging devices for fast one- and two-color offset work. They image, cut, and deliver a plate in under a minute, or output high-density film positives and negatives for screen and flexo, from a compact, low-maintenance unit.
Key features
- Processless, chemistry-free operation (no processor, no ribbons, no toner)

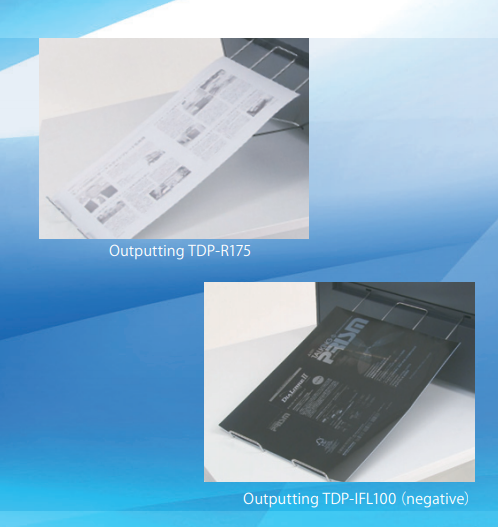

- Dual function: plates or thermal film (positive or negative) from roll stock
- 1204 dpi output, up to 75 plates per hour
- Simple maintenance: clean the thermal head with a wipe
- Compact footprint with auto-sensing power and quick setup
Specifications
| Model | TDP-459II | TDP-324 |
|---|---|---|
| Plate sizes (min-max) | 12" x 5.9" to 18.1" x 24.6"; max rec. width 14.2" | 9" x 5.9" to 12.75" x 25.9"; max rec. width 12.75" |
| Resolution / speed | 1204 dpi, up to 75 plates/hr | 1204 dpi (throughput dependent on size) |
| Screen ruling / tint | 120 lpi; 5-90% tints | 120 lpi; 5-90% tints |

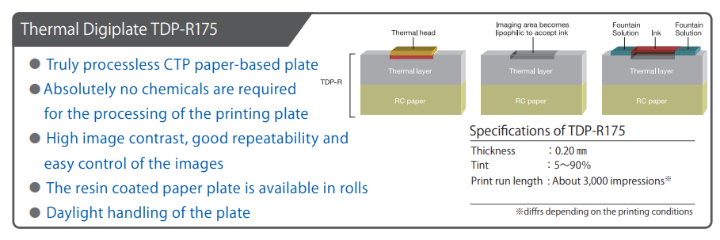

| Plate type / run length | Thermal, resin-coated paper; up to ~5,000 impressions* | Thermal, resin-coated paper; up to ~5,000 impressions* |

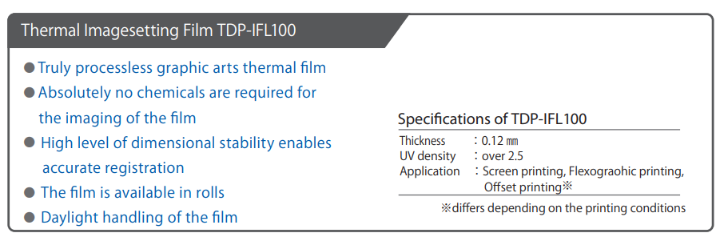

| Film options | IFS/IFL thermal film rolls; high DMAX potential | IFS/IFL thermal film rolls; high DMAX potential |
| Power / environment | AC100/220V auto-sensing; 77°F ± 9°F; 50-70% RH | AC100/220V auto-sensing; 77°F ± 9°F; 50-70% RH |
*Under suitable printing conditions.
Applications
- Quick one- and two-color offset plates for short runs
- Film positives and negatives for screen and flexo workflows
- In-plant, quick print, and service bureau environments
Available options
- TDP controller (accepts 1-bit TIFF); RIP upgrade options as needed
- Film spool assembly kit for specific film widths
Benefits
- No chemistry and simple upkeep reduce operating cost
- Dual-mode output (plates and film) widens the job mix
- Fast plate-to-press turnaround improves throughput
