Made in Germany New

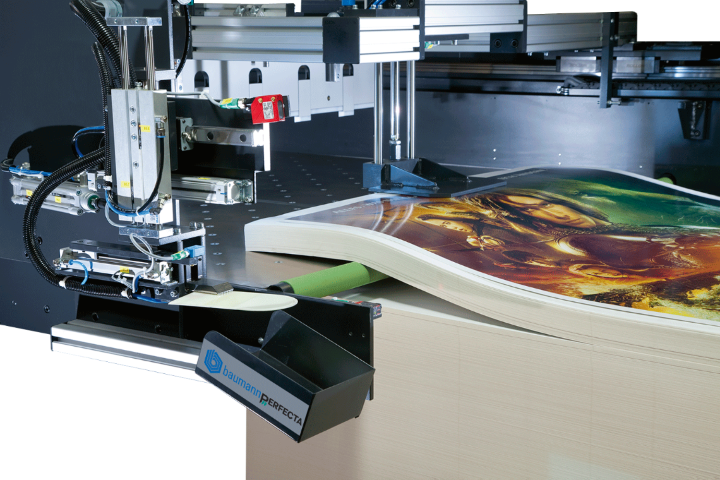

De-stacking with chips, for automatic loading an exact number of sheets that were already counted and aligned at an external jogging station.
Perfecta

Perfecta Automatic Loader BB

Boost productivity with the Perfecta Automatic Loader BB. Automates material loading for seamless, high-efficiency cutting in print and finishing operations.

Pricing by quote

We will quote equipment price, freight to your ZIP, and any install or service needs.

Tax-exempt? Apply once, check out tax-free
Parcel shippingShips by ground carrier.
Talk to a finishing expertReal specialists by phone.
Financing availableLease & purchase options.
Factory-trained install & serviceWe deliver, install & support.

Details & specifications

The Perfecta Automatic Loader BB separates and de-stacks paper layers, then transports them directly to a high-speed cutter. It takes the manual lifting out of the cutting station and keeps material moving in high-volume print finishing.

Key features

  • Steel frame construction
  • Hydraulic lifting drive for smooth material handling
  • Stainless steel table with air bed to reduce friction during stacking and transport
  • Touchscreen control for setup and adjustments
  • Safety devices protecting the operator during machine operation
  • Installs on the left or right side of the cutter to fit the production layout

Specifications

Specification BB 3 BB 5 BB 7
Max. Format 30.3" x 42.1" / 770 x 1070 mm 36.2" x 51.2" / 920 x 1300 mm 49.2" x 65" / 1250 x 1650 mm
Ream Height 6.3" / 160 mm 6.3" / 160 mm 6.3" / 160 mm
Max. Pile Height 55.1" / 1400 mm 55.1" / 1400 mm 55.1" / 1400 mm
Max. Ream Weight 330 lbs / 150 kg 330 lbs / 150 kg 660 lbs / 300 kg

Available options

  • Increased pile height, up to 70.7" / 1800 mm
  • Reflective light barrier with manually inserted wedge for precise de-stacking
  • Automated de-stacking with chips, separating an exact number of sheets
  • Double layer processing
  • Paddle pusher system for controlled movement of material stacks
  • Pushing unit integrated in the gripper arm
  • Remote maintenance service module for diagnostics and support

Workflow applications

  • Inline integration with a high-speed cutter, removing the loading bottleneck and reducing operator workload
  • Automated rear-loading and stacking for consistent output in high-volume operations
  • Modular layout that adapts to different production floors and job types

The Automatic Loader BB is the loading stage of an automated Perfecta cutting line. Contact Mid-State Litho for configuration details and a quote.

You might also need

Pair your equipment with the supplies and finishing gear that complete the workflow.

Baumann-Perfecta BA 3 Automatic Unloader
Perfecta

Baumann-Perfecta BA 3 Automatic Unloader

Request a quote
Perfecta Automatic Positioning System BDG
Perfecta

Perfecta Automatic Positioning System BDG

Request a quote
Perfecta BP 115 Guillotine Paper Cutter
Perfecta

Perfecta BP 115 Guillotine Paper Cutter

Request a quote

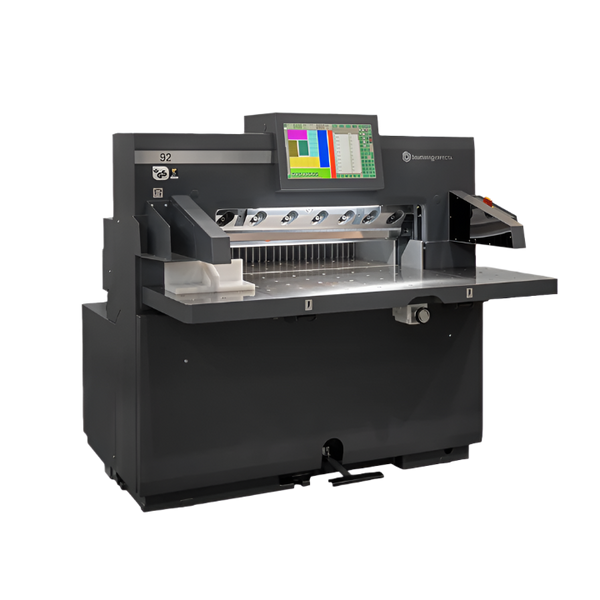

Perfecta BP 92 Paper Cutter (36" Width)
