Perfecta BP 115 Guillotine Paper Cutter
Perfecta BP 115 Guillotine Paper Cutter
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370

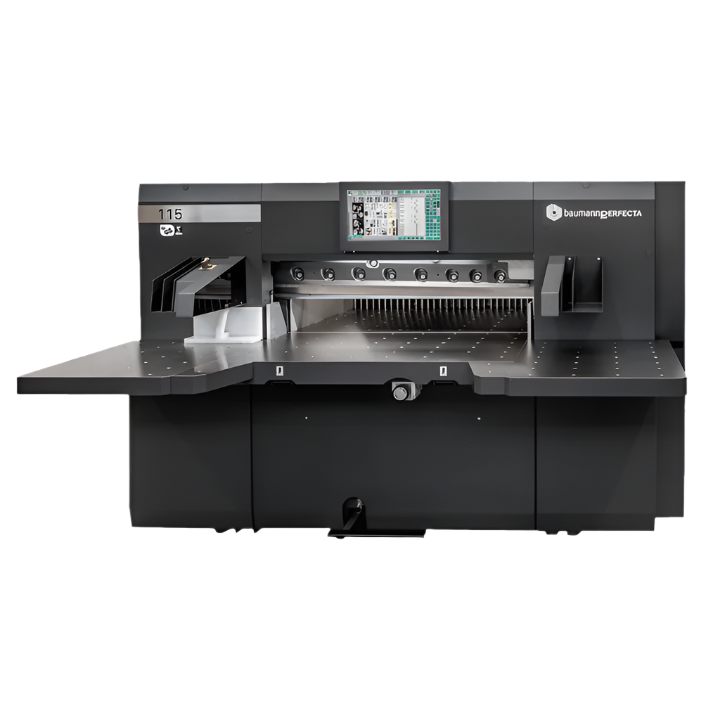

The Perfecta BP 115 is a robust, high-precision 45" programmable paper cutter designed for demanding commercial print and packaging environments. Equipped with a gear-driven knife, servo-controlled backgauge, and an 18.5" touchscreen interface, it offers exceptional accuracy and efficiency. The BP 115 is CIP3/CIP4 compatible, ensuring seamless integration into automated workflows.
Key Features
🔷 45" cutting width with 6.5" feed height
🔷 Slotless stainless steel cutting table with air bed
🔷 Gear-driven knife system with helical spur gears (10-year warranty)
🔷 Digital servo drive positioning system for the backgauge
🔷 Hydraulic clamp with programmable pressure (560 – 10,115 lbs)
🔷 18.5" high-resolution color touchscreen (TS computer)
🔷 CIP3/CIP4 enabled for workflow integration
🔷 LED table light and cut line indicator
🔷 Built-in knife hoist with setting gauges and knife guard
🔷 Self-monitoring safety light barrier and two-hand cut control
🔷 Complete rear table guarding and overload protection device
🔷 Ejector for cutting stick and integrated tool cabinet
Specifications
| Specification | Details |
|---|---|
| Cutting Width | 45" / 1150 mm |
| Feed Height | 6.5" / 165 mm |
| Useful Rear Table Length | 45" / 1150 mm |
| Stainless Steel Air Side Tables | 24.4" x 32.3" / 620 mm x 820 mm |
| Minimum Cut without False Clamp | 0.8" / 20 mm |
| Minimum Cut with False Clamp | 3" / 77 mm |
| Clamping Force | 560 – 10,115 lbs / 2.5 – 45 kN |
| Knife Cycle Rate | Up to 44 cuts per minute |
| Backgauge Speed | Up to 11.8 inches per second |
| Main Drive Power | 5.36 HP |
| Electrical Requirements | 220V / 60Hz / 3 Phase / 35A breaker |
| Machine Weight | Approx. 7,050 lbs / 3,200 kg |
Applications
📄 High-volume cutting of paper, cardstock, and packaging materials
📚 Precision trimming for books, catalogs, and brochures
🏢 Ideal for commercial printers, in-plants, and bindery operations
Benefits
✅ Exceptional cutting precision with servo-driven backgauge
✅ Quick and easy setup with programmable touchscreen interface
✅ Durable construction with long-lasting components
✅ Enhanced operator safety with self-monitoring light barriers
✅ Seamless integration into automated workflows via CIP3/CIP4
