Perfecta

Perfecta Gripper Transport System BFS/BDT

Perfecta Gripper Transport System BFS/BDT

Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:

How to Purchase This Item:

View full details

For automatic transport of paper lifts to the guillotine. It is the connection link between automatic joggers or buffer spaces and the cutting system. The versatile gripper system BFS is often used in combination with paddle pusher systems BTE for loading material onto the rear or front table of the cutter.

Model Max. Format No. Of Grippers
BFS 3-5 30.3" x 42.1" / 770 x 1070 mm
2
BFS 6-7 49.6" x 65.7" / 1260 x 1670 mm 3

Standard Features

  • Can serve 1 or 2 buffer spaces
  • Stainless steel tabletop with air bed for buffer tables
  • Adjustable speed for gripper system
  • Adjustable pressure for grippers to prevent markings
  • Safety fence or safety light guards (depending on floor layout)

Available Options

  • Combination with other transport units (i.e. pusher system BTE)
  • Extended travel distance
  • Layer lifter for pick-up
  • Retractable flaps and movable air tables
  • Service module for remote maintenance

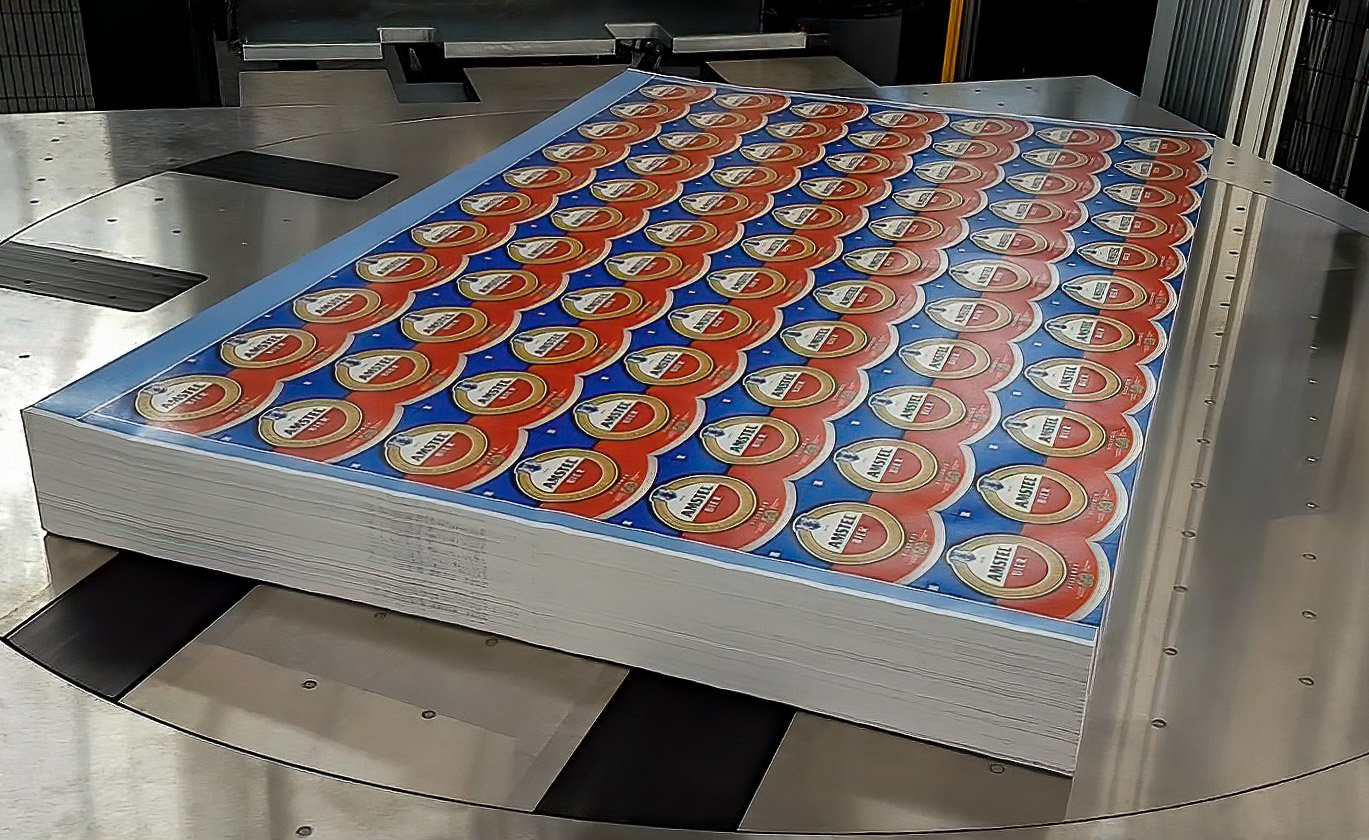

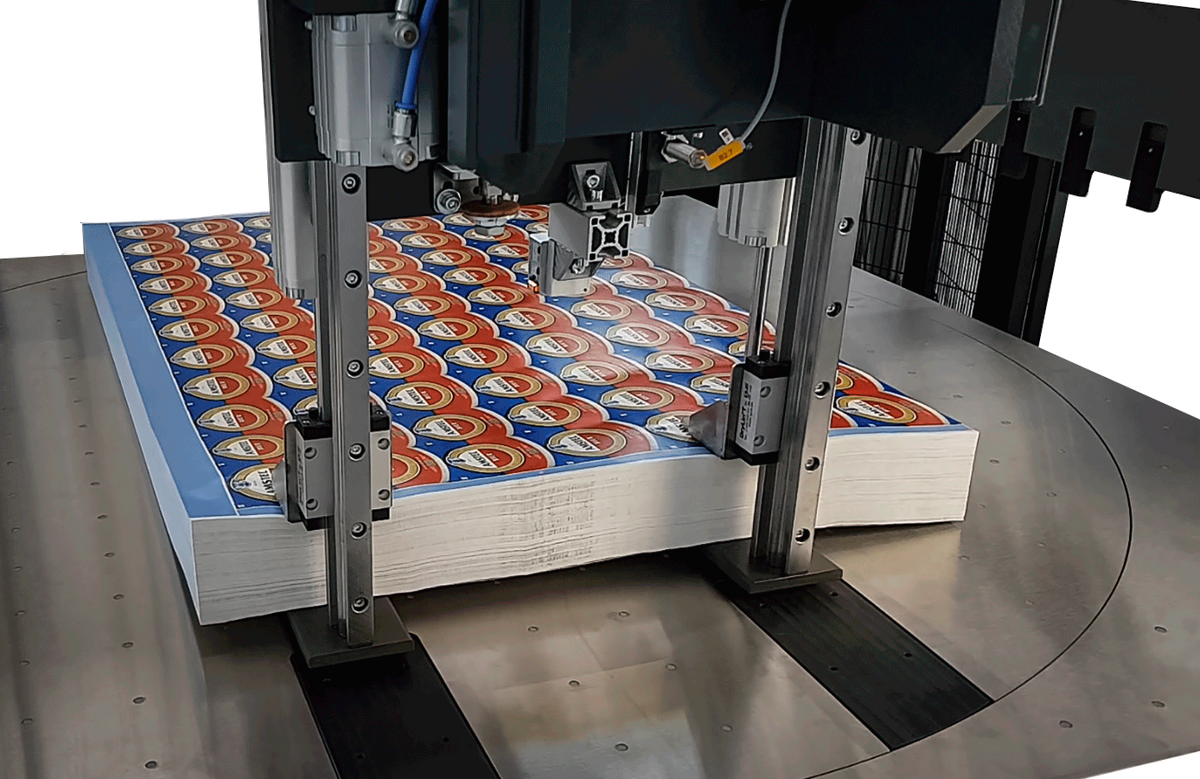

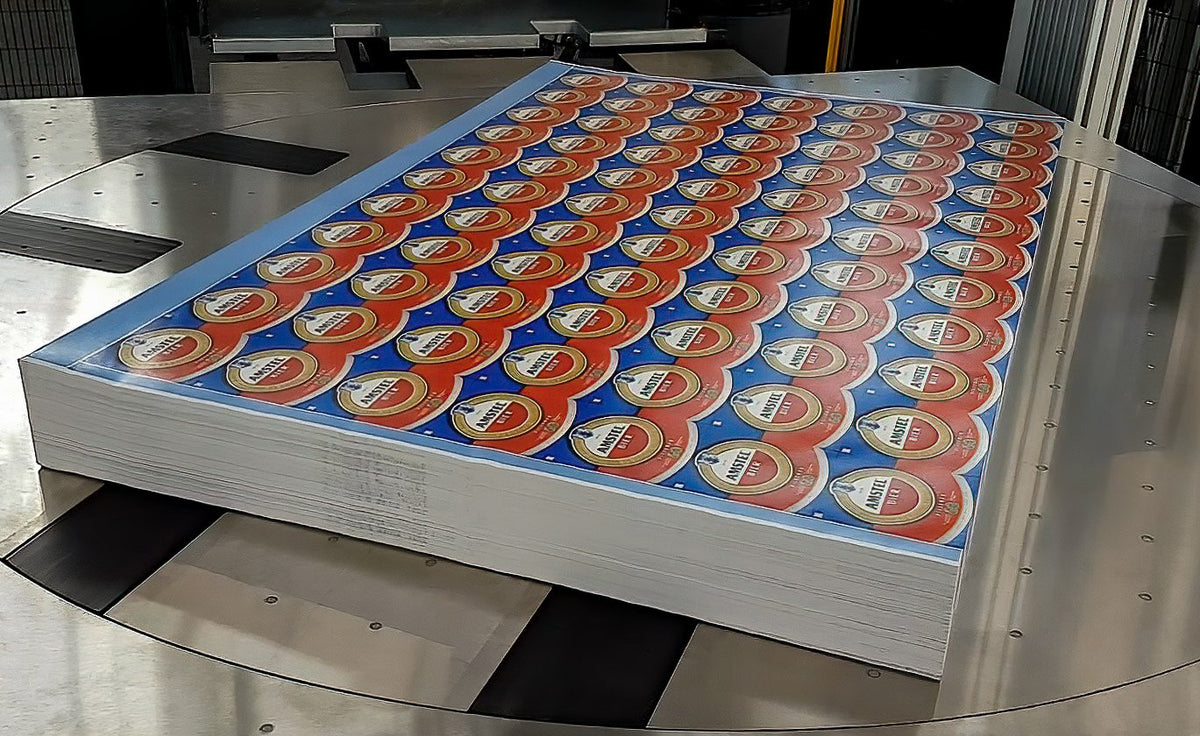

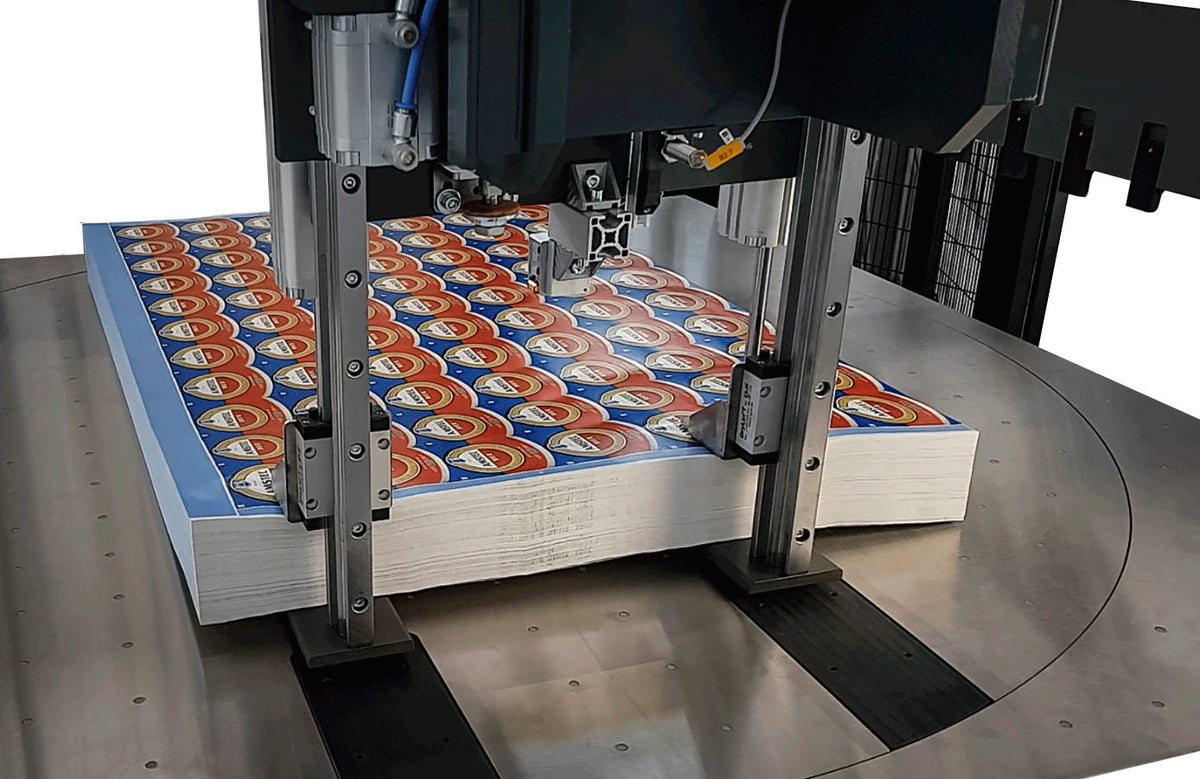

Turn-Table BDT

Space saving solution for turning paper lifts 90º in combination with Gripper System BFS or Pusher System BTE.

 Model Max. Format
BDT 3 30.3" x 42.1" / 770 x 1070 mm
BDT 7 49.6" x 65.7" / 1260 x 1670 mm

Standard Features

  • Stainless steel table top with airbed for smooth material handling
  • Motorized turning
  • Combination with other transport units possible
