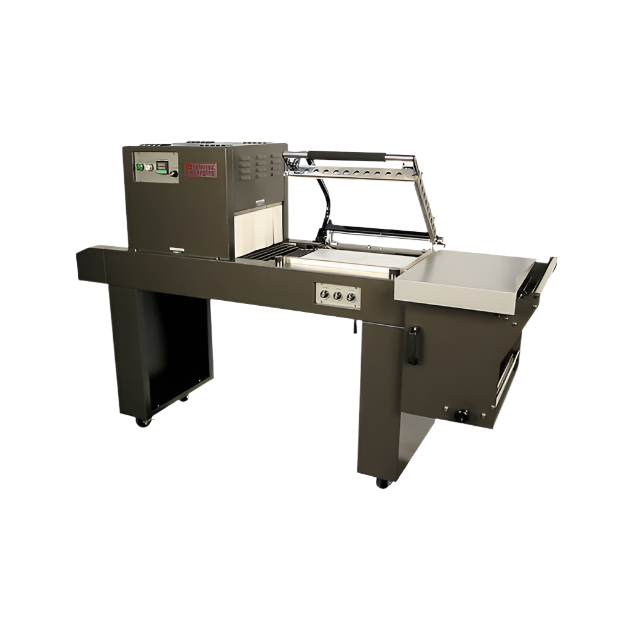

PP-1519 EC Series (L-Sealer w/Tunnel Combo)
Optimize shrink wrapping with the PP-1519 EC L-Sealer & Tunnel Combo. Compact design ensures efficient, high-quality packaging for various products.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Details & specifications
The PP-1519 EC Series is a compact, entry-level L-sealer and shrink tunnel combo designed for low to medium production speeds. This versatile unit features Micro-Knife sealing technology, ensuring precise and consistent shrink-wrapped results for PVC and Polyolefin films. Built on a single frame, it offers an efficient and space-saving solution for a variety of packaging applications.
Key Features
🔹 Micro-Knife Technology – Provides clean, reliable seals for PVC and Polyolefin shrink films.
🔹 Easy-Load Film Cradle – Simplifies film loading and adjustments for different package sizes.
🔹 Perforating Pin Wheel Hole Punch – Ensures proper air evacuation, minimizing bubbles and wrinkles.
🔹 Adjustable Film Loading Tray – Adapts to various package dimensions for greater flexibility.
🔹 Seal Cycle Indicator – Alerts operators when the sealing process is complete.
🔹 Independent Seal & Pulse Timers – Provides precise control over sealing and shrinking times.
🔹 Heavy-Duty Stainless Steel Film Clamps – Ensures durability and secure film handling.
🔹 Compact, All-in-One Design – Combines L-sealer and shrink tunnel on a single frame to save space.
🔹 AC Variable Speed Drive – Adjustable from 0 to 60 feet per minute (FPM) for optimal speed control.
🔹 Digital Temperature Control – Provides accurate heat adjustments from 0 to 400°F.
🔹 Re-Circulating Air Chamber – Evenly distributes heat for consistent shrink-wrapping results.
🔹 Anti-Jam Safety Feature – Prevents package jams for uninterrupted operation.
🔹 Single-Piece Teflon Band Ribbon – Reduces dog ears and enhances seal quality.
🔹 Multiple Pin Wheels – Ensures better shrink film ventilation.
🔹 Optional Magnetic Hold Down – Provides additional stability during sealing.
🔹 Optional Power Discharge Conveyor – Automates product transfer into the shrink tunnel, increasing workflow efficiency.
Specifications
| Specification | Details |
|---|---|
| Seal Dimensions | 15” W x 19” L |
| Tunnel Dimensions | 20” L x 16” W x 6” H |
| Machine Dimensions | 76” L x 26” W x 50” H |
| Shipping Weight | 374 lbs |
| Power Requirements | 110V, 1 Phase, 20 AMP or 220V, 1 Phase, 10 AMP |
| Operating Speed | 8 to 12 packages per minute (PPM) |
| Warranty | 1 year on band ribbon |
Optimized Applications
🏭 Manufacturing & Industrial – Perfect for light-duty packaging lines requiring shrink-wrapped protection.
🍱 Food & Beverage – Ideal for pre-packaged foods, baked goods, and snack packaging.
💊 Pharmaceutical & Medical – Provides secure shrink-wrapping for medications and medical supplies.
📦 Consumer Goods & Retail – Excellent for electronics, DVDs, and small packaged items.
🎁 E-Commerce & Small Businesses – Ideal for shipping-ready shrink packaging solutions.
