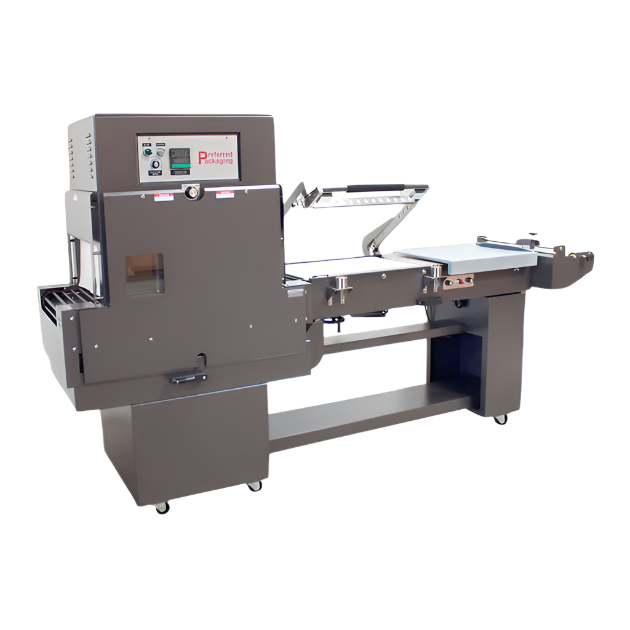

PP-1622MK Combo L-Sealer & Shrink Tunnel

The PP-1622MK Combo is a fully adjustable L-sealer with an integrated shrink tunnel, built for high-volume packaging lines. Its Micro-Knife sealing head does away with seal wire replacements, the most common consumable headache on conventional L-sealers, and the whole unit sits on one mobile uni-body frame.

Key features

• Micro-Knife technology seals without seal wires, so there are no wire replacements and seal quality stays consistent.
• Uni-body frame: compact, mobile, and easy to reposition.
• Adjustable L-sealer rides on linear bearings and moves forward and backward to center products into the tunnel.
• Power belted discharge conveyor with adjustable height for alignment with downstream equipment.
• Re-circulating air chamber spreads heat evenly through the tunnel for consistent shrink results.
• Live roller rod conveyor moves product through without jams.
• Digital temperature control, adjustable 0-400 degrees F.
• Variable air velocity to match airflow to the film and product.
• AC variable speed drive, adjustable 0-75 FPM.
• Chromed conveyor rollers and shaft resist rust.
• Automatic cool-down and shut-off protect the machine and the operator.
• Locking casters and leveling pads for mobility with secure positioning.
• Reaches 300 degrees F in under 10 minutes.
• Optional 12" tunnel height for larger packages.

Specifications

Applications

E-commerce and retail packaging: seals and shrink-wraps product bundles with a tamper-evident finish. Industrial and manufacturing: sealing at line speed for warehousing and logistics. Printing and publishing: wraps printed material against moisture and dust. Food and beverage: seals perishable items with tight heat control.

Where the PP1622MK Combo fits

The Combo pairs a sealer and a tunnel on one frame. If you already run one of those and need the other, Mid-State Litho carries L-bar and chamber sealers and shrink tunnels as separate machines.

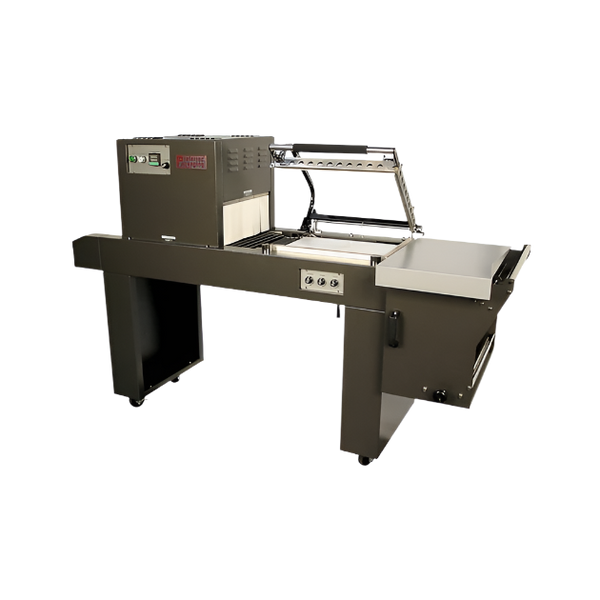

Smaller lines usually land on the PP1519EC L-sealer and tunnel combo, and shops tight on floor space often take the PP48ST all-in-one L-sealer with shrink chamber instead. The rest of the range sits under shrink wrapping equipment, inside the wider packaging equipment catalog.

A machine at this size is a capital purchase for most shops, so ask about equipment financing and leasing when you request a quote. You can also work through our full equipment catalog first.

Common questions about the PP1622MK Combo

What is the difference between the Micro Knife and Hot Knife seal systems?

Micro Knife seals without a seal wire, so there is no wire to replace and seal quality stays consistent run to run. Hot Knife holds constant heat with its own digital temperature control and handles polyethylene film. Both are quoted on this page.

Does the PP1622MK Combo need compressed air?

Only the air-operated builds do. The standard Micro Knife and Hot Knife versions run on 220 V single phase, 45 amps. Tell us your film and your package size and we will spec the right one.

What is the largest package it will run?

Seal area is 16 x 22 in, maximum film width is 20 in, and the tunnel opening is 28 x 18 x 8 in. A 12 in tunnel height is available for taller packages.

Why is there no price on this page?

The Combo is configured per job: seal system, frame material, air or manual, tunnel height. Configuration changes the price, so we quote it rather than post one number. Call 800-343-4231 or use the quote form on this page and you get a real number the same day.

Who installs it and who services it after?

Mid-State Litho has been a Michigan print finishing dealer since 1984. We deliver, install, train the operators, and our own technicians service the machine across Michigan and the Great Lakes region.
