Quadient XPS BumpTurn
90° media rotation system for mailing automation. High-speed operation, versatile media handling, and seamless integration between printers and tabbers.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications
90 degree media rotation system for mailing automation

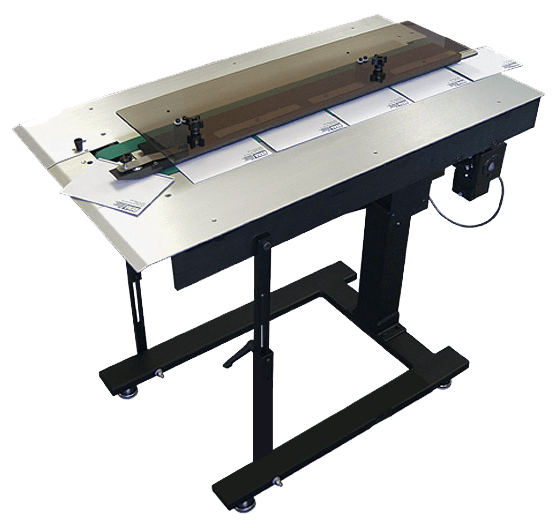

The Rena XPS BumpTurn is a media rotation system that turns mail pieces 90 degrees between an inline printer and a tabber. It is built for booklet tabbing applications where the two machines feed in different orientations, and it keeps the pieces aligned through the transfer.
Key features
- Adjustable rotation deck: rotates media to the left or right to suit the line layout
- High-speed operation: runs from 20 to 500 feet per minute
- Media handling: accepts sizes from 2" x 3" to 12" x 12", up to 1/8" thick
- Safety: material transport covers and belt crawl mode
- Heavy-duty build: rated for a duty cycle of 240 million pieces over a 5-year lifespan
Specifications
| Specification | Detail |
|---|---|
| Throughput Speed | 20 to 500 feet per minute |
| Input Height | 21" to 35" |
| Output Height | 32" to 35" |
| Material Size | Minimum: 2" x 3"; Maximum: 12" x 12" |
| Material Thickness | Up to 1/8" |
| Features | Angle-adjustable deck; rotates pieces left or right |
| Safety | Material transport covers & belt crawl mode |
| Duty Cycle | 240 million pieces total or 4 million per month over 5 years |
| Dimensions | 19.5" W x 35" L x 33" H |
| Weight | 50 lbs |
| Electrical | 120 VAC, 3 AMP |
Applications
- Booklet tabbing setups
- Envelope orientation correction
- Inline printer-to-tabber systems
- Mailing line automation
Benefits
- Simplifies transitions between mail system components
- Improves tabbing accuracy by correcting feed orientation
- Compatible with a range of print and mail configurations
- Compact footprint fits into most production lines
