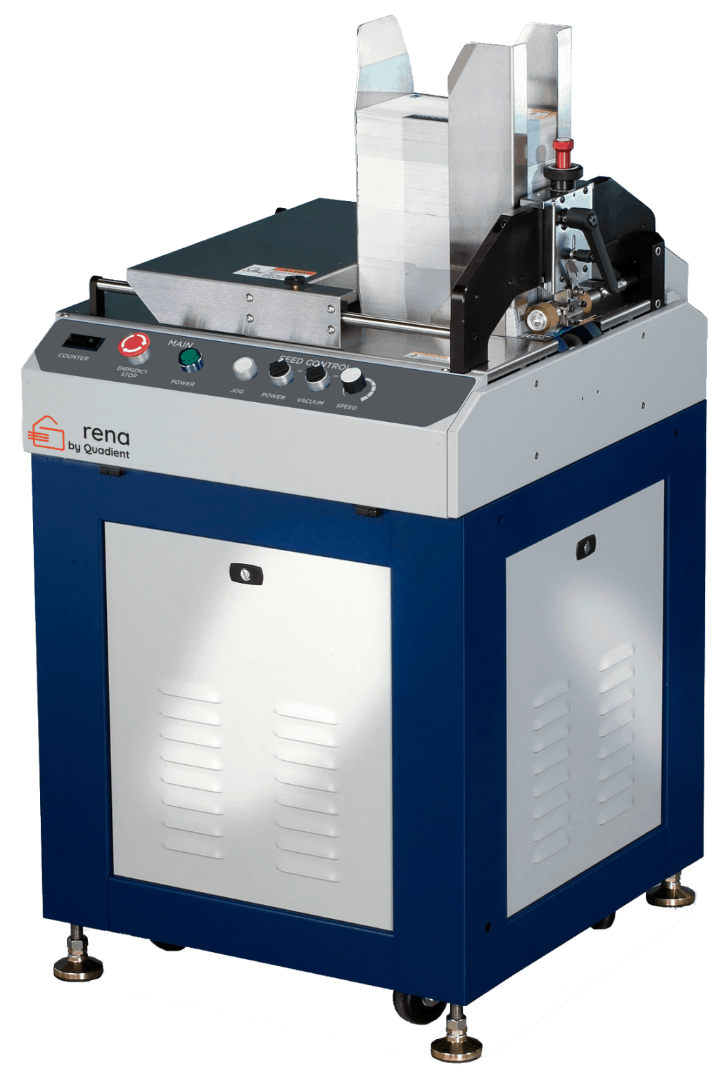

RENA XPS ProFeed Shuttle Feeder

The RENA XPS ProFeed Shuttle Feeder is a high-speed vacuum feeder designed for seamless integration with the RENA XPS ProMail and ProTab systems. Built with a rugged steel frame and powerful vacuum shuttle heads, this feeder can process up to 30,000 pieces per hour across a wide variety of envelope and flat stock sizes. Whether you're automating mailing lines or boosting throughput on inserting systems, the XPS ProFeed delivers consistent, jam-free performance. Its user-friendly controls and high-duty cycle rating make it an ideal solution for commercial mailing operations.

Key Features

🔷 Feeds up to 30,000 pieces per hour with high-speed vacuum shuttle operation
🔷 Handles materials from 3” x 5” to 13” x 17” and up to 5/8” thick
🔷 Capacity for up to 750 #10 envelopes for continuous operation
🔷 Includes four unique vacuum shuttle heads and solid alloy separation assembly
🔷 Built-in job counter, emergency stop switch, and durable steel construction

Benefits

✅ Improves workflow speed and reduces feeding errors
✅ Compatible with a wide range of media sizes and materials

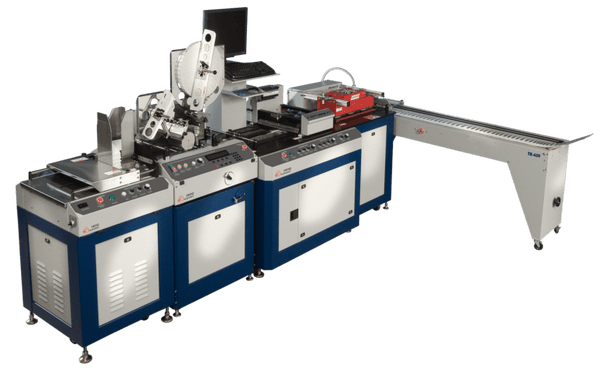

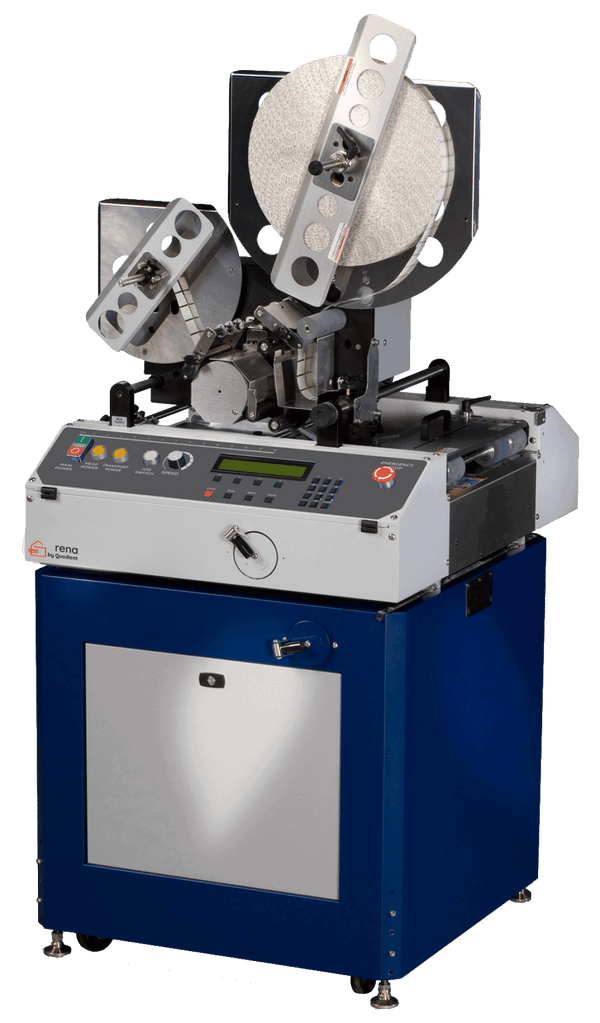

✅ Integrates seamlessly with XPS ProMail and ProTab systems
✅ Reliable for long-term use—rated for 240 million pieces over 5 years
✅ Operator-friendly controls for quick setup and job tracking

Specifications

• Speed: Up to 30,000 pieces/hour
• Media Size Range: 3” x 5” to 13” x 17”
• Max Thickness: Up to 5/8"
• Feeder Capacity: 750 #10 envelopes
• Feeding Mechanism: 4 vacuum shuttle heads
• Material Separation: Solid alloy separation assembly
• Controls: Operator resettable job counter
• Safety: Emergency stop switch
• Duty Cycle: 240 million total / 4 million per month
• Electrical: 115 VAC – 10A
• Dimensions: 51" H × 43" W × 35" D
• Weight: 280 lbs

Applications

🧾 Envelope feeding
📦 Direct mail fulfillment
🗂 Flat mail and media feeding
📬 High-volume mailing automation
