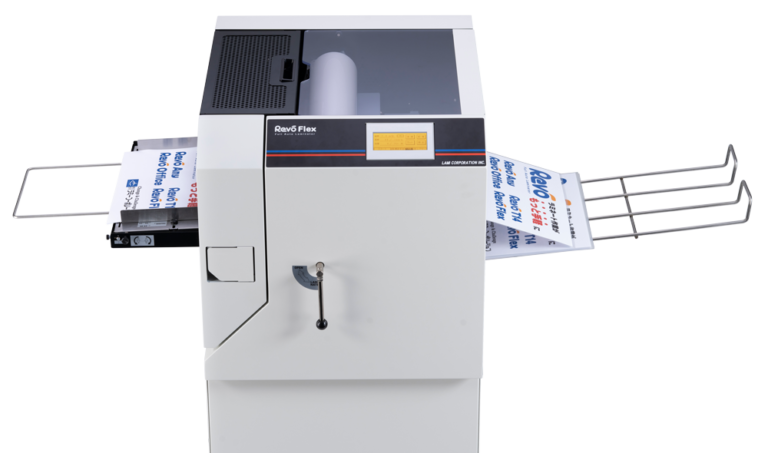

4-Side Trim Automatic Laminator
The Revo Flex is a next-generation fully automatic laminator designed to deliver flush-cut or encapsulated finishes with zero manual trimming. Featuring a true 4-side internal trimming system, automatic feed, lamination, and cutting functions, the Revo Flex is the ideal solution for in-plants, copy shops, and short-run commercial printers. With support for up to 420 sheets/hour, adjustable margin settings, and a stand included, it combines precision automation with user-friendly operation.

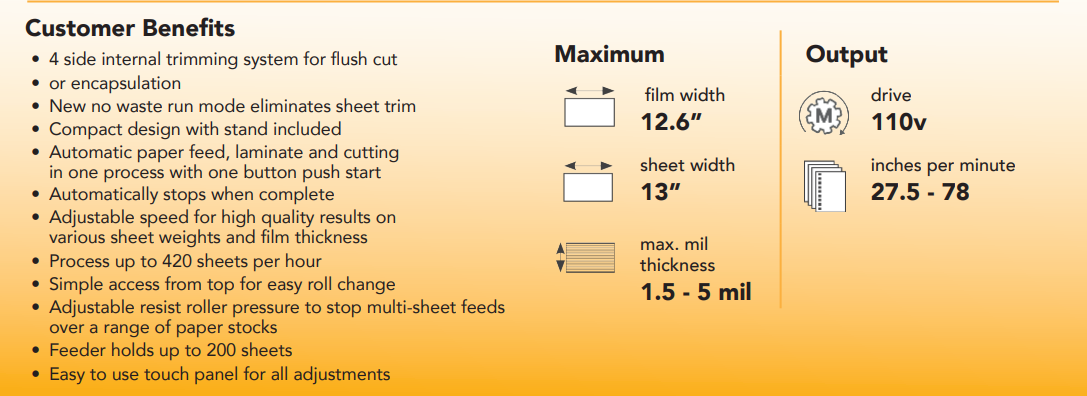

Key Features
๐ท 4-Side Internal Trimming โ Achieve flush-cut or encapsulated lamination without post-processing.
๐ท Fully Automated Workflow โ Load sheets, press start, and the machine feeds, laminates, trims, and cuts automatically.

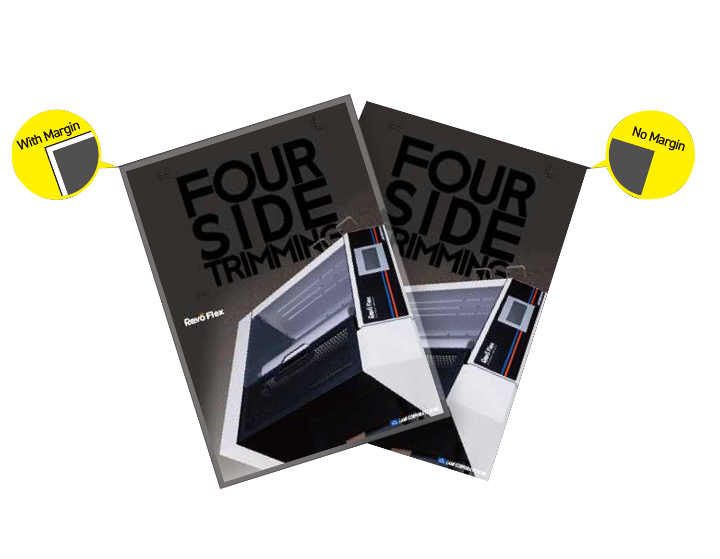

๐ท Adjustable Margin Settings โ Choose full-bleed trimming or custom encapsulation borders.
๐ท Up to 420 Sheets/Hour โ Fast operation with speed control ranging from 27.5 to 78 inches/min.
๐ท No-Waste Run Mode โ Optimizes layout to eliminate trim waste and maximize film usage.

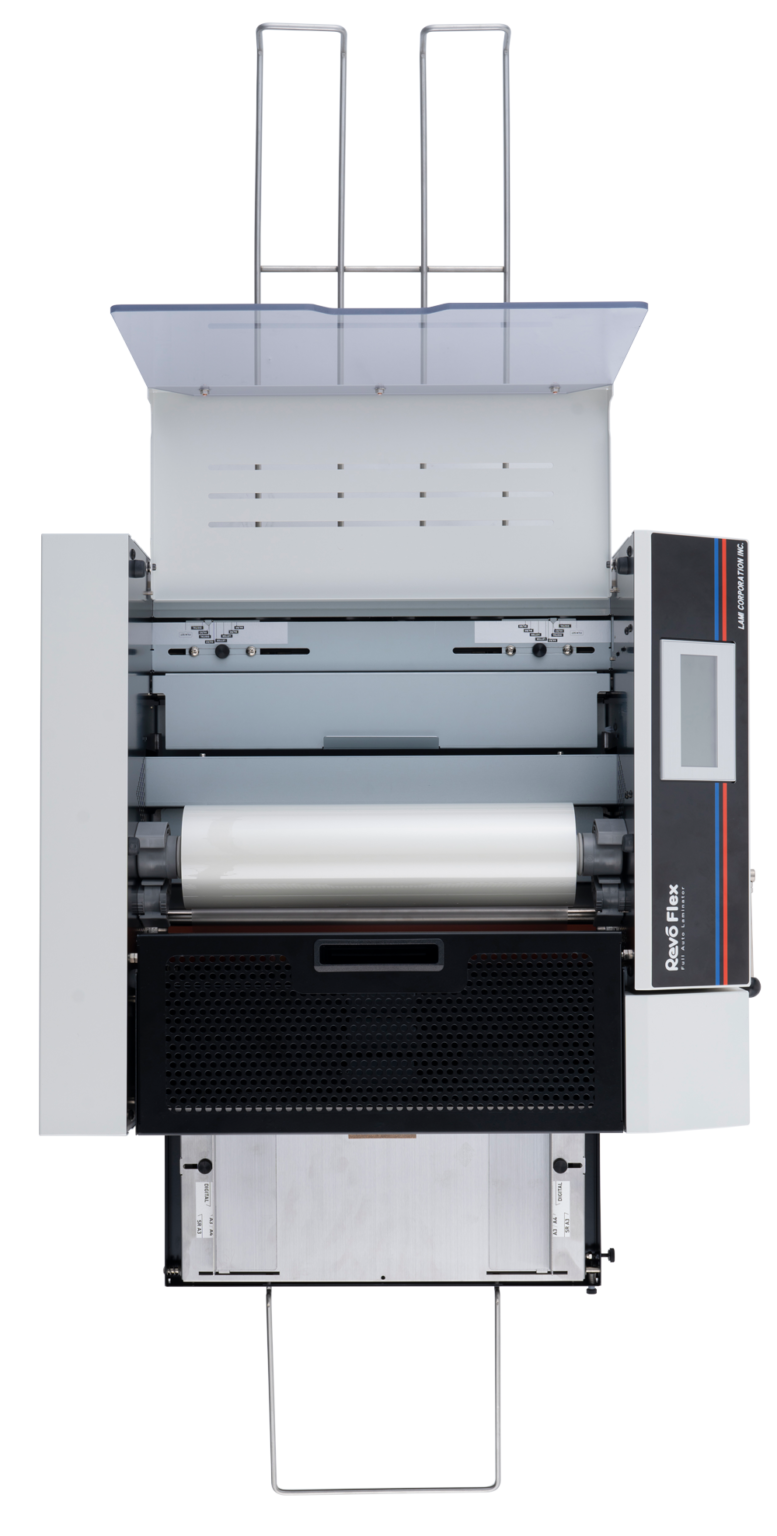

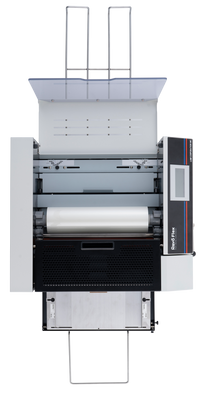

๐ท Top Access Film Loading โ Makes roll changes fast and clean.

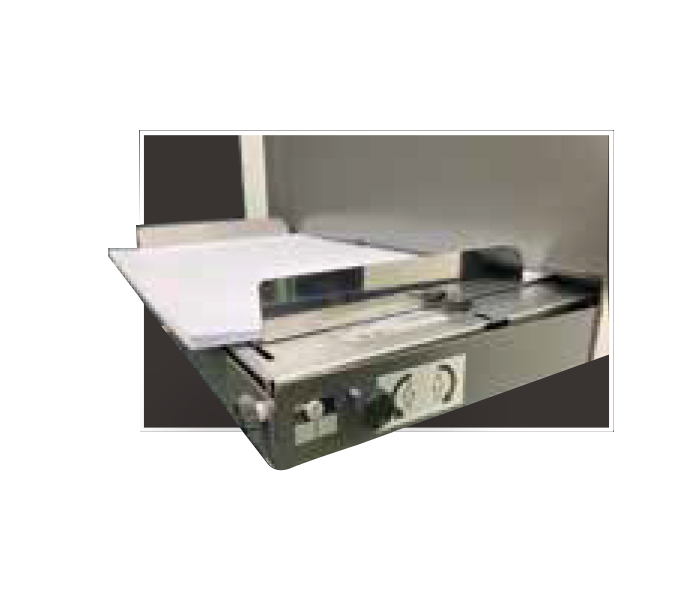

๐ท Resist Roller Pressure Adjustment โ Prevents double-feeding across varied sheet weights.

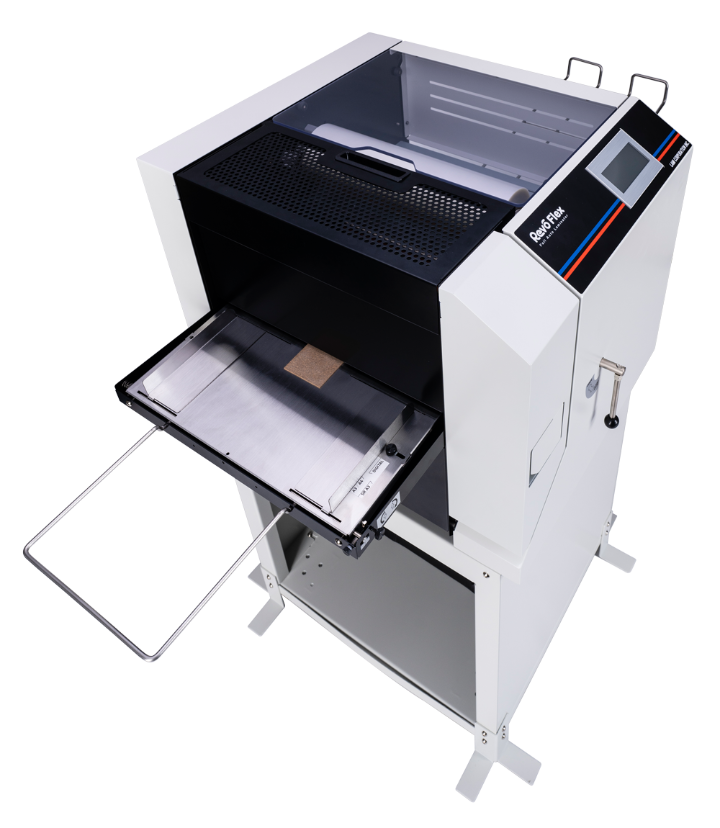

๐ท Touch Panel Interface โ Simplifies operation with preset adjustments and visual feedback.

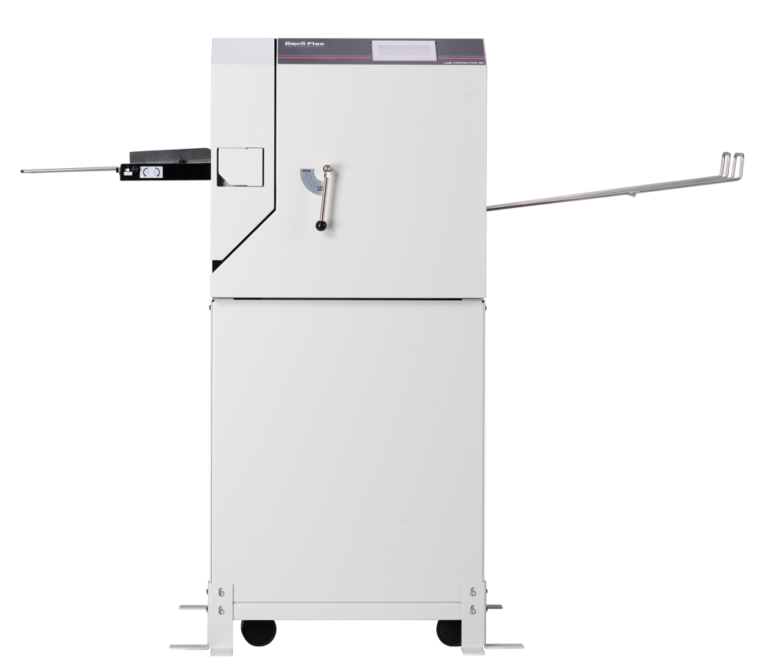

๐ท Compact Design with Stand โ Includes rolling stand for mobility and ergonomic use.
Specifications
Specification | Details |
---|---|
Max Film Width | 12.6โ (320 mm) |
Max Sheet Width | 13โ (330 mm) |
Speed Range | 27.5 โ 78 inches/min |
Max Film Thickness | 1.5 โ 5 mil |
Feed Capacity | Up to 200 sheets |
Lamination Capacity | Up to 420 sheets/hour |
Film Types Supported | Gloss and Matte (Lami Corp rolls only) |
Power Requirement | 110V |
Shipping Dimensions | 51โ x 24โ x 42.5โ |
Shipping Weight | 154 lbs (LTL Freight) |
Included | Film stand, trimming system, top access |
Applications
๐ Copy Shops & Print Rooms โ Automate lamination of flyers, menus, handouts, and covers.
๐ข In-Plants & Corporate Offices โ Efficient for internal signage, instructions, and ID cards.
๐ Schools & Education โ Great for teaching aids, posters, and activity sheets.
๐ Short-Run Product Packaging โ Add durability to labels, product cards, and insert sheets.
Available Options

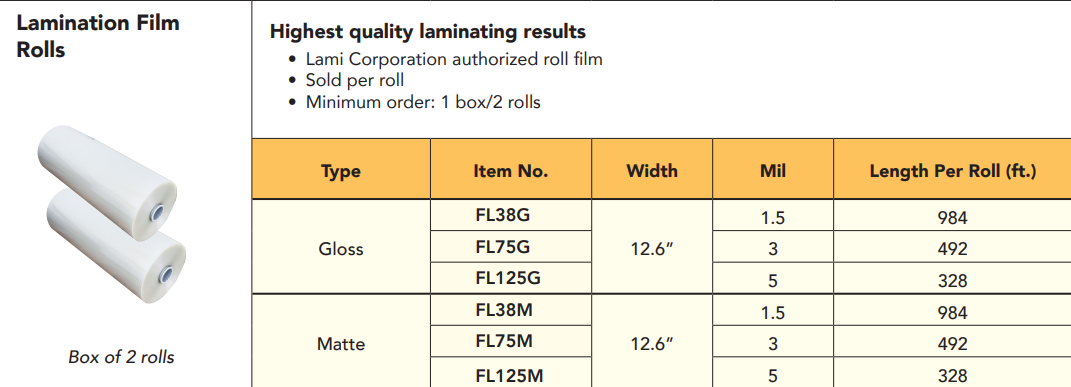

๐ Authorized Gloss & Matte Films โ In 1.5, 3, or 5 mil, sold in boxes of 2 rolls:
โข FL38G / FL38M โ 1.5 mil (984 ft/roll)
โข FL75G / FL75M โ 3 mil (492 ft/roll)
โข FL125G / FL125M โ 5 mil (328 ft/roll)
๐ Cleaning Kit โ Recommended for maintenance of internal rollers.
๐ Replacement Blades โ For trimming system upkeep.
๐ Spare Feed Rollers โ For maintaining optimal sheet feeding over time.
Benefits
โ
Eliminates manual trimmingโsaves time and improves finish quality.
โ
Supports flush-cut or encapsulated output, adjustable by job.
โ
Maximizes film efficiency with intelligent waste-reduction modes.
โ
Safe and easy to use, with pressure adjustment and job memory via touch panel.
โ
Compact footprint with included stand, ready to roll into production areas.
