Standard Horizon APC-610

Standard Horizon APC-610

Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:

How to Purchase This Item:

View the Guillotine Paper Cutters collection
View full details

Hydraulic Paper Cutter - Precision Cutting Equipment

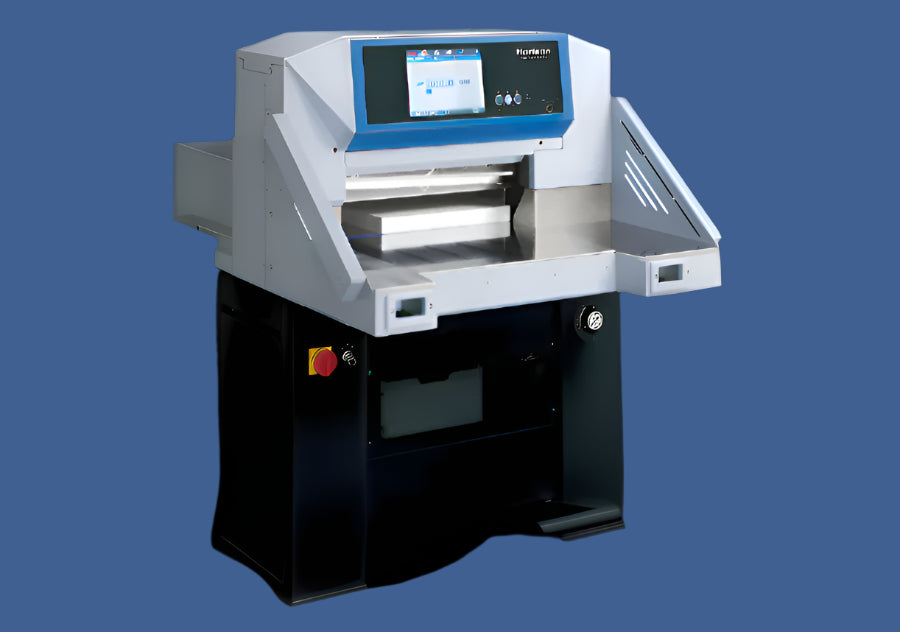

The Standard Horizon APC-610 Programmable Paper Cutter features a maximum cutting width of 24" and a maximum lift height of 3.9". The APC-610 Includes advanced set-up automation through a user-friendly 5" icon-based touch-screen that displays all settings necessary for automated setup. The highly polished, chrome-plated work table virtually eliminates paper marking and provides a smooth, friction-free surface for lift travel. A high-performance back gauge screw and precision-forged linear raceway accurately positions the lift. A two-speed motor system precisely positions the back gauge and ensures maximum cutting accuracy.

Features

  • Powerful & Accurate Hydraulic Clamping & Cutting Mechanism

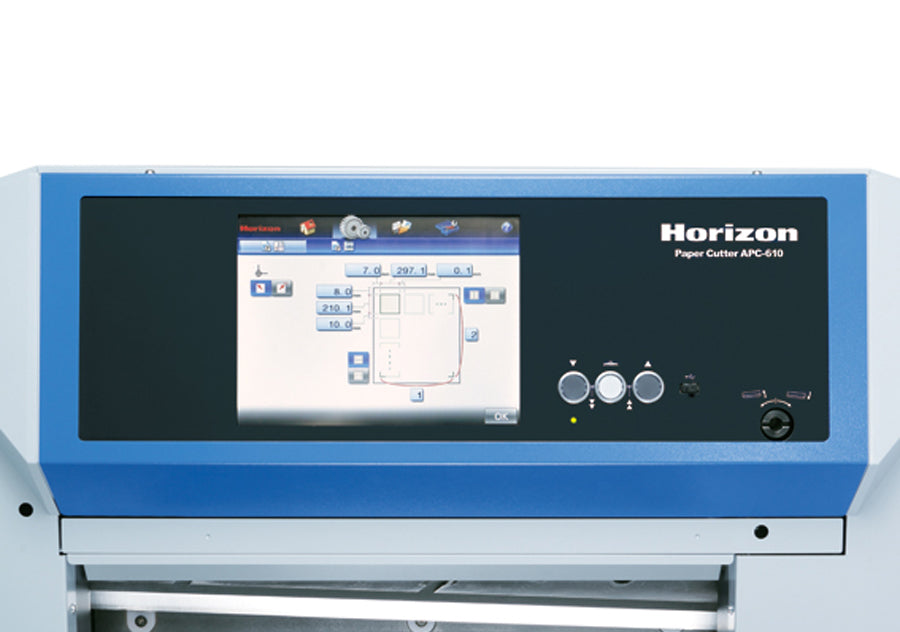

  • Easy Operation with Color Touchscreen
  • Safety Sensors Detect any Object & Stops Automatically
  • JDF Workflow
  • Control Panel
  • Knife Max. Cutting Width 610 mm / 24"
  • Max. Cutting Height 100 mm / 3.39"
  • Cutting Knife is Made of Special Steel

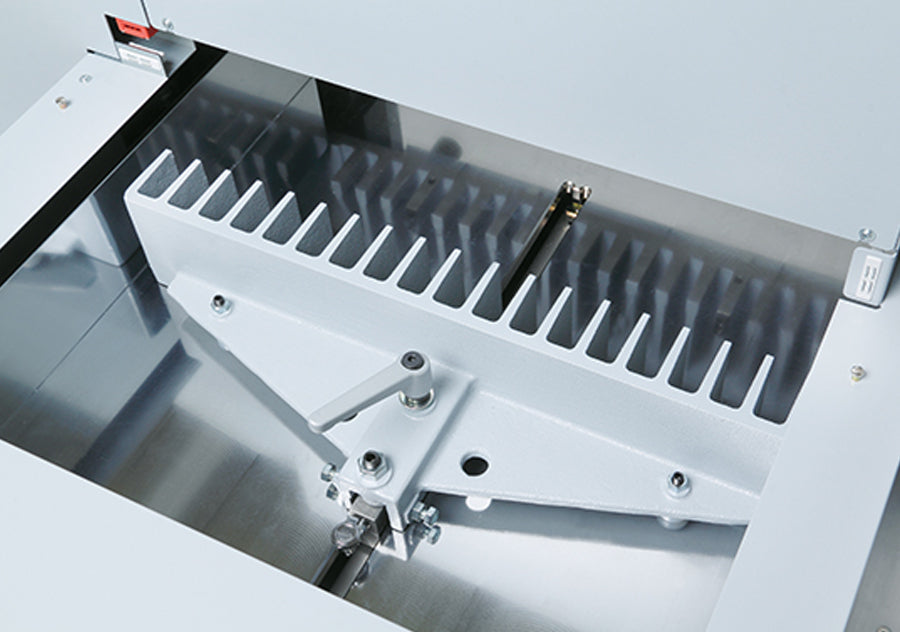

  • Backgauge
  • Knife Angle Adjusting Lever

Technical Specs
Cutting Width Max. 610 mm / 24"
Cutting Height Max. 100 mm / 3.93" (95 mm / 3.74" using the support plate)
Cutting Depth

Max. 620 mm / 24.4"
Min. 25 mm / 0.98" (65 mm / 2.56" using the support plate)
Clamp System Hydraulic Powered to 5 to 20 kN (500 to 2,000 kgf)
Job Memory 99 Steps, 200 Jobs
Push-out Length 20 to 150 mm / 0.785" to 5.905" Adjustable
Cutting Speed 3.8 Seconds per cycle
Machine Dimensions W1,156 x D1,506 x H1,472 mm / W45.6" x D59.3" x H58.0"
Machine Weight 783 kg / 1,724.7 lb
Electrical 3-Phase 200 to 220 V, 50 / 60 Hz 3-Phase 380 / 400 / 415 V, 50 / 60 Hz
Rated Current 3-Phase 200 to 220 V, 50 / 60 Hz, 8.2 A 3-Phase 380 / 400 / 415 V, 50 / 60 Hz, 4.2 A
