New

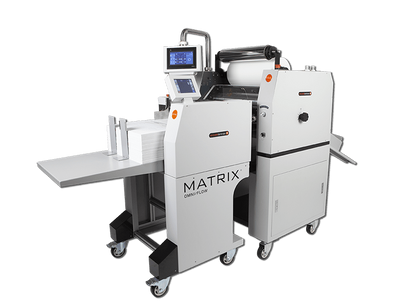

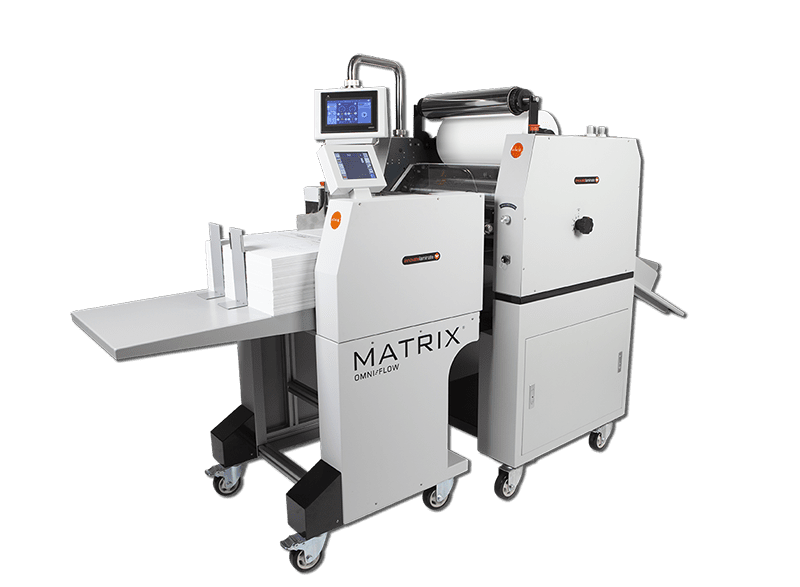

Vivid Matrix 530DP Double Sided Laminator with OmniFlow Feeder

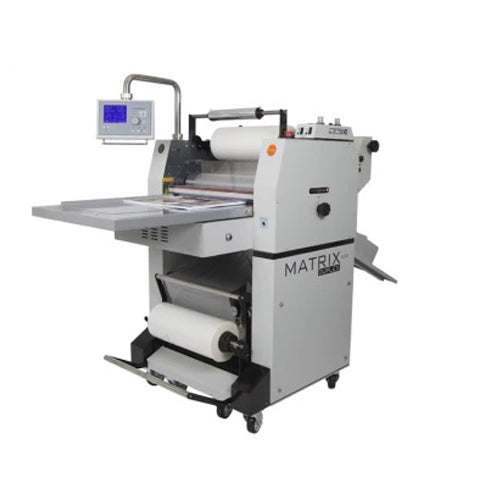

Vivid Matrix 530DP Double Sided Laminator

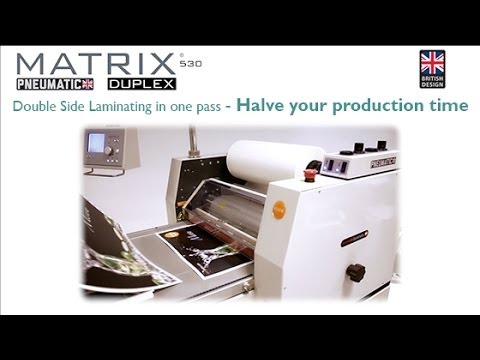

Matrix Duplex MX 530DP Double Sided Laminating Machine Video Showcase
Vivid

Vivid Matrix MX-530DP Double-Sided Laminator

Vivid Matrix MX-530DP double-sided laminator - pneumatic rollers for lamination, foiling and spot-UV. In-house finishing. Michigan dealer, request a quote.

Pricing by quote

We will quote equipment price, freight to your ZIP, and any install or service needs.

Tax-exempt? Apply once, check out tax-free
Parcel shippingShips by ground carrier.
Talk to a finishing expertReal specialists by phone.
Financing availableLease & purchase options.
Factory-trained install & serviceWe deliver, install & support.

Downloads

Details & specifications

Vivid Matrix MX-530DP - Pneumatic Double-Sided Laminator

The Matrix MX-530DP brings professional-grade double-sided lamination, foiling, and spot-UV effects into a single, versatile system. With pneumatic pressure rollers for superior adhesion and up to 50% faster throughput, the MX-530DP is engineered for in-house finishing that previously required outsourcing. Ideal for high-volume commercial printers, in-plants, and digital shops needing high-quality finishes with maximum efficiency.

Key Features

  • Pneumatic pressure rollers for strong, consistent lamination and faster throughput
  • Capable of laminating, foiling, and producing spot-UV style effects in-house
  • Double-sided lamination up to 20” wide for full-size commercial sheets
  • Anti-curl technology ensures flat, smooth finished output
  • Optional Omni-Flow deep pile feeder for automated high-volume throughput
  • Automatic separator for continuous production

Specifications

Max. Mechanical Speed 10 m/min (33 ft/min)
Max. Lamination Film Width 500 mm (20")
Maximum Sheet Width 550 mm (22")
Minimum Paper Thickness 100 gsm / 68 lb
Warm-Up Time 10 minutes
Temperature Range 0-140°C (32-284°F)
Power Supply 220/240V
Power Requirement 32 Amps
Power Consumption 4500 W
Dimensions (W Ă— D Ă— H) 900 Ă— 2050 Ă— 1400 mm (35" Ă— 81" Ă— 55")
Machine Weight 250 kg (550 lbs)

Applications

  • Book covers
  • Brochures
  • Menus
  • Business cards
  • Flyers and marketing sheets

Available Options

  • Omni-Flow deep pile feeder for automated high-volume feeding
  • Foiling and spot-UV effect toolkit

Benefits

  • Reduce outsourcing by bringing premium finishing fully in-house
  • Save production time with up to 50% faster throughput
  • Improve output quality with pneumatic pressure and anti-curl systems
  • Expand service offerings with in-house foiling & spot-UV versatility
  • Built for durability and continuous commercial production

Choosing Your Vivid Matrix Laminator

The Matrix MX-530DP is the 530mm double-sided (duplex) laminator in the Vivid Matrix range, laminating both sides in one pass. For narrower duplex work, step to the Matrix MX-370 DP; shops needing single-sided lamination can ask about the Matrix 530P. Compare the range in our automatic laminators and laminating machines categories.

Vivid Matrix MX-530DP FAQ

Does the MX-530DP laminate both sides?

Yes. It performs double-sided (duplex) lamination in one pass.

Can it do foiling and spot-UV?

Yes. It produces digital foiling and spot-UV style effects.

What gives the improved adhesion?

Pneumatic pressure rollers deliver strong, consistent adhesion and faster throughput.

Is it meant to replace outsourced finishing?

Yes. It is designed for in-house commercial finishing, with up to 50 percent faster throughput.

Does Mid-State Litho support it?

Yes. Mid-State Litho is a Michigan dealer providing delivery, installation, training, and service; the MX-530DP is quote-only, so request a quote for pricing.
