Challenge CMT 330 TC Three-Knife Book Trimmer
Challenge CMT 330 TC Three-Knife Book Trimmer
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370

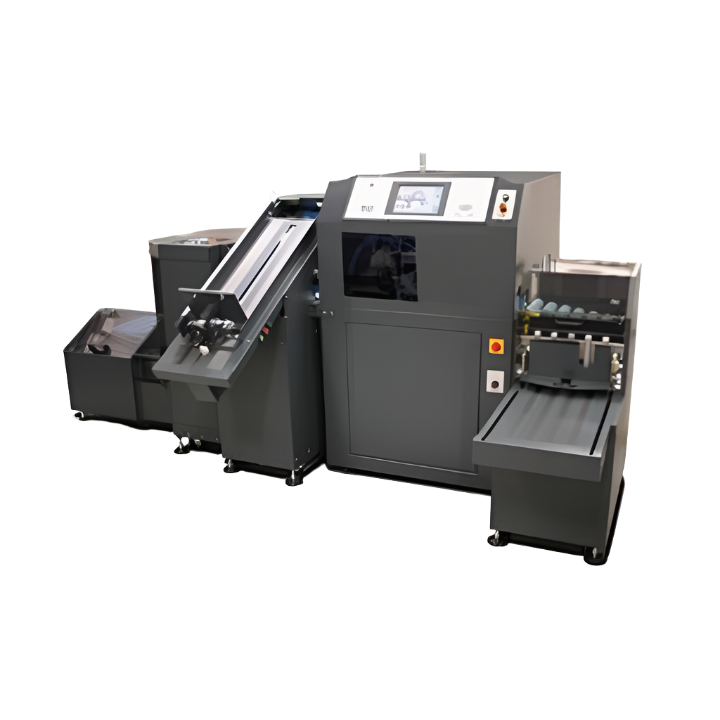

The Challenge CMT 330 TC Three-Knife Book Trimmer features expanded capabilities making it the perfect machine to trim photo books. Featuring a 10.5" color touch screen control panel for ease of use; Integrated bar code reading system for automated set up; Integrated in-line and near-line book feeding components; Graphical display of book path throughout the system; Automatic book size detection; Trims landscape formatted books up to 12" x 12" (305mm x 305mm), perfect for photo books; Powerful hydraulic powered cutting; Trims books up to 2" thick; True three-knife on-demand book trimming.
Precision Cutting Solution Details
- New 10.5" Color Touch Screen control panel
- New Integrated Bar Code reading system for automated set up
- New Integrated In-line and Near-line book feeding components

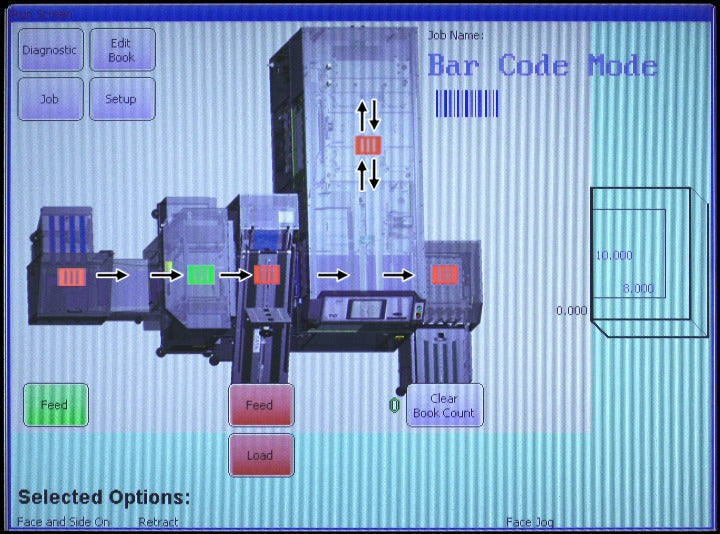

- New Graphical display of book path throughout the system
- New Automatic book size detection
- New - Trims landscape formatted books up to 12" x 12" - perfect for photo books!
- Powerful hydraulic powered cutting
- Trims books up to 2" thick
- True three-knife on-demand book trimming
CMT 330 TC Three-Knife Book Trimmer Specifications
| Starting Book Size Maximum (spine length x book width) | 13" x 13" (330 mm x 330 mm) |
| Starting Book Size Minimum (spine length x book width) - Near Line Single Mode | 7" x 5" (178 mm x 127 mm) |
| Starting Book Size Minimum (spine length x book width) - Near Line Multi Mode | 7" x 8" (178 mm x 203 mm) |
| Starting Book Size Minimum (spine length x book width) - In-Line Single Mode | 7" x 8" (178 mm x 203 mm) |
| Starting Book Size Minimum (spine length x book width) - In-Line Single Mode | 7" x 9" (178 mm x 229 mm) |
| Finished Book Size Maximum (spine length x book width) | 12.1" x 12.9" (307 mm x 328 mm) |
| Finished Book Size Minimum (spine length x book width) | 5.82" x 3.94" (148 mm x 100 mm) |
| Minimum Trim, all sides | .100" (2.5 mm) |
| Maximum Trim - Top | 6" (152 mm) |
| Maximum Book Thickness | 2" (51 mm) |

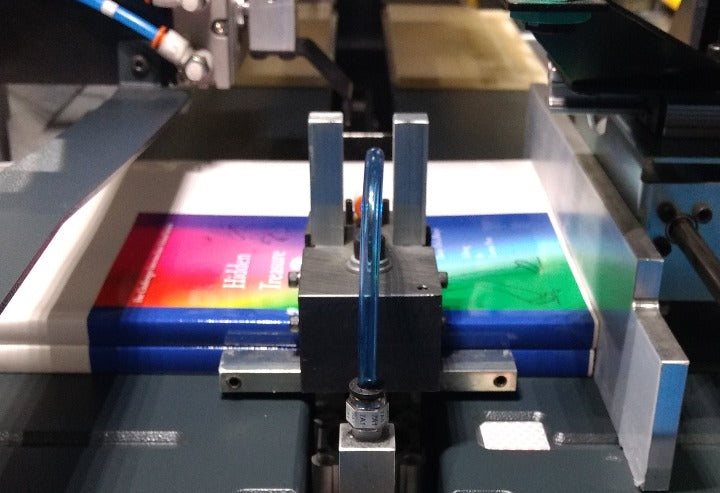

| Throughput | Up to 700 books per hour (multi-book mode) |
| Memory | 99 Book Jobs |
| Set-up Time for Book Size Change | < 6 Seconds |
CMT 330 TC Three-Knife Book Trimmer Electrical
| Power option 1 | 60 Hz, AC, 3 Phase 208/230 Volts, 20 Amps(service size 30 Amps) |
| Power option 2 | 50 Hz, AC, 3 Phase 380/415 Volts, 16.5 Amps(service size 20 Amps) |
| Power option 3 | 50 Hz, AC, 3 Phase 200-208 Volts, 20 Amps(service size 30 Amps) |
CMT 330 TC Book Trimmer Compressed Air Information
| Air requirement | 80-90 PSI (550-620 kPa), regulated, dry, non-lubricated compressed air |
| Air Minimum | 9 CFM at 90 PSI (255 LPM at 620 kPa) |
| Air quality standard requirement | ISO 8573.1 Class 2.4.2 (solids < 1 micron, pressure dew point < 38°F @100psig, oil content < 0.08 ppm |
| Compressor air dryer minimum | ISO Class 4 or better (pressure dew point < 38°F @100psig) |
| Suggested system 1 | Traditional piston type compressor. Powerex AS0203 - 2 hp climate control compressor with built-in refrigerated dryer, electronic auto drain and starter. |
| Suggested system 2 | Rotary scroll type compressor. The advantage to this type is minimum maintenance and very quiet operation (49 - 51 db). Powerex SES0308-208v with ACO100010 factory installed refrigerated dryer and auto drain. |
| Suggested system contact information | Available from Air Technologies. Phone: 616-281-9500 www.aircompressors.com |
| IMPORTANT NOTE ABOUT WARRANTY | Failure to use dry, non-lubricated compressed air that meets or exceeds the above requirements may cause damage to the machine and will result in THE WARRANTY BEING VOIDED. |
