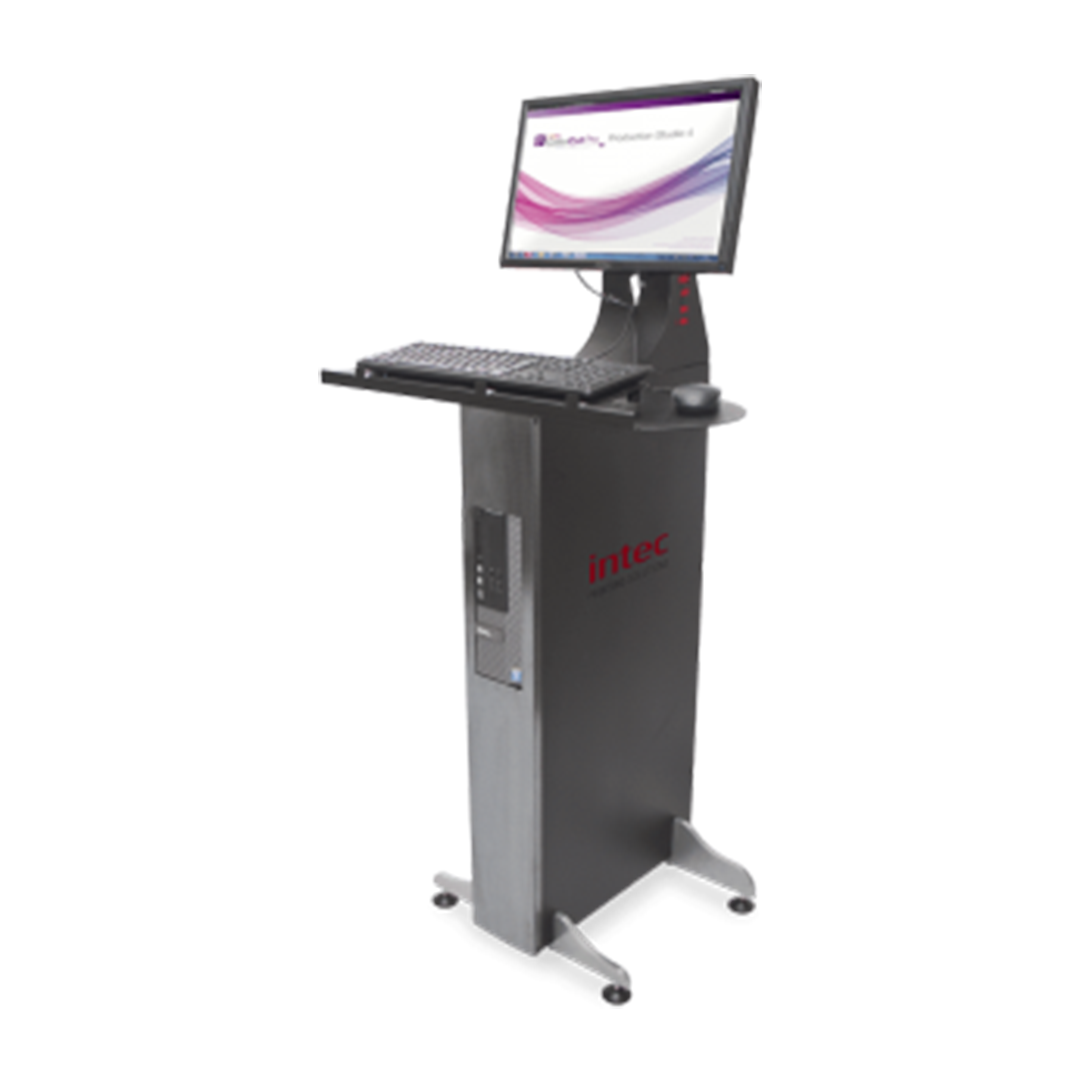

Intec ColorCut Pro Server Station
Intec ColorCut Pro Server Station with Production Studio, Job Library Manager and Template Maker installed. One job library for every ColorCut cutter in the shop. Authorized Intec dealer in Michigan.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Intec ColorCut Pro Server Station
Overview
The ColorCut Pro Server Station centralizes ColorCut workflow for connected design and production teams. Designers send cut files to a shared job library, while operators recall and process them with consistent settings and minimal setup.
Pre-installed software, configured hardware, and network-ready management tools create a unified environment that increases throughput and reduces errors in short-run cutting and packaging workflows.
Key Features
- Centralized hub for multiple users and ColorCut systems
- Job Library Manager for synchronized cut file access and reprints
- Template Maker for creating custom carton and shape die lines
- SmartColors mapping for accurate cutting, creasing, and perforation
- Two additional user licences included
- Cross-platform workflow (Windows and Mac)
- Error reduction through unified file handling and repeatable setup
Software Suite (Pre-installed)
- Production Studio — core operation and client version for cut file creation
- Job Library Manager — networked repository with saved job parameters
- Template Maker — dimension-based carton and shape generator
Hardware Summary
- Intel® i5 6-core processor (3.0–4.4 GHz), 8 GB RAM, 256 GB storage (min.)
- Integrated graphics, DVD±RW, 8 USB ports (4 front / 4 rear)
- 20″ LED-backlit LCD monitor (1600 × 900 resolution)
- Ergonomic workstation stand with tilt-adjustable monitor and PC lock
- Power: 110–240 V AC | 50–60 Hz | 180 W | CE / RoHS compliant
Compatibility
Works with all Intec ColorCut systems, including FB9000PRO, FB8000PRO, FB1175, FB750, FB550, SC5000, and LC600.
Specifications
| Category | Detail |
|---|---|
| Included software | Production Studio, Job Library Manager, Template Maker + additional user licences |
| Host OS / clients | Compatible with Windows® 10/11 and Mac clients |
| Networking | Gigabit Ethernet recommended for shared job folders and device connections |
| Dimensions (W×D×H) | 740 × 550 × 1420 mm (29.13″ × 21.65″ × 55.90″) |
| Weight | 44 kg unpacked (including stand) |
| Approvals | CE and RoHS certified; energy-efficient design |
Specifications based on official Intec documentation. Subject to change without notice.
Who needs a ColorCut Pro Server Station
The server station is a dedicated computer for ColorCut Pro. It holds one job library for the whole shop. Designers send cut files to it from Mac or Windows computers on the network.
The operator recalls a saved job at the cutter. The cut settings come back with the file, so a reprint matches the first run.
Add a server station if two or more designers send work to the cutter. Add one if the shop runs more than one ColorCut system. If one person designs and cuts on one machine, the standard ColorCut Pro software is enough.
The station works with current ColorCut systems:
- Flatbed cutters: FB580, FB790T, FB1190T and FB9500 Pro T.
- Sheet cutters: SC6500 and SC7100 Pro T.
Compare every model on the paper die cutting machines page.
Delivery, setup and support
The server station ships by parcel in one carton. It runs on 110 to 240 V AC and needs a network connection to the designer computers. A wired gigabit network is best for shared job folders.
Mid-State Litho is an authorized Intec ColorCut dealer. For a quote on a cutter and a server station together, contact us.
Mid-State Litho is a family-owned dealer in Michigan, in business since 1984. For setup and repair, see service and support. To pay in monthly amounts, see financing and leasing.
Frequently asked questions
What does the ColorCut Pro Server Station do?
It is a dedicated computer for ColorCut Pro. It stores one shared job library. Designers send cut files to it, and operators recall them at the cutter.
Which software comes on the server station?
The station comes with ColorCut Pro Production Studio, Job Library Manager and Template Maker installed.
Does the server station cut paper or board?
No. The station is a workflow computer. It needs a compatible Intec ColorCut cutter to cut sheets.
Can Mac designers send jobs to the station?
Yes. The station accepts cut files from Mac and Windows computers on the same network.
When do I need a server station?
Add a server station when two or more designers send jobs to the cutter, or when the shop runs more than one ColorCut system.
