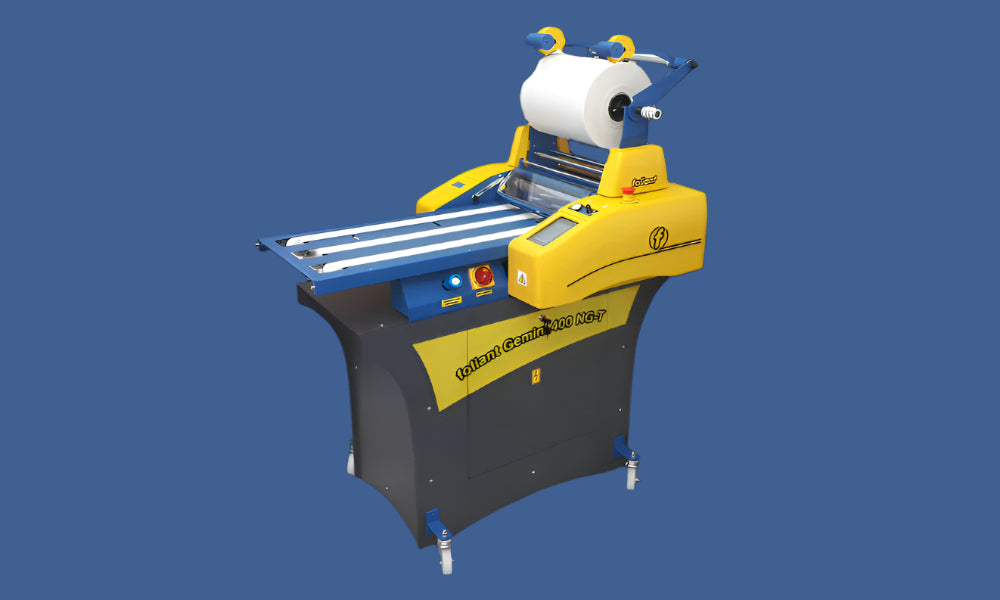

Foliant Gemini 400 NG-T
A compact, high-pressure laminator with pneumatic rollers, touchscreen control, and digital-friendly de-curling—ideal for 14.96” x 22.83” lamination.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
High-pressure laminator
The Foliant Gemini 400 NG-T is a compact single-sided laminator for digital and offset sheet lamination. Pneumatic roller pressure comes from an integrated compressor, so no external air line is needed. The 29" x 46" footprint fits tight production areas, and a touchscreen PLC interface handles settings and status. Manual feed and separation are standard; an automatic separator upgrade is available. It suits print shops and in-plant operations running short- to medium-length lamination jobs.
Key features
- Pneumatic pressure system with integrated compressor delivers extra-high roller pressure without an external air source
- Manual feed and separation with synchronized conveyor and film perforation
- Infrared-heated chrome laminating roller with contact sensor, paired with a rubber roller, for consistent film bonding
- Adjustable twin de-curl unit: blade for offset sheets, roller for digital prints to avoid toner scratches
- Touchscreen control interface driven by PLC
- Compact design needs only 29" x 46" of floor space
- Film roll shaft accepts 1" or 3" core rolls, up to 9,842' of 24-42 µm film
Specifications
| Specification | Details |
|---|---|
| Max speed | 49 ft/min |
| Max sheet size | 14.96" x 22.83" |
| Min sheet size | 7.87" x 11.8" (A4) |
| Max performance | 1,800 SPH (13.9" x 19.7") |
| Paper weight range | 115-350 gsm |
| Film compatibility | BOPP (24-42 µm), Nylon (up to 35 µm) |
| Power supply | 230V AC, 50-60Hz |
| Power consumption | 2,550 W |
| Compressor | Integrated (no external source required) |
| Temperature range | 176°-284°F (80°-140°C) |
| Warm-up time | 5 minutes |
| Control system | Touchscreen + PLC |
| Footprint (W x L) | 29" x 46" |
| Weight | 335 lbs |
Applications
- Short-run digital lamination: flyers, business cards, and mailers
- Book covers and inserts for short-run or on-demand book production
- Retail packaging and tags: folding cartons, gift cards, and signage inserts
- In-plant corporate printing, with low training requirements for occasional operators
Available options

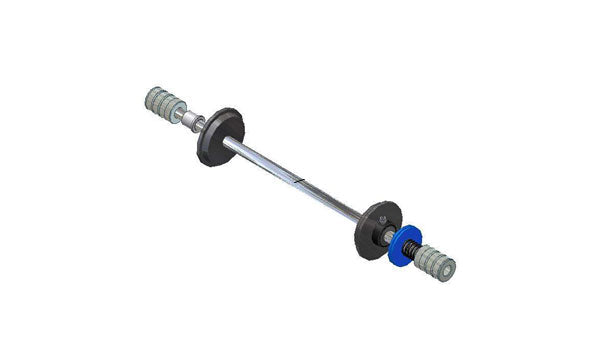

- Extra film supply roll shaft for faster film changeovers

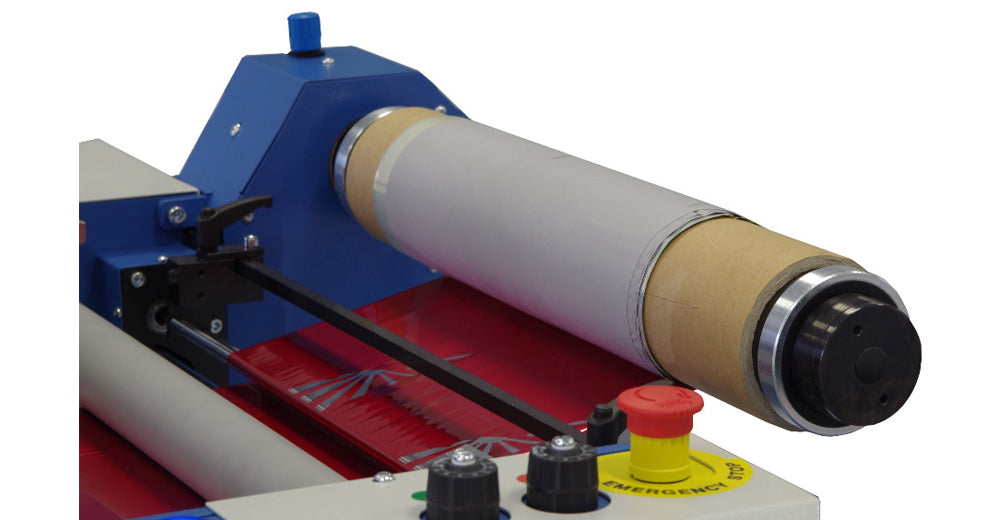

- Non-sticky pressure roller prevents glue buildup and allows windowed sheet lamination
- Foliant Foiler for metallic or spot varnish films (gold, silver, red, and others)
- Automatic separator upgrade adds automated sheet separation and jogger compatibility
- Reception tray or vibrating jogger for post-laminate sheet stacking
Benefits
High roller pressure produces clear lamination on demanding stock, and the built-in compressor keeps installation simple. The dual de-curl system handles both digital and offset prints, the five-minute warm-up gets short jobs moving quickly, and when volume grows the machine upgrades to automated separation instead of being replaced.
