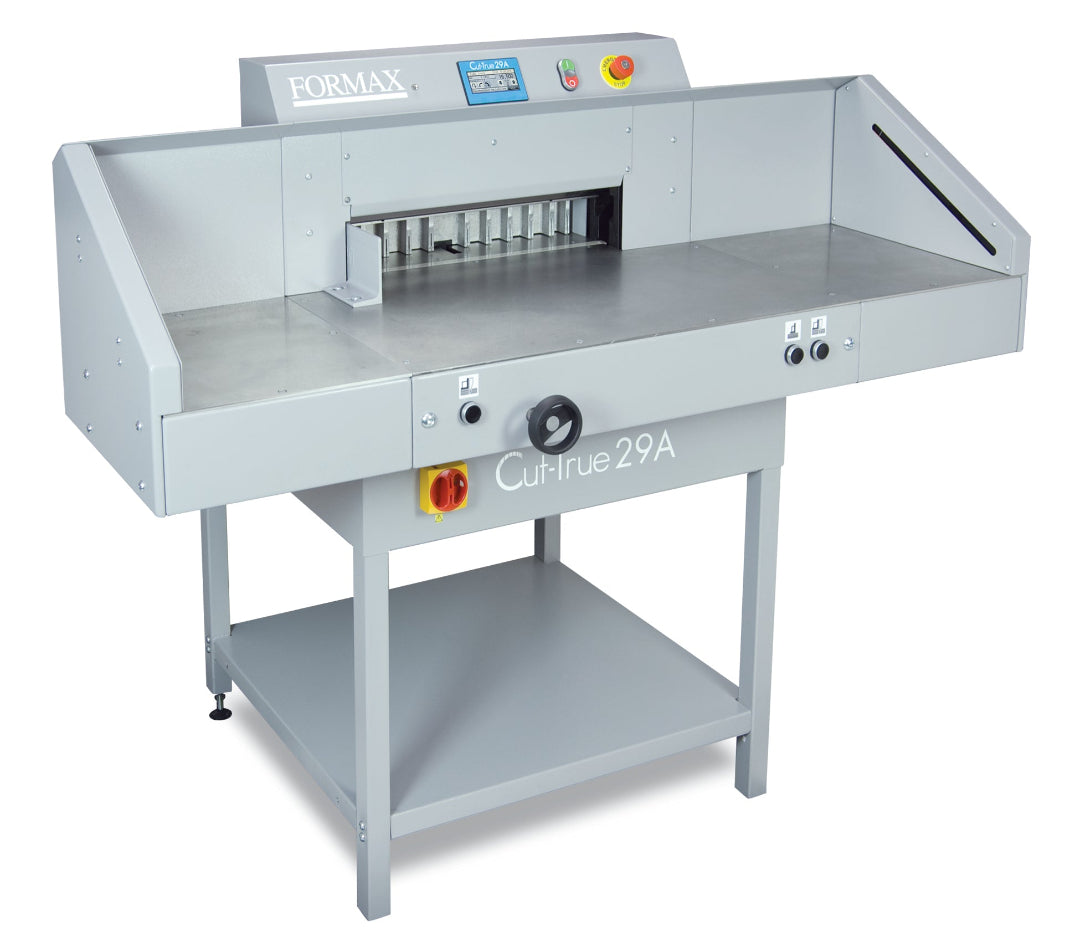

Formax Cut-True 29A Electric Guillotine Paper Cutter
The Formax Cut-True 29A is a programmable electric guillotine cutter built for print shops, in-plants, and finishing environments that need precision, repeatability, and operator safety. With a 20.5” cutting width, 7” full-color touchscreen, electronically controlled clamp and blade, and the ability to store up to 100 jobs with up to 100 steps each, the 29A delivers efficient, accurate cutting for a wide range of production applications.
Key Features
- 20.5” cutting width for handling larger sheets and production jobs
- Electronic clamp and blade control for smooth, consistent cutting performance

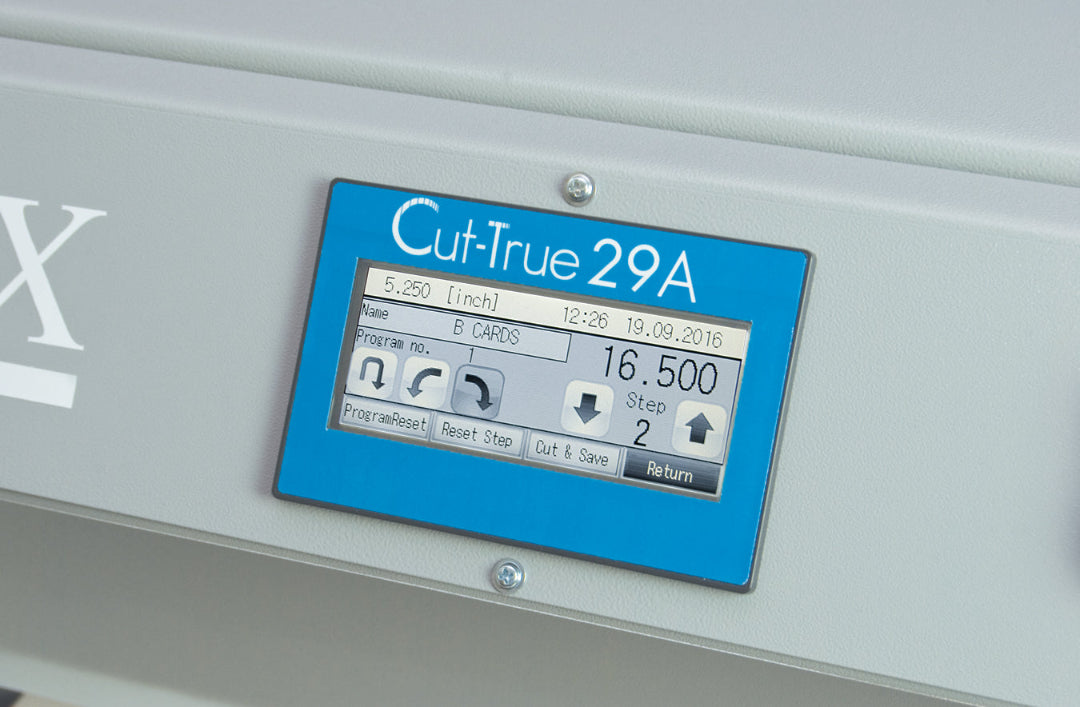

- 7” full-color touchscreen for programming jobs, switching between inches and millimeters, paper eject functions, and setup adjustments
- Up to 100 programmable jobs, with up to 100 steps per job, for repeat work and faster setup
- Fully programmable back gauge for accurate positioning and repeatable cut sequences

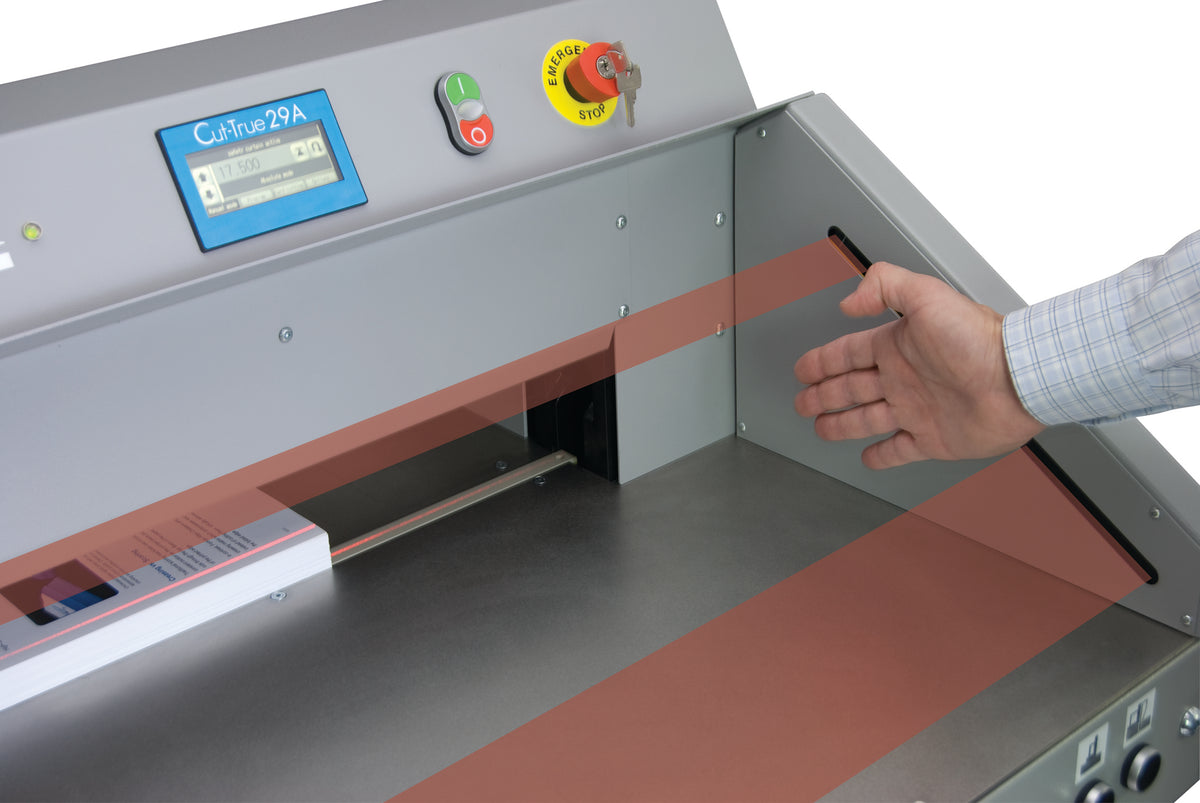

- Infrared light beam safety curtain that immediately stops operation if interrupted
- Two-hand operation to help keep hands clear during cutting
- LED cutting line for clear visual alignment before each cut
- Fine-tuning knob for precise adjustment control
- Automatic blade return from any position for efficient operation
Product Overview
Designed for modern finishing workflows, the Cut-True 29A combines user-friendly controls with production-ready cutting capability. Its programmable touchscreen and electronic back gauge make repeat jobs faster and more consistent, while the infrared safety curtain and two-hand operation help support safe day-to-day use.
The low-friction work surface, hardened steel blade, solid steel blade carrier, and included blade change safety tool kit make this model a strong fit for operations that need dependable cutting performance without stepping up to a much larger industrial cutter.
Specifications
| Cutting Action | Dual-button electric |
| Maximum Cutting Width | 20.5” (520mm) |
| Maximum Paper Stack Height | 3.15” (80mm) |
| Length Behind Blade | 20.5” (520mm) |
| Length in Front of Blade | 18.25” (464mm) |
| Minimum Cut with False Clamp | 1.6” (40mm) |
| Minimum Cut without False Clamp | 0.98” (25mm) |
| Table Size | 30.75” W x 15.75” D (781 x 400mm) |
| Clamp Style | Automatic, electronically adjusted |
| Back Gauge Adjustment | Fully programmable using screen |
| Cutting Accuracy | 0.1mm on stacks up to 80mm |
| Blade Change Safety Tool | Included |
| Dimensions | 49.25” H x 31” W x 53.25” D (1250 x 788 x 1352mm) |

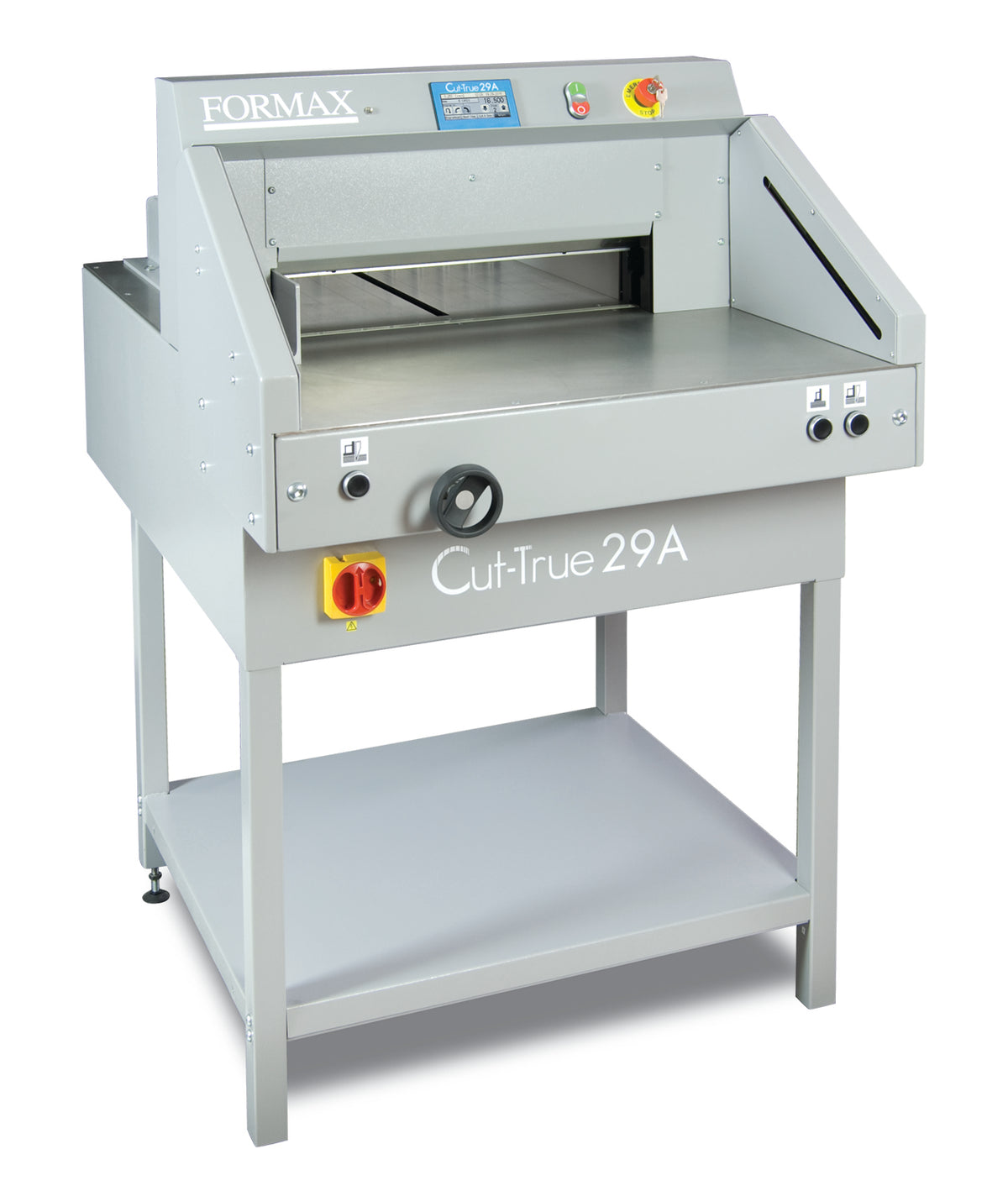

| Dimensions with Optional Side Tables | 49.25” H x 61” W x 53.25” D (1250 x 1549 x 1352mm) |
| Weight | 683 lbs (310kg) |
| Power Supply | 220V, 60Hz, 20A dedicated line, NEMA 6-20P |
Applications
- Commercial print finishing
- Digital print trimming
- In-plant print operations
- Booklet and book block cutting
- Marketing materials and direct mail
- General paper converting and finishing workflows
Available Options and Supplies
- Wide Side Tables (Pair)
- 29-10 Replacement Blade
- 29-20 Replacement Cutting Sticks, package of 8
Benefits
- Helps reduce setup time on repeat jobs with programmable memory
- Improves cut consistency with electronic control and programmable back gauge
- Supports safer operation with infrared curtain and two-hand activation
- Provides clear alignment and precision adjustment tools for accurate cutting
- Offers a strong production feature set in a space-efficient electric cutter design
Why the Cut-True 29A
The Formax Cut-True 29A is a strong fit for print providers and finishing departments that need more than a basic electric cutter. Its combination of touchscreen programming, electronic control, repeatable accuracy, and built-in safety features makes it an efficient solution for shops looking to improve productivity while maintaining precision and operator confidence.
About Formax and the Cut-True line
Formax builds print finishing and mailing equipment, and Cut-True is its guillotine paper cutter line. Mid-State Litho is an authorized Formax dealer. The line runs from small manual tabletop cutters, through the programmable electric models, up to floor-model hydraulic guillotines, so the same brand covers a copy-shop trimmer and a production bindery cutter. The 29A sits in the electric tier. What separates the tiers is how the clamp and blade are driven and how much stack the machine is built to take, which is the choice covered below. See our guillotine paper cutters.
How to choose a Cut-True guillotine
Three things decide which Cut-True fits: the widest sheet you cut, how much you cut in a day, and whether the operator needs to store and recall jobs instead of setting each cut by hand. Width sets the floor. Volume and stack height decide whether an electric clamp is enough or the job calls for hydraulic. Job memory is what separates a machine an experienced operator runs from one anybody on the floor can run repeatably.
| Tier | Models | Where it fits |
|---|---|---|
| Manual (M/S) | Cut-True 13M, 15M, 16M, 23S, 27S | Small to mid tabletop cutting, low volume |
| Electric (A) | Cut-True 28A, Cut-True 29A (this machine) | Programmable electric clamp and blade, 20.5 inch class |
| Hydraulic (H) | Cut-True 29H, Cut-True 31H, Cut-True 33H | Hydraulic clamp for heavier stock and higher volume |
The 29A is the electric step for a shop that needs a 20.5 inch cut width and 100-job memory but does not need a hydraulic clamp. If your stack heights or run volume are pushing an electric clamp, look at the hydraulic guillotines instead. If you are below the 20.5 inch width, the 28A and the rest of the electric paper cutters cover it.
Why buy from Mid-State Litho
A guillotine goes down at the worst possible time, so the question worth asking a dealer is what happens on that Thursday afternoon. We sharpen knives in house and stock replacement blades and cutting sticks, so a dull knife is a turnaround, not a special order. Our technicians are factory trained and we have been an equipment dealer since 1984, based in Michigan and covering the Great Lakes region. Install and operator training are available, the 29A ships free freight, and we offer financing and leasing. See knives for paper cutters and service and support, or request a quote.
Frequently asked questions
What is the cut width of the Cut-True 29A?
20.5 inches, which handles larger sheets and most production jobs.
Is the 29A electric or hydraulic?
It is a programmable electric guillotine with an electronically controlled clamp and blade. The Cut-True 29H is the hydraulic model in the same 20 inch class for heavier-duty runs.
How many jobs can it store?
Up to 100 jobs with up to 100 programmed steps each, run from a 7 inch color touchscreen.
What safety features does it have?
An electronically controlled clamp and blade plus a safety curtain across the cutting line.
How does the 29A compare to the 28A?
Both are electric Cut-True cutters. The 28A is the smaller-width electric model; the 29A steps up to a 20.5 inch cut width. Above them, the 29H, 31H, and 33H are hydraulic.
