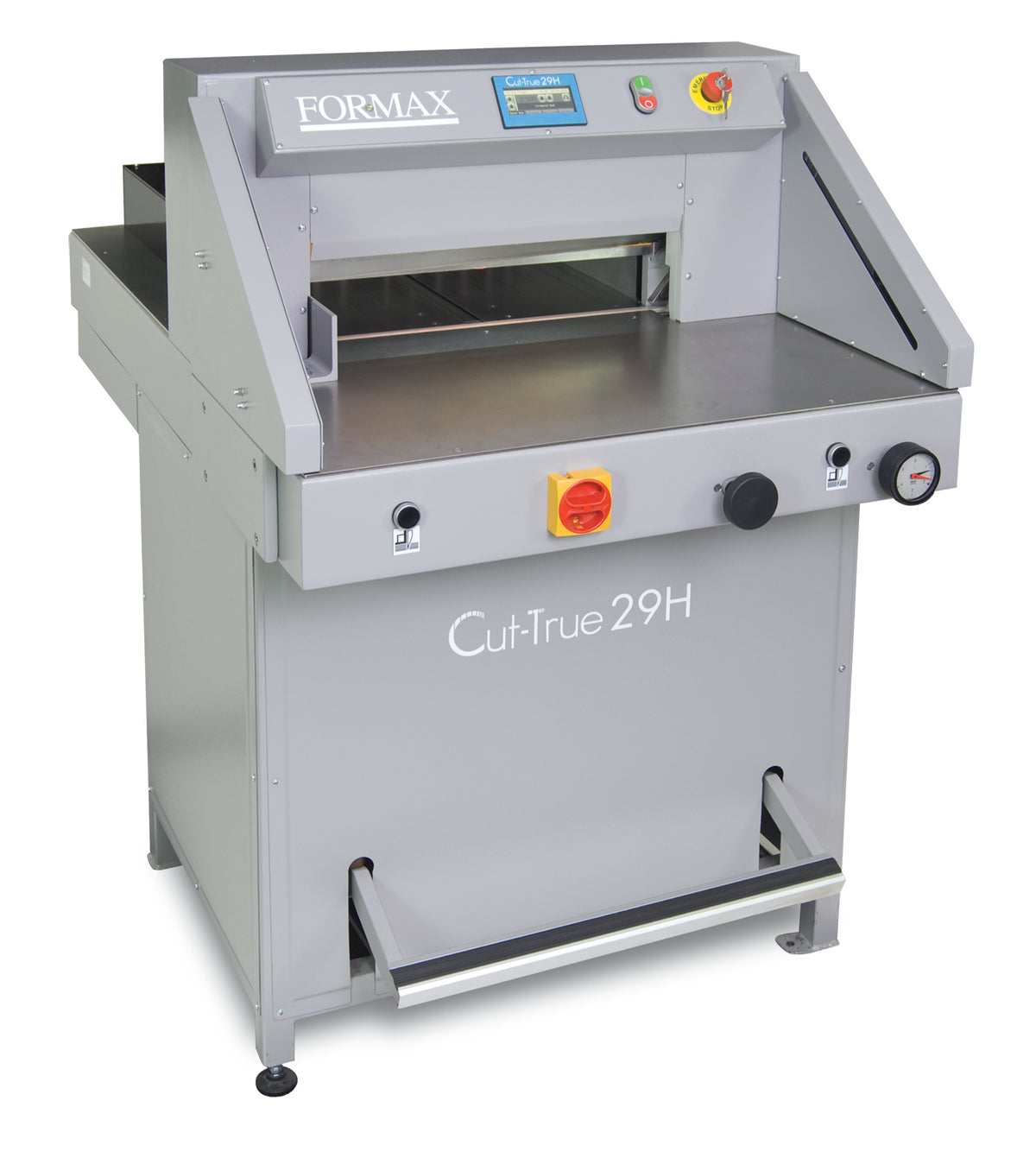

Formax Cut-True 29H Hydraulic Guillotine Paper Cutter
Hydraulic 20.5” guillotine cutter with touchscreen controls, programmable jobs, and high-pressure clamp for production print and finishing workflows.
Details & specifications
Formax Cut-True 29H Hydraulic Guillotine Paper Cutter
The Formax Cut-True 29H is a production-grade hydraulic guillotine cutter designed for print shops, in-plants, and finishing departments that need higher clamp force, dependable repeatability, and true shift-ready performance. With a 20.5” cutting width, 7” full-color touchscreen, hydraulic clamp and blade control, and the ability to store up to 100 jobs with up to 100 steps each, the 29H is built for demanding cutting environments.
Key Features
- Hydraulically controlled clamp and blade for strong, consistent cutting performance
- True two-shift operation for higher-volume production environments
- 20.5” cutting width for larger sheets and demanding finishing applications

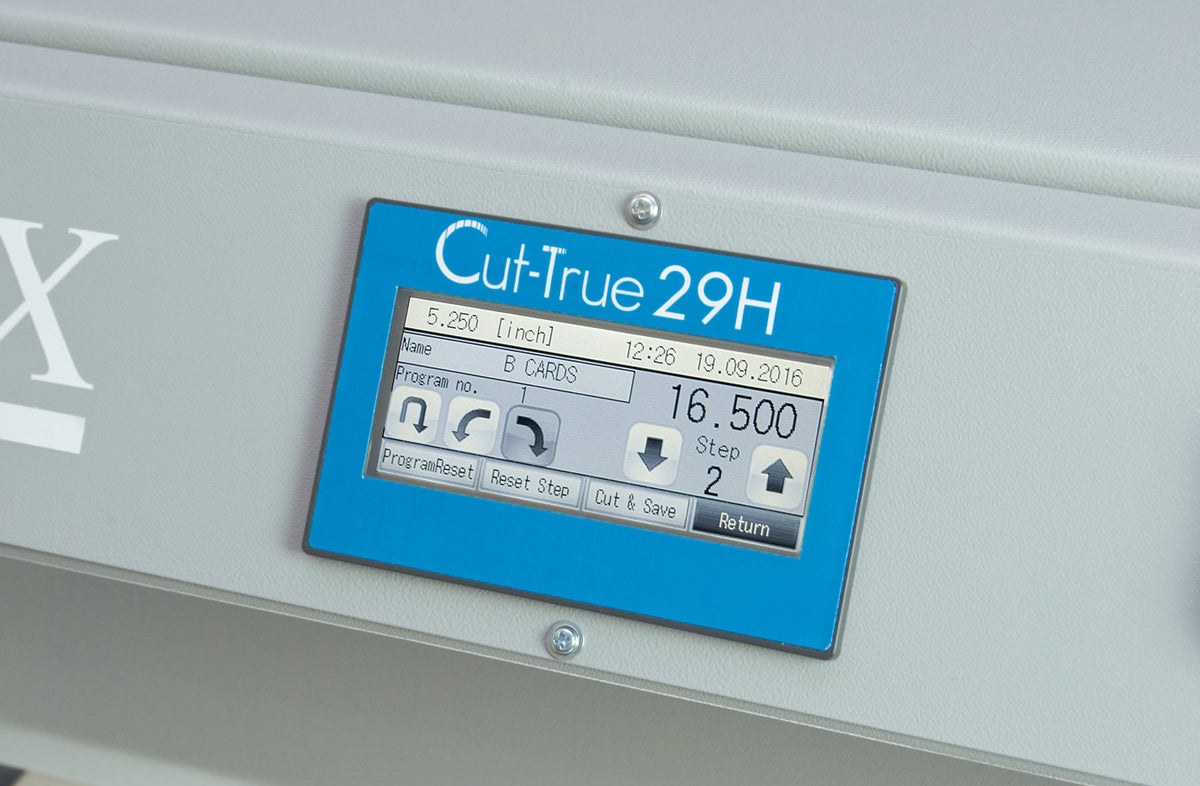

- 7” full-color touchscreen for programming jobs and simplifying setup
- Up to 100 programmable jobs, with up to 100 steps each, for repeat work and fast recalls
- Fully programmable back gauge for accurate, repeatable cut positioning
- Infrared light beam safety curtain that stops operation when interrupted
- Two-hand operation for safer cutting activation

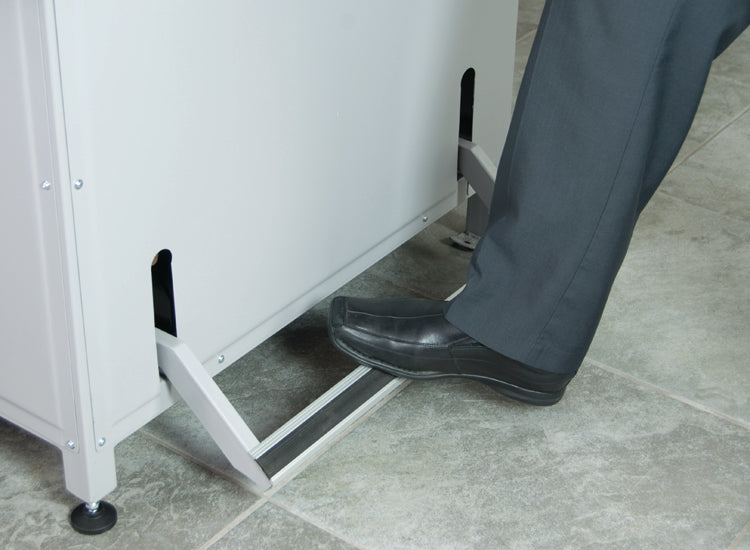

- Foot pedal pre-clamp to hold stock in place and check alignment prior to cutting

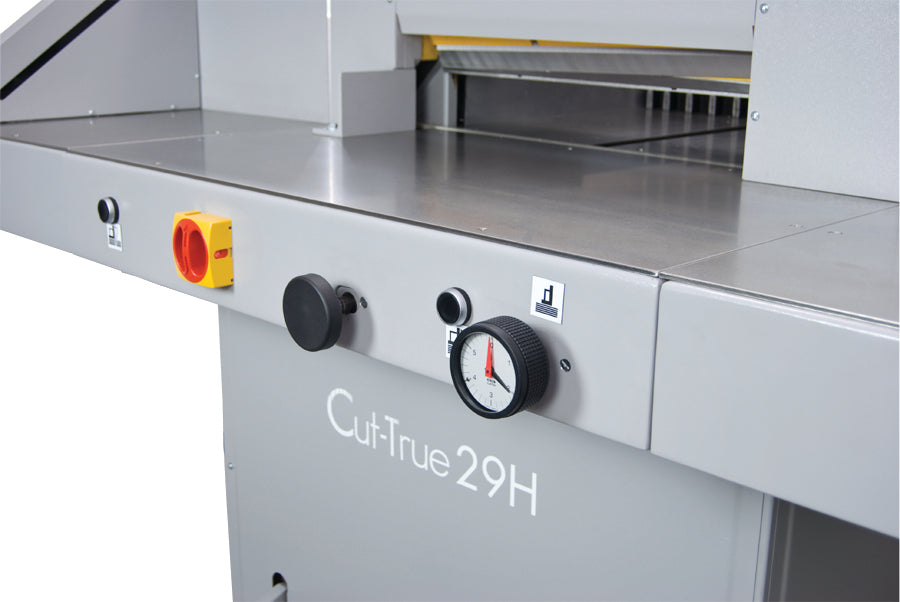

- Hydraulic pressure gauge for monitoring clamp pressure during operation
Product Overview
The Cut-True 29H is designed for shops that need more than a standard electric cutter. Its hydraulic cutting system, programmable controls, and production-focused design make it an excellent fit for operations handling repeat jobs, larger sheet sizes, and more demanding daily workloads.

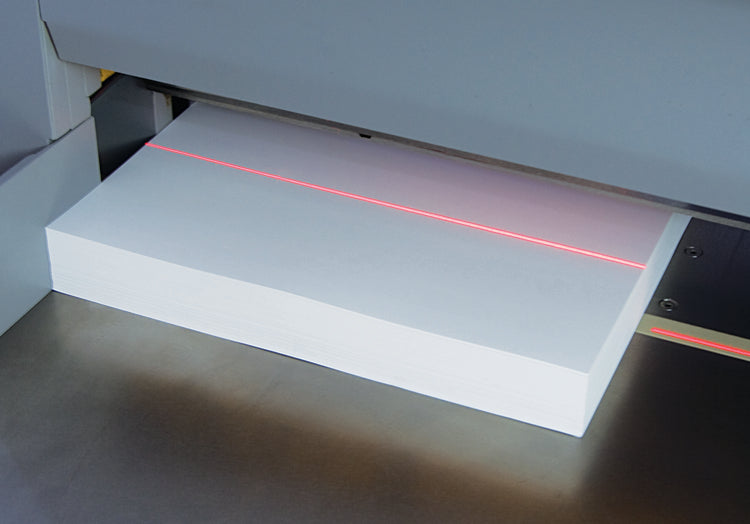

With features like a hardened steel blade, solid steel blade carrier, LED cutting line, fine-tuning knob, low-friction work table, and included blade change safety tool kit, the 29H combines precision and durability in a compact hydraulic cutter format.
Specifications
| Cutting Action | Dual-button hydraulic |
| Maximum Cutting Width | 20.5” (520mm) |
| Maximum Paper Stack Height | 3.15” (80mm) |
| Programmable Jobs | Up to 100 jobs, up to 100 cuts each |
| Control Panel | 7” full-color touchscreen |
| Length Behind Blade | 20.5” (520mm) |
| Length in Front of Blade | 18.25” (464mm) |
| Table Size in Front of Blade | 32” W x 37” D |
| Table Size | 30.75” W x 15.75” D, 56” W x 15.75” D with side tables |
| Clamp Style | Automatic, hydraulic |
| Hydraulic Clamp Pressure | 700 - 4,500 psi |
| Back Gauge Adjustment | Fully programmable using screen |
| Dimensions | 49.25” H x 31” W x 53.25” D |

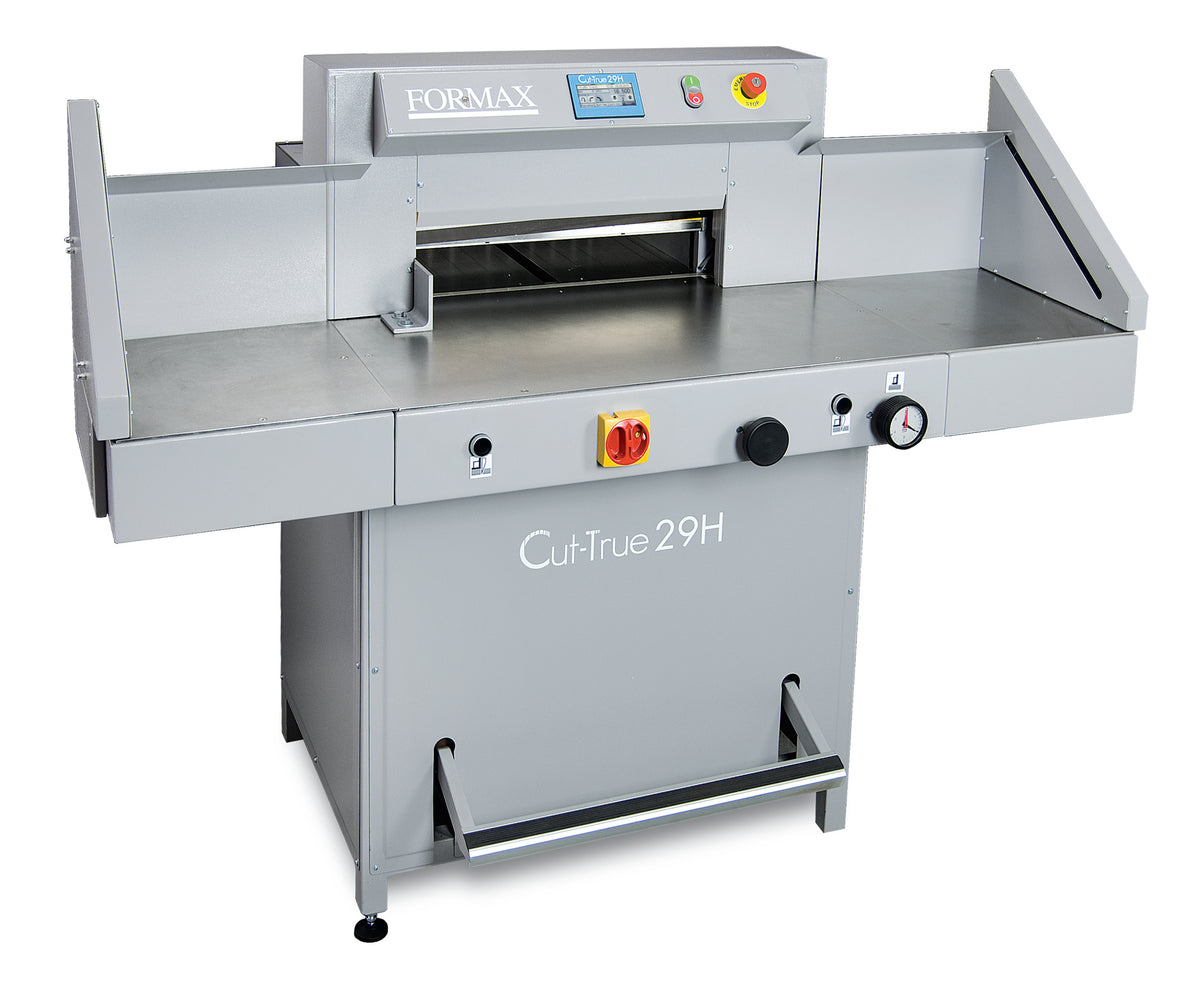

| Dimensions with Optional Side Tables | 49.25” H x 61.5” W x 53.25” D |
| Weight | 1,014 lbs |
| Power Supply | 220V, 60Hz, 20A dedicated line, NEMA 6-20P |
Applications
- Commercial print finishing
- Higher-volume cutting environments
- Booklets, brochures, and invitations
- Digital and offset print trimming
- In-plant finishing departments
- Production print workflows requiring hydraulic clamp force
Available Options and Supplies
- Wide Side Tables (Pair)
- 29-10 Replacement Blade
- 29-20 Cutting Sticks, package of 8
Benefits
- Provides stronger clamp pressure for more demanding cutting jobs
- Supports repeat work with programmable job memory and touchscreen control
- Helps improve consistency and throughput in production settings
- Enhances operator safety with infrared curtain and two-hand activation
- Offers a compact hydraulic cutter solution for shops stepping up from electric models
Why the Cut-True 29H
The Formax Cut-True 29H is ideal for shops that need the next step up from a standard electric cutter. Its hydraulic cutting system, production-oriented durability, programmable controls, and higher clamp pressure make it a strong choice for demanding print and finishing environments that need reliable, repeatable results day after day.
