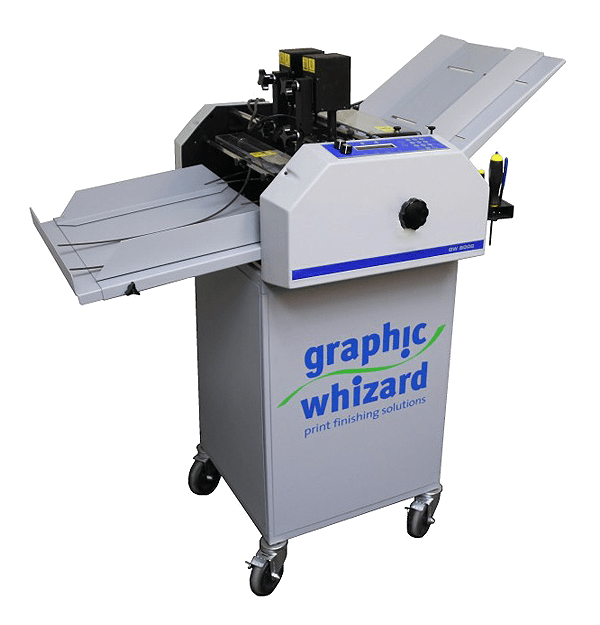

Graphic Whizard 3000 Numbering Machine

Graphic Whizard 3000 Numbering Machine

How to Purchase This Item:

Graphic Whizard 3000 Product Details:

The GW 3000 is designed as a mid-volume, automatic number/perf/score/slit machine, ideal for the printer who does more numbering than can be efficiently accomplished on a hand fed machine. With a production rate of 3,000 standard size sheets/sets per hour, the “3000″ makes short & easy work of mid-volume runs. Simple set up and ease of operation ensure quality results. Perforating, scoring, and slitting are done before the main rollers on depth controllable holders allowing for fast blade changes.

  • Speed of up to 3,000 sheets/sets per hour (11" x 8.5" - A4)
  • Compact friction feed tray handles up to 18" wide, multi-part sheet 9NCR)
  • Positive drive rollers ensure consistently accurate results
  • Leading edge perforation provides top-quality results
  • Strike perforation optional on pneumatic models
  • Easily accessed numbering heads allow for quick job changes
  • Heads can be rotated a full 360 degrees for a limitless range of numbering positions
  • Heads can be tilted and skewed individually for perfect number positioning
  • Easy to program
  • Store multiple jobs to internal memory (model GW6000 and up)
  • Mulit-part forms are efficiently processed without skewed sheets
  • Optional extended register table
  • Unmatched flexibility and functionality
  • Optional airfeed available
  • Speeds up to 12,000 sph
  • Electric and pneumatic (for long run lengths) models available
  • Built-in future upgrade path

Technical Specifications:

  • Length 44″ (1.12m)
  • Width 27″ (0.69m)
  • Height 16″ (.26m)
  • Weight 106lbs (48kg)
3,000 sheets/sets per hour (11″ x 8.5″ – A4)

Numbering Solenoid operated drive of one or two numbering heads – 1 drive unit with 6 wheel gothic style reverse numbering head standard – Operational through 360º, lockable at any rotation – Consecutive, 2x, 3x, 4x actions – Standard heads drop 2 wheels, customization available – Optional condensed wheel style to 8 digits – Nº and letter prefixing available – Inked by reservoir pad, red and black supplied
Accessories One accessory holder supplied standard – 12 tooth per inch perf blade and scoring blade supplied standard – Optional perf blades available at 2,4,6,8,12 TPI and MICROPERF – Optional slitting blade – Blades mounted on pressure adjustable holder, easily changeable – Optional stand
Impression Control Electronically variable; able to put a good impression on bond without embossing, while also being able to crash up to 10-part sets!
Maximum amount of number positions 1 number per head per sheet
Electrical 115V/60Hz/3A or 230V/50Hz/5A
Stock Size
  • Minimum 3″ wide x 5″ long (7.6cm x 12.7cm)
  • Maximum 18″ wide x 18″ long (45cm x 45cm)
Crash Capability Electronically variable by dial control – Crash number up to 10 part sets
Registration 0.010″ (0.25mm) accuracy
Maximum Number of Heads 2
Head Rotation Lockable in any position throughout 360°
Additional Features
3,000 sheets per hour
1 number per head per sheet
1 or 2 numbering heads
Tabletop model with automatic feed
Crash numbering up to 10 part carbonless
Feed sets unglued or glued side
Crerate snap sets while numbering
Heads rotate and lock throughout 360°
Perforating options 2, 4, 6, 8, 12, 16 teeth per inch (TPI), 42, 50 and 72 Microperf TPI
Accurate .010" register
Ability to control depth of Perf/Score/Slit
Microprocessor controlled with forward and backward stepping for easy programming
