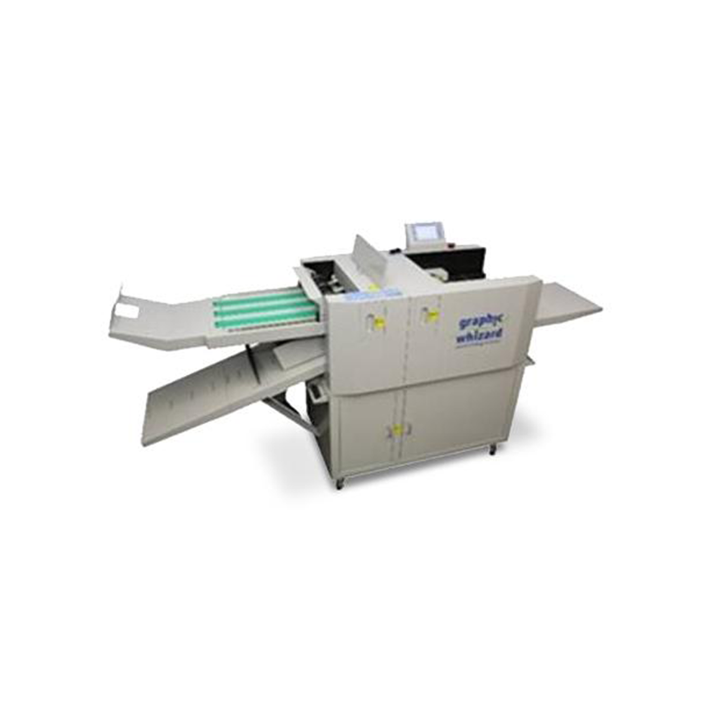

Graphic Whizard PT335AKF print finishing machine with integrated crease, fold, and perf modules and extended output conveyor
Graphic Whizard PT335AKF Crease/Fold/Perf Video
Graphic Whizard

Graphic Whizard PT335AKF

The Graphic Whizard PT335AKF creases, folds and perforates sheets up to 13" wide in one pass. Dealer pricing, financing & service at Mid-State Litho.

Pricing by quote
Tax-exempt? Apply once, check out tax-free
Parcel shippingShips by ground carrier.
Talk to a finishing expertReal specialists by phone.
Financing availableLease & purchase options.
Factory-trained install & serviceWe deliver, install & support.

Details & specifications

Fold, Crease Up/Down, Cross Perf

The PT 335AKF crease and fold combines the features of the PT 335A+ Multi creaser with the PT 33IKF into one unit. It features; 4” vacuum pile feeder, auto sheet measurement, a 6” color touchscreen, interchangeable creasing/perfing dies with 6 different creasing widths, perfect binding hinge and spine mode as well as. Other features included on the PT 335AKF are crease depth adjustments through the touch screen and an upgraded vacuum pump with variable vacuum suction adjustment. Also unique to the PT 335AKF is the progressive crease mode, which calculates crease positions for pre-collated sets resulting in a square spine on the booklet once run through a bookletmaker. Make the PT 335AKF your easy-to-use, all-in-one creasing/folding machine.

  • 6,500 sheets/set per hour 11" x 8.5", half fold
  • 110V, 50/60 Hz, 15A
  • Minimum 5.5" wide x 6" long (13.97cm x 15.24cm)
  • Maximum 13" wide x 35" long (33.02cm x 88.90cm)

Folds

Graphic Whizard PT335AKF Fold Guide

Partial Perf Capabilities

Graphic Whizard PT335AKF Partial Perf Capabilities

Features

  • Fold speeds of over 6500 sheets per hour
  • Fold paper from 150 to 350 GSM
  • Crease or Perf up to 35" long sheets into the bypass
  • Self-adjusting automated smart delivery
  • Automated job set up with sheet length measuring
  • Interchangeable dies for perforating with partial perf capabilities
  • Interchangeable crease dies to compensate for stock thickness
  • 3 year warranty* (*excludes consumables)

Specifications

Electrical 110-130v, 50/60hZ, 15a
Speed 6,500 sheets/set per hour
11″ x 8.5″ half fold
Maximum Sheet Size 13″ wide x 35″ long
(33.02cm x 88.90cm)
Minimum Sheet Size 5.5″ wide x 6″ long
(13.97cm x 15.24cm)
Stock Weight 150-350 gsm
Tabletop/Floor Floor
Max Number of Creasing Positions 32
Program Memory 64
Feeder 4” vacuum pile feed

NOTE: Machine performance will vary based on stock weight, type, and specifications of the job being performed.
