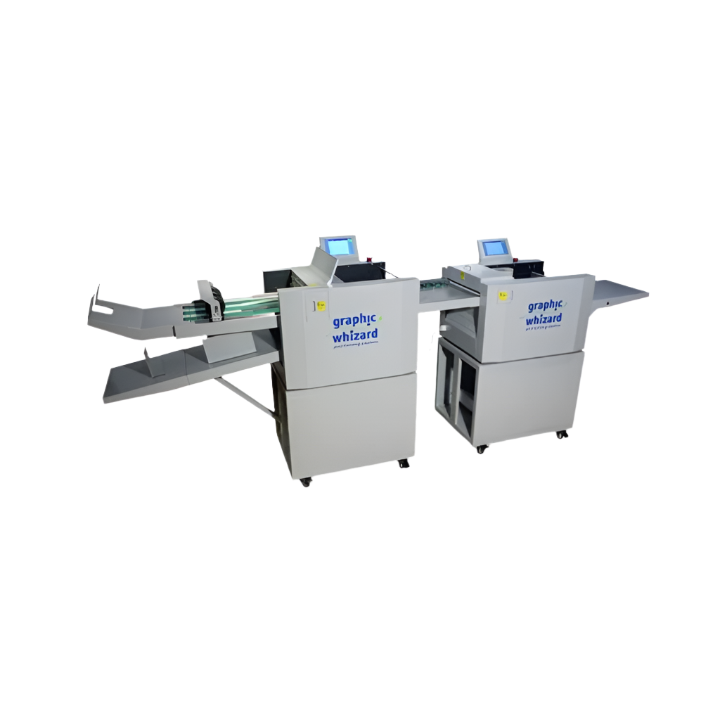

Graphic Whizard PT-335CKF Creaser/Knife Folder
Graphic Whizard PT 335CKF automatic creaser and folder: 7,000 sheets/hr, 7 fold types, interchangeable crease dies. From Mid-State Litho, Michigan.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
The Graphic Whizard PT 335CKF Multi is an automatic creaser and knife folder that creases, perforates, and folds in a single pass at up to 7,000 sheets per hour. A floor model with a 4 inch deep-pile vacuum feeder and a 6 inch color touchscreen, it handles 7 fold types and uses front-loading, interchangeable crease and impact-perf dies (strike perf available) to eliminate cracked toner on folds for professional brochures, cards, menus, and covers. Mid-State Litho delivers, installs, and trains your team on it.
Key Features
- High-speed production: over 7,000 sheets per hour
- Versatile media handling: paper weights from 150 to 350 gsm
- Interchangeable creasing and perfing dies with six creasing widths
- Partial perforation: T-perfs and box perforations in both directions
- Automated or manual job setup with a 6 inch color touchscreen
- Fold bypass tray for creasing and perforation without folding
- Self-adjusting smart delivery for efficient stacking
- Compact, space-saving floor design
Specifications
| Specification | Details |
|---|---|
| Paper Weight | 150 - 350 gsm |
| Minimum Output Size | 5.5” x 6” |
| Maximum Output Size | 13” x 22” |
| Maximum Stock Size | 13” x 35.4” |
| Speed | Over 7,000 sheets per hour (8.5” x 11” half fold) |
| Electrical Requirements | 110-130V, 50/60 Hz, 15A |
| Fold Types | 7 preset folds or manual programming |
| Feed Type | 4” deep pile vacuum feeder |
Optimized Workflow Applications
- Inline finishing: crease, perforate, and fold in one pass
- Customizable setup: program jobs manually or automatically for repeatable results

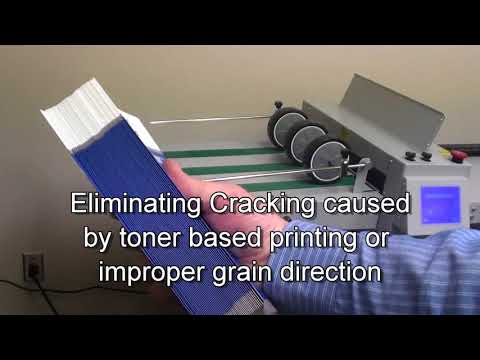

- High-quality output: eliminates cracking on digital and offset prints for clean folds
About the Graphic Whizard PT 335CKF
Graphic Whizard builds automated print-finishing equipment, including creasers, folders, and multi-finishers, for digital and commercial print shops. The PT 335CKF combines the PT 335A Plus Multi Creaser with an independent knife folder, and pairs well with other Graphic Whizard finishing such as the PT 33LSC laminate/slit/cut. See related equipment in our paper creasers category.
Graphic Whizard PT 335CKF FAQ
What does the PT 335CKF do?
It automatically creases and folds in one pass, producing crack-free folds on digitally printed sheets.
How fast is it?
Up to 7,000 sheets per hour.
How many fold types does it support?
7 fold types, controlled from a 6 inch color touchscreen.
Can it perforate?
Yes. It uses front-loading interchangeable crease and impact-perf dies, and strike perf is available.
Does Mid-State Litho install and train?
Yes. Delivery, installation, and operator training are included; the PT 335CKF is quote-only, so request a quote for pricing.
Why Buy Your PT 335CKF From Mid-State Litho
Mid-State Litho is a second-generation, family-owned print-finishing dealership founded in 1984, serving Michigan and the Great Lakes. Every machine we sell is delivered, installed, and set up by our own technicians, and we train your operators before we leave. Financing is available, and our service and support team keeps your equipment running long after the sale. Learn more about Mid-State Litho.
