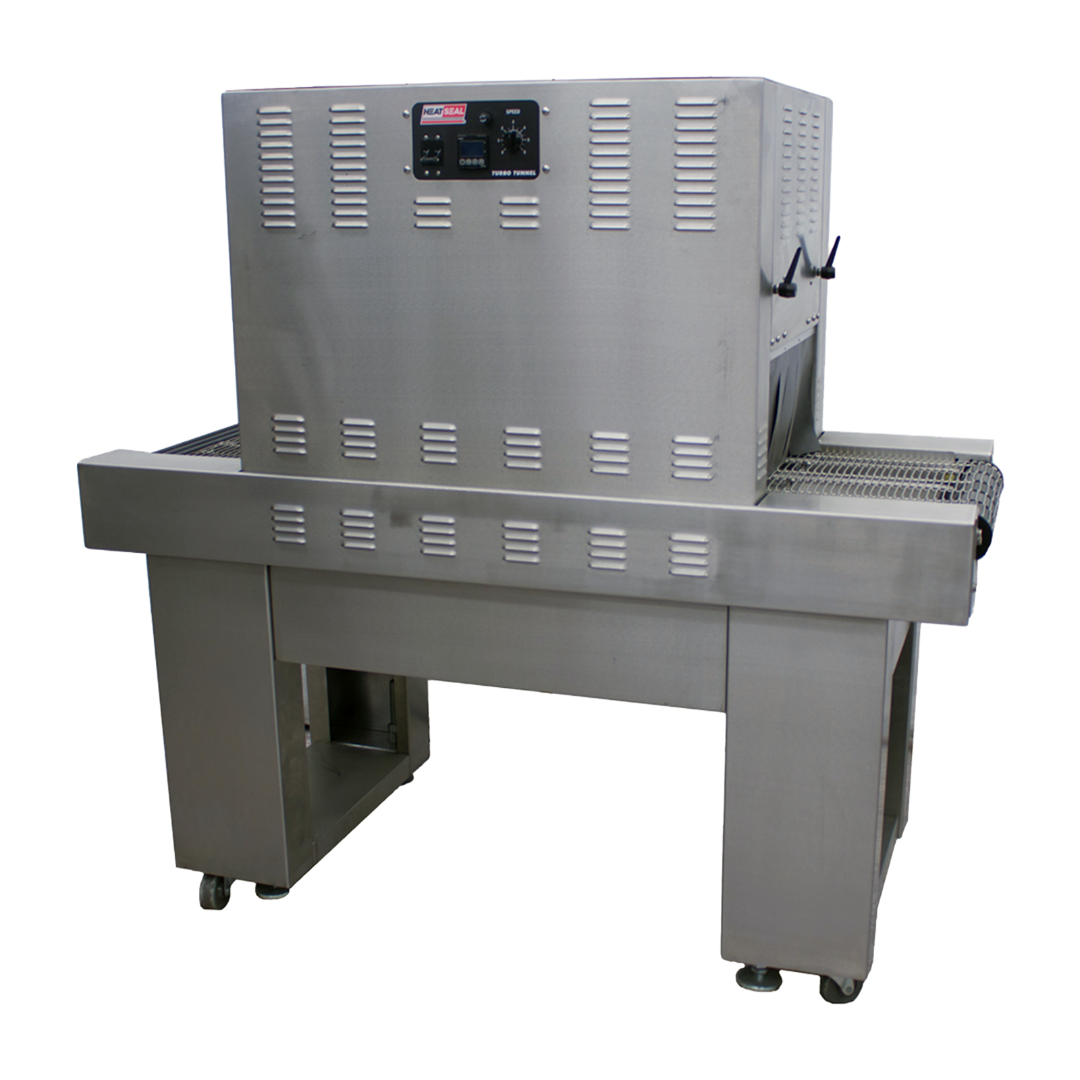

Heat Seal T3417 Shrink Tunnel

The Heat Seal T3417 is a compact shrink tunnel for professional packaging operations. It has a 34" long tunnel, dual heat zones, and a variable-speed conveyor, and it shrinks consistently across a range of products. Typical work is retail items, bundles, and promotional kits. The T3417 includes digital temperature control, high-velocity airflow, and an automatic cool-down cycle that extends heater life.

T3417 layout diagram (PDF)

Key features

• 34" tunnel length with 17" width and 8" standard height
• Dual heat zones with mechanical control and digital temperature display
• High-velocity airflow and automatic cool-down system
• Adjustable conveyor speed up to 70 feet per minute
• Live/dead silicone roller conveyor with 2" spacing standard
• Heavy-gauge steel frame with adjustable-height console and casters
• Optional stainless steel construction and conveyor configurations

Specifications

Applications

• Retail packaging for boxed goods, cosmetics, or food items
• Printed materials, tray-packed items, or lightweight bundles
• Multipack kits and promotional wraps for commercial shipping

Benefits

• Compact footprint fits small production floors
• Dual heat zones and high airflow give consistent shrink
• Durable frame and components built for industrial use
• Available with mesh or non-stick conveyor options
• Built-in safety and cool-down features extend heater life

Other Heat Seal tunnels and sealers

A shrink tunnel only shrinks film that is already sealed around the product. Pair the T3417 with one of our shrink wrap sealers.

For a wider and taller chamber, step up to the Heat Seal T3422 at $11,730. Its chamber is 34 in. long, 22 in. wide and 10 in. high, and it needs 50 to 60 amps.

For a lower price, the Heat Seal T2622 costs $9,950. It has one heat zone and a shorter chamber that is 26 in. long and 22 in. wide.

See the full Heat Seal packaging equipment range, or call us at (800) 343-4231.

Heat Seal T3417 questions

What size product fits the T3417?

The tunnel chamber is 34 in. long, 17 in. wide and 8 in. high as standard. Product must pass through that opening on the conveyor.

What is the difference between the T3417 and the T3422?

Chamber width and power. The T3422 is the wider machine, at 60 in. x 31 in. x 57 in. overall against the T3417 at 59 in. x 26.25 in. x 58 in., and it draws 50 to 60 amps against the T3417 at 43.

What power does it need?

208 to 240V single phase at 43 amps, drawing 8,000 watts.

How fast is the conveyor?

0 to 30 ft per minute standard, up to 70 ft per minute with the live and dead roller configuration. Rollers are silicone covered at 2 in. spacing, with 1 in. spacing optional.

Do I need a sealer as well as the tunnel?

Yes. A shrink tunnel shrinks film that has already been sealed around the product. The sealer and the tunnel are separate machines, and Mid-State Litho carries both.
