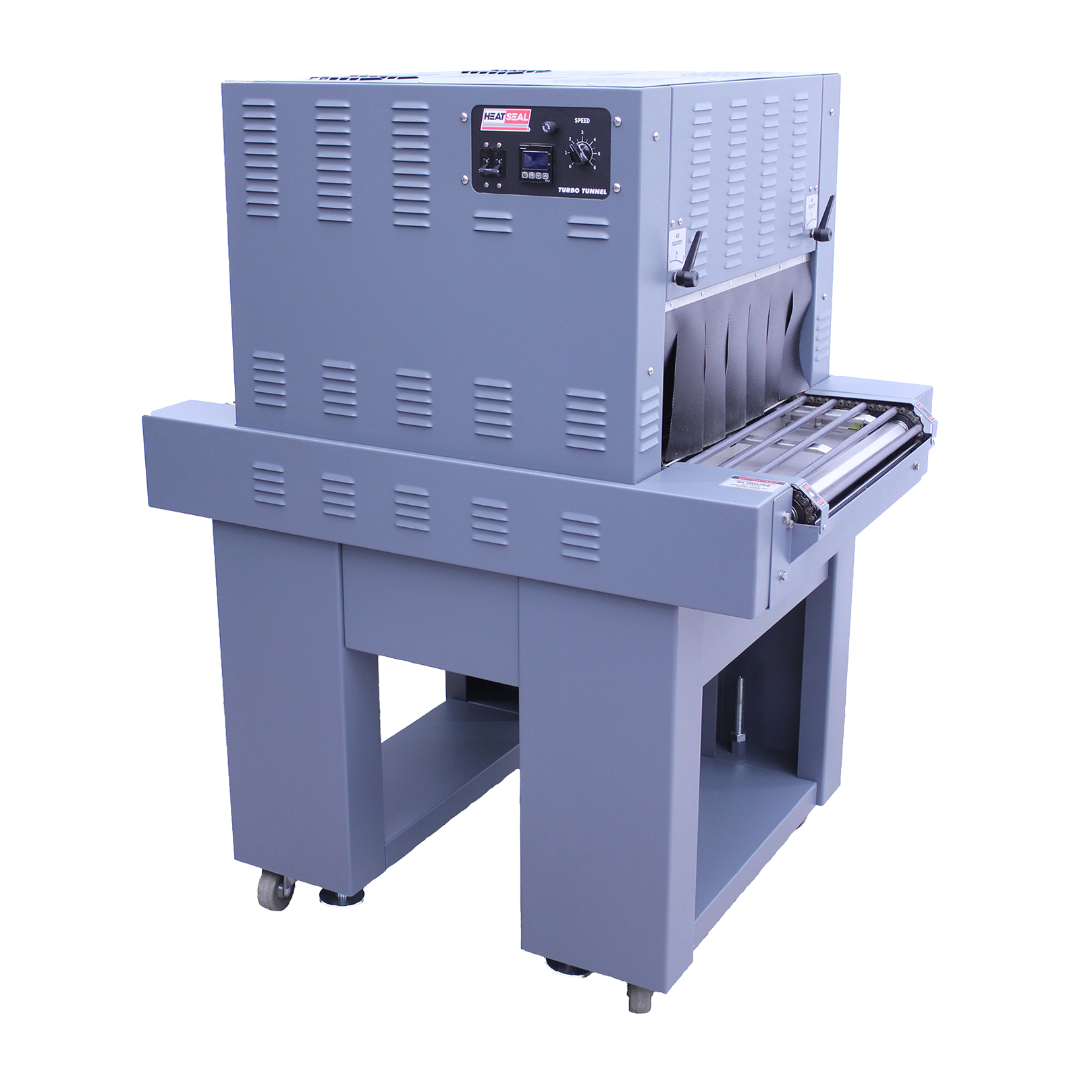

Heat Seal T2622 Shrink Tunnel

The Heat Seal T2622 is a compact, energy-efficient shrink tunnel built for consistent, high-quality shrink results in small- to mid-volume packaging operations. With single-zone heating, digital temperature control, and a quick-change roller conveyor, the T2622 delivers reliable results in a compact footprint. Its adjustable-speed conveyor and optional mesh configurations make it flexible for a wide variety of shrink applications.

Key Features

🔷 26" long tunnel chamber with 22" width and 8" height
🔷 Single heat zone with dual mechanical airflow controls
🔷 Digital tunnel temperature control and high-temp safety shutoff
🔷 Conveyor speed adjustable up to 70 feet per minute
🔷 Live/dead roller conveyor with 2" spacing (1" optional)
🔷 Automatic cool-down system to extend heater life
🔷 Heavy-gauge steel console with leveling feet and casters
🔷 Stainless steel construction available (T2622S model)

Specifications

Applications

📦 Shrink wrapping consumer goods, boxed products, and multipacks
🧴 Cosmetics, food packaging, and promotional kits
📄 Secure printed bundles and flat mailers

Benefits

✅ Compact design fits into tight production spaces
✅ High-velocity airflow ensures even, quality shrink
✅ Quick-change roller system for fast maintenance
✅ Optional mesh belt overlays for specialty products
✅ Stainless steel model available for food or cleanroom use

Where the T2622 fits in the Heat Seal range

The T2622 runs a 26 by 22 in chamber on a single heat zone, so measure your package before you pick a size. If it is shorter, the T2615, the 15 in chamber version takes less floor. If it is taller or wider, step up to the T3417 or the T3422, the next chamber size up. The whole ladder sits under shrink tunnels, inside the wider Heat Seal packaging equipment range.

A tunnel only shrinks film that is already sealed around the package, so pair it with one of our L-bar and chamber sealers. To seal and shrink on one machine instead, look at the HDX250 combo shrink system.

Ask about equipment financing and leasing on any of them, or work through our full equipment catalog.

Common questions about the Heat Seal T2622

What size package will the T2622 shrink?

The tunnel chamber is 26 in long, 22 in wide and 8 in high. Anything that fits through that opening and rides the roller conveyor will run. For taller packages, look at the T3422 or the T4832, both of which MSL stocks.

Is the T2622 a wrapper or just the tunnel?

Just the tunnel. It shrinks film that has already been sealed around the package, so you pair it with an L-bar or chamber sealer. If you want sealing and shrinking in one machine, the HDX250 combo system is the closer fit.

What power does it need?

208 to 240 V single phase. Confirm the exact amperage with us before you book an electrician, because the published figures for this model do not agree and we would rather check than guess.

How fast is the conveyor?

Standard is 0 to 30 ft per minute, and the live and dead roller configuration runs to 70 ft per minute. Roller spacing is 2 in standard, 1 in optional.

What does delivery and install look like in Michigan?

The T2622 ships freight at 465 lb and lands in 1 to 2 weeks. Mid-State Litho delivers it, installs it, trains your operators and services it afterward with our own technicians. We have been the Michigan and Great Lakes finishing dealer since 1984.
