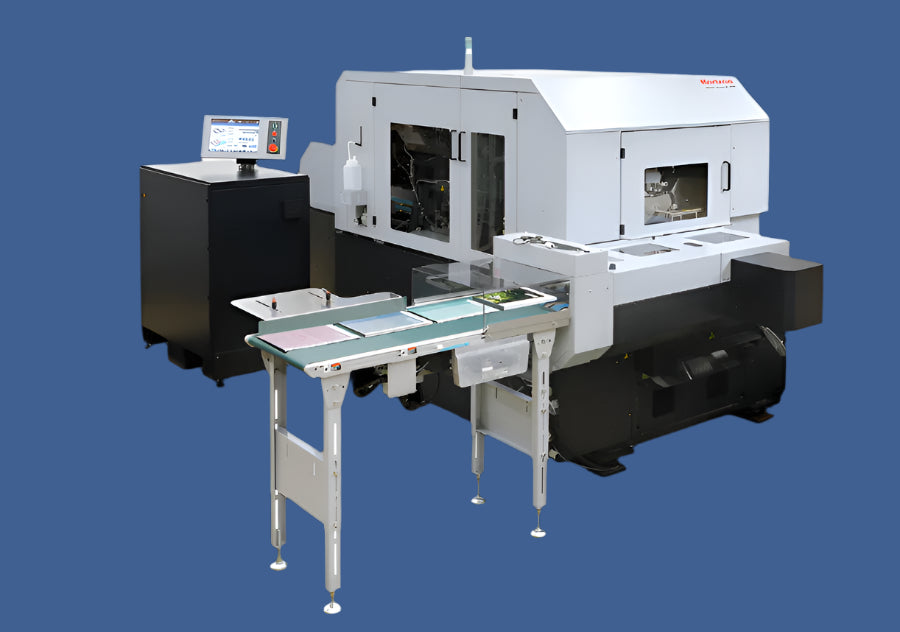

Horizon HT-1000V
The Horizon HT-1000V Variable Three-knife Trimmer is a high production book trimmer. This manufacturing machine does the finishing cut on perfect bound books.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
The Horizon HT-80 is an advanced automated three-knife trimmer designed for precision and efficiency in book trimming. This versatile machine can operate both off-line and in-line, making it perfect for high-volume book production. With user-friendly operation and exceptional accuracy, the HT-80 ensures professional-quality trimming for a wide range of book sizes.
Key Features:
- Automated Set-Up: Quickly configure most sections by inputting untrimmed and finished sizes into the intuitive color touchscreen for accurate changeovers.
- Servo Motor Driven: Accurate positioning of the book block ensures precise trimming.
- Book of One Production: Trims books of varying thickness but the same size simultaneously, enabling efficient book-of-one production.
- High-Quality Finish: Heavy-duty construction and mechanisms deliver consistent, professional-quality results.

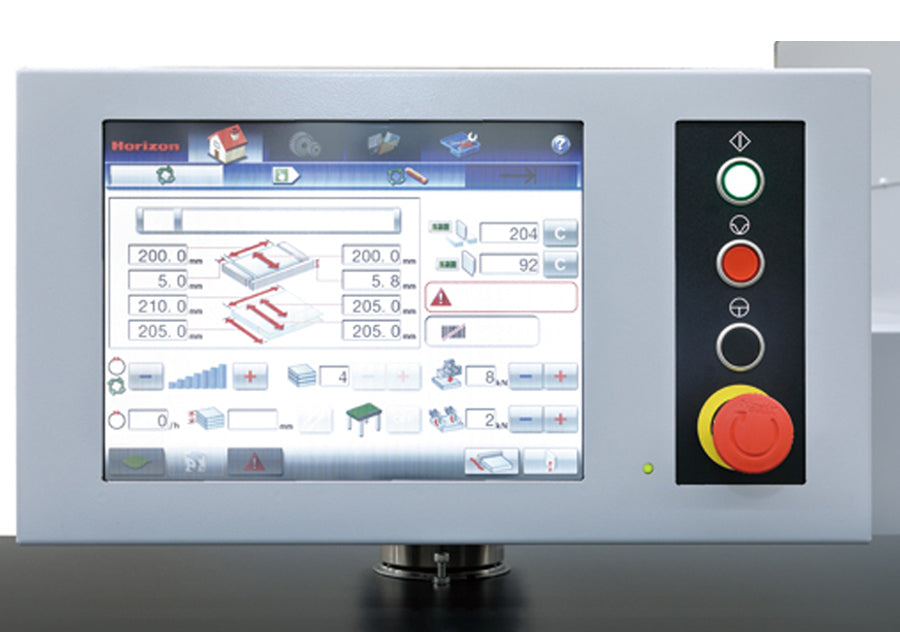

- User-Friendly Control Console: The 10.4" color touchscreen simplifies operation with an intuitive interface.
- In-Feed Section: Compresses books to remove air, enhancing trimming accuracy.
- Trimming Section Control: Adjust knife height and fore-edge angle via the touchscreen, with strong air nozzles blowing away trimmings.
- Chip Extractor (Optional): Efficiently manages waste during the trimming process.
Specifications:
| Specification | Details |
|---|---|
| Untrimmed Book Size | Max: 330 x 330 mm (13” x 13”), Min: 145 x 105 mm (5.71” x 4.135”) |
| Finished Book Size | Max: 300 x 300 mm (11.81” x 11.81”), Min: 139 x 99 mm (5.47” x 3.9”) |
| Trim Width | Top-bottom: up to 30 mm (1.18”), Fore-edge: up to 30 mm (1.18”) |
| Trim Height | 1 to 51 mm (0.04” to 2”) |
| Production Speed | 400 to 1,000 cycles per hour |
| Voltage/Frequency | 3-Phase 200 to 220 V, 50/60 Hz |
| Machine Dimensions | 63.4” (W) x 102.8” (D) x 59.7” (H) |
| Compatible Perfect Binders | BQ-470, SB-07, SB-09S |
Benefits:
- Efficiency: High-speed operation and automated setup reduce downtime and enhance productivity.
- Versatility: Handles diverse book sizes and trimming needs, ideal for various applications.
- Ease of Use: Intuitive touchscreen controls make operation straightforward.
- Precision: Servo-driven adjustments and robust construction ensure consistent trimming accuracy.
Applications:
- Book Trimming: Excellent for high-volume book trimming in commercial print shops and publishing houses.
- Document Finishing: Provides precise trimming for various documents, ensuring professional-quality results.
