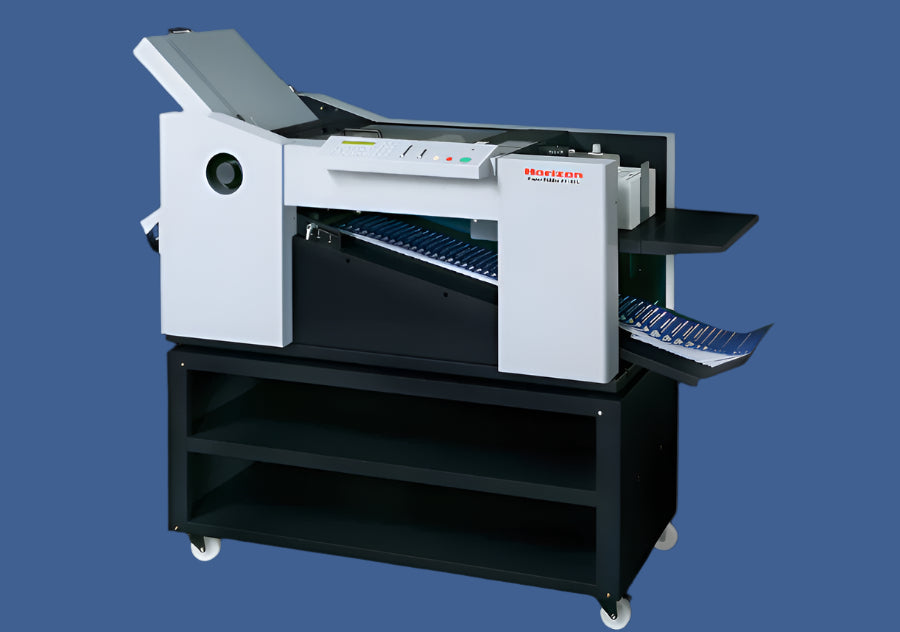

Horizon PF-40L Paper Folder
Horizon's PF-40L is a paper folder. This machine has an air feeder for reliably running glossy paper or coated stocks.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications
Horizon PF-40L Paper Folder
The PF-40L is a high-speed, tabletop paper folder engineered for efficiency and accuracy. Combining advanced automation, a user-friendly interface, and fast performance, the PF-40L streamlines folding workflows for commercial printers, offices, and mail centers alike.
Key Features
🔷High-speed folding — Up to 390 sheets per minute (A4 single fold).
🔷Wide sheet range — Handles 125 × 128 mm to 320 × 630 mm sheets.
🔷Coated paper capable — Manual feeding supports coated stock.
🔷Enhanced roller system — Bearings in cast frame ensure precise folds.
🔷User-friendly interface — Simple button controls for quick setup.
🔷Adjustable roller gap — Handles varied paper thicknesses.

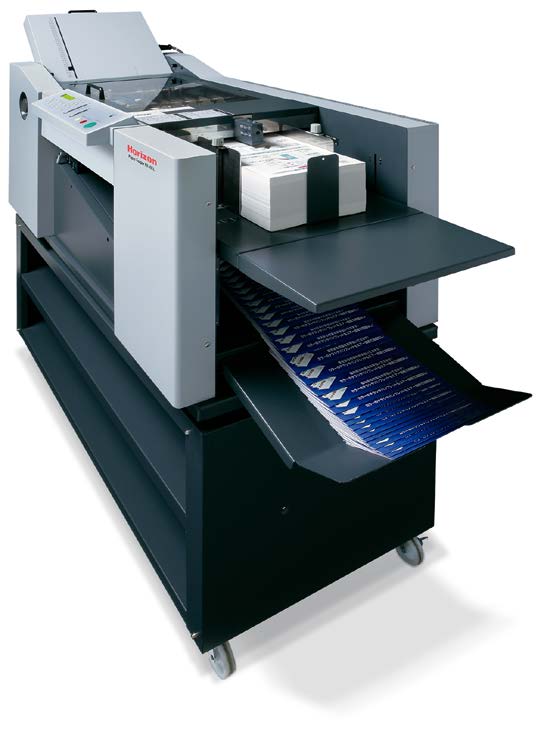

🔷Feed + delivery on same side — Improves workflow efficiency.
🔷Tool-free maintenance — Easy access for jam removal and cleaning.
Specifications
| Specification | Details |
|---|---|
| Model No. | PF-40L |

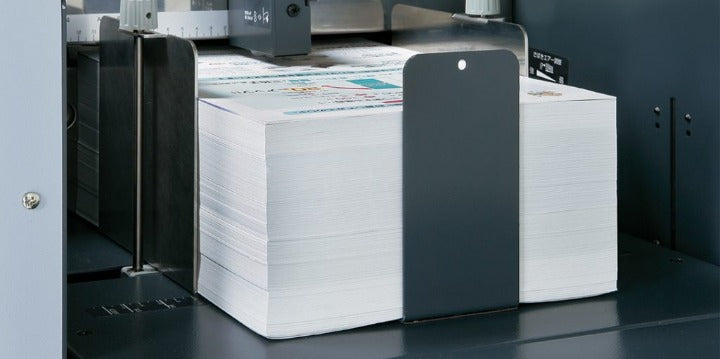

| Sheet Feeding System | Air rotor system |
| Sheet Size Range | Max 320 × 630 mm (12.59″ × 24.80″) · Min 125 × 128 mm (4.92″ × 5.04″) |
| Paper Sizes | A3, A4, (A5) |
| Sheet Weight Range | Normal 52–157 gsm · Coated 73–157 gsm |
| Pile Height | Max 105 mm (4.13″) |
| Fold Patterns | Single, Double Parallel, Short, Accordion, Letter, Open Gate |
| Production Speed | 270 sheets/min (A3) · 390 sheets/min (A4 single fold) |
| Voltage / Frequency | 115–120 V or 230 V, Single Phase, 50/60 Hz |
| Rated Current | 4.8 A (115–120 V) · 2.2 A (230 V) |
| Dimensions (W × D × H) | 1560 × 630 × 770 mm (61.5″ × 24.8″ × 30.4″) |
| Weight | 135 kg (297.7 lb) |
Benefits
Applications
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
