Standard Horizon

Horizon PF-P3300 Paper Folder

Horizon PF-P3300 Paper Folder

Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:

How to Purchase This Item:

View full details

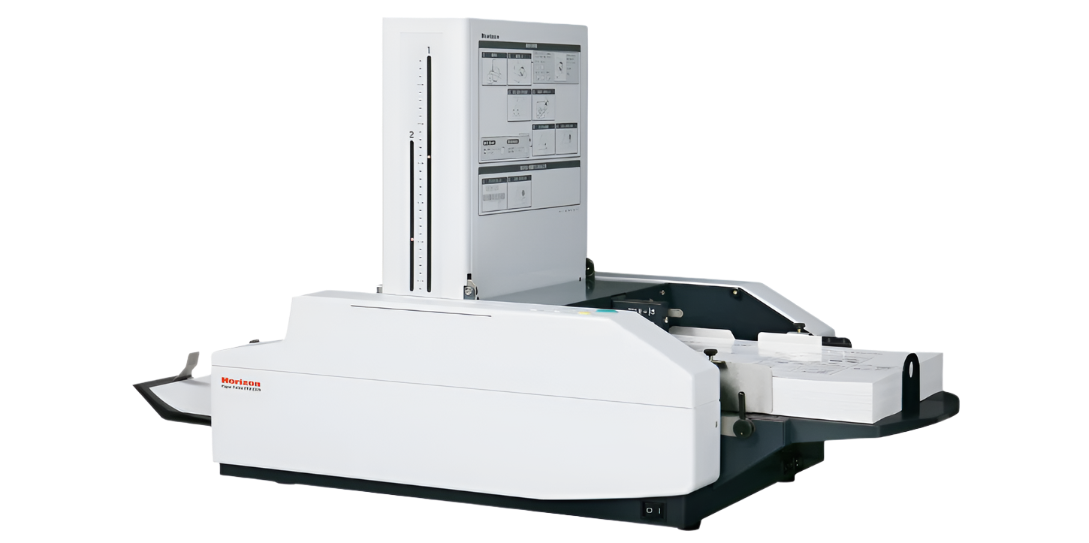

Automated Air Suction Feed Paper Folder

The PF-P3300 Paper Folder is an automated air suction feed folder designed for high-speed, stable folding operations. With exceptional performance, user-friendly controls, and durable construction, it is perfect for a variety of folding tasks in professional environments.

Key Features:

  • High-Speed Folding: Folds up to 250 sheets per minute (A4 / 8.5” x 11” single fold) for efficient and fast production.
  • Stable Feeding: Air suction feeding with pile air separation ensures consistent sheet feeding. Adjustable air settings accommodate different weights and textures.
  • Versatile Media Handling: Works with a wide range of paper stocks, including regular and coated papers printed by both digital and offset presses.
  • Short Make-Ready: Automated setup reduces preparation time and ensures precise repeatability.

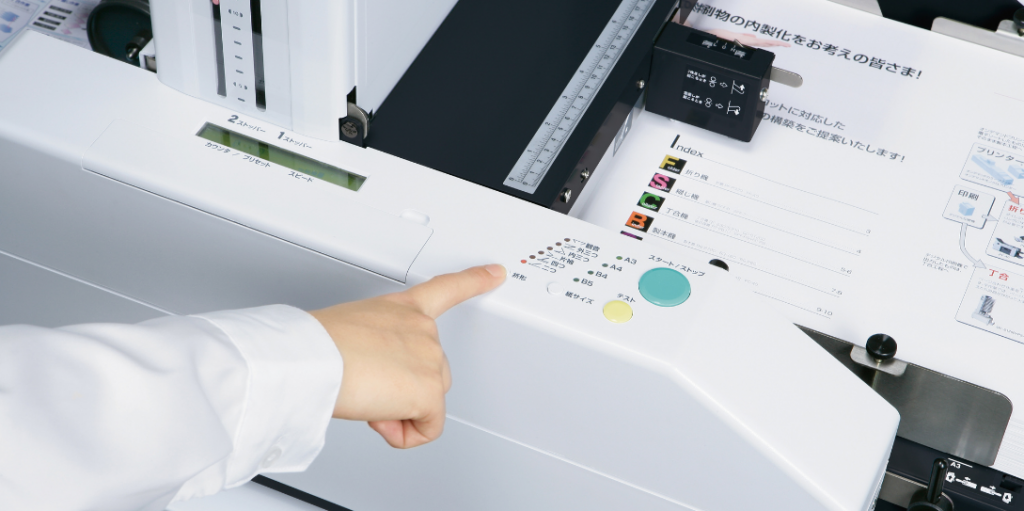

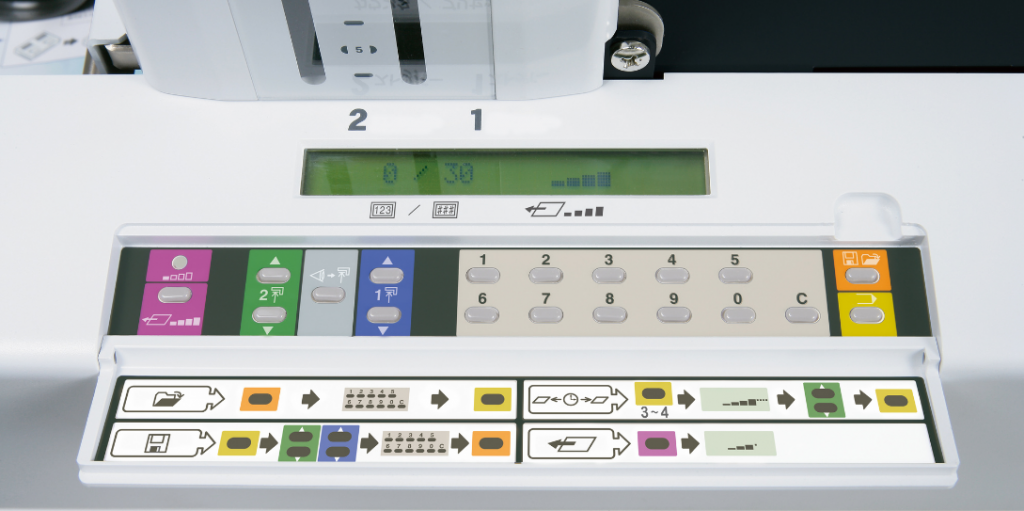

  • User-Friendly Operation: The intuitive operation panel allows for easy setup, with special sheet sizes and fold patterns programmable via the extension panel. Up to 8 jobs can be memorized for quick recall.

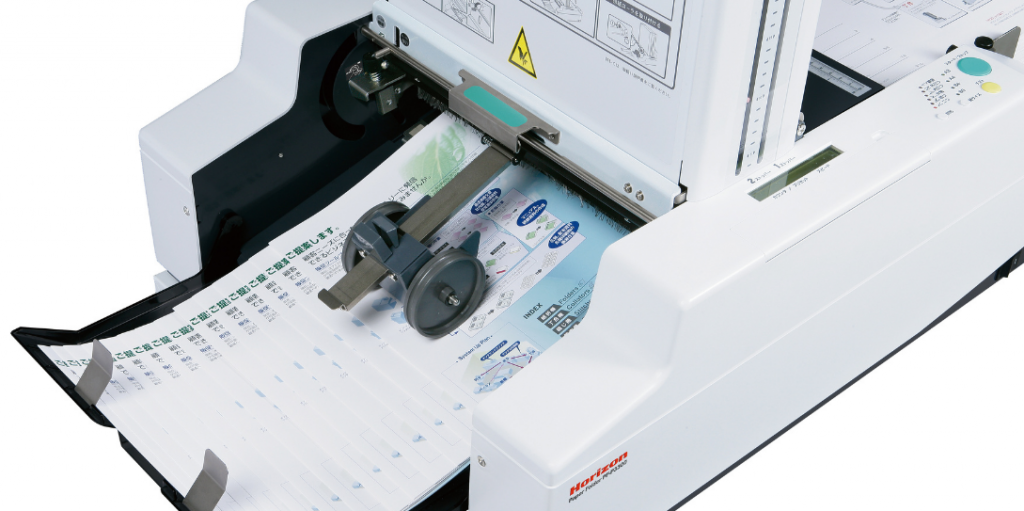

  • Simple Maintenance: Fold rollers and folding plates are easily accessible for maintenance and cleaning, ensuring trouble-free operation.
  • Speed Mode Selection: Offers multiple speed modes, including Silent Mode, Ultra-high-Speed Mode, and Standard Mode, for tailored performance to meet your needs.

Specifications:

Specification Details
Model No. PF-P3300
Sheet Feeding System Air rotor system
Sheet Size (Width x Length) Max: 310 x 432 mm (12.2” x 17”), Min: 125 x 130 mm (4.93” x 5.12”)
Paper Sizes A3, B4, A4, B5, 11” x 17”, 8.5” x 11”, 8.5” x 14”, 5.5” x 8.5”
Sheet Weight Range Normal Paper, Glossy Paper, Coated Paper: 52 to 157 gsm
Feeder Stack Height Max. 50 mm (1.96”)
Fold Patterns Single Fold, Double Parallel Fold, Short Fold, Accordion Fold, Letter Fold, Open Gate Fold
Production Speed 250 sheets per minute (A4 single fold)
Voltage/Frequency Single Phase 115-120 V, 50 or 60 Hz / Single Phase 220-240 V, 50 or 60 Hz
Machine Dimensions Operated: W1,060 x D517 x H624 mm (W41.8" x D20.4" x H24.6") Stored: W750 x D517 x H624 mm (W29.6" x D20.4" x H24.6")
Optional Base W642 x D553 x H670 mm (W25.3" x D21.8" x H26.4")
Machine Weight Body: 45 kg (100.0 lbs), Blower: 7 kg (15.4 lbs), MT-3300: 28 kg (61.8 lbs)



Benefits:

  • Efficiency: Achieves high folding speeds and stable performance to enhance productivity.
  • Versatility: Accommodates various paper stocks and fold patterns for diverse applications.
  • Ease of Use: Automated setup and intuitive controls simplify operation.
  • Durability: Built with robust materials to ensure long-lasting performance.

Applications:

  • Print Shops: Ideal for professional folding of brochures, flyers, and documents.
  • Offices: Perfect for handling business correspondence, newsletters, and marketing materials.
  • Educational Institutions: Great for producing folded handouts, booklets, and informational sheets.
