ColorCut SC7000 Pro-T and SC7000 Pro-T XL
ColorCut SC7000 Pro-T and SC7000 Pro-T XL
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370

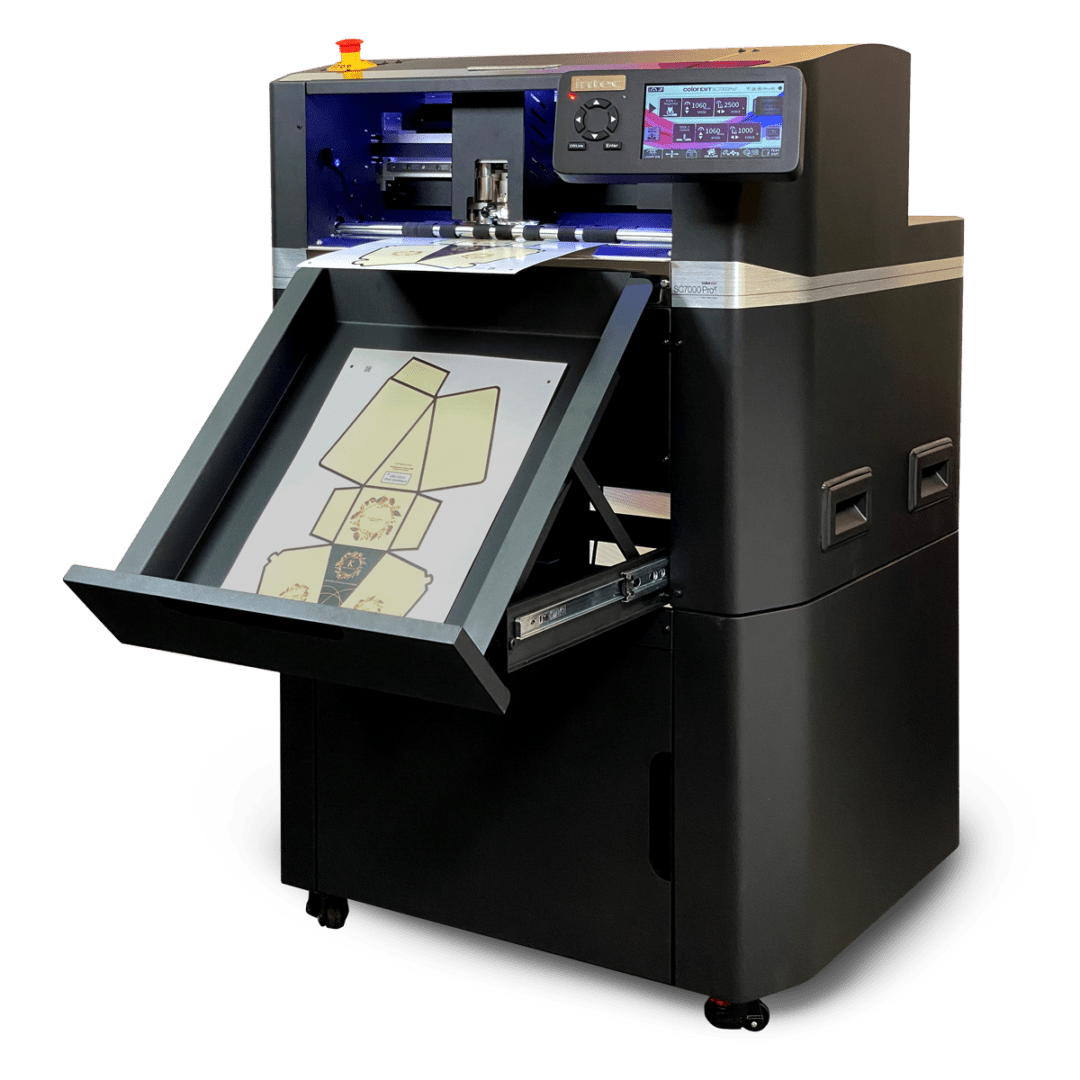

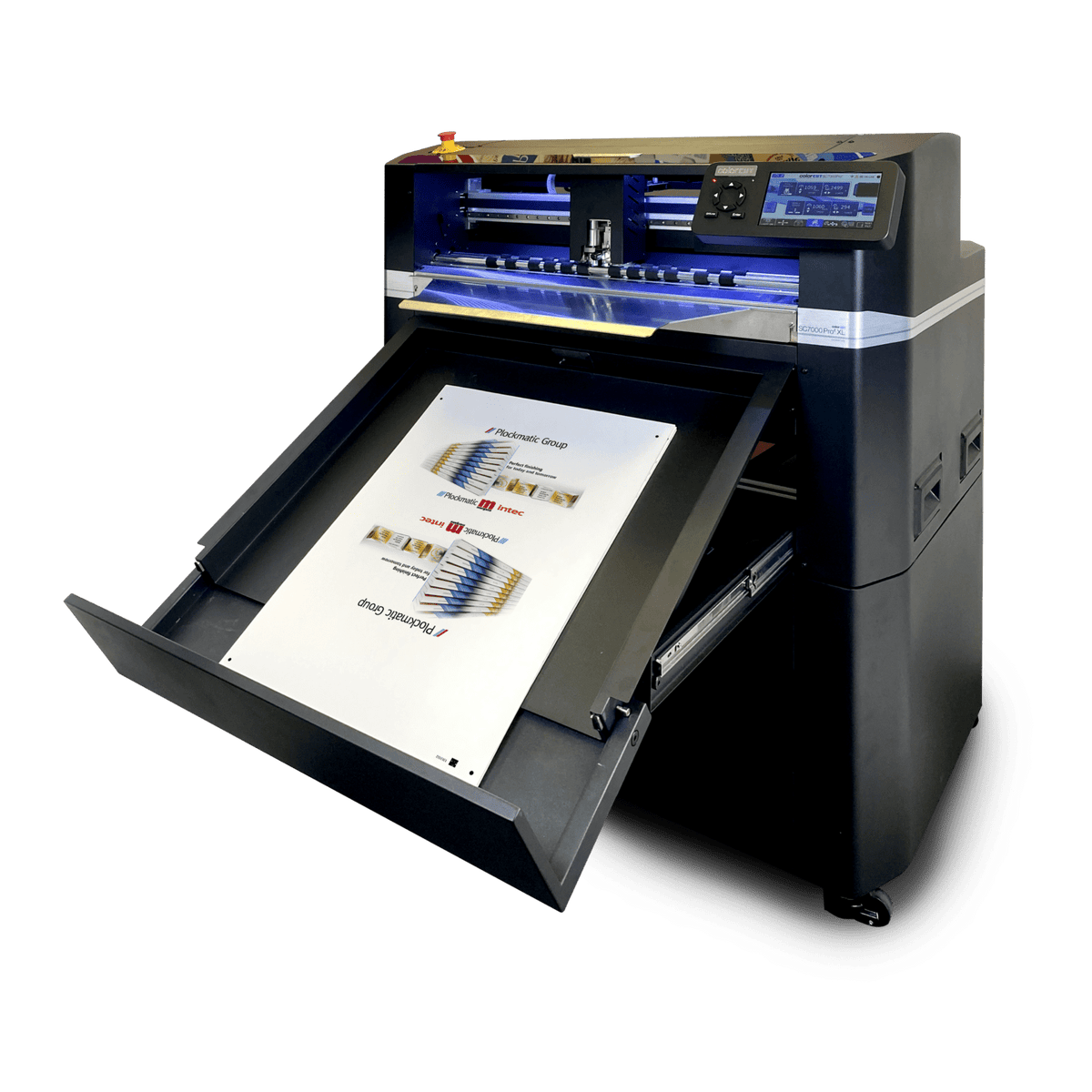

The Intec/Morgana ColorCut SC7000 Pro-T and SC7000 Pro-T XL are advanced digital die cutters that combine dual-tool cutting and creasing with automatic sheet feeding in a compact, ergonomic design. These models are ideal for print shops and manufacturers needing precision label cutting or die-cutting. With their energy-efficient operation (consuming under 100W) and 9th-generation Vision3 CCD camera, these cutters seamlessly read cut files for mixed job stacks, enabling uninterrupted operation. The dual 'Grip and Drive' feed system ensures edge-to-edge cutting with minimal SmartTags for clean, organized output, while the high-capacity auto feeder guarantees flawless sheet presentation.
Key Features
🔹 Dual Tool Cutting and Creasing – Smooth, deep creasing with the tangential creasing wheel and precise cutting with SmartTag retention on up to 450-micron media
🔹 Energy-Efficient – Consumes under 100W of power, making it cost-effective and environmentally friendly
🔹 Advanced Vision3 CCD Camera – Seamlessly reads cut files for mixed job stacks, enabling uninterrupted operation
🔹 Dual 'Grip and Drive' Feed System – Ensures edge-to-edge cutting with minimal SmartTags for clean, organized output
🔹 High-Capacity Auto Feeder – Handles up to 1,000 sheets with air blade separation and automated jogging for perfect sheet presentation
🔹 7” Touchscreen Operation – Operable via a 7” touchscreen in wireless held mode for ease of use
🔹 ColorCut Pro Production Studio Software – Included for enhanced digital workflow and productivity
Technical Specifications
| Specification | SC7000 Pro-T | SC7000 Pro-T XL |
|---|---|---|
| Media Handling | A4, A3, A3+, SRA3, Custom | Up to B2+ sheet size |
| Custom Sizes Media | Min-Max Width: 180mm – 340mm / Min-Max Length: 279mm – 710mm | Same as SC7000 Pro-T XL |
| Max Media Thickness | Up to 450 microns (0.45mm) | Up to 450 microns (0.45mm) |
| Cutting Control | Dual tool functionality, Blade holder, Tangential wheel creasing tool, Pen calibration tool | Same as SC7000 Pro-T XL |
| Crease Force/Pressure | Up to 2,500gf | Up to 2,500gf |
| Cut Force/Pressure | Up to 1,000gf | Up to 1,000gf |
| Max Speed | Up to 1060mm/sec | Up to 1060mm/sec |
| Job Recognition | Advanced QR code technology for instant file recognition and registration | Same as SC7000 Pro-T XL |
| Registration System | Vision3 - High-resolution CCD vision system | Same as SC7000 Pro-T XL |
| Stand | Included | Included |
| Media Storage | Included | Included |
| Weight | 145kg | 175kg |
| Dimensions | W833 x D882 x H1256mm | W1013 x D860 x H1256mm |
| Power Supply | 100-240V 50/60Hz, 100W Avg. (320W peak) | Same as SC7000 Pro-T XL |
| Approvals | CE & RoHS Compliant | Same as SC7000 Pro-T XL |
Applications
📦 Custom Packaging – Create precise, professional packaging with flawless cutting and creasing
🛒 Point-of-Sale Materials – Produce high-quality POS displays with precision and efficiency
🏷️ Kiss-Cut Labels – Perfect for producing clean-edged kiss-cut labels for various applications
🎨 On-Demand Cutting – Ideal for print shops and manufacturers needing high-speed, precise cutting and creasing
ColorCut Pro Software
✔ QR Code Job Retrieval – Instantly recognizes & loads job files
✔ Live Job Preview – Ensures precise cut alignment
✔ Adobe Illustrator & CorelDRAW Integration – Directly imports designs for seamless workflow efficiency
