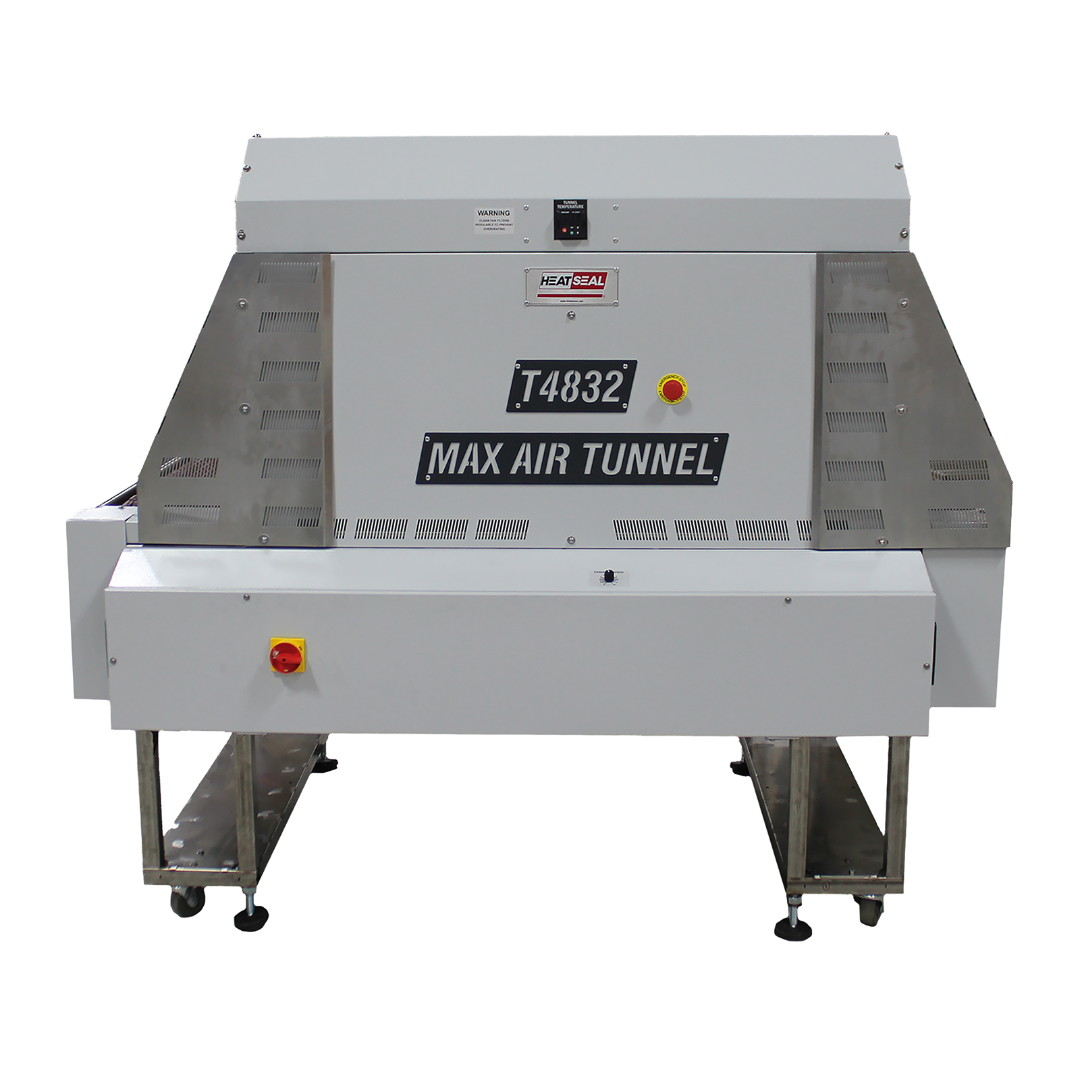

Heat Seal Max-Air T4832 Shrink Tunnel

The Heat Seal Max-Air T4832 is a heavy-duty shrink tunnel built for high airflow, even heat, and steady throughput. Three independent heat zones and the Max Air airflow design give 360 degree coverage on the package, across a range of shrink films and product types. The conveyor runs from 0 to 35 feet per minute through a 48" chamber, and stainless steel or mesh belt versions are available, which is what puts it in industrial packaging, contract packing, and fulfillment work.

Key features

• Max Air technology triples the airflow, so the shrink distributes evenly across the package.
• Three independent heat zones control temperature across the whole chamber.
• A 48" chamber with a 12" high by 32" wide opening takes larger products.
• Variable speed conveyor, 0 to 35 ft/min, driven by a 1/4 HP motor.
• Silicone-covered rollers on 2" spacing, with a live/dead roller option.
• Glass-filled nylon construction for long-term heat resistance.
• Heavy-gauge frame with adjustable console height, casters, and levelers.
• Stainless steel version for washdown and food-grade environments.
• Two-year manufacturer warranty.

Specifications

Applications

• Contract packaging, shrink wrapping retail and industrial products at speed.
• Food and beverage packaging, using the stainless steel version for sanitary environments.
• Print and publishing, shrink wrapping bundled materials, catalogs, and documents.
• Retail distribution, final packaging of boxed goods, electronics, and promo packs.

Options

• Stainless steel construction (T4832S) for food-safe and corrosive environments.
• Wire mesh or non-stick mesh conveyor belts for specialty packaging.
• 16" tunnel opening for bulkier products.
• Reverse flow direction to match the way the line runs.

What it changes on the line

• The Max Air triple airflow design covers the package evenly, top to bottom.
• The 32" wide chamber and 12" of height clearance take large and irregular products.
• The heavy-duty frame and glass-filled nylon components are built for industrial duty.
• Belt, direction, and height options let the tunnel fit the line you already run.
• It carries a two-year warranty.

Frequently Asked Questions

What is the Heat Seal Max-Air T4832 shrink tunnel?
It is a 48-inch forced-air heat tunnel with three independent heat zones and a variable-speed conveyor (up to 35 ft/min), built for high-volume shrink wrapping of retail, industrial, and print/publishing products.

What shrink films does the Max-Air T4832 run?
It handles a wide range of shrink films, including polyolefin, PVC, and polyethylene, with even 360-degree coverage from the Max Air triple-airflow design.

How fast is the Max-Air T4832?
The conveyor is adjustable from 0 to 35 ft/min, driven by a 1/4 HP motor, with airflow distributed evenly across the 48-inch tunnel chamber.

What are the power requirements?
The T4832 runs on 208-240V, 3-phase power; see the specifications table above for the full electrical rating.

Does Mid-State Litho install and service the Max-Air T4832?
Yes. Mid-State Litho is an authorized Heat Seal dealer with factory-trained, Michigan-based technicians serving the Great Lakes region, plus equipment financing and trade-ins.
