MBM GoCrease 3000 Creaser

Specification Sheet

Operating Manual

Features

• Min./Max. Working Width: 1 to 12 5/8″
• Paper Weight (Perforating): 80 – 250 gsm
• Paper Weight (Creasing): 80 – 400 gsm

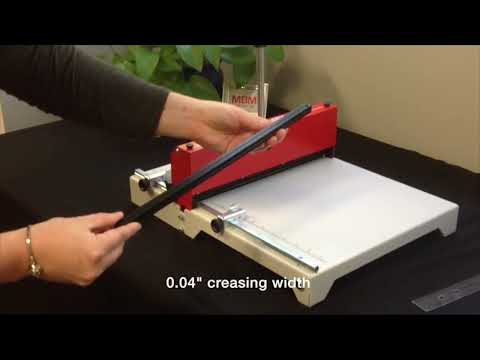

• Channel Widths: 0.04 / 0.05 / 0.06

Product Details

• Paper Creaser
• Includes: 1 creasing tool, 1 perforating tool
• Dimensions (D x W x H): 14 1/2″ x 19″ x 15 1/2″
• Shipping Weight: 27.5 lbs.

Characteristics

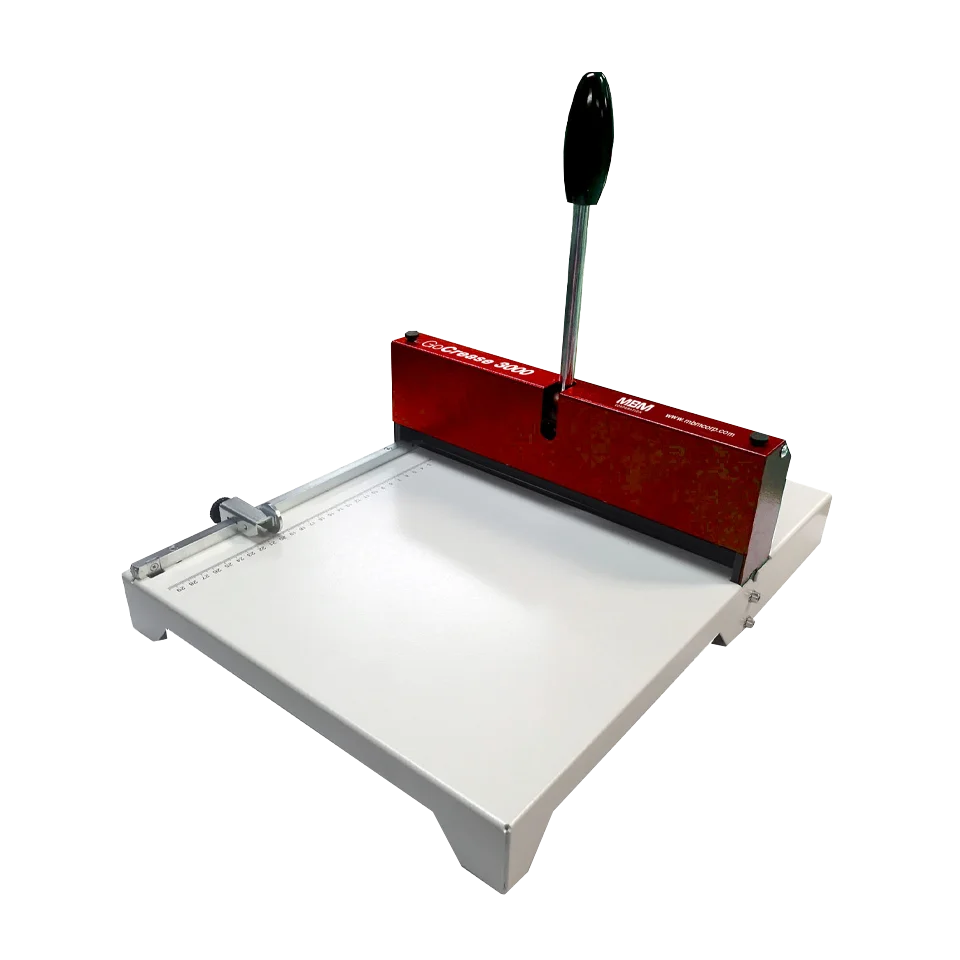

• Manual creasing and a perforating tabletop machine designed with a large working width for modern capability, enhanced quality of perforation, and angle-adjustable side guide
• This creasing and perforating machine is designed for the final processing of graphic materials up to 12.6” x 17.7” in paper size

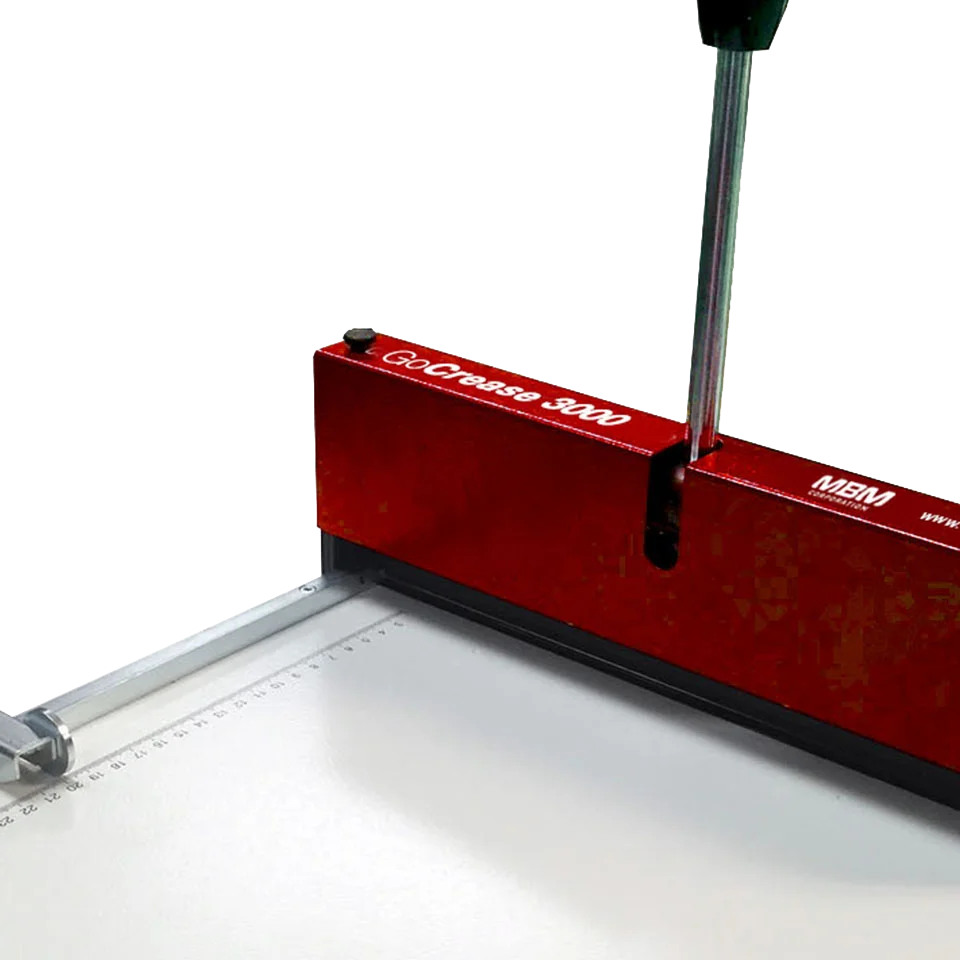

• Simple hand-operated machine with a working width of 12.6” allows a crease and/or perf to be made with the same quality as the electric GoCrease™ 4000/SEMI

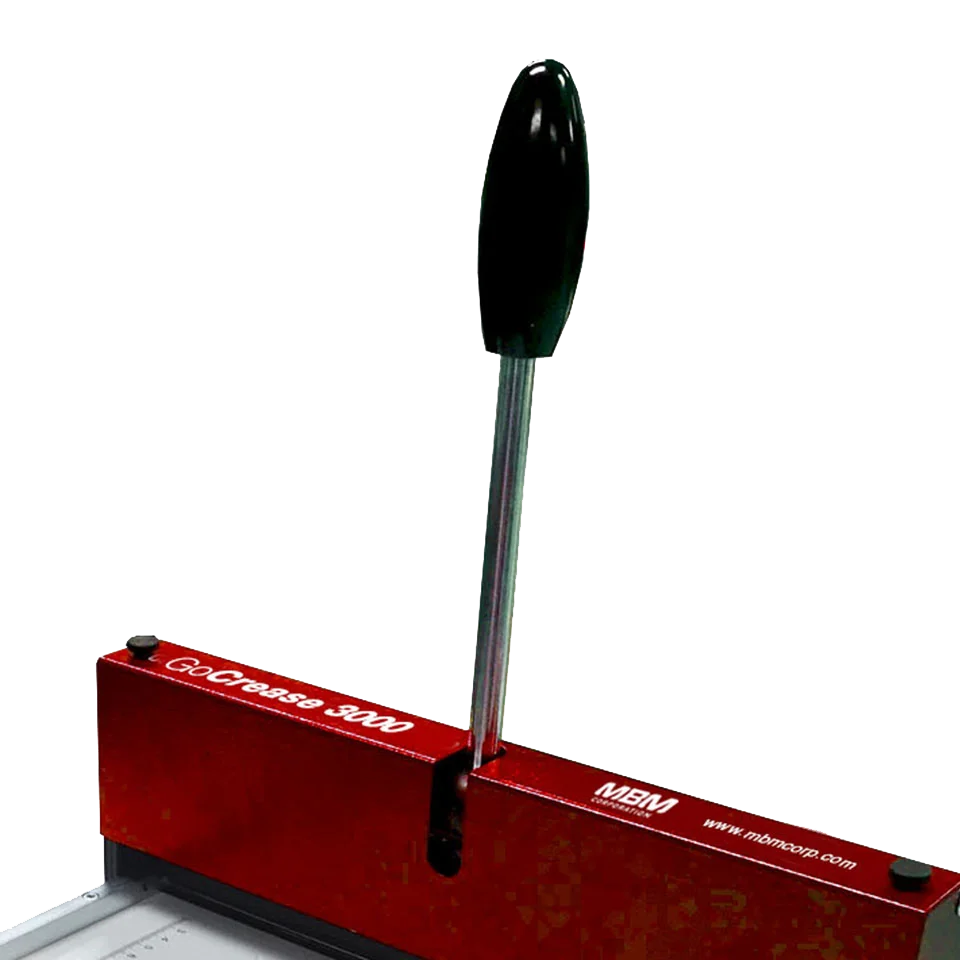

• Eccentric wheel of operating mechanism demands only minimum effort to process the paper, even for heavy stocks or laminated documents

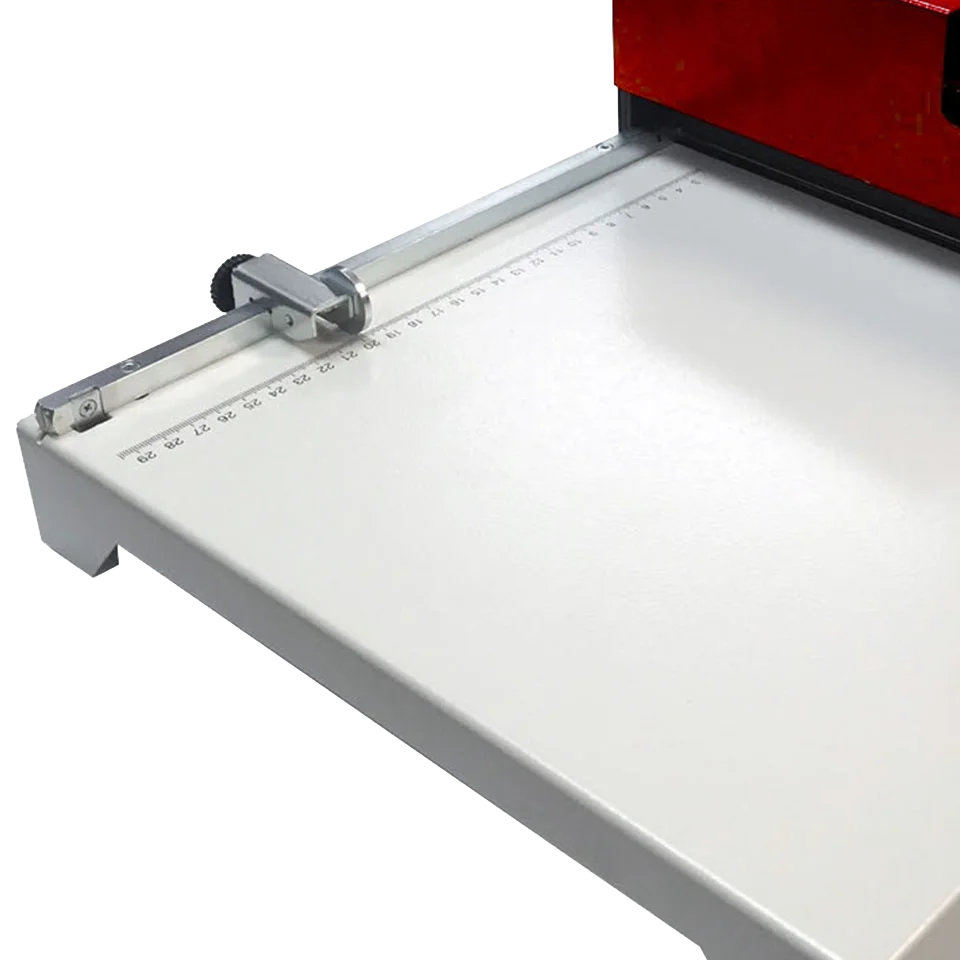

• Skew paper can also be creased/perforated due to thumb wheel angle adjustment of side guide
• The GoCrease 3000 has an exchangeable creasing and perforating knife, as well as 3 different creasing channel widths
