MBM AeroCut X Digital Finisher
Slit • Cut • Crease • Perforate PC-Free Operation Barcode Job Recall Tri-Suction Feed

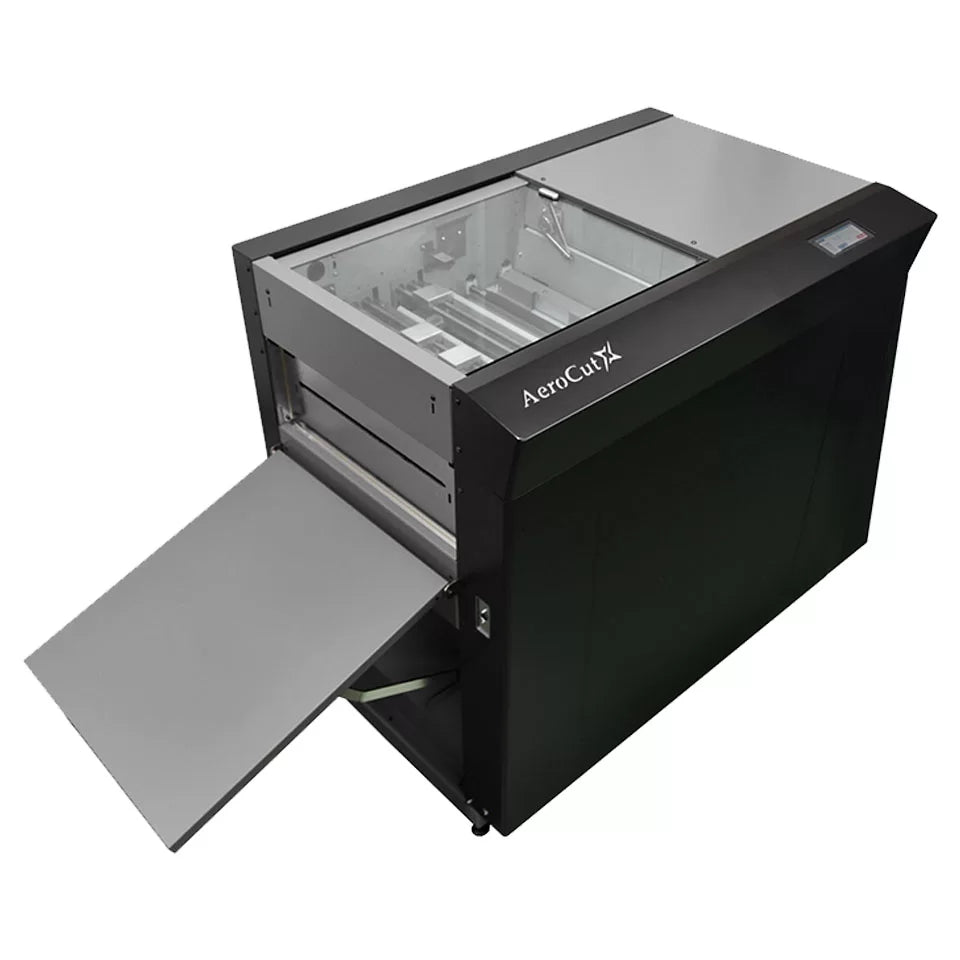

The MBM AeroCut X is a compact, all-in-one digital print finisher that slits, cuts, creases, and perforates in a single pass to simplify production for jobs like business cards, postcards, greeting cards, and more. Featuring a Tri-Suction feeding system, a 7" color touchscreen, self-sharpening blades, and barcode scanning, the AeroCut X delivers automated precision and versatility—without requiring a PC to operate.
Functions
Slit, cut, crease, perforate
Speed
Up to 24 sheets/min*
Stock support
120–400 gsm**
* Speed rating based on 2 cuts and 1 crease per 8.5" × 11" sheet. ** Paper type/coating may affect acceptable weight range.
Key Features
- PC-free operation runs directly from the touchscreen interface

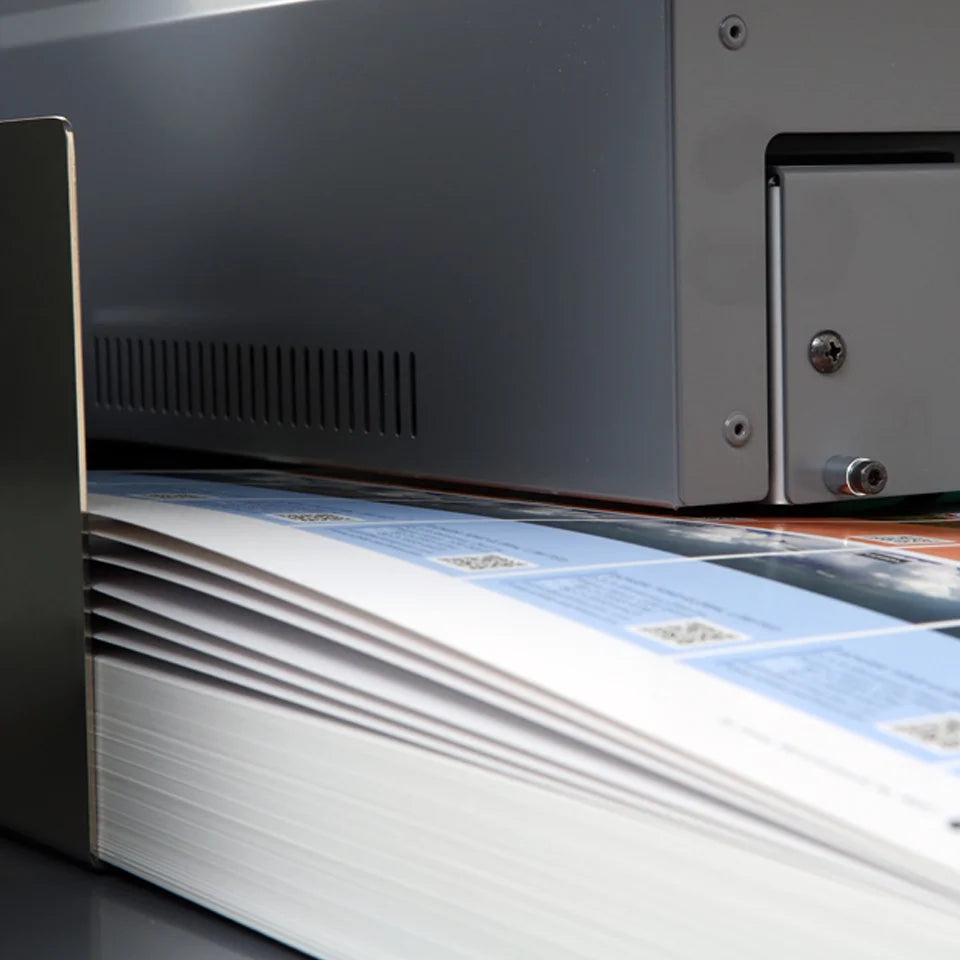

- Tri-Suction feeding system with ultrasonic double-feed detection reduces misfeeds and jams

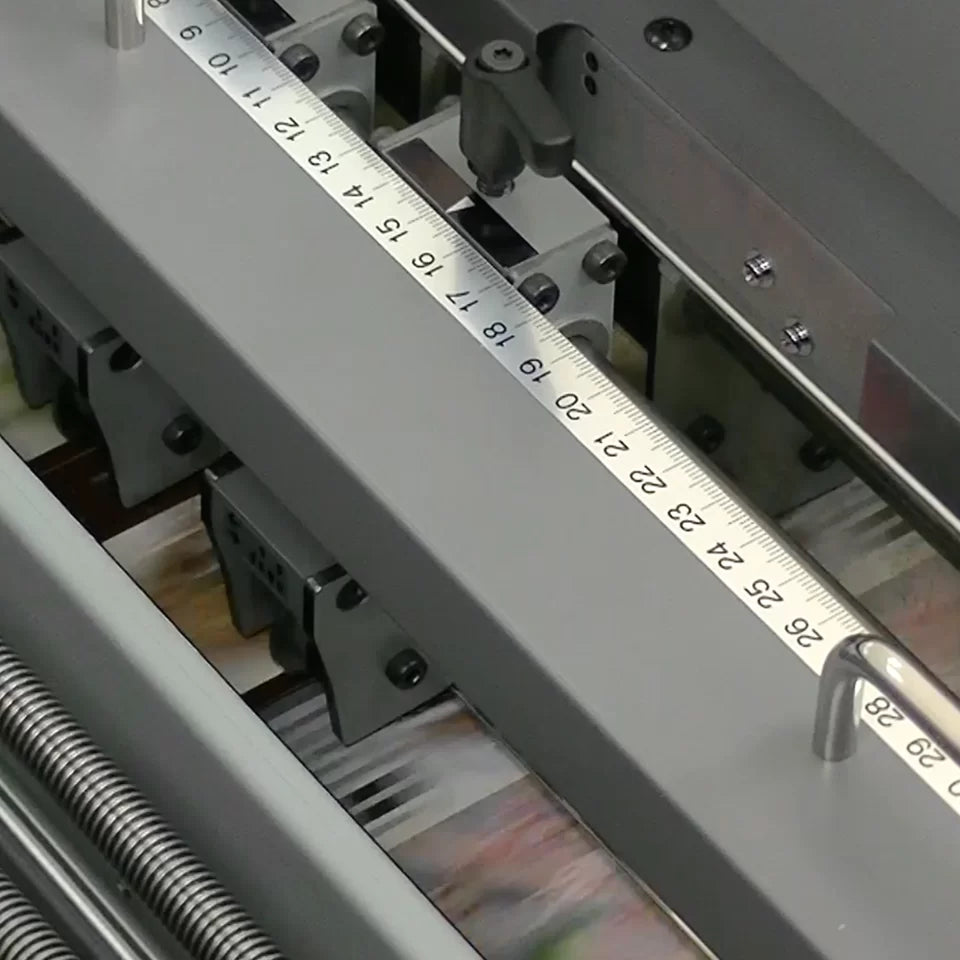

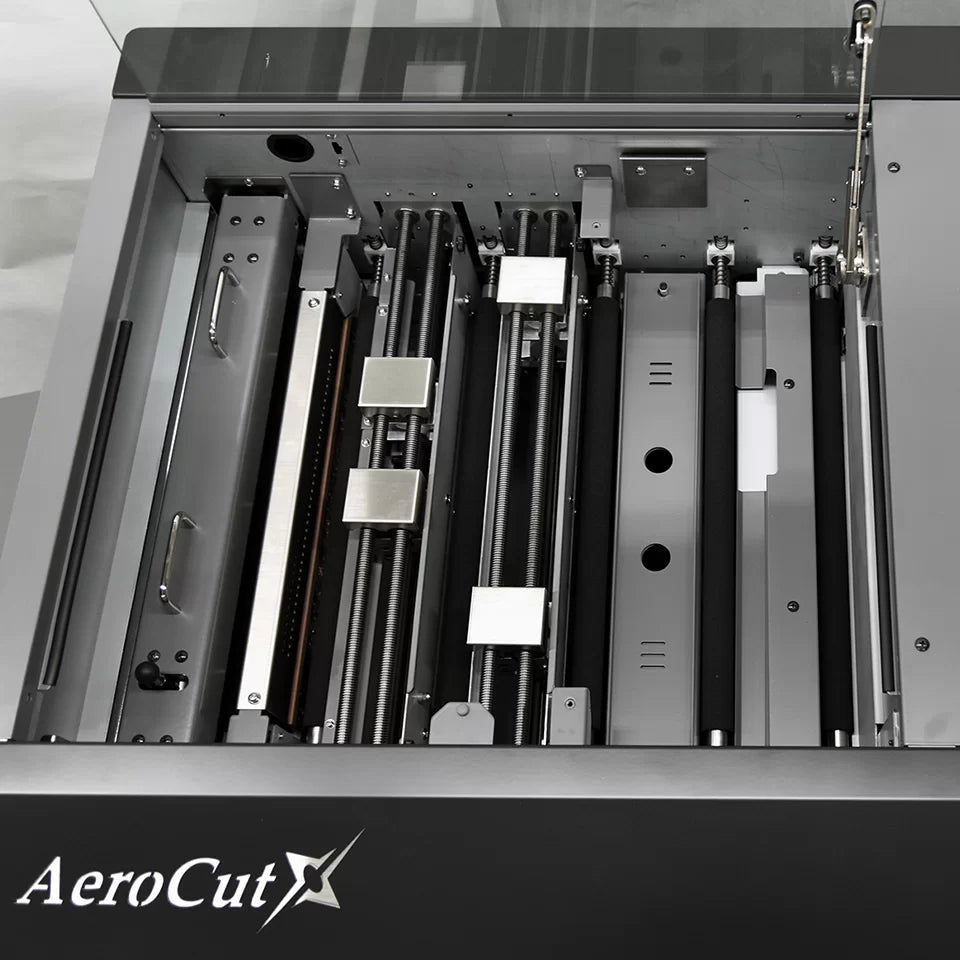

- All-in-one finishing with six rotary slitting knives and two perforation wheels
- Self-sharpening blades support stocks up to 400 gsm for long-term durability
- Barcode scanning automatically recalls job settings and detects mismatches

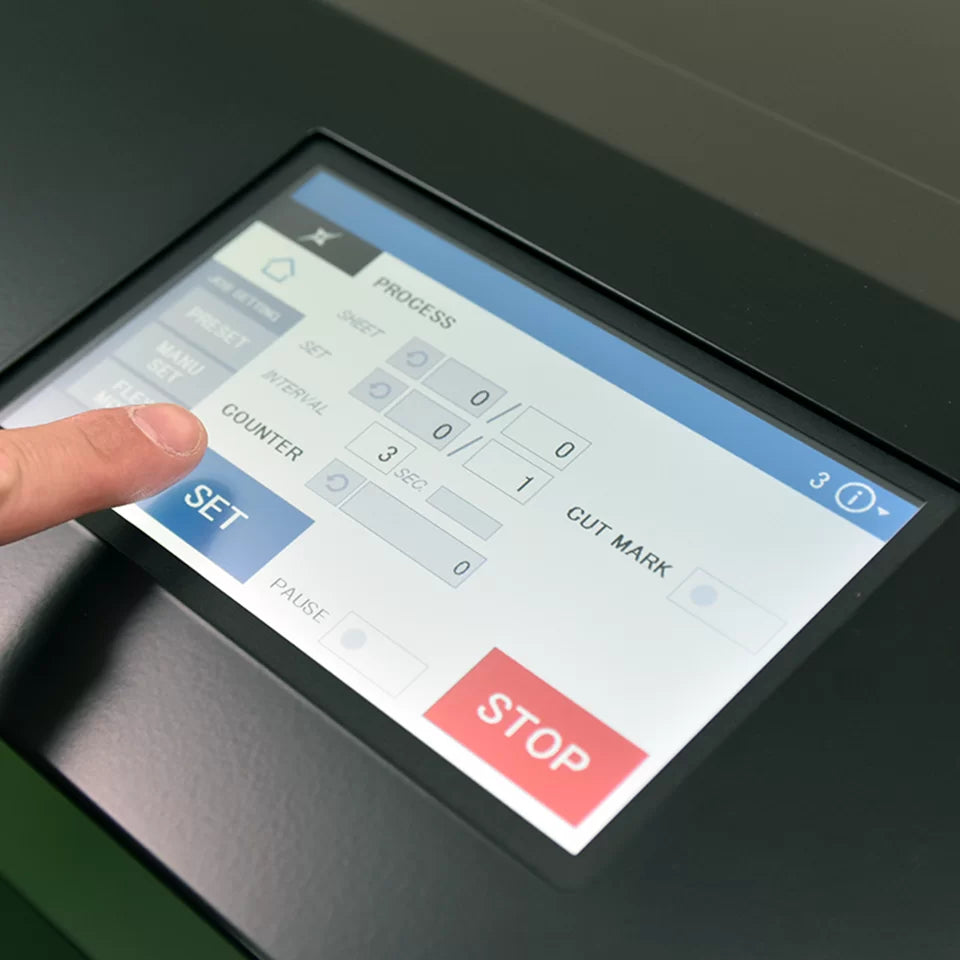

- 7" color touchscreen enables quick job setup and simple operator control

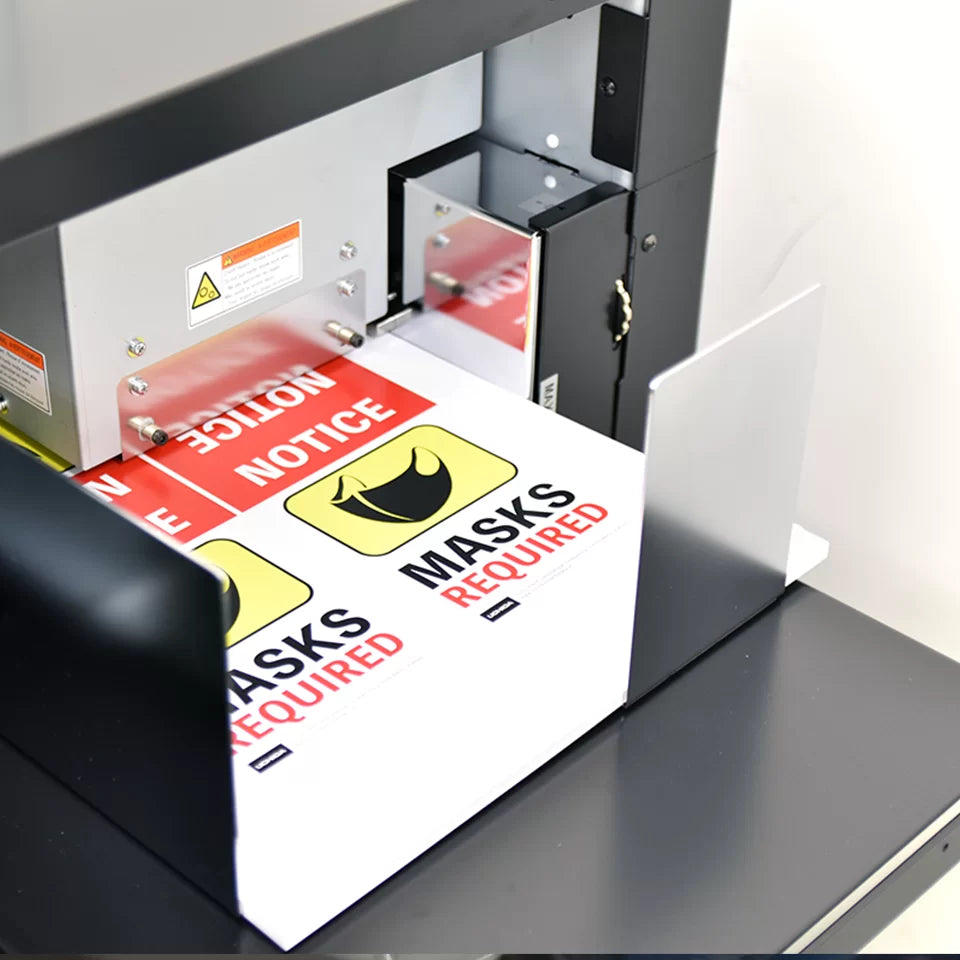

- Expandable feed tray supports long sheets up to 29.5" for multi-up and full-bleed layouts
- Crease pressure lever provides five pressure levels to match stock and finish quality
- Includes Intellicut software license for barcode creation and mark automation
Why It Matters
The AeroCut X is designed for faster turnaround with fewer manual touchpoints. Touchscreen control and barcode-based automation shorten setup time, while intelligent feeding and adjustable creasing help reduce waste and rework—especially across short runs, mixed stocks, and variable data campaigns.
Best used when: You need PC-free operation with barcode-driven job changes for high-mix digital finishing.
Specifications
| Specification | Detail |
|---|---|
| Speed | Up to 24 sheets/min* |
| Paper Weight Range | 120–400 gsm (6–16 pt)** |
| Paper Size Range | 8.27" × 8.27" to 14.5" × 47.2" (flex mode) |
| Sheet Capacity | 4" stack |
| Power Requirements | 100–120V, 50/60Hz |

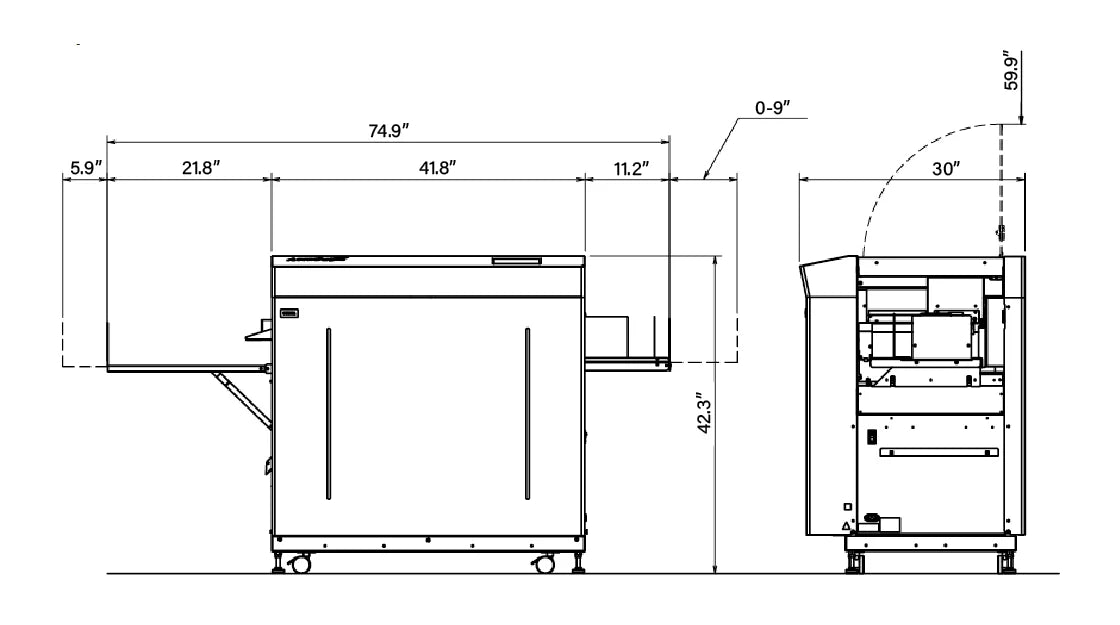

| Machine Dimensions | 30" D × 41.8" W × 42.3" H |
| Net Weight | 595 lbs |
* Based on 2 cuts and 1 crease per 8.5" × 11" sheet. ** Paper type/coating may affect acceptable weight range.
Applications
Business cards and postcards Greeting cards and invitations Flyers and tri-fold pieces Variable data campaigns
Available Options
- Intellicut software license (1-year) for PDF imposition, barcode setup, and workflow automation
- LAN-based remote control via Intellicut Controller for PC connection and live job adjustments

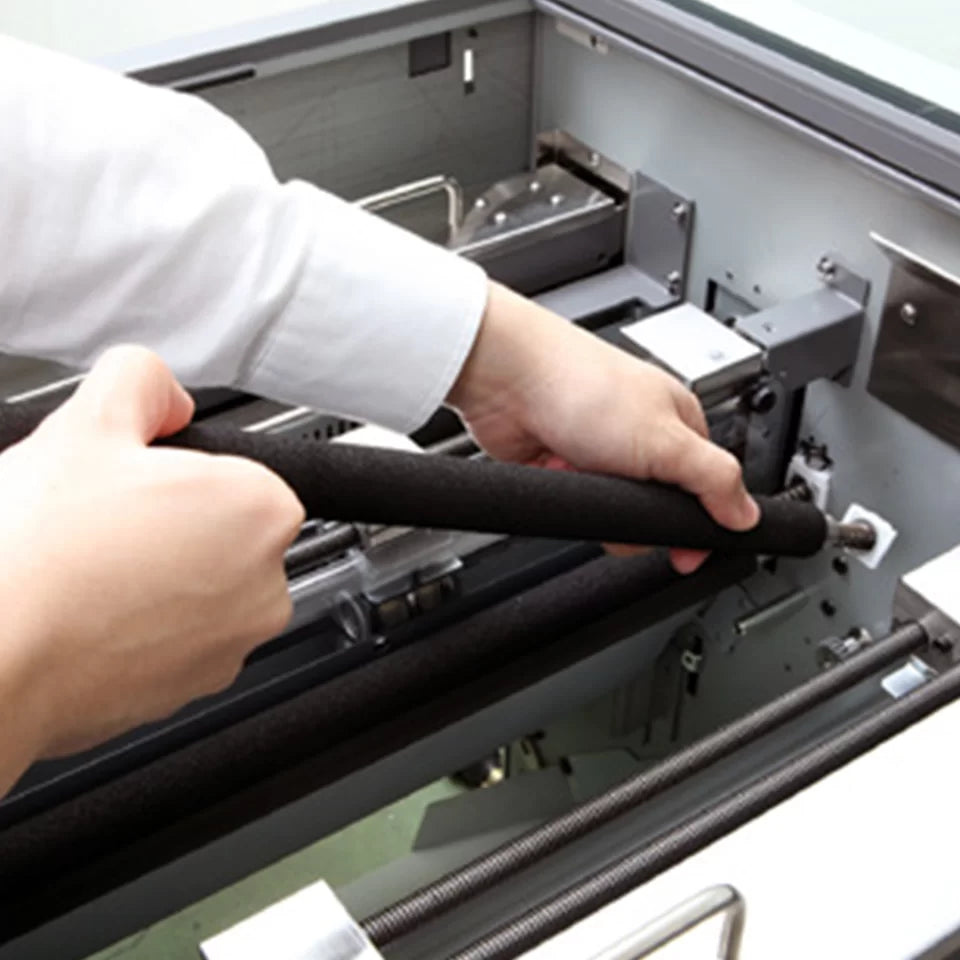

- Replacement blade sets and OEM maintenance accessories
