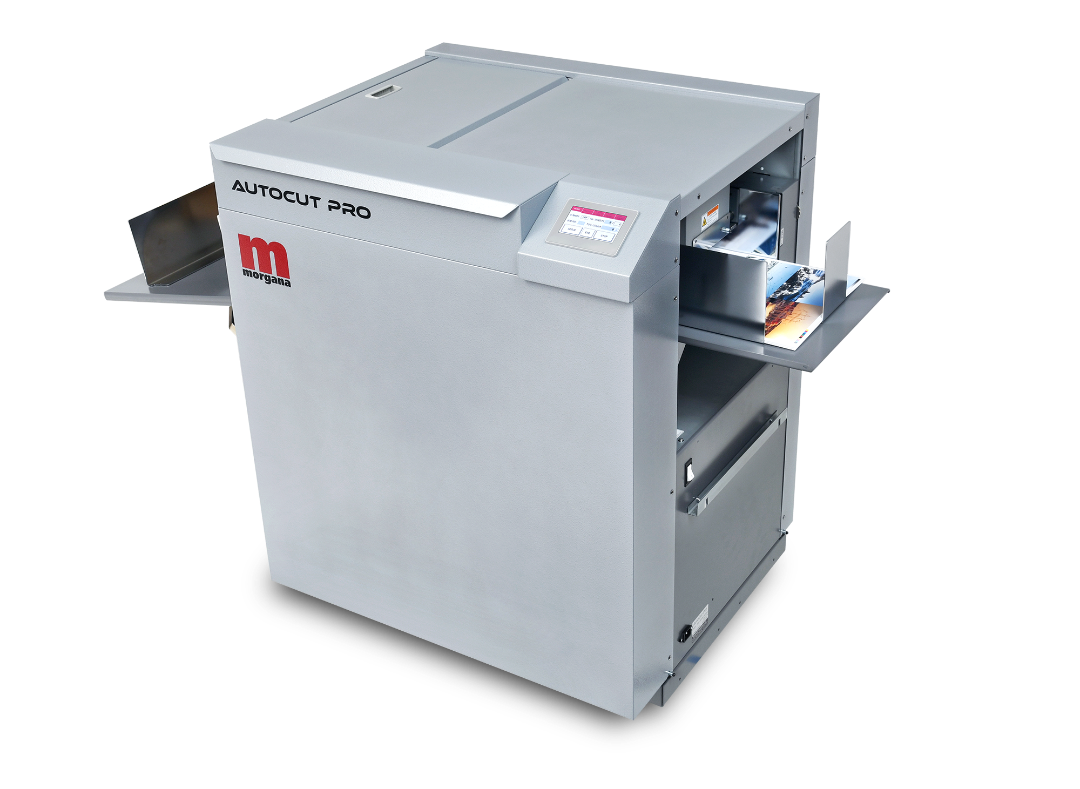

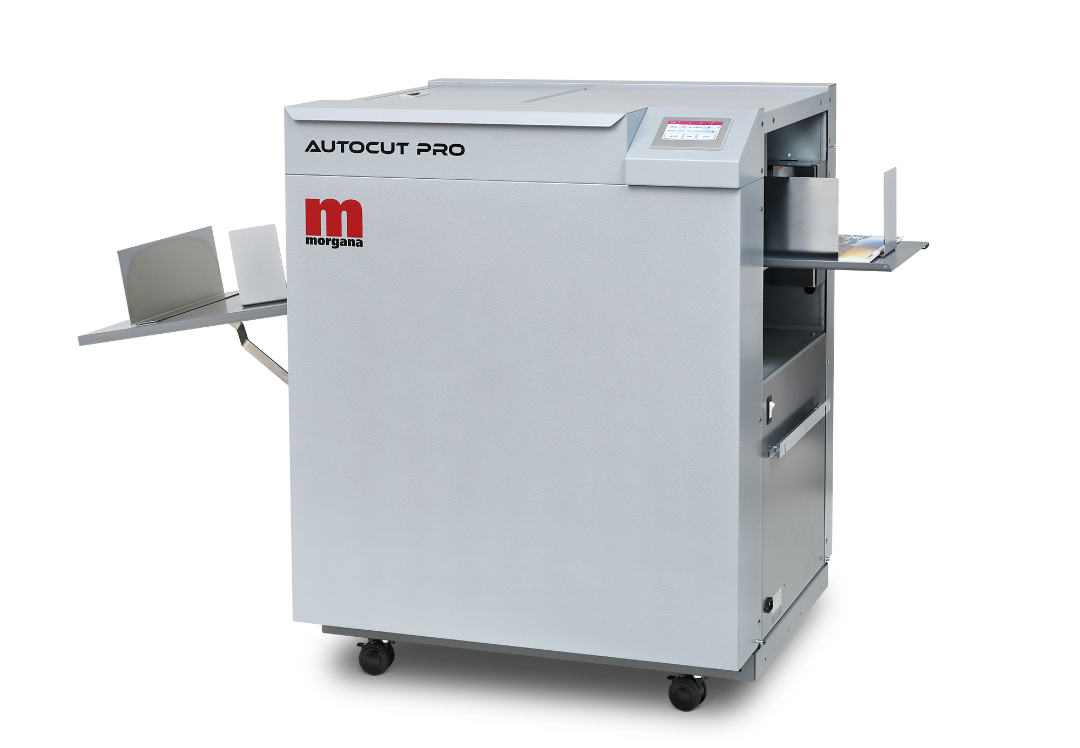

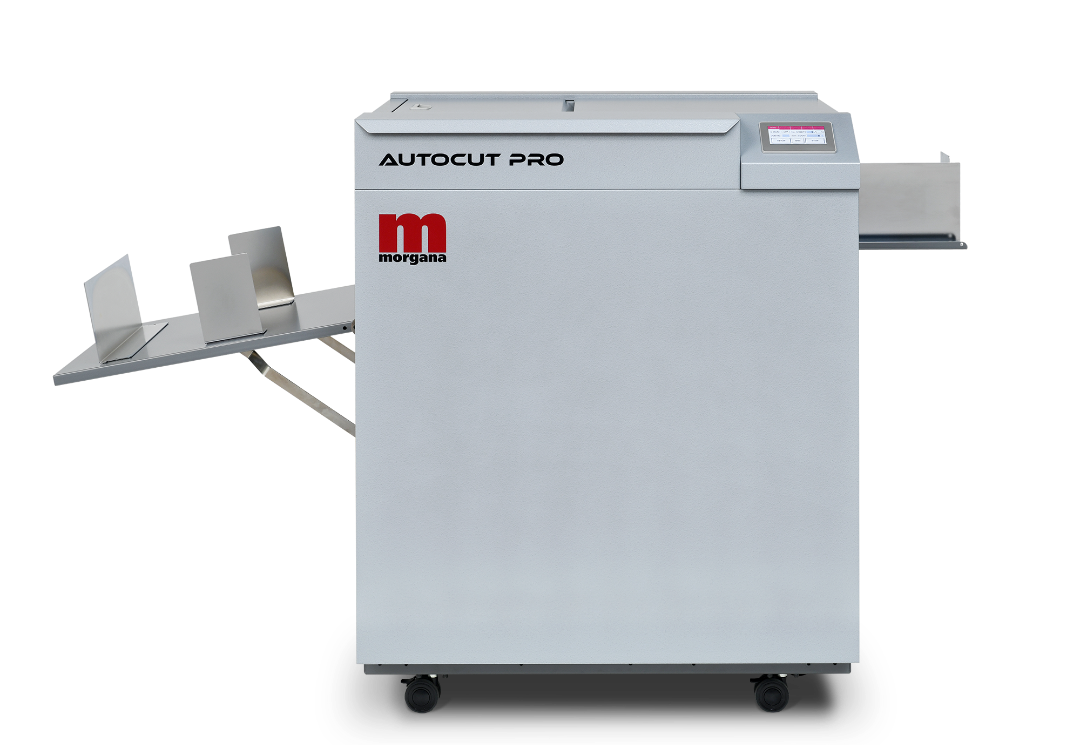

Morgana AutoCut Pro
Morgana AutoCut Pro automatic slitter/cutter/creaser for digital print finishing. Freight, install and training from Mid-State Litho, Michigan.
Freight items can be purchased online; final delivery details may be confirmed before shipment.
Tax-exempt? Apply once, check out tax-freeAsk a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
The Morgana AutoCut Pro is an automatic slitter/cutter/creaser that converts digitally printed sheets into finished business cards, postcards, gatefolds and multi-up work in a single automated pass. It slits, cuts and creases from registration marks, eliminating manual cutting and scoring for short-run digital production. Mid-State Litho supplies the AutoCut Pro with freight, installation and operator training across Michigan and the Great Lakes. Contact us for a quote.
Key Features
High-Speed Cutting & Creasing - Process up to 5,000 sheets per hour.
Versatile Sheet Handling - Supports sheets up to 13" x 27.5" with an optional long-sheet kit.
Precision Cutting - Tolerance of +/- 0.007 - 0.011 inches for accurate, consistent output.
Automated Job Setup - 4-inch touchscreen with 150 job memories for quick recall.
Reliable Feeding System - Upper belt tri-suction system ensures smooth, jam-free operation.
Advanced Alignment & Detection - Standard skew adjustment, side aligner, and double feed detection prevent misfeeds.
Cut Mark Registration - Ensures perfect registration for high-quality finishing.
Specifications
| Specification | Details |
|---|---|
| Max Sheet Size | 13” x 19” (13” x 27.5” with long sheet kit) |
| Min Sheet Size | 8.2” x 8.2” |
| Min Finished Size | 3.3” x 1.9” |
| Paper Weight | 32 lb bond to 130 lb cover (120-350 gsm) |
| Speed | Up to 5,000 sheets/hr (creasing) |
| Business Card Output | 24-up (13" x 19"): 8 sheets/min |
| Postcard Output | 4-up (12" x 18"): 10 sheets/min |
| Tolerances | +/- 0.007 - 0.011 inches |
| Max Pile Height | 4 inches |
| Job Memory | 150 jobs |
| Machine Dimensions | 33” x 31” x 43” |
| Footprint | 63” x 31” x 43” |
| Weight | 440 lbs |
| Power Supply | 100-120V AC |
Benefits
- Boost Efficiency - High-speed processing for business cards, brochures, and marketing materials.
- Precision Finishing - Advanced alignment, cut mark registration, and double-feed detection ensure perfect results.
- Simplify Operation - Intuitive touchscreen with automated job setup and memory storage.
- Enhance Production Versatility - Compatible with long-sheet media for diverse finishing applications.
- Reduce Downtime - Reliable suction feeding minimizes interruptions and misfeeds.
Ideal Applications
Business Cards - Quickly cut and stack up to 250 cards in under two minutes.
Postcards & Flyers - Crease and cut promotional materials with accuracy.
Brochures & Menus - Create trifold and gatefold formats effortlessly.
Booklet Covers - Seamless integration with booklet making systems.
Posters & Marketing Materials - Precision cutting for high-quality presentation.
Software Features
150 Job Memory - Store and recall frequently used job setups.
Automated Skew & Alignment - Reduces manual adjustments for faster production.
Touchscreen Interface - Intuitive 4-inch display streamlines operation.
About Morgana
Morgana (Plockmatic Group) builds creasing, cutting and booklet-finishing equipment for the digital print market. Mid-State Litho carries the Morgana finishing line and supports it with installation, training and service.
Choosing an Automatic Slitter/Cutter/Creaser
Match sheet size, multi-up layout (business cards, postcards, gatefolds), bleed handling, creasing and registration-mark reading to your digital volume. The AutoCut Pro handles sheets up to 13" x 19" (13" x 27.5" with the long-sheet kit) at up to 5,000 sheets/hr. Compare related finishing in business card cutters, paper creasers and creaser folders.
Why Buy From Mid-State Litho
- Second-generation, family-owned Michigan dealership founded in June 1984, serving the Great Lakes region.
- Authorized dealer with factory-trained installation, operator training, and in-house service - not a drop-ship box.
- Freight handled and reconciled with the vendor, with lift-gate delivery on equipment.
- Real phone support, factory-backed parts, and financing or trade-in options.
Mid-State Litho handles freight, installs the machine, trains your operators, and services it after the sale. Request a quote and we will scope the right configuration for your shop.
Frequently Asked Questions
What does the AutoCut Pro produce?
Finished business cards, postcards, gatefolds and multi-up pieces - slit, cut and creased from one printed sheet.
Does it crease as well as cut?
Yes - it slits, cuts and creases in a single automated pass.
How does it register?
It reads registration marks on the printed sheet for accurate cut and crease placement.
Is it a priced item?
Yes - the AutoCut Pro is sold at a published price; contact Mid-State Litho for current availability.
Does MSL install and train?
Yes - installation and operator training are included across Michigan and the Great Lakes.
