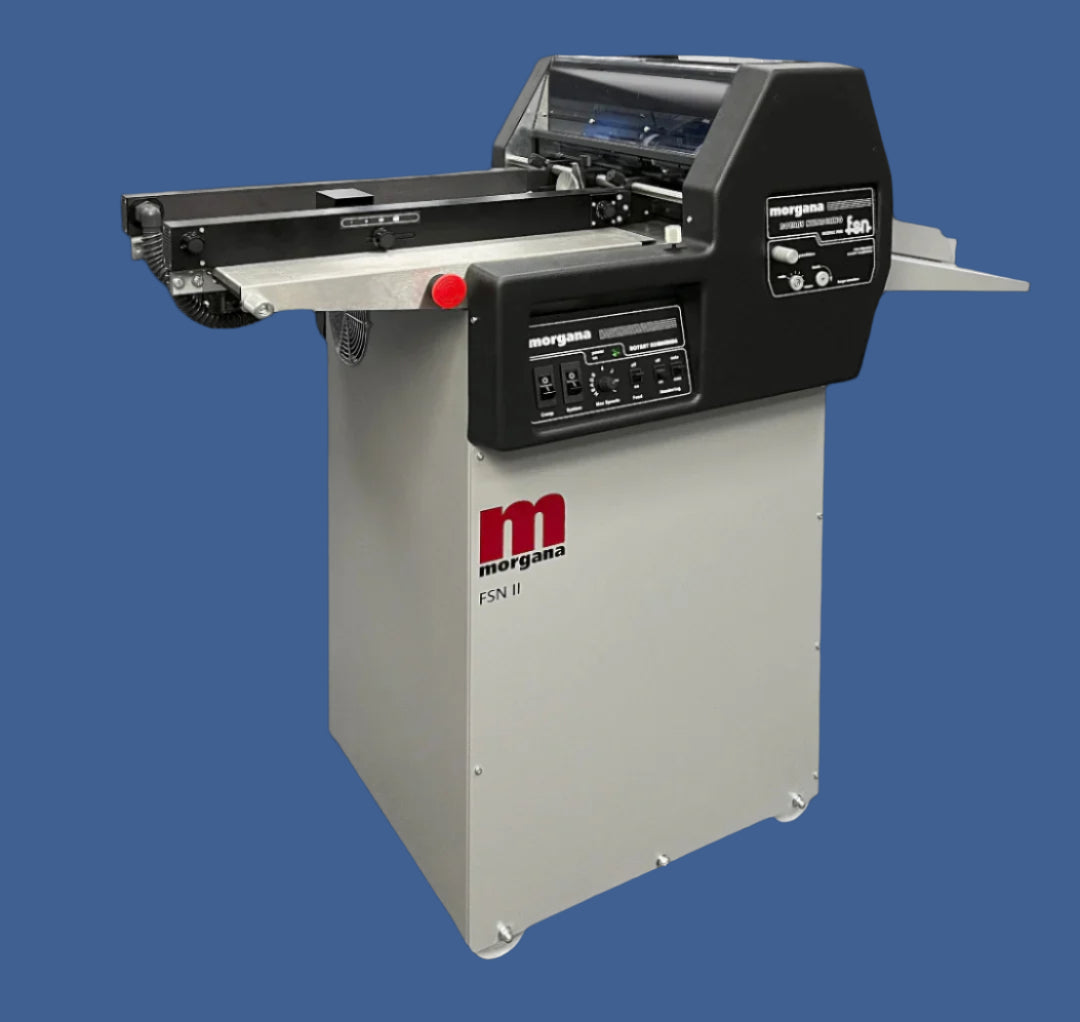

Morgana FSN II Rotary Numbering Machine
Morgana FSN II – high-speed rotary numbering, perforating, scoring & slitting. Handles up to 72,000 impressions/hr with unmatched accuracy.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications
The Morgana FSN II is a high-speed rotary numbering machine designed for precision numbering, perforating, scoring, and slitting. It delivers unmatched definition on multi-part sets while ensuring seamless, high-capacity production.
Key Features
🔹 Rotary Numbering Action – Delivers sharp, high-quality numbering, even on multi-part carbonless sets.
🔹 High-Speed Production – Achieves up to 72,000 impressions per hour with 8 heads.
🔹 Versatile Sheet Handling – Supports sheet sizes from 210 x 125 mm to 457 x 457 mm.
🔹 Suction Feed System – Continuous bottom-feed design allows reloading without stopping production.
🔹 Micro-Porous Ink Roll System – Ensures clean, consistent inking with black or Pantone inks.
🔹 Perforating, Scoring & Slitting – All in one pass for fast, efficient output.
🔹 User-Friendly Control Panel – Quick setup with minimal operator intervention.
🔹 Adjustable Platen Pressure – Easily adapts to different stock thicknesses for consistent results.
🔹 Fully Mobile Design – Compact and maneuverable for seamless workflow integration.
Specifications
| Specification | Details |
|---|---|
| Max Sheet Size | 457 x 457 mm |
| Min Sheet Size | 210 x 125 mm |
| Max Paper Weight | 7-part carbonless |
| Min Paper Weight | 56 gsm |
| Speed | Up to 72,000 impressions/hr (8 heads) |
| Numbering Heads | Up to 8 (parallel or convex) |
| Min Spacing (Same Collar) | 50 mm (Parallel), 73.5 mm (Convex) |
| Min Spacing (Adjacent Heads) | 62 mm (Parallel), 48 mm (Convex) |
| Dimensions (L x W x H) | 970 x 730 x 1115 mm (1280 mm with tray) |
| Weight | 138 kg |
| Power Supply | 240V, 50/60Hz |
| Options | Parallel & convex numbering boxes, oscillating inking, jogger |
Benefits
- Boost Productivity – Process up to 72,000 impressions per hour with high-speed rotary numbering.
- Versatile Application – Supports multiple numbering formats, perforation, and scoring in a single pass.
- Efficient Operation – Bottom-fed suction system allows uninterrupted production.
- High-Quality Output – Micro-porous ink system ensures clean, sharp numbering.
- Seamless Integration – Mobile, compact design fits easily into existing workflows.
Ideal Applications
📄 Invoices & Forms – Number multi-part carbonless forms with precision.
📑 Tickets & Vouchers – Perforate and number event tickets, coupons, and NCR forms.
📘 Booklet Covers – Enhance booklet-making workflows with fast numbering.
📢 Direct Mail – Ensure accurate numbering and document integrity in mailing applications.
Software Features
✔ Quick Setup – Fast job recall and easy platen pressure adjustment.
✔ Ink Roll Customization – Supports black and Pantone color inks.
✔ Automated Feeding – Continuous bottom-feed for uninterrupted production.
