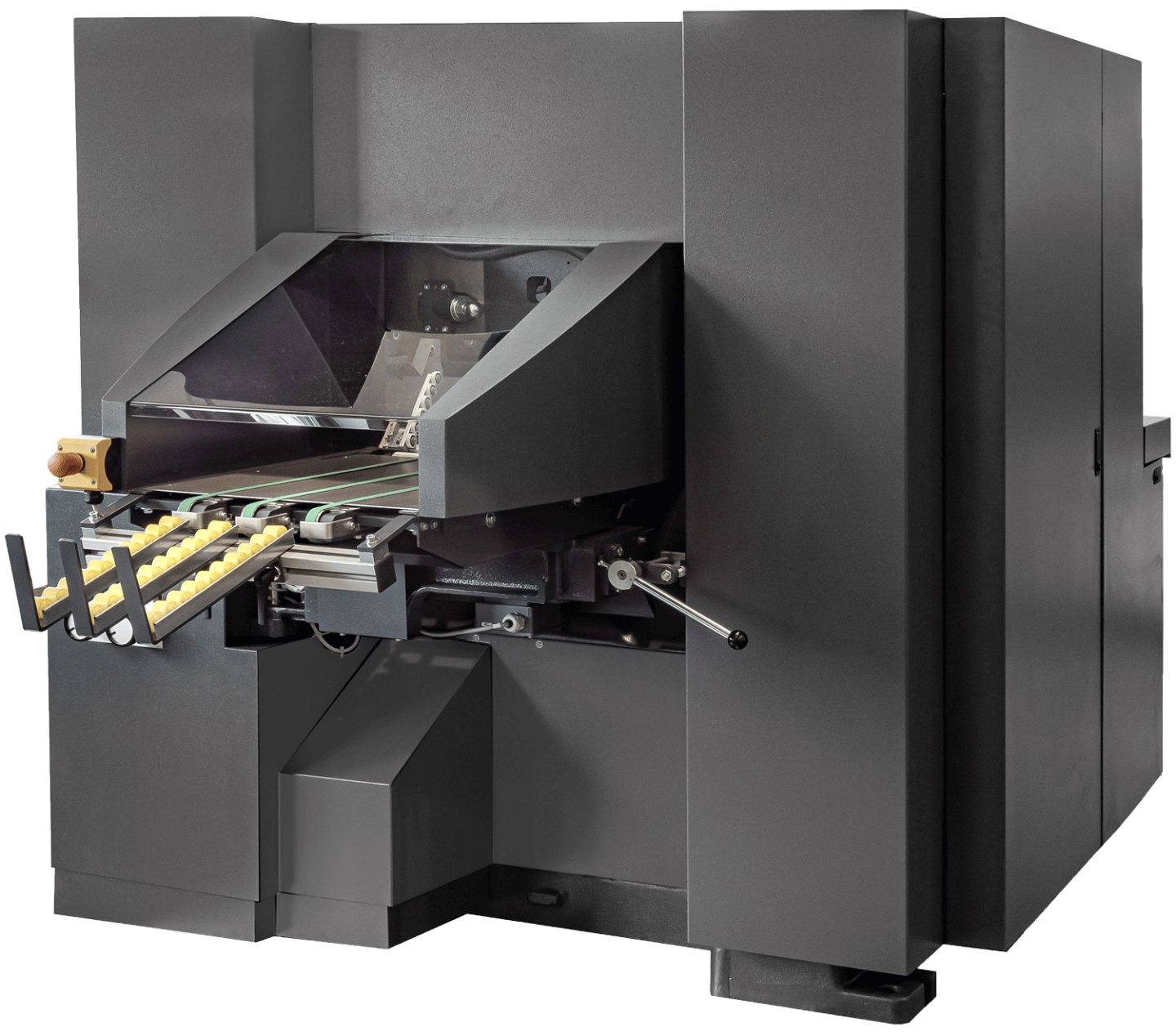

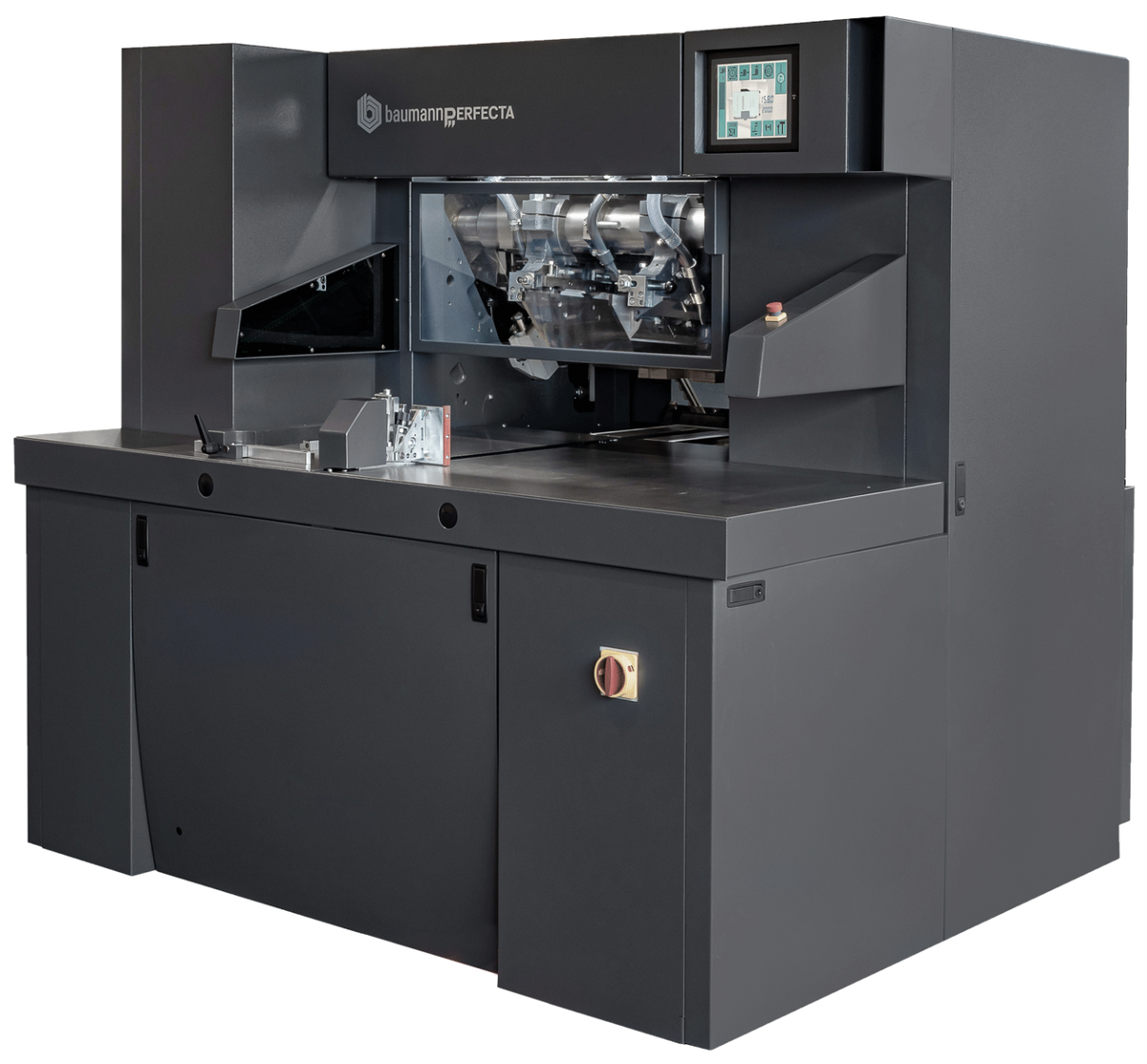

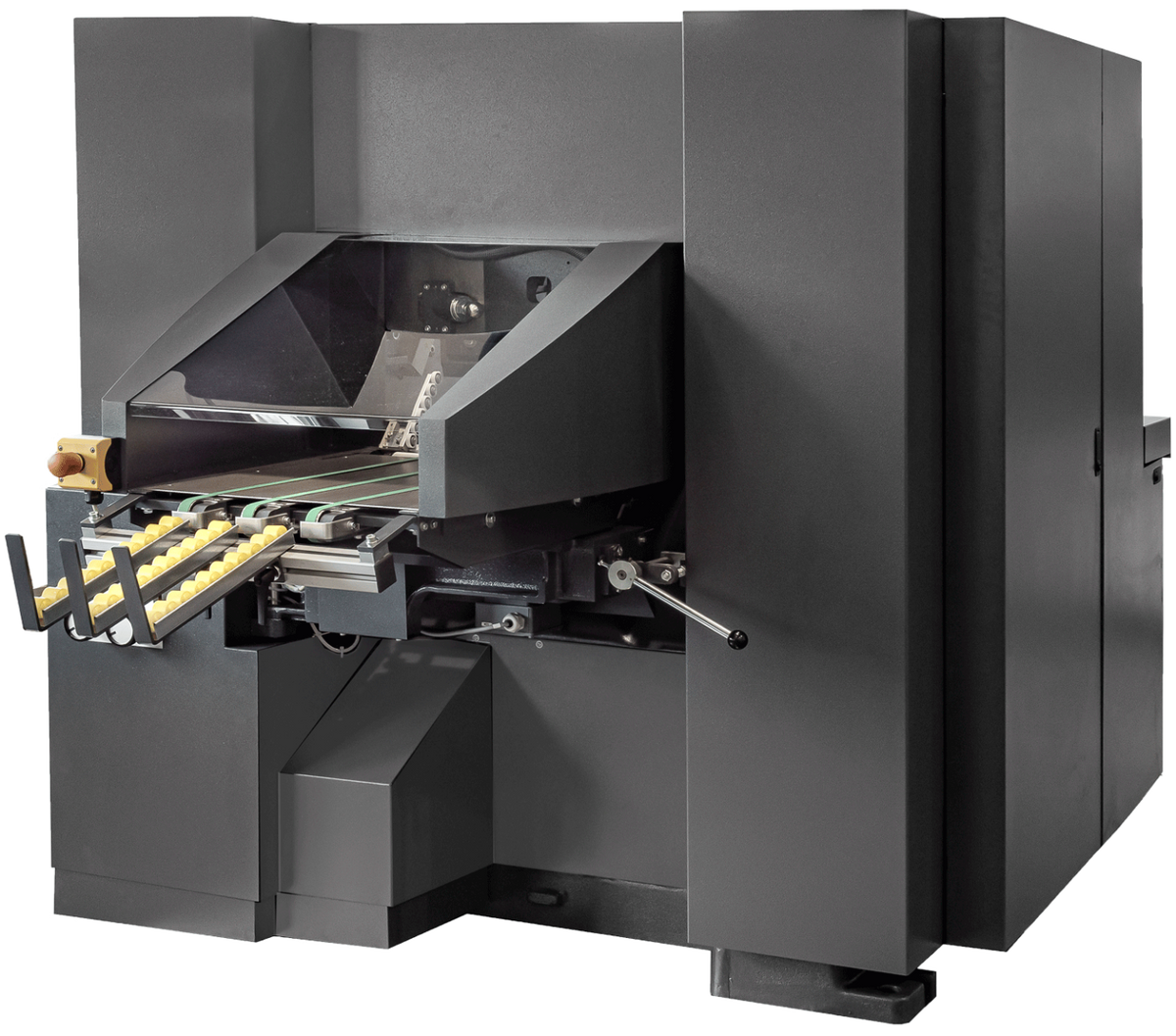

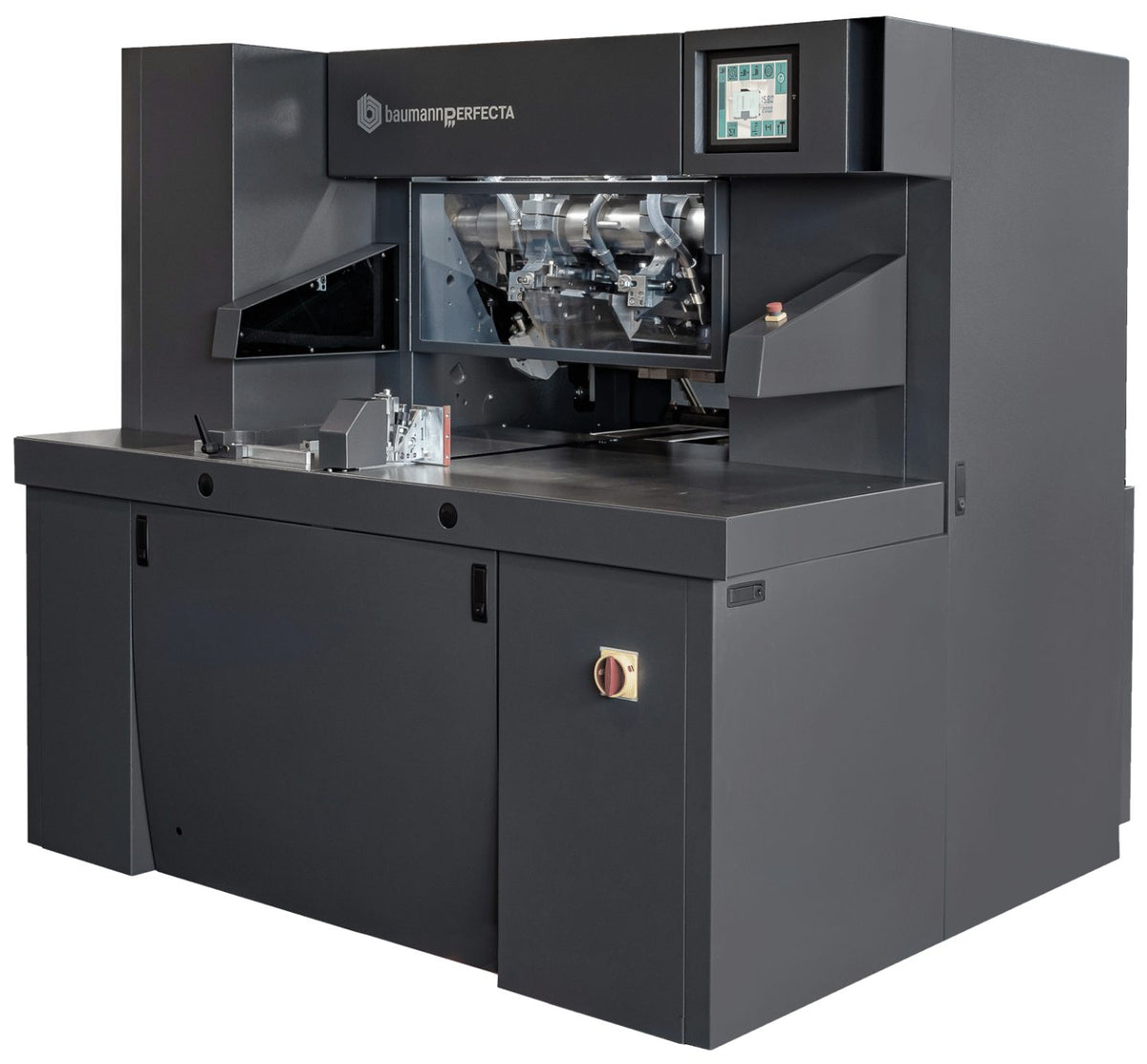

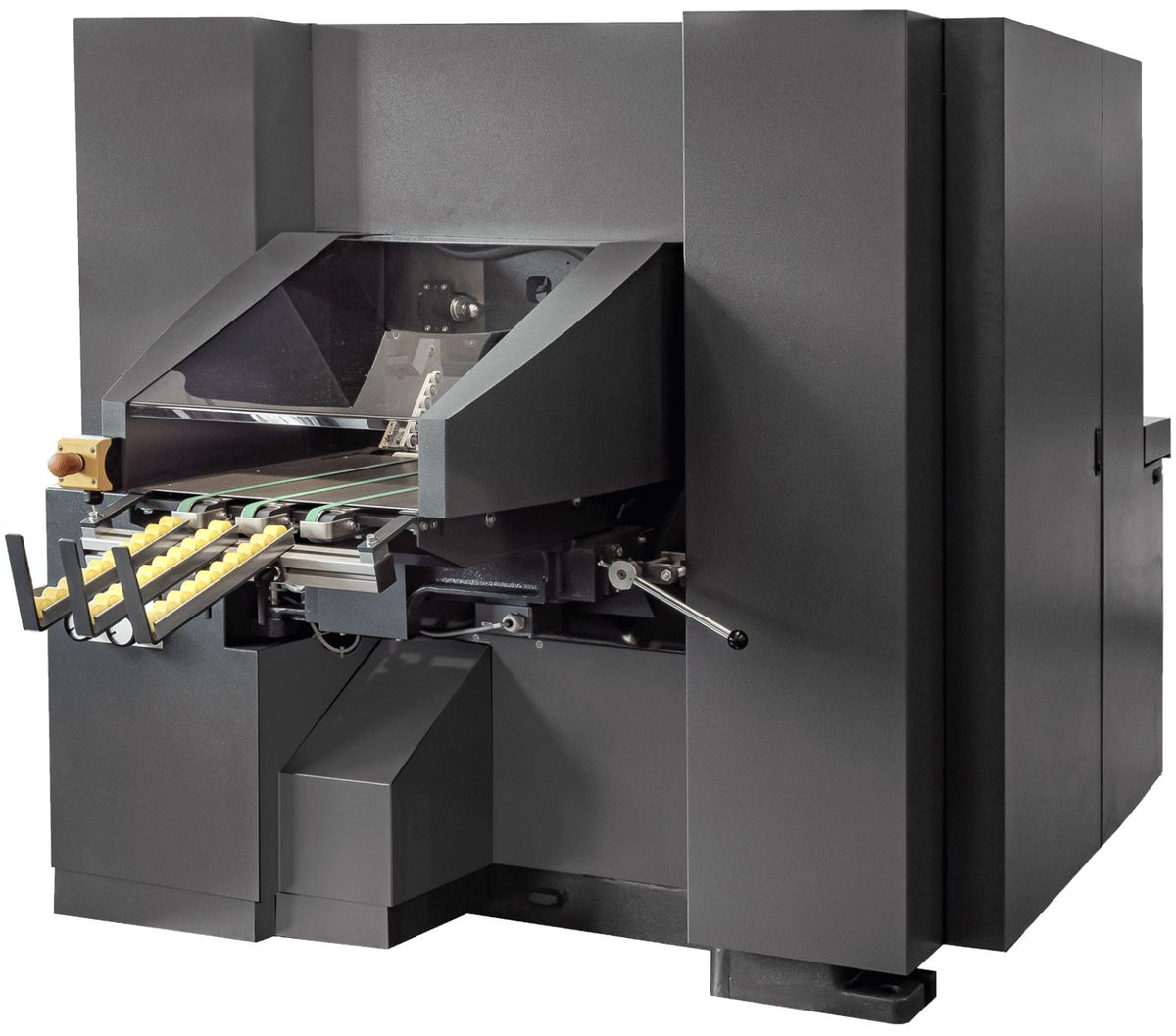

Perfecta BP SDY Three-Knife Trimmer
Perfecta BP SDY Three-Knife Trimmer
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370
The Perfecta BP SDY is a high-precision three-knife trimmer designed for trimming books, brochures, catalogs, and loose-leaf materials. This offline trimmer supports both continuous and return mode operation, making it ideal for short runs or high-volume production. With servo-driven technology, tool-free adjustments, and optional modules for four-side trimming, the BP SDY offers excellent flexibility for modern finishing workflows.
Key Features
🔷 Trims books and brochures from 2.75" x 3.15" up to 11.8" x 16.5"
🔷 Accepts input sizes up to 13.55" x 20.5"
🔷 Handles stacks up to 3.9" thick (100 mm)
🔷 Servo-driven feeder clamp with adjustable clamp force
🔷 Return mode for single-operator use or continuous mode for higher throughput
🔷 Touchscreen control panel with intuitive job setup
🔷 Tool-free format changes with quick-change knife cassettes
🔷 Swing-away delivery section for easy access during adjustments
🔷 Optional four-side trimming device for signatures and loose-leaf sets
🔷 Safety features include infrared light curtain, guarded doors, and two-hand cut activation
Specifications
| Specification | Details |
|---|---|
| Min Finished Size | 2.75" x 3.15" (70 x 80 mm) |
| Max Finished Size | 11.8" x 16.5" (300 x 420 mm) |
| Max Input Size | 13.55" x 20.5" (345 x 520 mm) |
| Max Stack Height | 3.9" (100 mm) |
| Clamping Force | 674 – 5,620 lbs (3 – 25 kN) |
| Operation Modes | Continuous, Return, Setting |
| Knife Setup | Quick-change knife cassettes |
| Safety Systems | Light curtain, two-hand control, enclosed hoods |
Applications
📚 Book and catalog trimming for short or long runs
📄 Brochures, manuals, and loose-leaf document finishing
📦 Signatures, softcover books, and multi-format products with optional modules
Benefits
✅ Fast format changes with tool-free adjustments
✅ Precision trimming with servo-driven clamp and feed
✅ Compatible with various formats and finishing workflows
✅ Supports single or dual-operator configurations
✅ Expandable with options for four-side trimming
