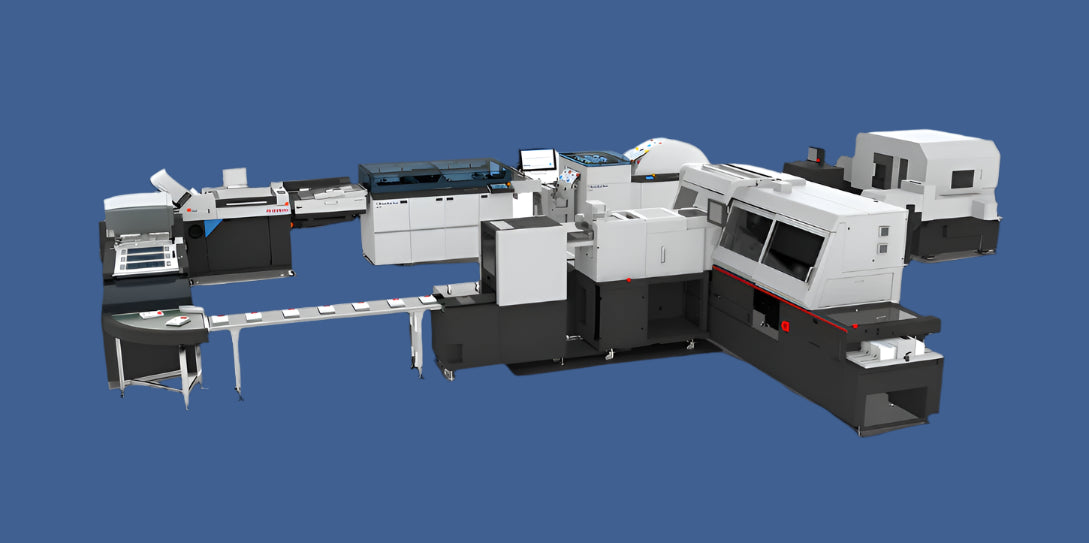

The Roll-to-Perfect Bind Gen8 is a cutting-edge finishing system engineered for seamless production of perfect-bound books. Featuring advanced unwinding, cutting, and binding technologies, this solution is perfect for high-volume applications in publishing, education, and commercial printing. With unparalleled precision and versatility, it delivers consistently professional results.
Key Features
š¹ High-Speed Operation: Reaches speeds up to 590 feet per minute (fpm) for maximum productivity.
š¹ Flexible Web Width: Handles web widths from 11 inches to 20.5 inches, accommodating diverse book formats.
š¹ Dynamic Paper Range: Processes paper weights from 40 to 180 gsm, offering versatility for various media types.
š¹ Broad Book Thickness Range: Supports book thicknesses from 1 mm to 45 mm, ideal for thin booklets or thick manuals.
š¹ Precision Cutting: Integrated cutter delivers accurate length and cross-cutting, ensuring clean edges.
š¹ Dynamic Processing: Includes linear and cross perforating, scoring, and punching capabilities in a single module.
š¹ Reliable Perfect Binding: Produces strong, durable bindings for long-lasting books.
š¹ Efficient Stacking: Stacks up to 39 inches, optimizing post-production workflow.
Specifications
Specification | Details |
---|---|
Maximum Roll Diameter | 54 inches |
Web Width | 11 inches to 20.5 inches |
Operation Speed | Up to 590 feet per minute |
Paper Weights | 40 to 180 gsm |
Book Thickness | 1 mm to 45 mm |
Book Block Max Size | 13.77 inches x 10.23 inches |
Book Block Min Size | 5.83 inches x 4.14 inches |
Signature Formats | 4/6/8/12/16/18 pages |
Optional Features
šø Web Inspection WI8: Ensures defect-free output by detecting and rejecting errors.
šø Web Cleaner PEM and iPEM: Maintains web cleanliness for smooth performance.

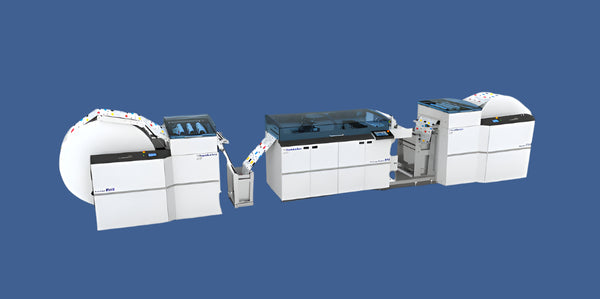

šø Dynamic Processor DP8: Enhances functionality with advanced perforating and scoring.
šø Center Cut and Edge Trim: Offers precise trimming for polished results.
šø Shingle Belt Delivery and Stacker: Facilitates efficient output handling.
Optimized Applications
š Perfect-Bound Books: High-quality production for publishing, education, and commercial use.
š Catalogs and Manuals: Precise binding for detailed, multi-page documents.
š Print-on-Demand: Streamlined production for customizable print projects.
š Direct Mail Booklets: Professionally bound booklets for marketing campaigns.
