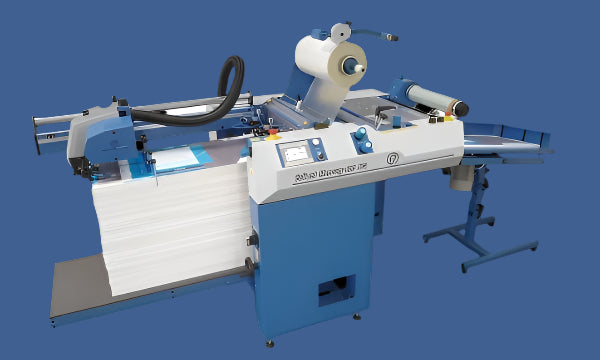

Foliant Mercury 530 NG B2 Industrial Laminator
The Foliant Mercury 530 NG is the B2 single-sided workhorse of the 530 line. It runs single-pass thermal lamination on sheets up to 20.8" x 29.5" (B2) at speeds up to 88 ft/min, using automatic suction feeding, twin de-curling, and bump separation for clean, flat output on offset and digital stocks. For commercial shops that want dependable, everyday single-sided lamination at B2, the Mercury 530 NG is the practical choice in the compact Mercury build.
Mid-State Litho sells the Mercury 530 NG as a factory-trained, authorized Foliant dealer. We are a second-generation Michigan finishing house serving the Great Lakes since 1984, with delivery, installation, operator training, and in-house service on every machine. Compare it with our other commercial laminators and the full range of Foliant lamination machines.
Want more speed at the same B2 format? See the premium Foliant Taurus 530 NG. Need both sides coated? The double-sided Foliant Mercury 530 NG 4x4 is the counterpart. Stepping up to B1? Look at the Foliant Mercury 760 NG. For oversized work, browse our wide-format laminators and other single-sided laminators. The Mercury 530 NG is Quote-Only; request a quote.
Specifications and Features
Key Features

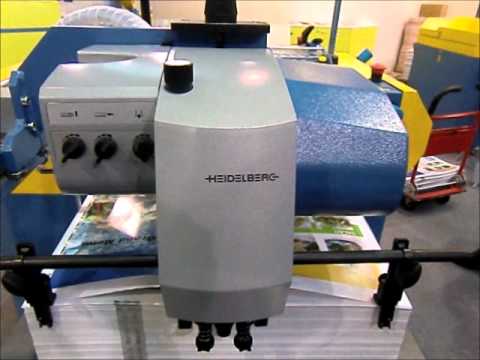

- Heidelberg Suction Feed System: OMRON servo-controlled vacuum feed head with 21.25" pile capacity.
- Single-Sided Thermal Lamination: Laminates 115-600 gsm stocks using BOPP, Nylon, and PET (with module).
- Twin Adjustable De-Curl Bars: Blade for offset sheets, roller for toner-sensitive digital jobs.
- Infrared-Heated Chrome Roller: Paired with hard rubber roller, pneumatically controlled for even pressure.
- Quick Film Loading Shaft: Accepts film rolls up to 9,842' with slitter and perforator included.
- Touchscreen Interface + PLC: Icon-driven OMRON control panel with job memory and real-time automation.
- Integrated Bump Separator: Automated sheet separation delivers to jogger or pallet stacker (required for use).
- 8-Minute Warm-Up Time: Enables rapid job changeovers and daily production starts.
Specifications
| Specification | Details |
|---|---|
| Max Speed | 88 ft/min |
| Max Performance | 2,300 SPH (19.7" x 27.8") |
| Max Sheet Size | 20.8" x 29.5" |
| Min Sheet Size | 12.6" x 9.8" |
| Paper Weight | 115 - 600 gsm |
| Film Compatibility | BOPP (24-42μm), Nylon (24-35μm), PET (20-25μm with module) |
| Feeder Capacity | 21.25" paper pile |
| Overlap Accuracy | ±0.08" (2 mm) |
| Temperature Range | 176°-284°F (80°-140°C) |
| Power Requirements | 3-phase, 400V, 50-60Hz, 5,250W |
| Air Requirement | 150 L/min @ 6-8 bar (external compressor) |
| Warm-Up Time | 8 minutes |
| Footprint (W x L) | 47.2" x 106.2" (with Jogger) |
| Weight | 1,312 lbs |
Applications
- 📄 Flyers, Brochures & Cards: Fast, consistent finishing for commercial collateral.
- 📚 Book Covers & Manuals: Durable lamination for publishing runs.
- Packaging Components: Adds protection to folding cartons and inserts.
- 🖨 Digital & Offset Print Runs: Designed for short and long jobs on all press types.
Available Options
- 📍 Jogger 530: Vibrating sheet reception tray (3.9" pile max).
- 📍 Integrated Pallet Stacker: Auto-stacks laminated sheets up to 27.5" high.
- 📍 Non-Sticky Pressure Roller: For lamination of windowed or adhesive-backed sheets.
- 📍 Foliant Foiler: Adds metallic or spot varnish foil effects.
- 📍 PET Film Module: Enables lamination of PET films up to 25μm.
- 📍 XL Module: Supports sheets up to 20.8" x 39.3" (manual unload beyond 29.5").
- 📍 Film Loader/Manipulator: Electric lift for rolls up to 275.5 lbs.
- 📍 Micro-Adjustable Air Shaft: Ensures accurate film tension and alignment.
- 📍 Anti-Static Bar: Reduces static charge for cleaner stacking.
⚠️ Machine must be operated with either the Jogger or Pallet Stacker.
Benefits
- Industrial-grade performance in a space-efficient footprint.
- Fully automated control system streamlines training and operation.
- Supports wide stock and film compatibility, including PET and foil with add-ons.
- Built for scalability, offering modular upgrades for film handling and output stacking.
- Ideal for shops producing both short-run digital and high-volume offset jobs.
About Foliant Lamination Machines
Foliant's NG (New Generation) line is a family of automatic commercial laminators carried by Mid-State Litho as an authorized Foliant dealer, including the Mercury, Taurus, Vega, Gemini, Castor, and Pollux NG families. The Mercury 530 NG is the single-sided B2 workhorse of the compact Mercury line.
It is the more economical counterpart to the high-speed Foliant Taurus 530 NG at the same B2 format, and the single-sided sibling to the double-sided Foliant Mercury 530 NG 4x4. Browse the brand hub under Foliant lamination machines.
Choosing a Single-Sided B2 Laminator
For a single-sided B2 laminator, weigh sheet size (up to 20.8" x 29.5" here), throughput and speed (up to 88 ft/min), feeding and de-curl automation, and substrate fit. The Mercury 530 NG covers everyday single-sided B2 work with suction feeding, twin de-curling, and bump separation.
If you want more speed, the premium Foliant Taurus 530 NG runs faster at the same format; for two-sided coating, see the Foliant Mercury 530 NG 4x4; and for B1 capacity, the Foliant Mercury 760 NG. Send us your sheet sizes and volumes and we will match the machine.
Why Buy from Mid-State Litho
Mid-State Litho is an authorized Foliant dealer offering installation, operator training, and freight handling on industrial equipment, plus consultative quoting for Quote-Only systems. We have served Michigan and the Great Lakes since 1984, with in-house service and financing or lease options.
Frequently Asked Questions
What max sheet size does the Mercury 530 NG run?
It laminates sheets up to 20.8" x 29.5" (B2 format).
Is it single- or double-sided?
It is single-sided. For two-sided work, see the Foliant 4x4 Double models.
How fast is it?
Up to 88 ft/min.
Does Mid-State Litho install and train?
Yes. As an authorized Foliant dealer we install and provide operator training.
How do I get pricing?
The Mercury 530 NG is Quote-Only. Request a quote and we will scope delivery, install, and training.
