Foliant Mercury 760 NG Industrial Laminator
Foliant Mercury 760 NG Industrial Laminator
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370

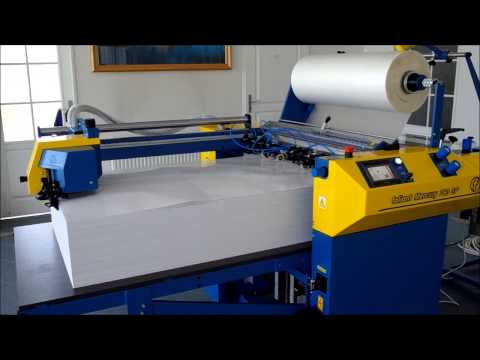

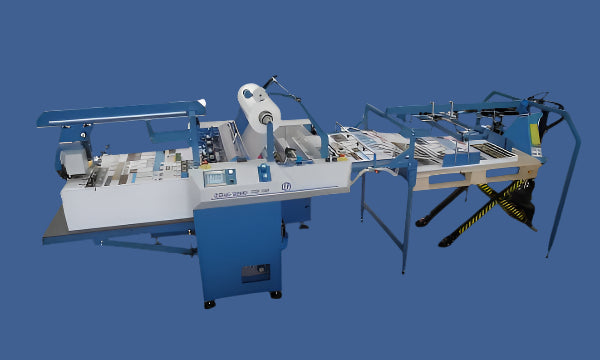

The Foliant Mercury 760 NG is a compact, high-speed single-sided laminator designed for heavy-duty commercial print finishing. With a maximum sheet size of 29.9" x 43.3", speeds up to 65 ft/min, and an integrated suction feeder and bump separator, it delivers consistent results with minimal operator intervention. Its Omron PLC system, dual-roller lamination unit, and optional automation upgrades make it a powerful solution for offset and digital production workflows.
Key Features
🔷 Single-Sided Thermal Lamination – Laminates up to 600 gsm with BOPP, Nylon, and optional PET films.
🔷 High-Speed Performance – Up to 1,200 SPH portrait or 2,400 SPH landscape (based on 200 gsm).
🔷 Omron PLC with Touchscreen – Controls overlap, sheet separation, temp, and pressure with easy icon-based interface.
🔷 Suction Stream Feeder – Powered by an Omron servo motor and Becker vacuum pump with a 15.7" paper pile capacity.
🔷 Quick Film Change Shaft – Includes trim slitter and perforating wheel for clean film edge control.
🔷 Dual-Roller Lamination – Chrome upper and rubber lower roller with dry electric heat and in-roll temperature sensors.
🔷 Adjustable Pneumatic Pressure – Independent control for each roller edge.
🔷 Integrated Bump Separator – For accurate sheet delivery into optional jogger.
Specifications
| Specification | Details |
|---|---|
| Max Speed | 65 ft/min (19.8 m/min) |
| Max Performance | 1,200 SPH (27.8” x 39.4”), 2,400 SPH (19.7” x 27.8”) |
| Max Sheet Size | 29.9” x 43.3” |
| Min Sheet Size | 12.6” x 9.8” |
| Paper Weight | 115 – 600 gsm |
| Film Compatibility | BOPP (24–42μm), Nylon (24–35μm), PET (20–26μm w/ option) |
| Feeder Capacity | 15.7” stack |
| Temperature Range | 176°–284°F (80°–140°C) |
| Warm-Up Time | <10 minutes |
| Power Supply | 3-phase, 400V AC, 50–60Hz |
| Power Consumption | 6,000 W |
| Air Requirements | 150 L/min @ 6–8 bar (external compressor) |
| Footprint (with Jogger) | 56.3" W x 129.9" L |
| Machine Weight | 1,786 lbs |
| Overlap Accuracy | ±0.08" (±2 mm) |
Applications
📦 Packaging & Folding Cartons – Laminate thicker stocks and packaging prints with precision.
📚 Book Covers & Inserts – Perfect for large-format publishing materials.
📄 Posters, Brochures, & Collateral – Enhance and protect marketing materials.
🎨 Digital & Offset Jobs – Handles both short-run digital and long-run offset output.
Available Options
📍 Jogger 760 – Vibrating delivery tray for neatly stacked output (required for operation).
📍 PET Film Lamination Module – Allows use of PET films (20–26μm).

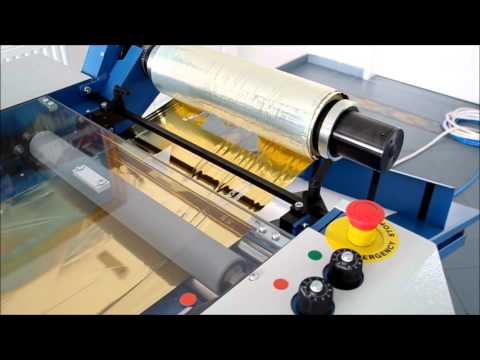

📍 Foliant Foiler – Apply metallic and spot varnish films without film separation.
📍 Film Loader/Manipulator – Electric lift for loading heavy film rolls (up to 275.5 lbs).
📍 Micro-Adjustable Air Shaft – For precise film tension and alignment.
Benefits
✅ Heavy-duty construction for commercial lamination environments.
✅ Efficient automation with Omron PLC, auto overlap, and suction feeding.
✅ Supports a broad range of films and substrates for flexible finishing.
✅ Fast changeovers and minimal setup time for high throughput.
✅ Compact footprint with expandable options for full automation.
