Foliant Taurus 530 NG
Foliant Taurus 530 NG
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370
4UP Fully Automatic Laminator: Brochure Here

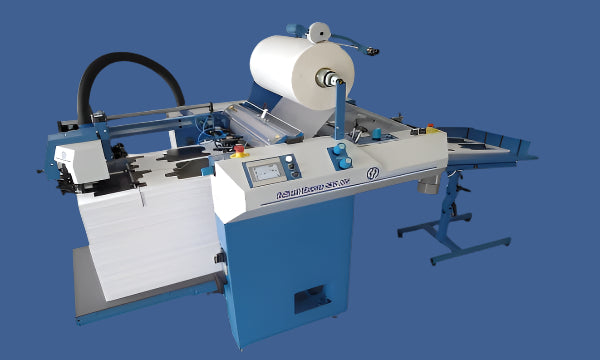

The Foliant Taurus 530 NG is a highly efficient Industrial Laminating Machine designed for continuous operation. Featuring a suction feeder and high-speed bump separator, as well as optional components like a non-sticky roller, pallet stacker, and Foliant Foiler, this machine can handle all types of digitally and offset printed sheets measuring 19.7″ x 27.8″. With a maximum speed of 131 feet/minute and a performance of 3,400 sheets per hour, this machine is ideal for high-volume lamination jobs.
Features
- Easy operation

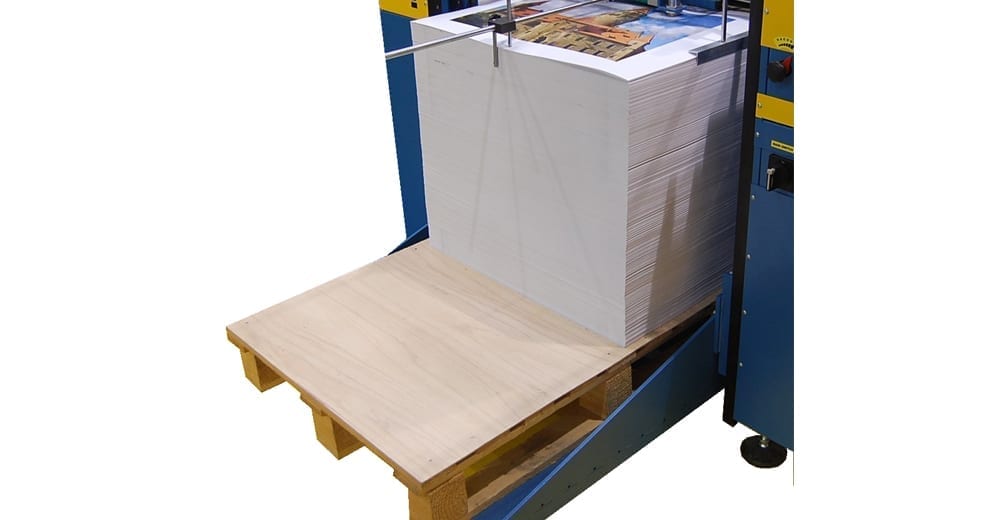

- Equipped with a rising back pile separation stream feeder with a suction feed head
- Single-sided thermal industrial laminator
- Film is mounted on an air shaft that allows convenient, easy and precise film positioning
- Film holder unit is equipped with a trim slitter and perforation wheel
- Pressure is pneumatically adjustable
- De-curl blade for offset printed sheets
- De-curl roller for digitally printed sheets
- OMRON programmable logic controller for easy automation

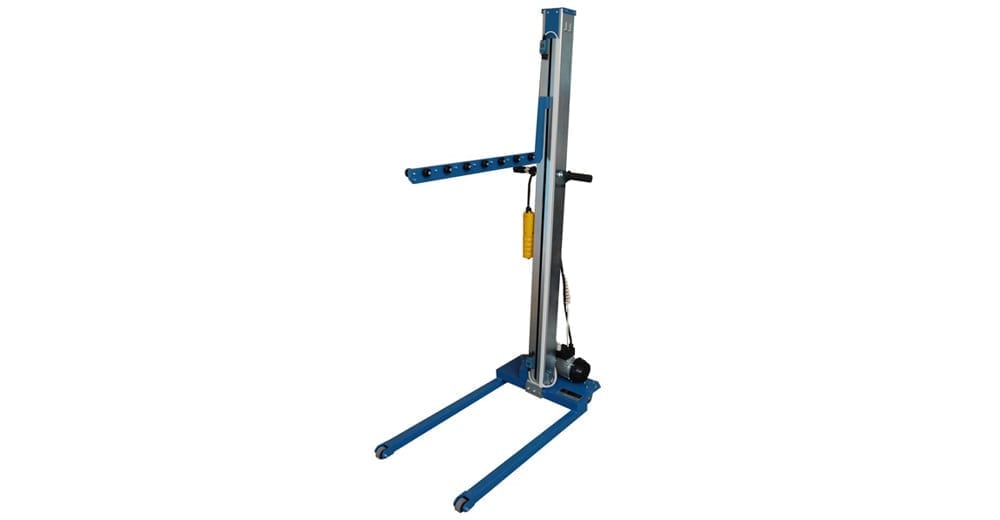

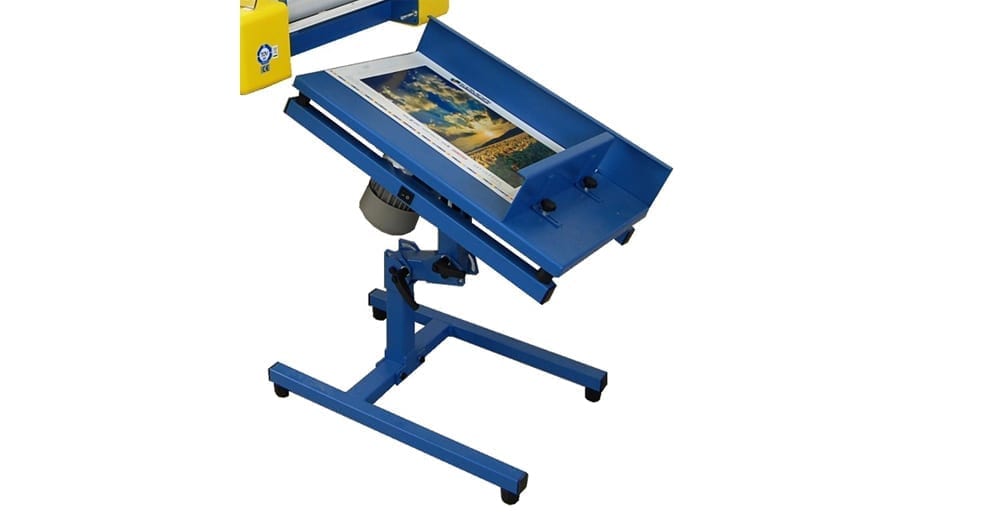

- Optional Jogger 530*, integrated automatic pallet stacker*, non-sticky pressure roller, PET film lamination module, XL Module, Foliant Foiler, film loader/manipulator*Important: The machine must be operated either with a Jogger or a Pallet Stacker.
Specifications
| Maximum Speed: | 131′ feet/minute |
| Feeding: | Automatic |
| Feeding System: | Suction Feed Head |
| Feeder’s Load Capacity: | 21.2” (654 cm) |
| Overlaps: | Automatic, PLC Control |
| Overlap Accuracy: | ± 0.08″ |
| Separation: | Automatic, Bump Rollers |
| Paper Weight: | 115 – 600 gsm |
| Main Rollers Pressure: | Pneumatic |
| External Compressor: | 150 l / minute, 6 – 8 bar |
| Minimum Sheet Size: | 12.6” W x 9.8” L (32 cm x 25 cm) |
| Maximum Sheet Size: | 20.8” W x 29.5” L (53 cm x 75 cm) |
| Maximum Performance: | 3,400 B9.7″ x 27.8″ SPH |
| Warm Up Time: | 8 minutes |
| PET Module: | Optional |
| Jogger 530: | Optional |
| Integrated Motorized Pallet Stacker: | Optional |
| Film Loader (Electric): | Optional |
| Non-sticky Pressure Roller: | Optional |
| Foliant Foiler: | Optional |
