Heat Seal HDX250A
Heat Seal HDX250A automatic L-bar sealer and shrink tunnel combo. Delivery, install, training and service from Mid-State Litho.
Freight items can be purchased online; final delivery details may be confirmed before shipment.
Tax-exempt? Apply once, check out tax-freeAsk a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications

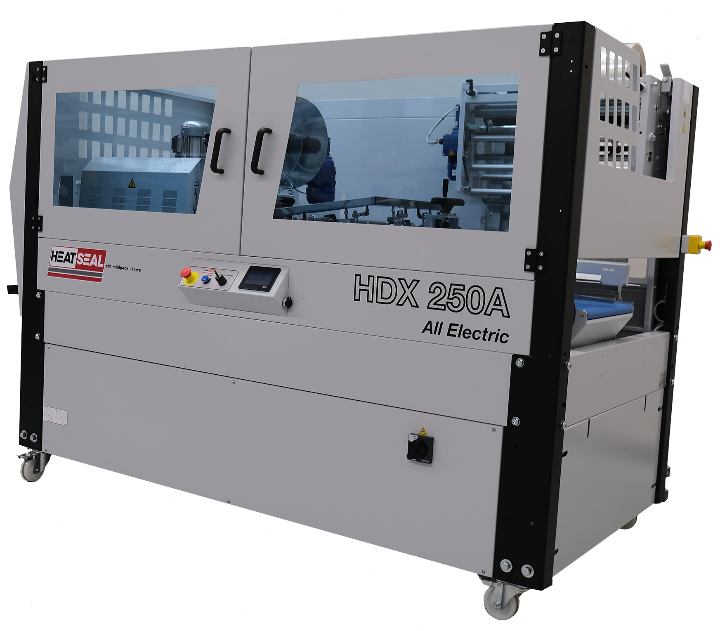

The Heat Seal HDX250A is an automatic combo shrink system that pairs a 20 by 20 inch L-bar sealer with a MaxAir shrink tunnel for fast, hands-free shrink packaging. As an authorized Heat Seal dealer, Mid-State Litho supplies the HDX250A for operations packaging print, kits and products at volume, and we deliver, install, train and service every unit.
Access a layout diagram for this system here
Automatic heavy duty combo shrink system
The HDX250A is an all-electric automatic shrink wrap combo system for medium to high-volume industrial packaging. It has a 20" x 20" seal area, an integrated closing conveyor, and adjustable sealing and tunnel settings, so packages run hands-free in a compact footprint. A 7" touchscreen stores job recipes, and the machine handles a wide range of product sizes without compressed air.
Key features
- All-electric automation. No air required for sealing or tunnel operation, which removes the compressed-air infrastructure cost.
- 20" x 20" seal area with a one-piece blade and adjustable pressure, seal height, and closing conveyor.
- 7" color touchscreen storing up to 128 job recipes, multi-language, with USB and SD ports.
- Dual emergency stop buttons.
- Horizontal and vertical sensors that read product position for automatic sealing.
- Overhead scrap rewind keeps the sealing area clear during long runs.
- MaxAir tunnel with adjustable louvers for 360 degree shrink, on a variable-speed roller conveyor.
- Compact steel frame on casters.
- FDA-grade belts for clean environments and sensitive packaging.
- Two-year limited warranty with manufacturer support.
Specifications
| Specification | Details |
|---|---|
| Seal Area | 20" W x 20" L (508 x 508 mm) |
| Tunnel Chamber | 18" W x 10" H x 23" L (458 x 254 x 585 mm) |
| Max Product Size | 15.5" W x 16.5" L x 4.5" H (400 x 420 x 120 mm) |
| Film Roll Capacity | 23.5" W x 11.75" OD (600 mm W x 300 mm OD) |
| Production Speed | 0 - 20 PPM (depends on product/film) |
| Power Requirements | 208-240V AC, 3-phase, 22A |
| Conveyor Height | 34.25" (870 mm) |
| Machine Dimensions | 95" L x 47" W x 67" H (2390 x 1190 x 1680 mm) |
| Weight | 1,496 lbs (677 kg) |
Applications
- Industrial parts and kits: shrink packaging for tools, hardware, and assemblies.
- Printed products: books, manuals, and boxed stationery.
- Retail display packs: clear, wrinkle-free wraps for bundles, gift sets, and multipacks.
- Food and confectionery: FDA-approved belts for tray-wrapped baked goods.
Available options
- 2' gravity exit conveyor for downstream product handling.
- PTFE mesh tunnel belt overlay for delicate or non-stick film.
- Gravity turn conveyors to redirect finished product in a small footprint.
- Flighted or belted infeed conveyors for consistent product delivery.
Benefits
- The automated shrink cycle cuts labor and keeps packaging repeatable run to run.
- The all-electric design lowers operating cost by removing the air requirement.
- Touchscreen setup with up to 128 stored recipes makes job recall fast.
- It handles a wide range of product sizes in limited floor space.
- Built-in diagnostics and alarms shorten troubleshooting.
Heat Seal HDX250A Overview
The Heat Seal HDX250A is an automatic L-bar sealer and shrink tunnel system for packaging printed product, kits and media at production volume. Mid-State Litho is an authorized Heat Seal dealer with factory-trained service and a supply of film and parts across Michigan and the Great Lakes.
L-Bar Sealer Plus Shrink Tunnel
The HDX250A combines two steps into one inline system. The L-bar sealer wraps and seals the film pouch around the product, and the heat tunnel then shrinks that film tight to the package for a clean, finished wrap. It suits printed product, kits, media and retail-ready packages, and runs standard shrink film. Our team confirms the recommended film type and maximum package size for your work against the current Heat Seal specification.
Frequently Asked Questions
What does the Heat Seal HDX250A do?
It is an automatic L-bar sealer and shrink tunnel that wraps and shrinks film around printed product, kits and packages.
What is the difference between an L-sealer and a shrink tunnel?
The L-bar sealer cuts and seals the film around the product; the heat tunnel then shrinks the film tight. The HDX250A combines both.
What film does it use?
It uses standard shrink film. Our team confirms the recommended film type and thickness range for your packaging against the current Heat Seal specification.
Does Mid-State Litho stock shrink film and parts?
Yes, and we provide factory-trained service across Michigan and the Great Lakes.
Is financing available?
Yes. Equipment financing and leasing are available; contact us for terms.
