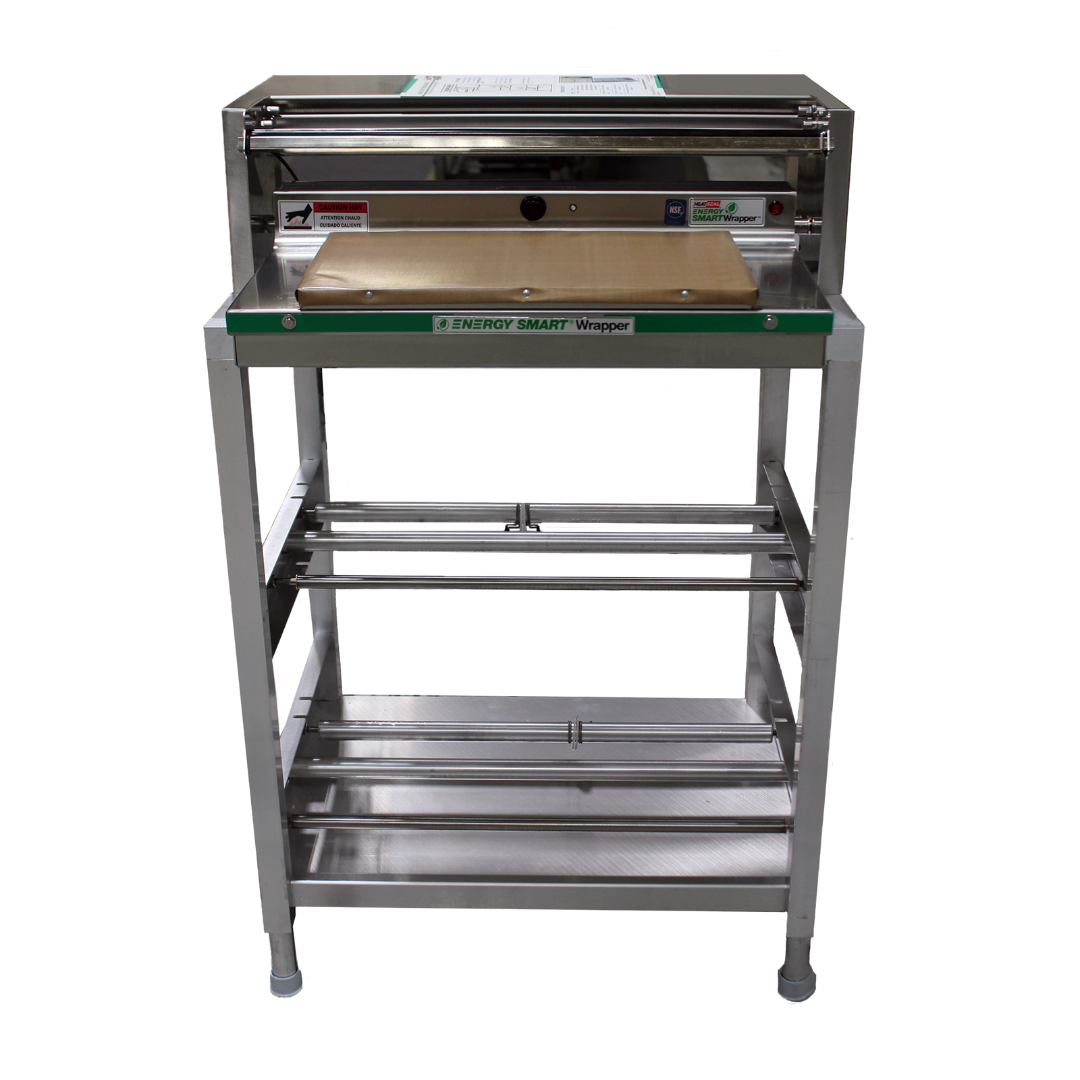

Heat Seal Energy 200ES Floor Model Wrapper
Heat Seal Energy 200ES Floor Model Wrapper
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370
Heat Seal Energy Cradle Mount 200ES
On Demand Seal Plate Significantly Reduces Energy Consumption
Heat Seal's stretch film over wrappers are great for quickly packaging fresh and other food wrap applications. Stretch wrap film is tightly pulled over the product and heat sealed to the bottom of the package for leak resistant packages. Overwrapping is used to extend shelf life, keep perishables fresh, provide a visual of the product, reduce packaging cost, group products together, provide easily opened packages, and tamper evidence.
The New Energy Smart® Wrapper proven to significantly reduce energy costs by 80%. The Photo Eye Energy Smart machines are an on-demand hand wrap machine, which the seal plate only consumes energy when you need to seal a package. This unit is actuated when you place a product on the seal plate, the photo eye sees the product and actuates the seal cycle.
The New Film Cradle Mount saves labor, film changeover is fast and easy with new design, and no initial setup or assembly. Easy to use and operate.
- 115 Volt Power Supply
- Self-Regulating Boardless Square Rod for Increased Transversal Rigidity and Consistent Cutting
- Easy to use Photoeye for Accurate Product Detection
- 8" by 15" On-Demand Timer Controlled Heated Seal Plate that Significantly Reduces Power Consumption
- Seal Plate Reaches Seal Temperature Limit Device
- Thermistor Controlled Circuit That Reduces Power Consumption as Residual Heat Increases in Seal Plate
- GFCI for Improved Circuit Integrity and Protection
- Stainless Steel Front Plate for Easy Wipe Down
- Rigid Aluminum and Stainless-Steel Construction Throughout
- Stainless Steel Wrapping Surface
- 20" Maximum Roll Width
- 8" Maximum Roll Diameter
- Supplied with a Replaceable Non-Stick Cover to Maintain a Hygienic Seal Surface
- Splash Guard
Available Options
- 8” x 15” Seal Plate - Comparable to: 104A, 107A, 102A; Great for Family Pack Trays
- 6” x 15” Seal Plate - Comparable to: 112AHP
- Cradle or Axle Film Mount
- All Stainless-Steel Wings (R or L) 14” x 22”
- Accessory Storage Rack
- All Stainless-Steel Construction
Technical Specifications
Model | 200ES |
Film Mount | New Cradle System |
Film Capacity | 20" |
Hot Plate | 8” x 15” Standard, 6” x 15” Optional |
Working Height | Adjustable Height, Standard 31” |
Overall Dimensions | 24” D, 25” W, 36” H Standard |
Power Requirement | 15 Volt, 16 Amp, 60Hz 20A breaker, compatible with NEMA 5-20P |
Other Features | Quick Film Changeover & Great Film Control |
