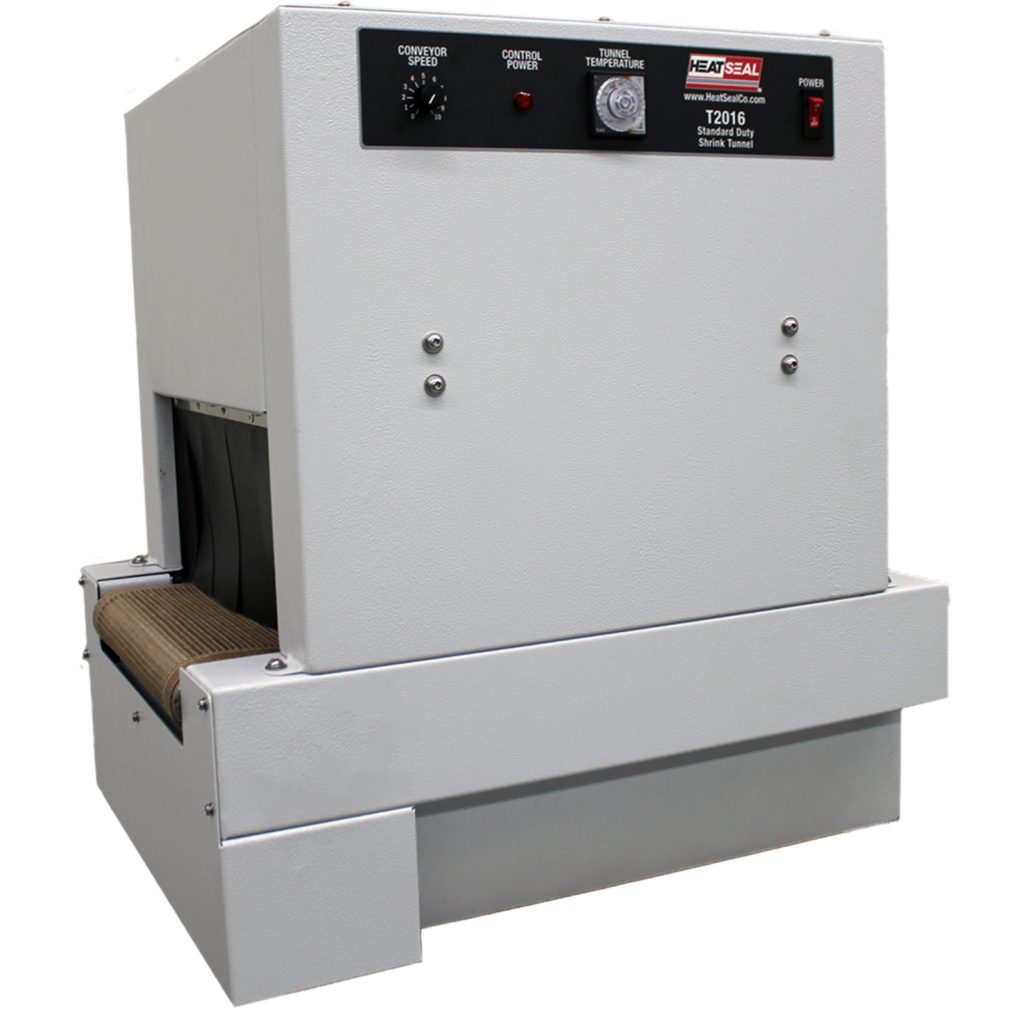

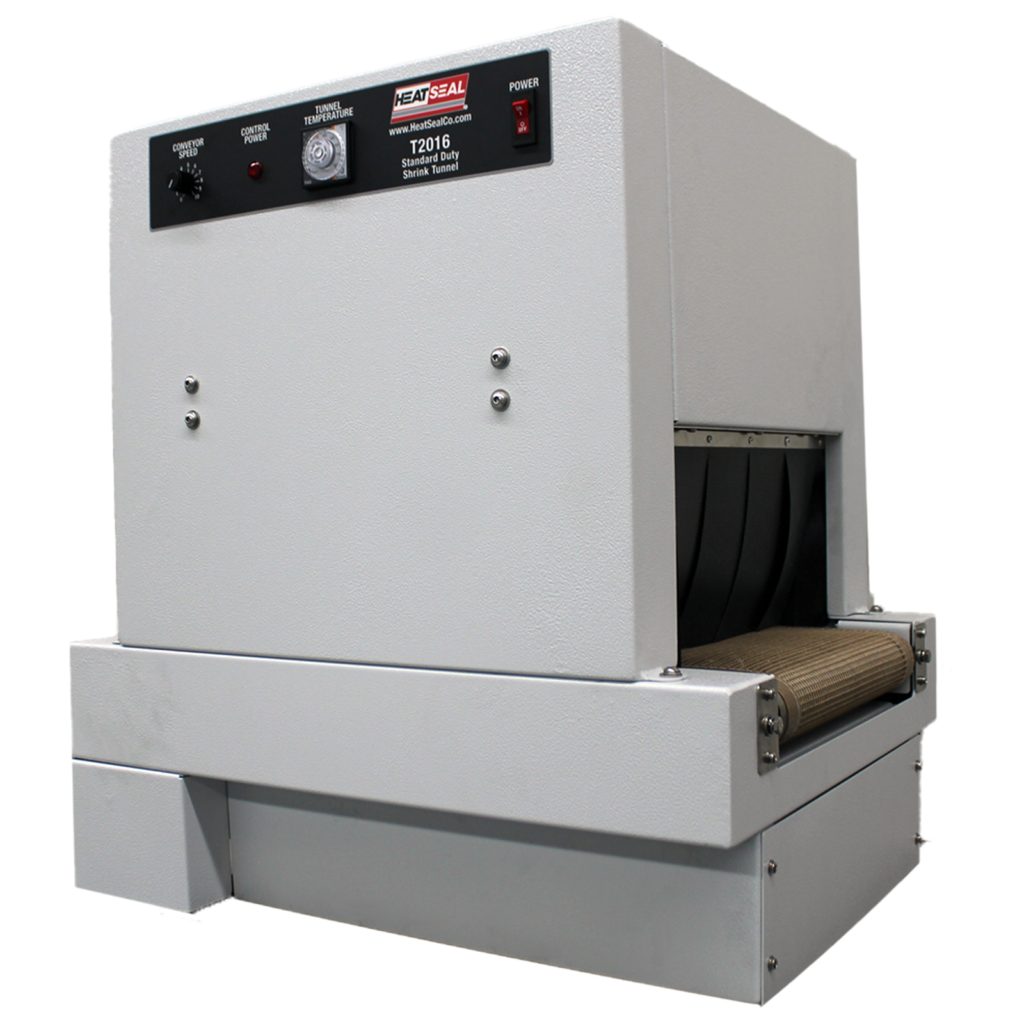

Heat Seal T2016 Compact Shrink Tunnel

Access a layout diagram for this system here

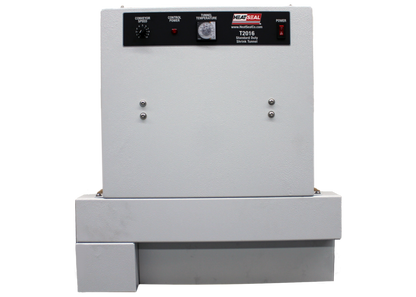

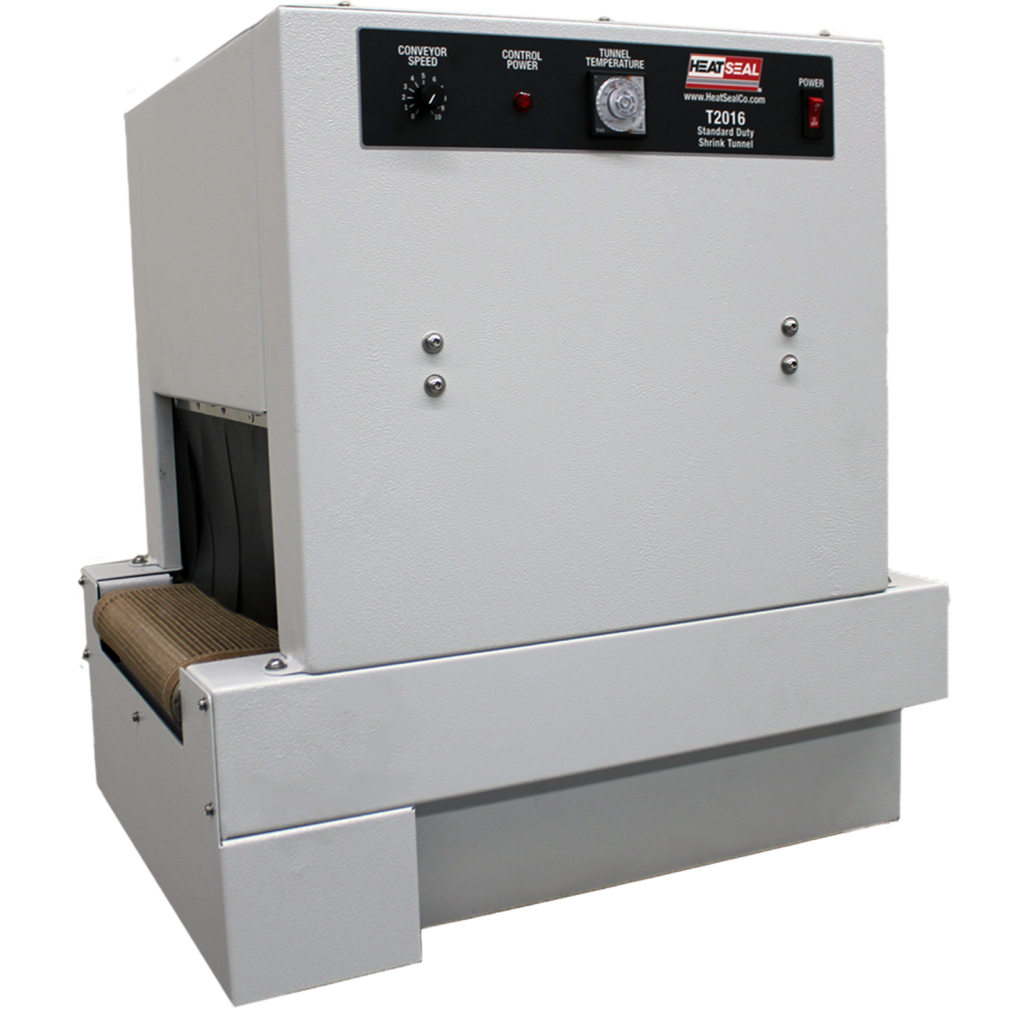

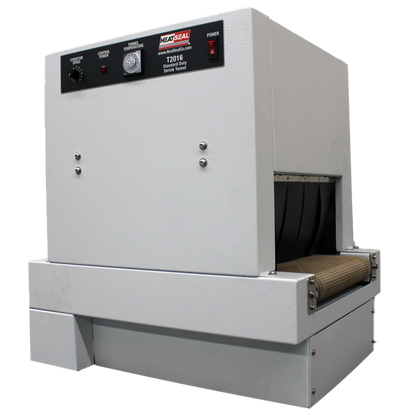

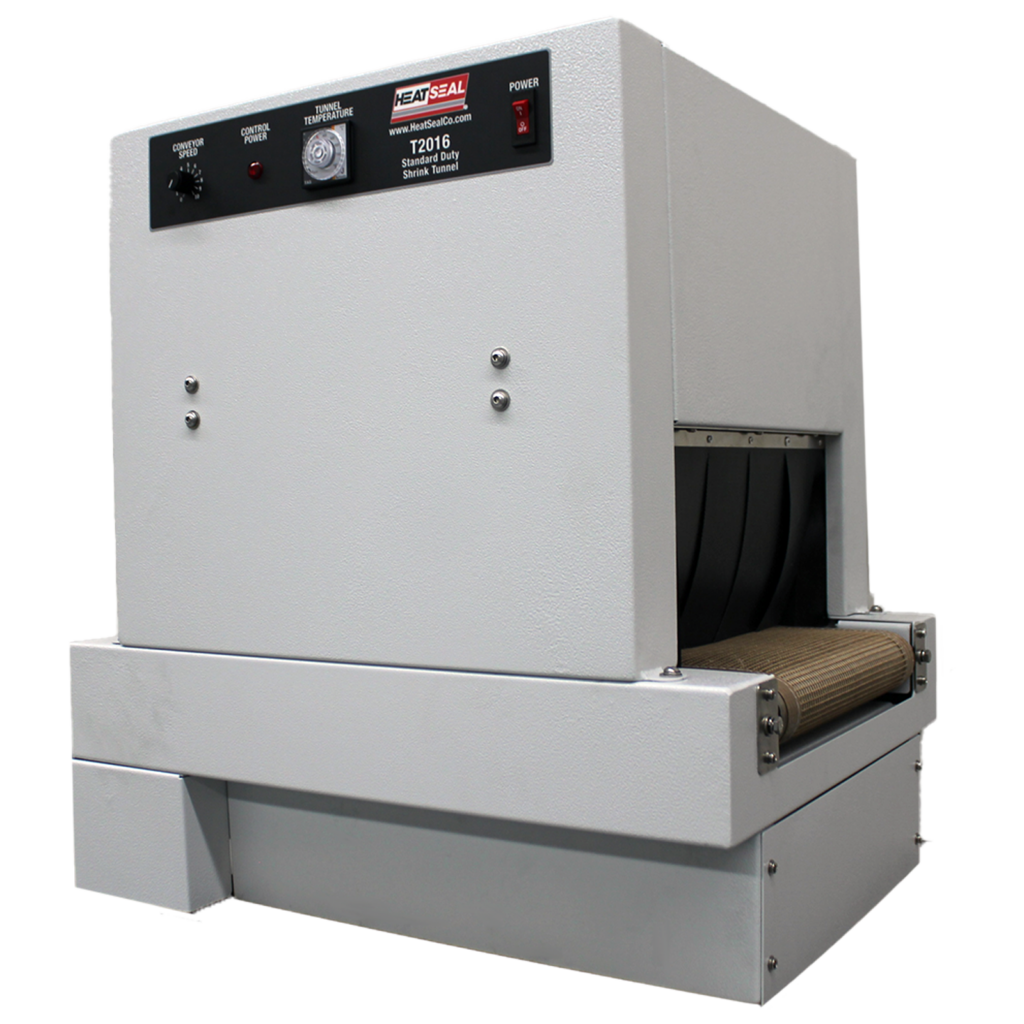

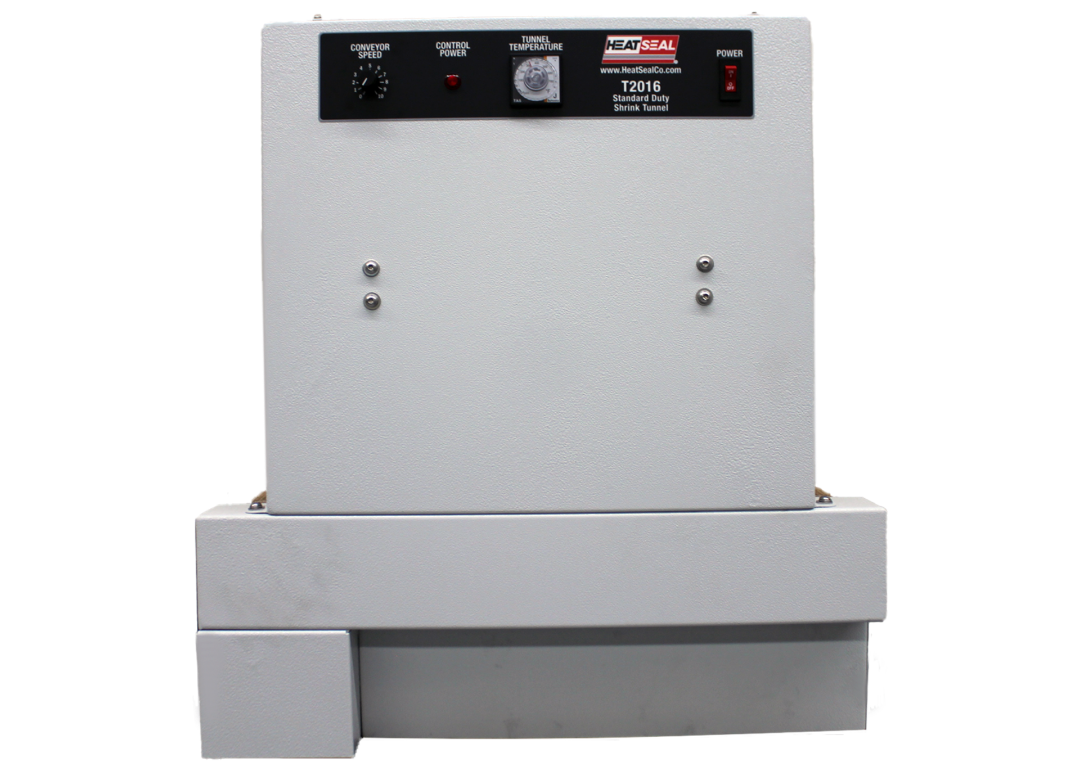

The T2016 Compact Shrink Tunnel is a space-saving, all-electric shrink tunnel for low- to mid-volume shrink wrapping. The tunnel opening measures 15" wide by 6.5" high, the conveyor is a non-stick mesh belt with variable speed, and the whole unit plugs into a standard 115V outlet. It suits retail packaging, print shops, and any facility short on floor space and spare power capacity.

Key features

• Compact footprint: fits in tight production areas on just 40" x 20" of floor space
• 15" W x 6.5" H tunnel opening takes boxed, bagged, or bundled products
• Non-stick mesh belt prevents film adhesion and lets air flow evenly beneath packages
• Variable conveyor speed, adjustable up to 25 feet per minute, gives control over shrink quality

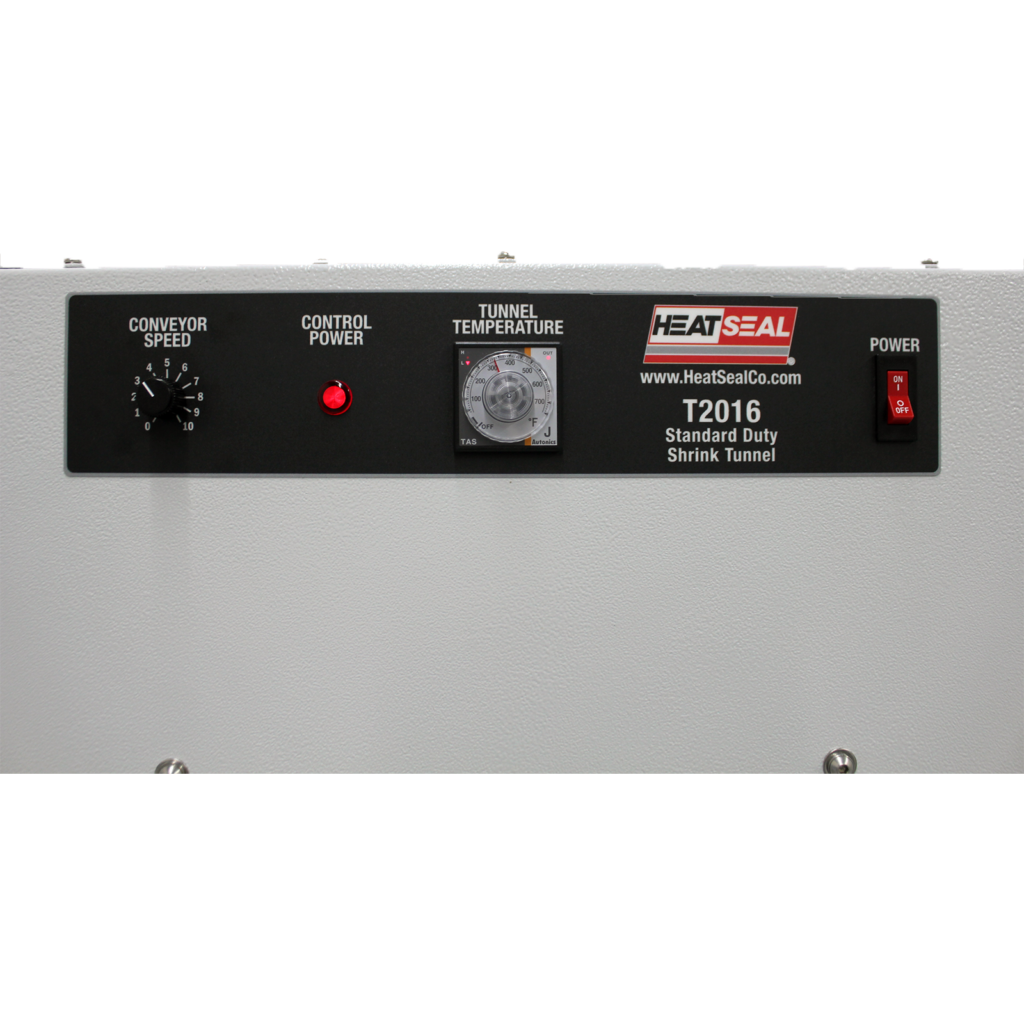

• Analog temperature control with an automatic cool-down mode that extends heater life
• High-temperature safety limit protects against overheating
• All-electric operation on a standard 115V, 20A single-phase outlet, with no compressed air required
• Heavy-gauge steel frame built for light-industrial duty
• Two-year warranty with U.S.-based support

Specifications

Applications

• Retail packaging: shrink wrapping for box sets, small electronics, and cosmetics
• Printed materials: clean, clear wraps for books, reports, and brochures
• Food packaging: compatible with small bakery items, trays, and multipacks
• Kitting and bundles: final packaging for gift sets, mail kits, and promotional bundles

Available options

• Stainless steel version for cleanroom or food-safe environments

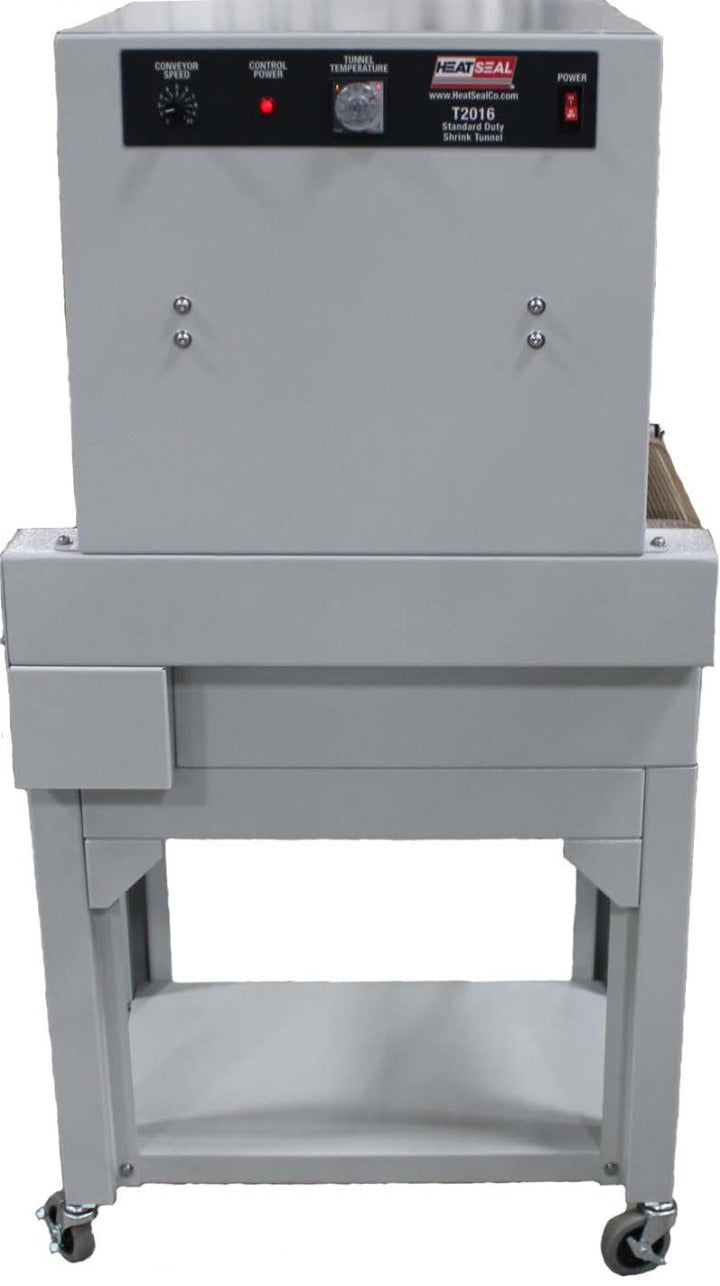

• Painted console leg kit with casters, which adds height and mobility
• Stainless console leg kit with casters for washdown zones

Benefits

The T2016 is a simple, reliable shrink tunnel for small-scale operations. Installation is plug-and-play on standard 115V power with no special wiring, the non-stick conveyor keeps product moving smoothly, and the automatic cool-down protects heater lifespan. Its size and mobility also make it a practical backup unit for a growing operation.

Choose the right Heat Seal tunnel

Heat Seal makes the T2016 for small packaging areas with standard 115V power. The larger Heat Seal console tunnels need 220V service.

• T2016: 115V, 20A plug-in power, 2,000 W, on a 40 x 20 in footprint. It suits low and mid volume work, and it is a good backup tunnel.
• Heat Seal T2615: console tunnel, 4 kW, 220V/23A.
• Heat Seal T2622: console tunnel, 6 kW, 220V/28A.

A tunnel only shrinks the film. A sealer must first seal the film around the product. See shrink wrap sealers for L-bar and I-bar models.

Compare every model on the shrink tunnels page. See all Heat Seal packaging equipment and complete shrink wrapping systems.

Delivery, support and financing

The T2016 weighs 172 lb and ships by LTL freight in 3 to 5 business days. Mid-State Litho is a Michigan-based Heat Seal dealer.

For setup and service questions, see service and support. To pay in monthly amounts, see financing and leasing. For a freight quote, use the contact page.

Frequently asked questions

What power does the Heat Seal T2016 need?

It runs on a standard 115V, 20A single-phase outlet. It does not need compressed air or special wiring.

How much floor space does the T2016 need?

The overall size is 40 in long, 20 in wide and 48 in high. Add a working area at each end of the conveyor.

What products can the T2016 shrink wrap?

Shops use it on box sets, books, reports, brochures, small electronics, cosmetics, gift sets and multipacks. Check the tunnel dimensions in the spec table against your largest product.

How fast is the T2016 conveyor?

The non-stick mesh belt has variable speed from 0 to 25 ft/min. You set the speed to suit the film and the product.

When do I need a larger tunnel than the T2016?

Choose a console tunnel such as the T2615 (4 kW) or the T2622 (6 kW) for more heat capacity. Both need 220V power.
