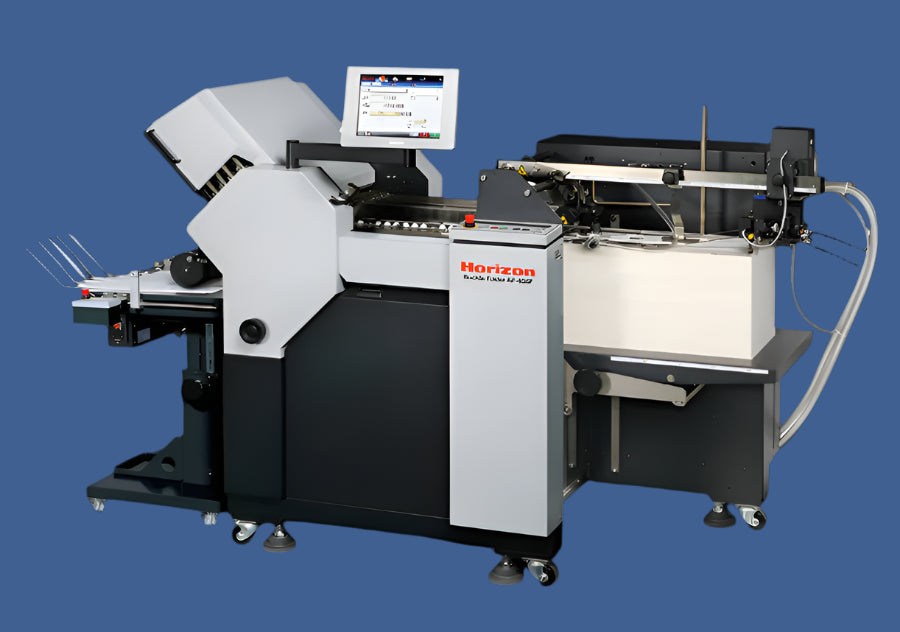

Horizon Buckle Folder AF-408F
Horizon Buckle Folder AF-408F is a fully automated buckle folder with touchscreen control, fast setup, and high-speed rotary suction feed for precision folding.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Horizon AF-408F buckle folder. Horizon automated small-format buckle folder for specialty and insert markets.
Overview · Specifications · Why Mid-State Litho · Related · Request a quote
Overview
The AF-408F is Horizon's automated multi-buckle small-format folder, often used for insert and pharmaceutical-style fold patterns. Choose it when fold complexity is high but sheet size is small.
The Horizon AF-408F is a fully automated small-format 8-buckle folding system designed for advanced automation and high-speed precision folding.
Ideal for print shops and manufacturers, the AF-408F ensures quick, efficient, and high-quality production of various folded documents.
Built by Horizon International in Japan. North American distribution through Standard Finishing Systems. Sold, installed, and serviced in Michigan and the Great Lakes by Mid-State Litho.
Key features
- Multi-buckle small-format architecture
- Insert and specialty fold applications
- Horizon automated setup on equipped systems
Specifications
| Specification | Details |
|---|---|
| Machine Structure | 8 Buckles |
| Max Sheet Size | 16.92” x 25.98” (Up to 35.5” with optional LT-40S) |
| Min Sheet Size | 1.97” x 3.94” (Up to 2.36” with optional device) |
| Sheet Weight Range | Uncoated: 33 - 157 gsm / Coated: 73 - 157 gsm |
| Belt Speed | 98 - 590 ft/min (30 - 180 m/min) |
| Production Speed | 30,000 cycles per hour |
| Machine Dimensions | 85.4” x 36.3” x 58.6” |
Ranges can vary by configuration. Confirm against the factory sheet for the options on your quote.
Why buy Horizon equipment from Mid-State Litho
Horizon International designs and manufactures this machine in Japan. Standard Finishing Systems (SDMC) is the exclusive North American distributor. Mid-State Litho is the authorized Michigan and Great Lakes dealer: quote, install, train, finance, parts, and factory-trained service.
We work with Horizon and Standard Finishing as allies. We still want the buyer searching for a Horizon dealer to find Mid-State Litho first: local trucks, multi-brand honesty when another brand fits better, and a number that reaches people who install the line. Call 1-800-343-4231 or request a quote. Full line: Horizon print finishing equipment.
Related equipment
Related: AF-406F/S · paper folders.
Call 1-800-343-4231 to size this for your stock and volume.
