MBM AeroCut NanoMax
The AeroCut nanoMax offers slitting, cutting, and creasing with touchscreen controls, InstaSet bar, and Lytrod software—ideal for fast, compact print finishing.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications

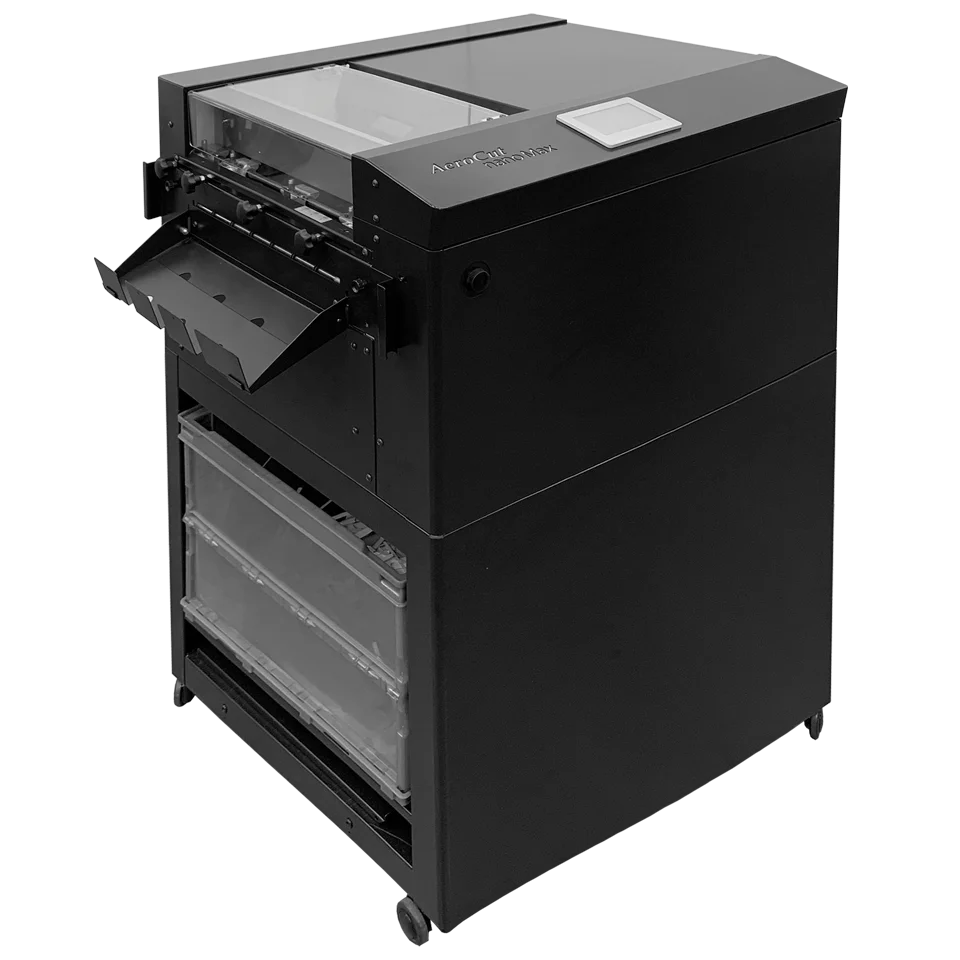

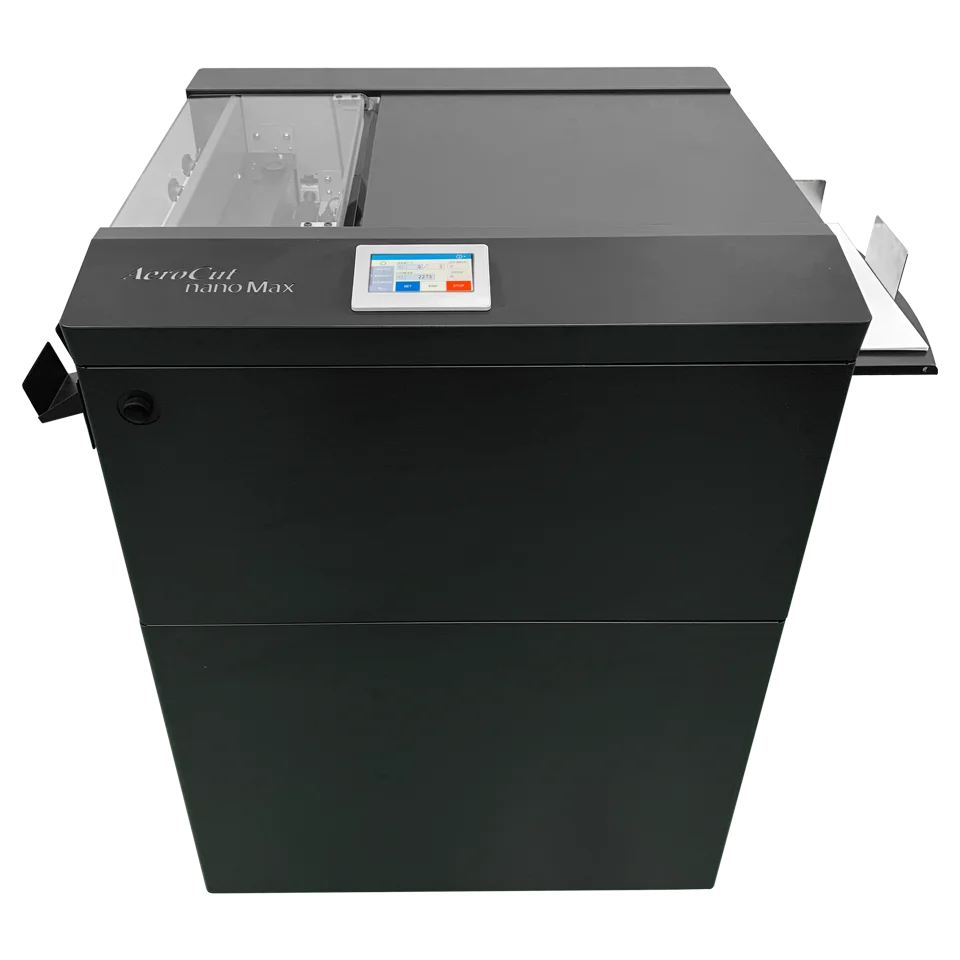

AeroCut nanoMax Digital Finishing System

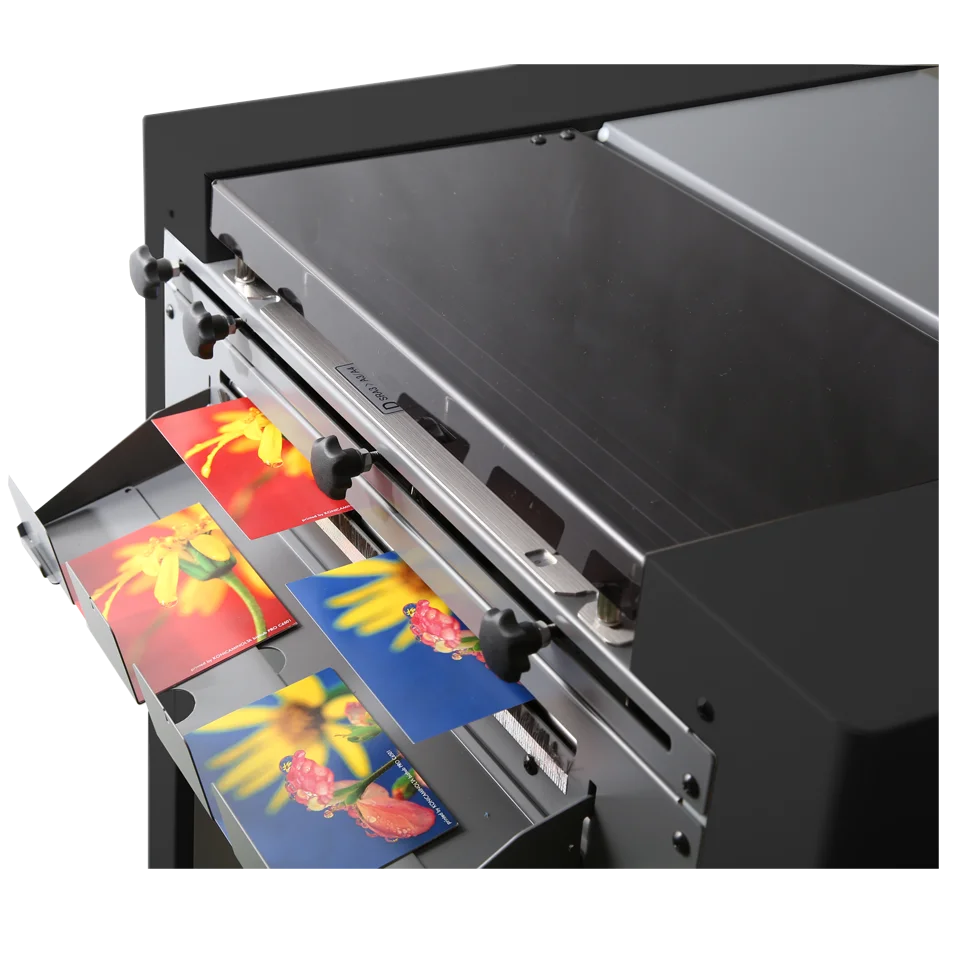

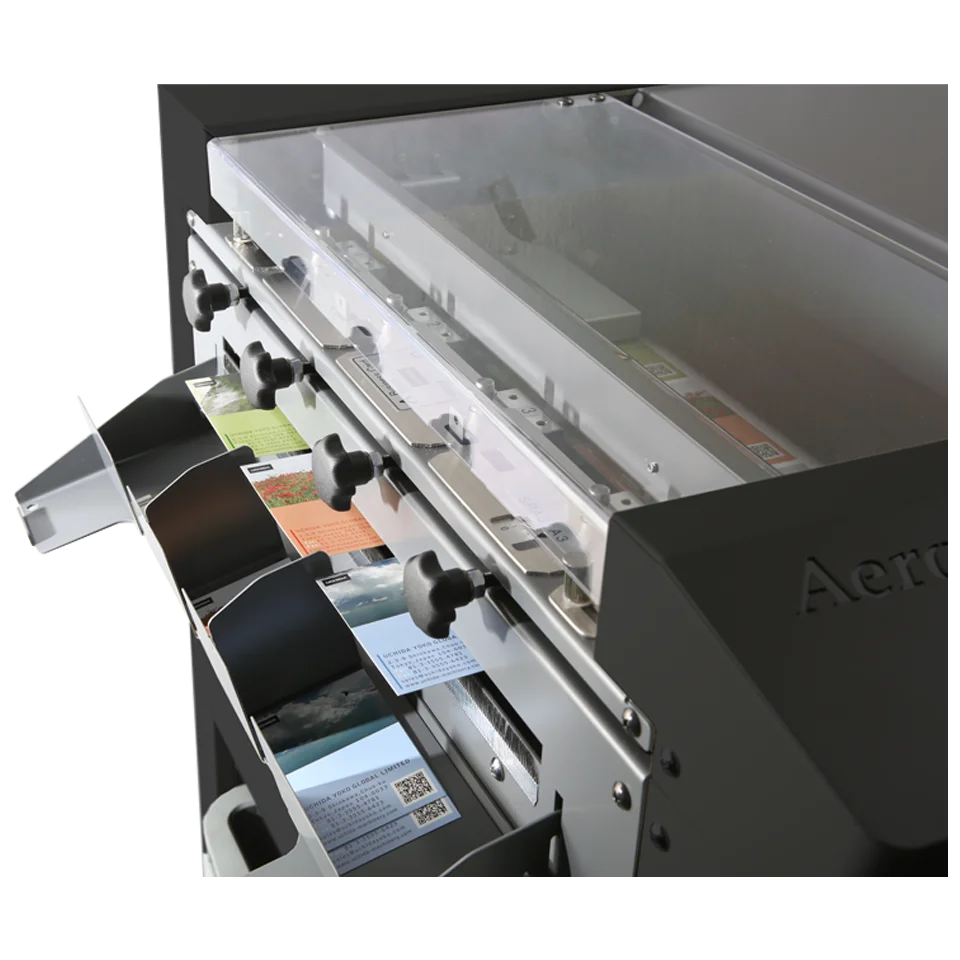

The AeroCut nanoMax is a compact yet powerful digital finishing system designed for automated slitting, cutting, and creasing in short-run and on-demand environments. Featuring MBM’s patented Tri-Suction Feed System, the nanoMax delivers accurate, jam-resistant sheet handling along with an InstaSet bar for rapid slitter alignment, a color touchscreen interface, and support for 31 preset and 80 custom jobs. Its small footprint makes it ideal for CRDs, copy shops, and in-plant print operations.
Key Features

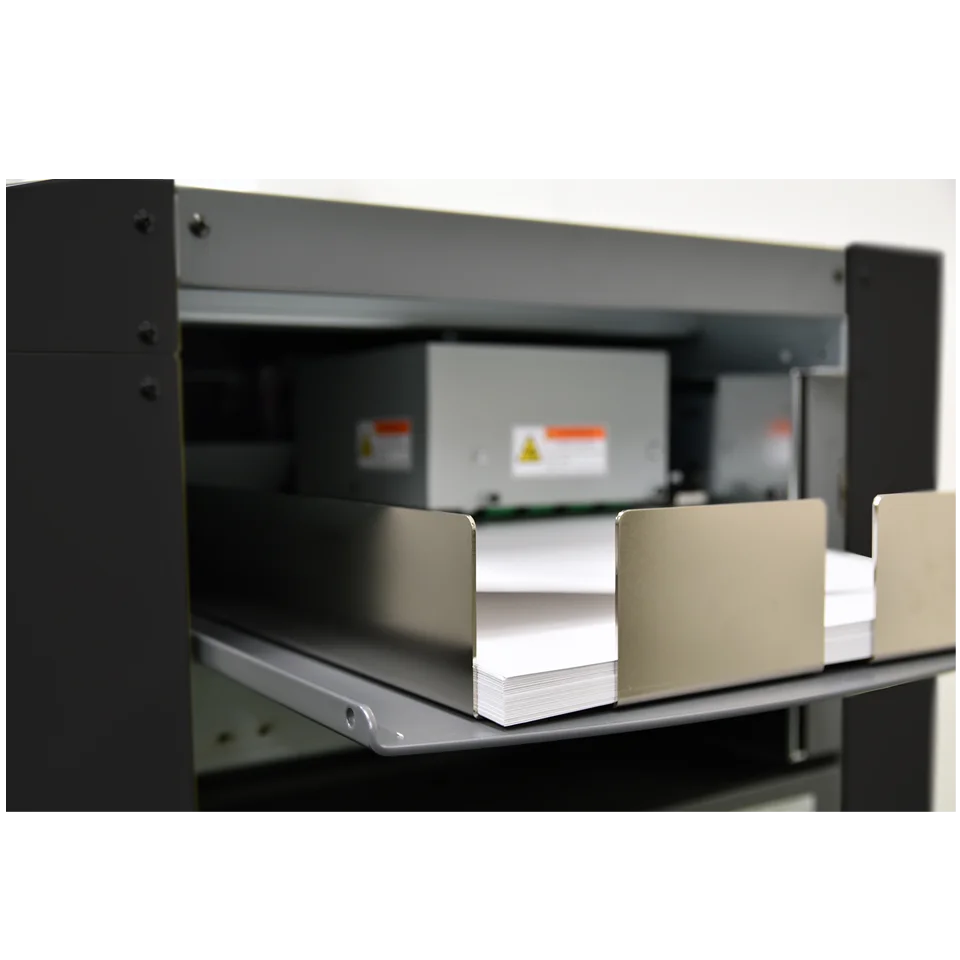

- Tri-Suction feed mechanism reduces double-feeds and misfeeds
- InstaSet bar with fine adjustment knob enables fast, tool-free slitter setup

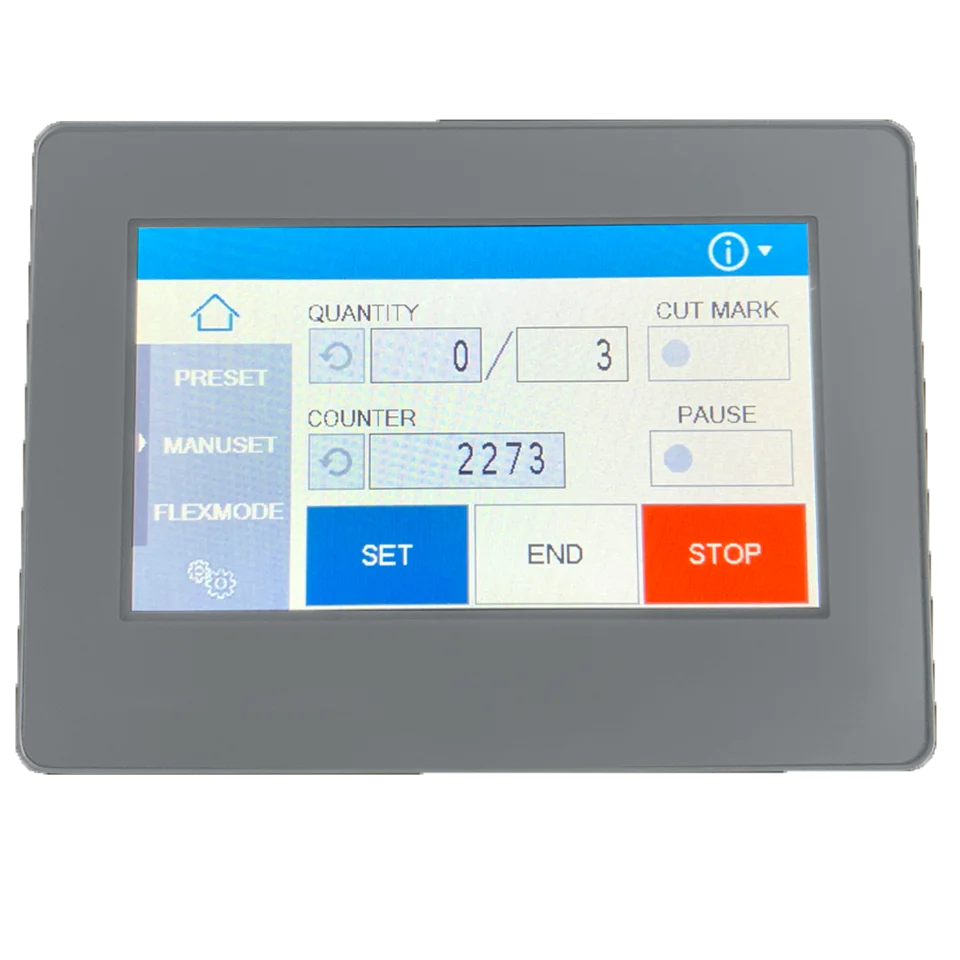

- Color touchscreen supports cut-mark registration and image shift or stretch
- Skew adjustment improves accuracy across variable stocks

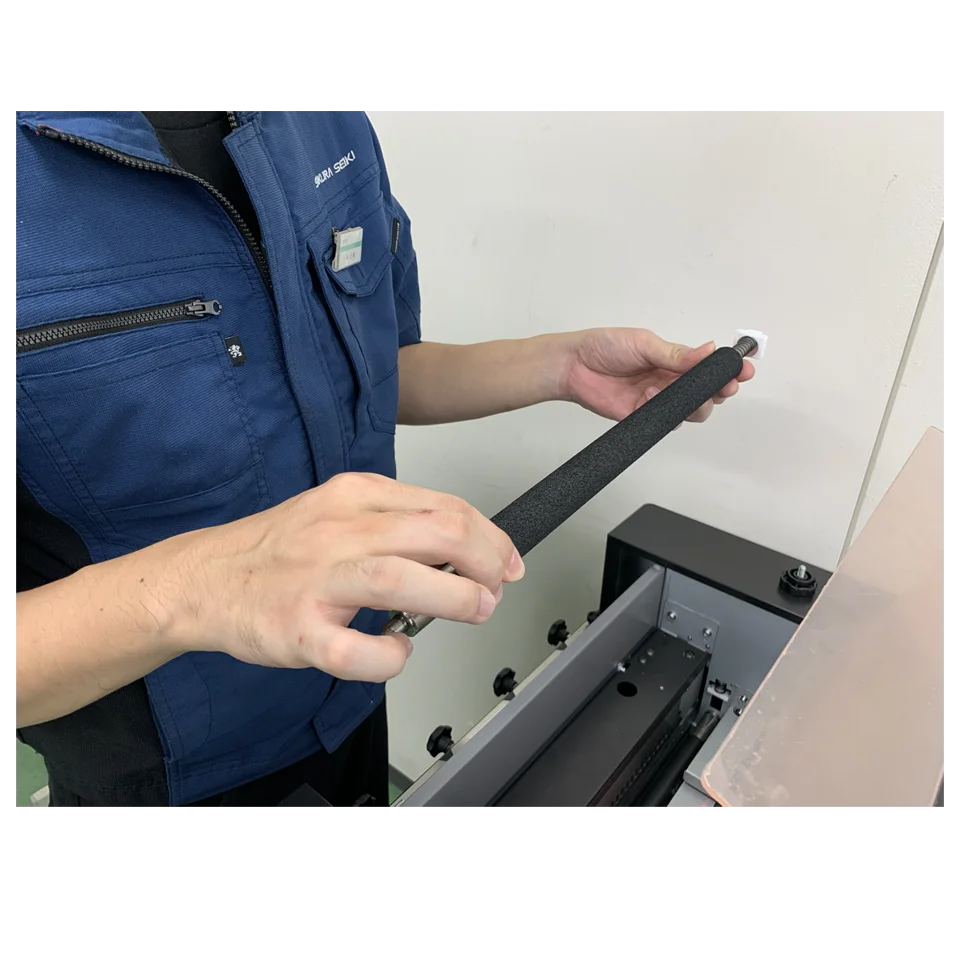

- Quick-release rollers provide easy access for jam recovery and maintenance
- Built-in job memory stores 31 presets and up to 80 custom jobs
- Lytrod Intellicut software included for PDF imposition and cut mark generation
- Compact, office-friendly footprint for limited production spaces
Why It Matters
The AeroCut nanoMax streamlines digital finishing by eliminating manual setup and reducing operator intervention. Automated feeding, touchscreen control, and job memory enable consistent results across short runs, variable data jobs, and repeat orders without sacrificing valuable floor space.
Specifications
| Specification | Detail |
|---|---|
| Speed | Up to 23 sheets/min (8.5" × 11") |
| Sheet Capacity | 1.2" stack |
| Paper Weight Range | 120–400 gsm (6–16 pt) |
| Paper Size Range | 8.2" × 8.2" to 13" × 19" |
| Electrical Requirements | 100–120V, 50/60Hz |
| Dimensions (D × W × H) | 25.7" × 30.2" × 39.8" |
| Weight | 212 lbs |
Applications
