Foliant Vega 400A
Foliant Vega 400A
2UP Single Sided Industrial Laminator

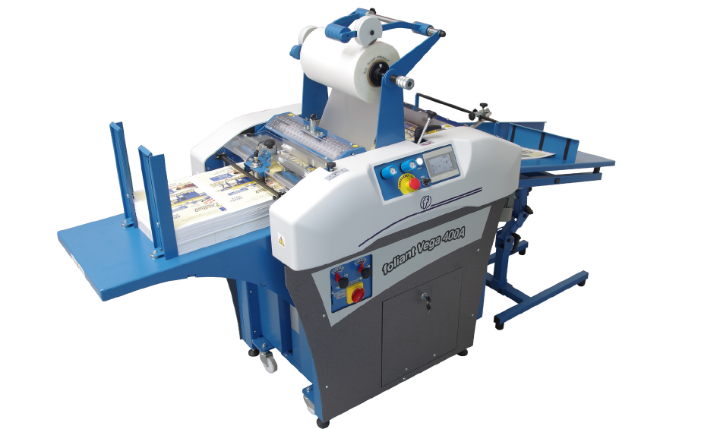

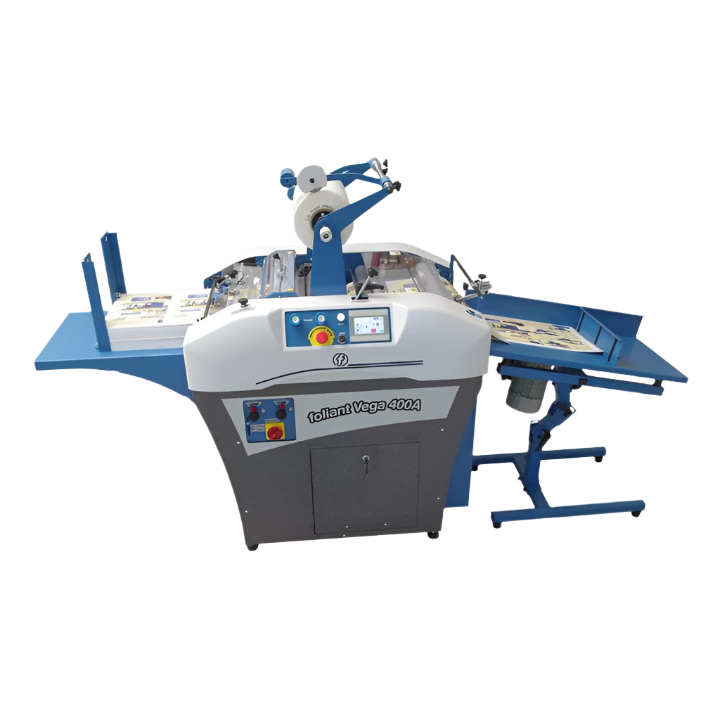

The Foliant Vega 400A is a high-performance, compact industrial laminator engineered for heavy-duty lamination of digitally printed sheets and offset output up to 14.9" x 25.9". Featuring a deep pile vacuum feeder, adjustable twin de-curl system, and non-stick pressure roller, this single-sided thermal laminator offers consistent quality at speeds up to 59 ft/min. With fully integrated automation, touchscreen control, and multiple optional enhancements, the Vega 400A is ideal for production environments seeking reliable, scratch-free lamination.
Key Features
🔷 Up to 2,100 Sheets/Hour – Processes 14" x 20", 200 gsm sheets at up to 59 ft/min.
🔷 14.9" x 25.9" Max Sheet Size – Covers most digital and offset outputs, including Xerox iGen formats.
🔷 Integrated Deep Pile Vacuum Feeder – Handles up to 11" stacks with accurate, in-run overlap control.
🔷 Adjustable Twin De-Curl Bar – Blade for offset and roller for digitally printed sheets to prevent scratching.
🔷 Non-Sticky Pressure Roller – Eliminates glue buildup, even under full load, reducing cleaning needs.
🔷 Dry Electric Heated Roller – Warms up in under 8 minutes, with sensitive temperature sensor.
🔷 Quick Film Change Shaft – Supports up to 9,842 ft rolls of 24–42 micron film, with tension brake and trim slitter.
🔷 Touchscreen Interface – Icon-based, intuitive controls with automation functions and job memory.
🔷 Integrated Pneumatic System – No external compressor needed for standard operation.
Specifications
| Specification | Details |
|---|---|
| Max Sheet Size | 14.9” x 25.9” |
| Min Sheet Size | 7.8” x 11.8” |
| Paper Weight Range | 115 – 500 gsm |
| Lamination Speed | Up to 59 ft/min |
| Performance | Up to 2,100 SPH (14” x 20” @ 200 gsm) |
| Warm-Up Time | < 8 minutes |
| Film Thickness | 24–42 µm BOPP (Nylon: 24–35 µm w/ option) |
| Feeder Capacity | 11” pile |
| Overlap Accuracy | ±2 mm (0.08") |
| Pressure System | Pneumatic (internal compressor) |
| Power Supply | 1 Ph, 230–240V, 50–60 Hz |
| Power Consumption | 3,150 W |

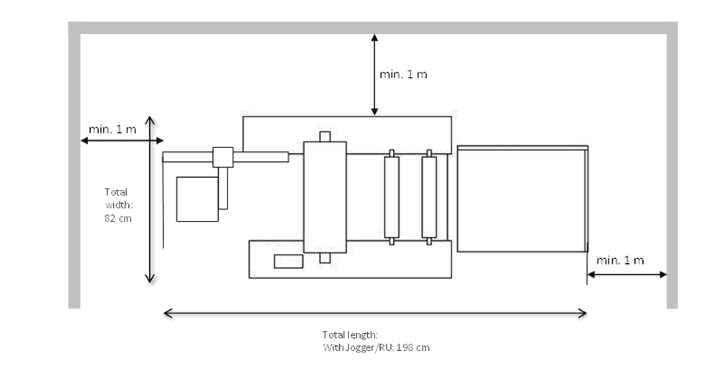

| Dimensions (W x L) | 32” x 77.9” (with jogger) |
| Weight | 815 lbs |
Applications
📘 Digital Print Finishing – Scratch-free lamination for duplex digital sheets and sensitive toner stocks.
📦 Commercial Print Lamination – Designed for offset outputs up to 500 gsm.
📈 Marketing Materials – Perfect for flyers, covers, and full-bleed documents.
🎨 Short-Run Packaging – Enhances presentation of cartons, wraps, and inserts.
Available Options

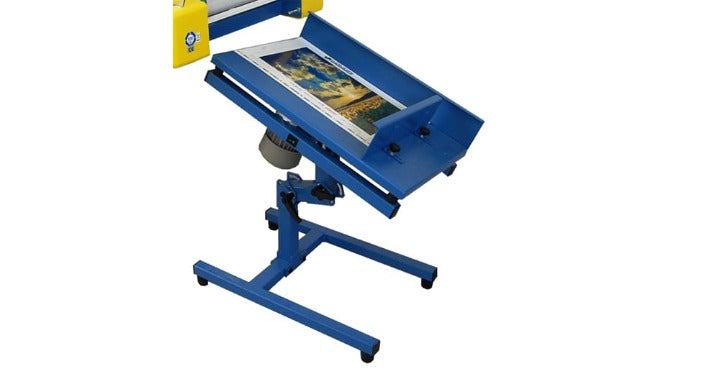

📍 Jogger 400 – Adjustable vibrating stacker for organized output (3.9” capacity).
📍 Reception Unit 400 – Static reception tray (3.9” pile height).

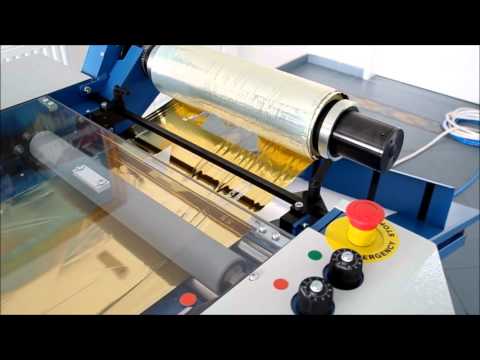

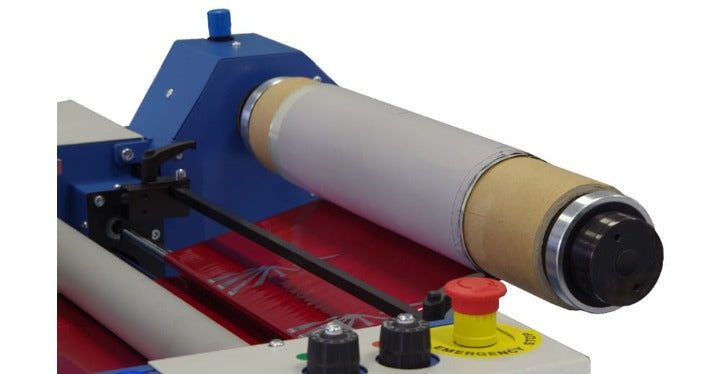

📍 Foliant Foiler – Applies metallic and spot effect films over toner.
📍 Extra Film Shaft – Allows fast film changeovers with backup rolls.
📍 Pneumatic Sheet Separation – Advanced separator with external air supply for nylon film or fine-tuned jobs.
📍 Air Shaft – Tool-free roll changes (requires pneumatic separation option).
Benefits
✅ Handles challenging digital and offset laminating jobs without scratching or delamination.
✅ Reduces labor and cleaning time with non-stick rollers and automation features.
✅ Maximizes uptime and flexibility with quick warm-up and easy changeovers.
✅ Delivers consistent quality with real-time overlap control and pneumatic precision.
✅ Expandable system with multiple configuration options for specialized workflows.
