• Standard Horizon APC-450 Programmable Electric Paper Cutter - Precision Cutting Solution
1 1

Standard Horizon

Standard Horizon APC-450

Standard Horizon APC-450

Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:

How to Purchase This Item:

View the Electric Paper Cutters collection
View full details

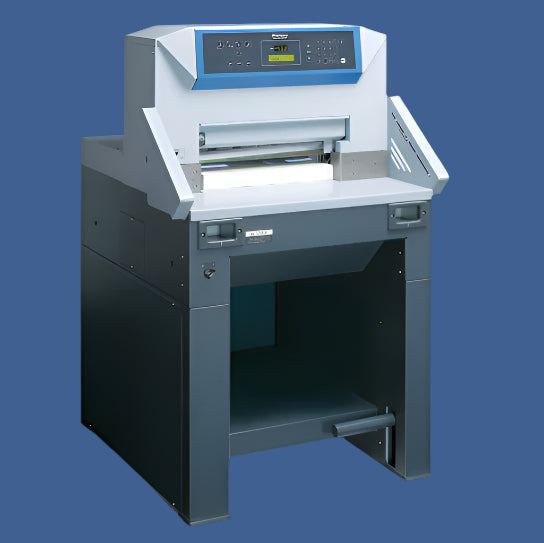

Programmable Electric Paper Cutter - Precision Cutting Solution

The APC-450 Electric Programmable Paper Cutter from Standard features a 17.7" format cutter that is the perfect fit for performing bleed trim work and basic cutting of digitally imprinted stocks. Equipped with programming and job recall functions for easy operation.

Features

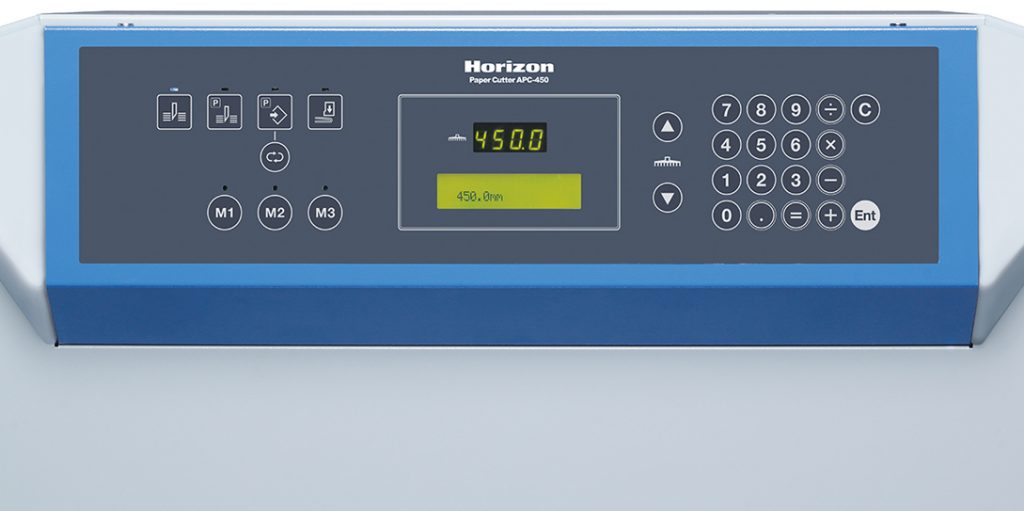

  • Three Quick Access Memory Buttons
  • Up to 30 Programs of 99-Steps Each
  • Infrared Safety Detection
  • Removable Power Keys
  • Automatic Push-out
  • Repeat Cut Cycle
  • Clamp Pad for Delicate Stocks
  • Clamp Cycle Only Operation

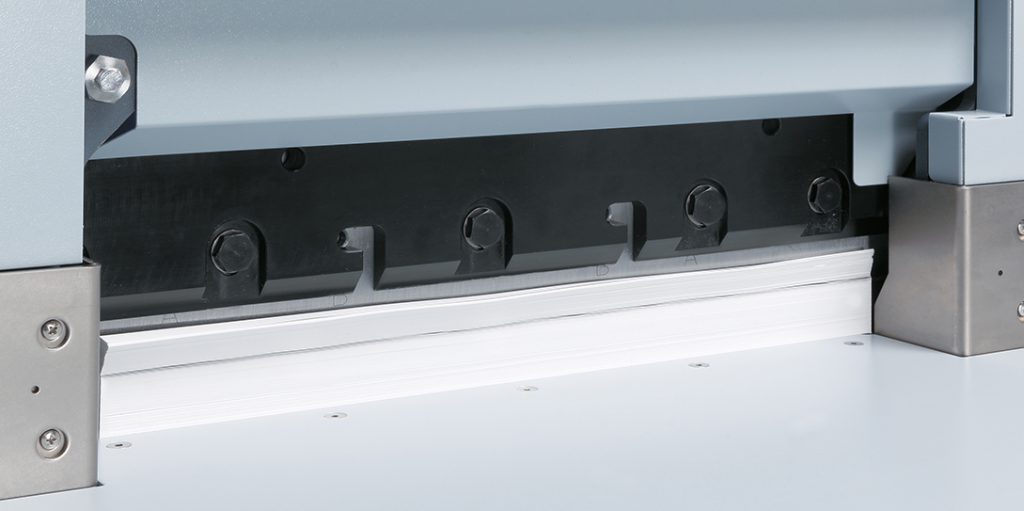

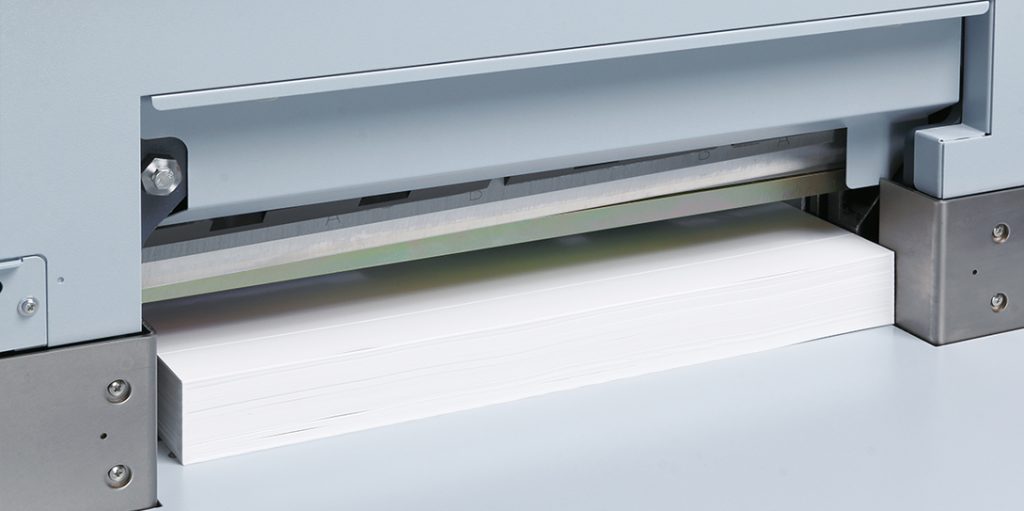

  • Spare High-Speed Hardened-Steel Cutting Blade

Technical Specifications
Cutting Width Max. 450 mm / 17.7”
Cutting Height Max. 60 mm / 2.36”
Cutting Depth

Max. 450 mm / 17.7”, Min. 40 mm / 1.58”
Clamp System & Pressure Auto 10 kN (1,000 kgf)
Job Memroy 30 Jobs, 99 Steps, Total 300 Steps
Push-out Length 50 mm / 1.96”
Cutting Speed 9 seconds per cycle (50 Hz) 8 seconds per cycle (60 Hz)
Voltage Frequency Single Phase 100 V, 50 / 60 Hz Single Phase 110 V, 50 / 60 Hz Single Phase 115 V, 50 / 60 Hz Single Phase 120 V, 50 / 60 Hz
Rated Current Single Phase 110 V, 50 / 60 Hz, 13 A Single Phase 115 V, 50 / 60 Hz, 13 A Single Phase 120 V, 50 / 60 Hz, 13 A
Machine Dimensions W840 x D905 x H1,400 mm / W33.1"x D35.7" x H55.2"
Machine Weight 321 kg / 707.1 lb
