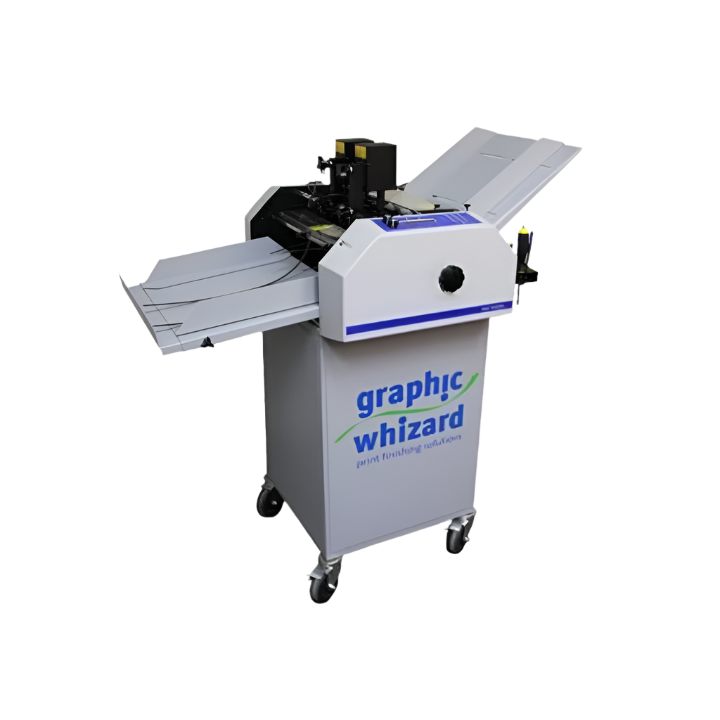

Graphic Whizard GW 8000E Numbering Machine
The GW 8000 is built to be ready to run all day, every day. Rated at up to 8,000 standard-size sheets per hour with 100 job memory to store numbering jobs.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications
Numbering, Rotary Perf & Score
This machine is durable enough to run continuously and has a 100-job memory for quick job changes. With microprocessor controls, the operator can place up to 100 numbers per head on each sheet. It offers the best value in the industry with its numerous features and specifications. If needed, it can be upgraded to 8000P or 12000 without significant downtime.
Features
- 8,000 standard-size sheets per hour
- 100 job memory to store numbering jobs
- Up to 100 numbers per head per sheet
- Up to 2 heads
- Crash number up to 10 part carbonless
- Feed sets unglued or glued side
- Create snap sets while numbering
- Heads rotate & lock throughout 360 degrees
- Perforating options 2, 4, 6, 8, 12/inch & Microperf
- Wide or narrow score blade available
- Optional slitting blade available
- Ability to control depth of Perf/Score/Slit independently
- Microprocessor controlled with forward and backward stepping for easy programming
- Automatic feed
- Simple setup
- Easy to operate
- Accurate .010" register
- Optional conveyor outfeed
- Upgradeable to GW 12000 at any time
- 5-year limited warranty (5-year mechanical, 5-year prorated electronics, 1 year numbering heads, excludes consumables)
Specifications
| Electrical | 115V/60Hz/5A or 230V/50Hz/5A |
| Speed | 8,000 sph variable |
| Max. Stock Size | 18” x 18” (45.7cm x45.7cm) |
| Min. Stock Size | 3” x 5” (7.6cm x 12.7cm) |
| Stock Weight | 12# -12 point (45-300gsm) |
| Impression Control | Electronic variable, crash up to 10 parts carbonless |
| Feeder | Friction |
| Dimensions | 44”L x 27”W x 16”H (1.12×0.69×0.26m) |
| Weight | 100 lbs. (45.5kg) |
| Floor Model | Tabletop, optional stand |
| Drive Unit Type | Electric |
| Max. # of Heads | 2 |
| Numbering/Creasing Positions | 100 |
| Job Memory | 100 |
| Head Rotation | Lockable throughout 360 |
| Repeat Action | Consecutive 1x, 2x, 3x, 4x |
| Numbering Heads | Standard 6-digit reverse head |
| Perf Blade Options | 2, 4, 6, 8, 12. 16 teeth per inch |
| Micro Perf Options | 42 or 72 teeth per inch |
| Scoring Options | Standard, wide or narrow |
| 12 tpi Perf Blade | 1 |
| Score Blade | 1 |
NOTE: Machine performance will vary based on stock weight, type, and specifications of the job being performed.Â
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
