Horizon QC-S30 collating machine (10 to 30 bins)
Horizon QC-S30 tabletop collating machine: 10 bins expandable to 30, 65 sets per minute, 12.59 x 17 in max sheet. Authorized Michigan and Great Lakes Horizon dealer. Install, training, financing, factory-trained service. Call 1-800-343-4231.
Freight items can be purchased online; final delivery details may be confirmed before shipment.
Tax-exempt? Apply once, check out tax-freeAsk a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Horizon QC-S30 tabletop collator. Tabletop Horizon collator for lighter set assembly when full VAC towers are more machine than you need.
Overview · Specifications · Why Mid-State Litho · Related · Request a quote
Overview
The QC-S30 is Horizon's tabletop collator for in-plants and lighter commercial set work. Use it when set sizes and volume do not justify a multi-tower VAC system.

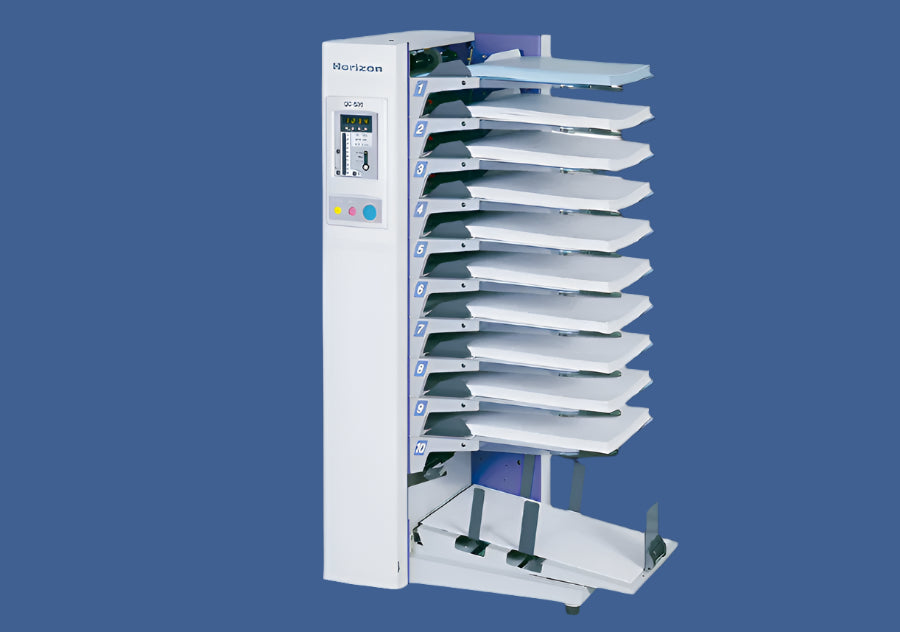

The Horizon QC-S30 is a compact, high-speed tabletop collator for automated sheet collation.
It comes with 10 feed bins, expands to 30 bins with QC-S30F modules, and runs at a maximum of 65 sets per minute.
Built by Horizon International in Japan. North American distribution through Standard Finishing Systems. Sold, installed, and serviced in Michigan and the Great Lakes by Mid-State Litho.
Key features
- Tabletop collating
- Light commercial and in-plant sets
- Compact vs VAC tower systems
- Dealer setup and service
Specifications
| Specification | Details |
|---|---|
| Number of bins | 10 (expandable to 30) |
| Max sheet size | 12.59" x 17.00" (320 x 432 mm) |
| Min sheet size | 5.44" x 6.89" (138 x 175 mm) |
| Sheet weight range | 52.3 to 127.9 gsm |
| Max speed | 65 sets per minute |
| Bin pile height | 28 mm (1.10") |
| Stacking options | Offset stack, straight stack |
| Error detection | Sheet jam, no sheet, misfeed, double feed, tray full, cover open |
| Power supply | 115V / 220-240V, 50/60Hz |
| Machine dimensions | 22.9" x 20.9" x 40.6" (W580 x D530 x H1,030 mm) |
| Weight | 161 lbs (73 kg) |
Ranges can vary by configuration. Confirm against the factory sheet for the options on your quote.
How to choose between a tabletop collator and a tower system
Set size. The QC-S30 holds 10 bins and expands to 30. If your longest set exceeds 30 sheets, a tabletop cannot run it in one pass regardless of speed.
Stock. Friction feed works on 52.3 to 127.9 gsm. Coated, curled, or mixed stock feeds more reliably on an air-suction tower such as the Horizon VAC-L600H or VAC-L1000.
Volume. 65 sets per minute is the ceiling here. A shop running collated sets as a daily production step, rather than as an occasional job, outgrows that number faster than it outgrows the bin count.
Floor space and power. The QC-S30 is 22.9" x 20.9" x 40.6" and 161 lb on 115V or 220-240V. A tower system is a floor install with a freight delivery and a longer lead time.
If three of those four point at a tower, buy the tower. Call 1-800-343-4231 and describe the longest set you run and the heaviest stock you feed.
Why buy Horizon equipment from Mid-State Litho
Horizon International designs and manufactures this machine in Japan. Standard Finishing Systems (SDMC) is the exclusive North American distributor. Mid-State Litho is the authorized Michigan and Great Lakes dealer: quote, install, train, finance, parts, and factory-trained service.
We work with Horizon and Standard Finishing as allies. We still want the buyer searching for a Horizon dealer to find Mid-State Litho first: local trucks, multi-brand honesty when another brand fits better, and a number that reaches people who install the line. Call 1-800-343-4231 or request a quote. Full line: Horizon print finishing equipment.
Related equipment
Related: Horizon VAC-L1000 air-suction collator · collators.
- Horizon VAC-L600H air-suction collator, the smaller air-suction tower
- MBM FC10 collator
- Plockmatic 510 feeder collator
- Plockmatic ACF 510 air-feed collator
- Standard Horizon parts
- service and support
- financing and leasing
- all equipment
Call 1-800-343-4231 to size this for your stock and volume.
Frequently asked questions
How many bins does the Horizon QC-S30 have?
Ten feed bins as standard. Bin count expands to 30 with QC-S30F expansion modules. Expansion modules are quoted separately; call 1-800-343-4231 for a configuration.
How fast is the QC-S30?
65 sets per minute at maximum. Real throughput depends on sheet weight and set size.
What sheet sizes and stock weights does it run?
Sheets from 5.44 x 6.89 in (138 x 175 mm) up to 12.59 x 17.00 in (320 x 432 mm), in stock weights from 52.3 to 127.9 gsm.
When should I buy a VAC tower system instead of the QC-S30?
The QC-S30 is a friction-feed tabletop unit for in-plant and lighter commercial set work. Move to a Horizon VAC-L600H or VAC-L1000 air-suction tower when set sizes, sheet variety, or run length exceed what a 10 to 30 bin tabletop can hold, or when you need reverse collating into a stacker.
Does Mid-State Litho install and service the QC-S30 in Michigan?
Yes. Mid-State Litho is the authorized Horizon dealer for Michigan and the Great Lakes and has sold and serviced print finishing equipment since 1984. Delivery, installation, operator training, financing, and factory-trained service are handled in house.
