Intec SC7800 Pro-RS XL Digital Die Cutter & Creaser – Automated Sheet Cutter with QR Workflow
Intec SC7800 Pro-RS XL digital die cutter with auto feeder, QR workflow, and dual-sided creasing. Cut and crease up to 450 micron with no dies.
Freight items can be purchased online; final delivery details may be confirmed before shipment.
Tax-exempt? Apply once, check out tax-freeAsk a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications

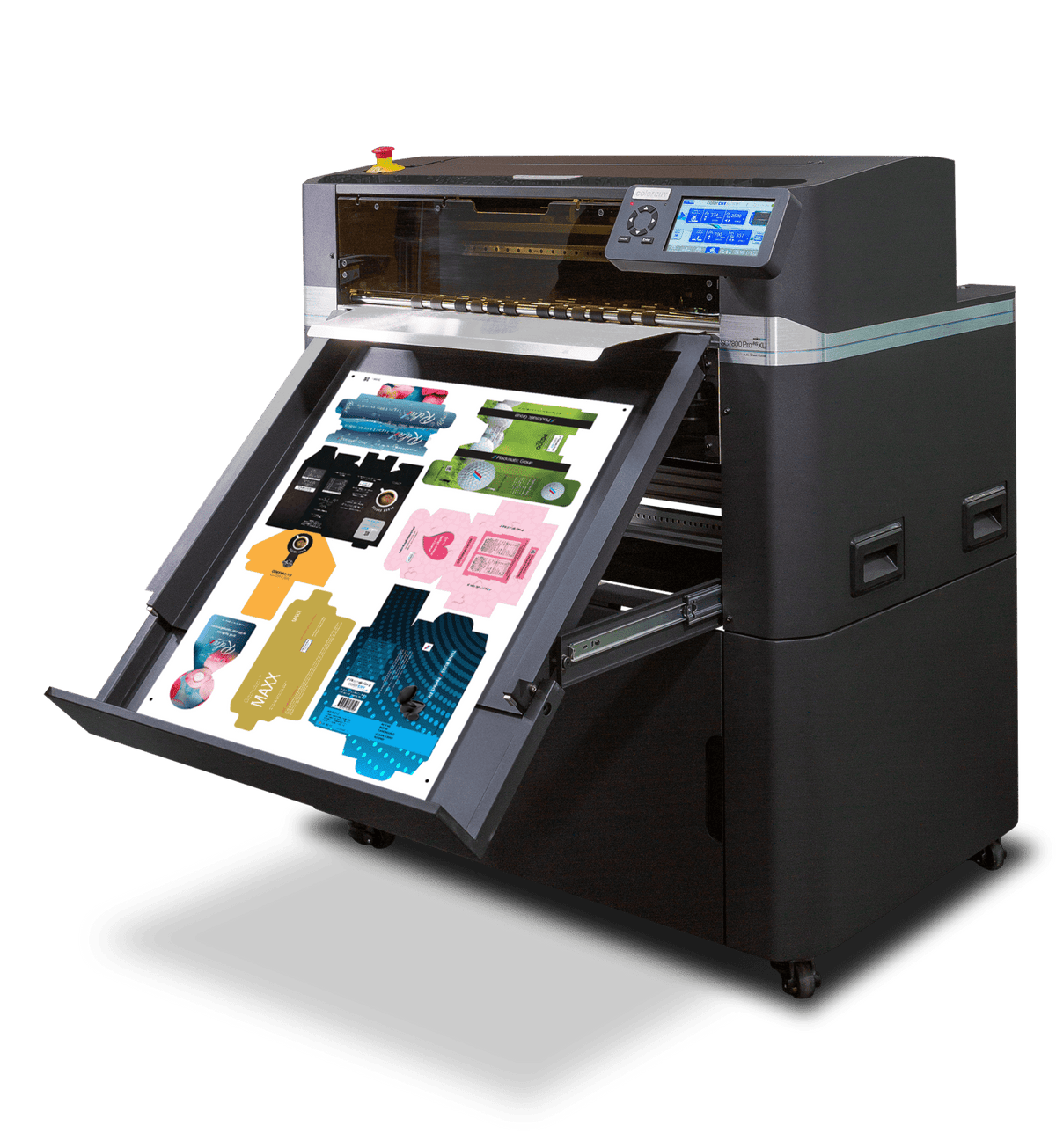

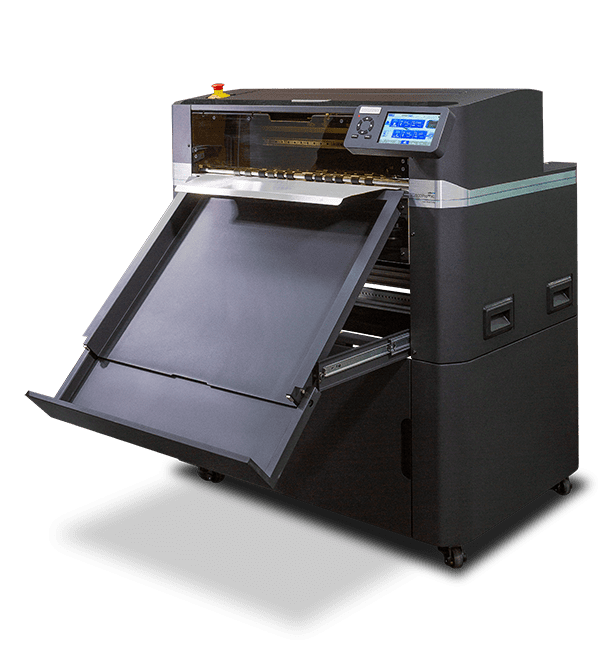

Intec SC7800 Pro-RS XL Digital Die Cutter & Creaser
The Intec SC7800 Pro-RS XL is a fully automated digital die cutter and creasing system designed for high-speed, on-demand production of packaging, POS materials, and custom print applications. Featuring dual tangential creasing, QR-driven automation, and a high-capacity auto feeder, it eliminates the need for traditional dies while delivering precision cutting and creasing on a wide range of media.
Key Features
- Digital die-less cutting eliminates tooling costs and delays
- Dual opposing tangential creasing for precise, professional folds
- Auto feeder with up to 900 sheet capacity for unattended operation
- QR code workflow automation for instant job retrieval
- Triple tool head with drag cut and dual creasing wheels
- Handles media up to 450 micron including board and synthetics
- SmartMark registration system for high cutting accuracy
- Standalone operation (HELD mode) via USB without PC connection
Product Overview
The SC7800 Pro-RS XL combines multiple finishing technologies into a single, compact platform, allowing print providers to cut and crease complex designs without traditional dies. Its advanced feeding system and AI-driven workflow enable fully automated production, even when running mixed job stacks.
Designed for modern digital print environments, it offers fast job setup, high accuracy, and the flexibility to produce packaging, folders, and custom-shaped materials directly from printed sheets.
Specifications
| Media Size | Min: 279 x 400mm | Max: 520 x 740mm |
| Cutting Area | Up to 510 x 720mm |
| Media Thickness | Up to 450 micron |
| Auto Feeder Capacity | Up to 900 sheets |
| Max Speed | Up to 1060 mm/sec |
| Cut Type | Die-cut (with tags) and perforation |
| Weight | 210 kg |
| Power | 100–240V, 50/60Hz |
Applications
- Packaging and carton production
- Point-of-sale displays
- Folders and presentation materials
- Custom-shaped marketing pieces
- Short-run and on-demand print finishing
Workflow & Software
- ColorCut Pro Production Studio included
- QR code job retrieval system
- Job Library Manager for file organization
- Template Maker for packaging design
- Optional ColorCut Pro Server Station
Benefits
- Eliminates die costs and reduces turnaround time
- Automates production with minimal operator intervention
- Handles mixed job stacks without stopping
- Produces high-quality creases and cuts on thick media
- Expands capabilities into packaging and specialty applications
Why the SC7800 Pro-RS XL
The SC7800 Pro-RS XL is built for print operations that need flexibility, automation, and precision without the cost and limitations of traditional die cutting. Its combination of digital workflow, high-capacity feeding, and advanced creasing technology makes it a powerful solution for modern print finishing environments.
Related digital finishing equipment
The SC7800 Pro-RS XL is a die-less system, so it fits alongside the rest of Mid-State Litho's digital finishing line. Compare it with the ColorCut FB9000PRO automatic flatbed cutter and the MBM AeroDieCut, browse the full digital die cutting machines and creasers ranges, or see the workflow software that drives QR-based job setup.
Frequently asked questions
What does the SC7800 Pro-RS XL do?
It is a digital die cutter and creaser that cuts and creases directly from printed sheets with no physical dies, using a triple tool head with a drag knife and dual tangential creasing wheels.
What media thickness can it handle?
Up to 450 micron, including board and synthetic stocks.
What is the QR code workflow?
Each job carries a QR code, so the operator scans it to retrieve the cut-and-crease file instantly instead of setting up by hand.
Does it feed automatically?
Yes. The high-capacity auto feeder holds up to 900 sheets for unattended runs, and SmartMark registration keeps cutting accurate across the stack.
Does Mid-State Litho install and support it?
Yes. We deliver and support the SC7800; ask about installation and service options for your location.
