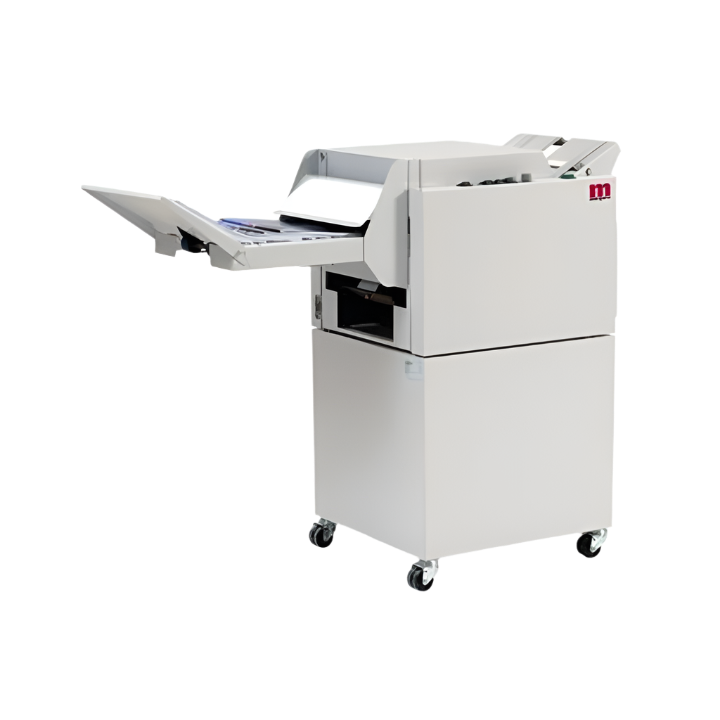

Morgana BM60 Series Booklet Maker
Produce professional booklets with the Morgana BM60 Series. Compact, user-friendly, and versatile, supporting saddle, edge, and corner stapling up to 22 sheets.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
The Morgana BM60 Series is a compact, user-friendly booklet maker designed for hand-fed operation or collator connection. Ideal for small to medium print jobs, it supports saddle, edge, and corner stapling, producing high-quality booklets with ease. The series includes the BM60 (manual feed only) and the BM61 (equipped with a side jogging unit and collator connection capabilities) for enhanced automation.
Key Features
🔷 Versatile Stapling & Folding – Supports saddle, edge, and corner stapling, with an option for loop stapling using interchangeable heads.
🔷 High-Capacity Booklet Production – Processes up to 22 sheets of 20 lb bond (88 pages) at up to 1,800 booklets per hour.
🔷 Flexible Operation Modes – Includes manual mode, automatic mode, stapling only, folding only, and stapling with no folding, controlled via the intuitive operator panel.
🔷 BM61 Collator Integration – Connects to the C/AC 510 collator for automated booklet production, reducing manual handling.
🔷 Jam & Low-Staple Detection – Built-in error detection minimizes downtime and ensures consistent output quality.
🔷 Optional Enhancements – Expand capabilities with a belt stacker for longer runs, a delivery tray for organization, and the Morgana SquareFold 104 for a perfect-bound look.
Technical Specifications
| Specification | BM60 | BM61 |
|---|---|---|
| Max Sheet Capacity | 22 sheets (20 lb bond) | 22 sheets (20 lb bond) |
| Max Speed | Up to 1,800 booklets/hour | Up to 1,800 booklets/hour |
| Max Paper Size | 13.3” x 18” | 12” x 17.3” |
| Min Paper Size | 5.4” x 8.3” | 8.6” x 10.6” |
| Paper Weight | 16 lb bond – 90 lb bond | 16 lb bond – 90 lb bond |
| Stapling Modes | Saddle, edge, corner | Saddle, edge, corner |
| Staple Capacity | 210 Chisel pointed | 210 Chisel pointed |
| Stapler Heads | 2 | 2 |
| Error Detection | Low staple, jam | Low staple, jam |
| Collator Connectivity | No | Yes (C/AC 510 collator) |
| Dimensions (with base and belt stacker) | 37.8” W x 48.4” H x 19.7” D | 34.6” W x 50.3” H x 19.7” D |
| Weight | 122 lb | 128 lb |
Access Parts Manual Here
Optional Accessories
✔ Base Stand – Ensures stable operation and ease of use.
✔ Belt Stacker – Enhances productivity for high-volume booklet runs.
✔ Delivery Tray – Keeps booklets organized and ready for distribution.

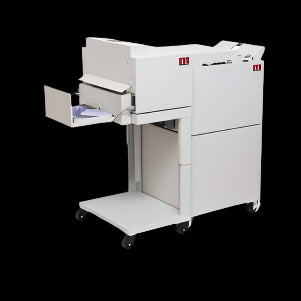

✔ Morgana SquareFold 104 – Provides a perfect-bound look with secure stapled finishing, usable hand-fed or inline.
Optimized Applications
📖 Booklet Production – Ideal for manuals, reports, catalogs, and training materials.
📢 Marketing & Direct Mail – Creates high-quality promotional booklets and brochures.
🏢 Office & In-Plant Printing – A great fit for corporate print rooms and educational institutions.
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
