Foliant Taurus 760 NG
Foliant Taurus 760 NG
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370
Industrial Laminator

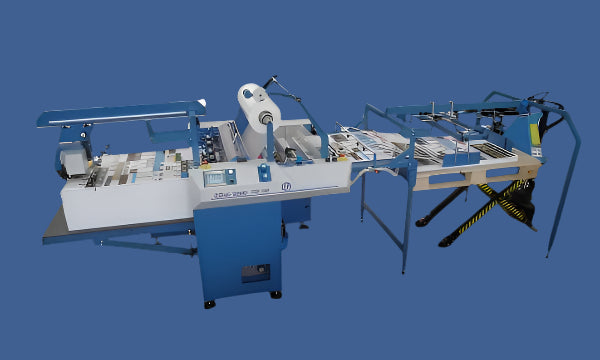

The Foliant Taurus 760 NG is a compact, high-speed single-sided laminator built for nonstop production environments. Designed with a suction stream feeder, adjustable dual de-curling, and Omron PLC automation, it handles sheet sizes up to 29.9" x 43.3" and paper weights from 115–600 gsm. With speeds up to 98 ft/min and options like a Foliant Foiler, PET module, and Jogger 760, the Taurus 760 NG offers commercial printers and finishing shops an industrial-grade lamination solution in a surprisingly manageable footprint.
Key Features
🔷 Single-Sided Thermal Lamination – For BOPP, Nylon, and optionally PET films with clean and precise bonding.
🔷 Omron PLC with Touchscreen Interface – Fully automated overlap control, pneumatic pressure, and job recall.
🔷 Suction Stream Feeder – Equipped with servo-driven lift plate, vacuum pump, and 15.7” paper stack capacity.
🔷 Adjustable Dual De-Curling System – Includes blade and roller to ensure flat output across all substrates.
🔷 Integrated Bump Separator – Fast-cycling rollers automatically separate and deliver sheets.
🔷 Pneumatically Controlled Chrome & Rubber Rollers – Heated chrome roller features internal ring heating and sensor regulation.
🔷 Air Shaft Film Mounting – Allows precise, tool-free adjustment of film alignment.
🔷 Fast Warm-Up – Ready for production in under 10 minutes.
🔷 Compact Industrial Footprint – Operates with external compressor for powerful, efficient production.
Specifications
| Specification | Details |
|---|---|
| Max Speed | 98 ft/min (30 m/min) |
| Max Performance | 1,700 SPH (27.8" x 39.4"), 3,400 SPH (19.7" x 27.8") |
| Max Sheet Size | 29.9” x 43.3” (760 x 1100 mm) |
| Min Sheet Size | 12.5” x 9.8” (320 x 250 mm) |
| Paper Weight Range | 115 – 600 gsm |
| Film Types | BOPP (24–42 µm), Nylon (24–35 µm), PET (20–26 µm, optional) |
| Overlap Accuracy | ±2 mm (0.08”) |
| Feeder Load Capacity | 15.7” pile |
| Warm-Up Time | Under 10 minutes |
| Temperature Range | 176° – 284°F (80°–140°C) |
| Power Requirements | 3-phase, 400V AC, 8,000W |
| Air Requirements | 150 L/min @ 6–8 bar (external compressor) |
| Machine Footprint | 56.2" x 129.9" with Jogger |
| Machine Weight | 1,807 lbs (820 kg) |
Applications
📚 Book Covers & Dust Jackets – High-quality lamination for publishing and packaging print runs.
📦 Carton & Packaging Finishing – Clean lamination for folding boxes and structural graphics.
🖼 Posters & Graphics – Laminate large-format sheets with precision de-curling.
📄 Marketing Collateral – Brochures, catalogs, and inserts enhanced with gloss or matte film.
Available Options
📍 Jogger 760 – Vibrating reception unit for neatly stacked laminated sheets (3.9” pile).
📍 Foliant Foiler – Allows metallic film and spot varnish application (gold, silver, red, etc.).
📍 PET Film Module – Enables lamination with PET films up to 26 microns.
📍 Film Loader/Manipulator – Electric lift for heavy film rolls (up to 275.5 lbs).
Benefits
✅ Industrial-grade productivity in a compact configuration.
✅ Accurate, consistent sheet feeding and overlap control.
✅ Supports a wide range of media and laminate film types.
✅ Quick setup with touchscreen automation and memory.
✅ Expandable system with foiling, joggers, and PET support for future scalability.
