Foliant Taurus 760 NG 4x4
Foliant Taurus 760 NG 4x4
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370
Double-Sided Laminating System

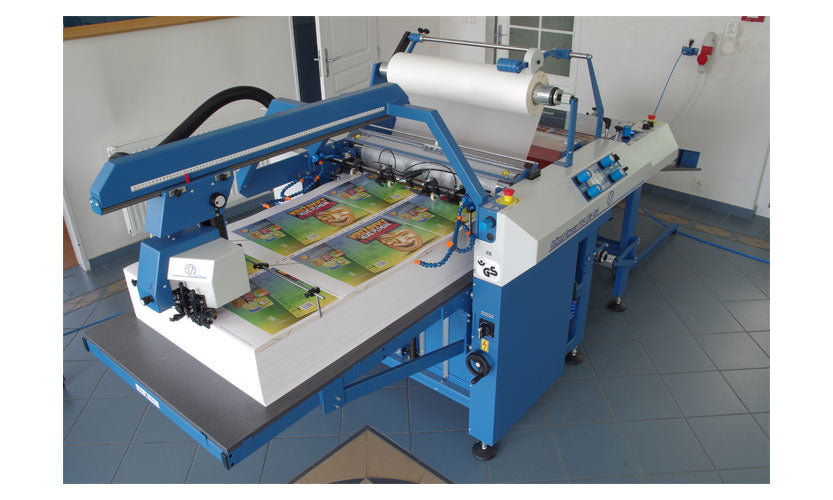

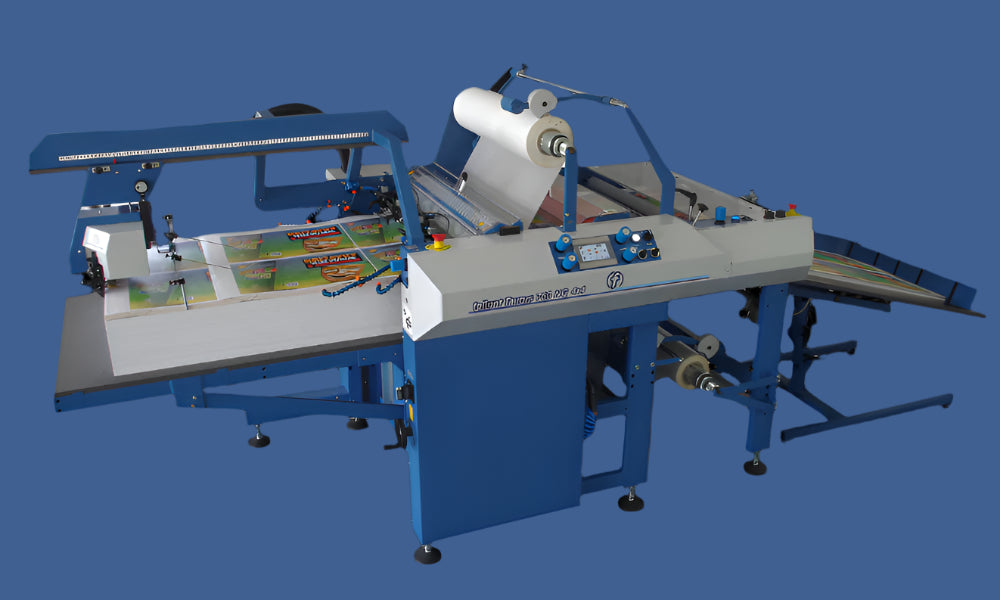

The Foliant Taurus 760 NG 4x4 Double is a high-performance industrial laminator designed for double-sided thermal lamination of offset and digitally printed sheets. Built for nonstop commercial production, it handles large formats up to 29.9" x 43.3", supports a broad range of paper stocks, and integrates suction feeding, a bump separator, dual decurling, and Omron PLC automation. With speeds up to 98.4 ft/min, this system is optimized for efficiency, precision, and ease of use in high-demand environments.
Key Features
🔷 Double-Sided Thermal Lamination – Laminates both sides simultaneously with precise heat and pressure control.
🔷 Omron PLC with Touchscreen Interface – Intuitive operation with icon-based controls and automated sequences.
🔷 Max Speed of 98.4 ft/min – Delivers up to 1,700 SPH (single-sided) and 2,900 SPH (double-sided) on 27.8” x 39.4” sheets.
🔷 Suction Feeding Head – Ensures smooth sheet handling with high-volume feed tray capacity.
🔷 Twin De-Curling Units – Blade and roller decurlers provide adjustable sheet flatness, especially for thin or coated stocks.
🔷 Pneumatic Pressure System – Independent control for each pressure roller edge.
🔷 Chrome & Rubber Roller Design – Dry electric heat system inside chrome rollers ensures even heat transfer.
🔷 Automatic Bump Separator – Separates sheets after lamination and feeds into optional jogger or stacker.
🔷 Air Shaft Film Mounting – For easy and precise film roll alignment and quick changeover.
🔷 Works with BOPP, PET, and Nylon Films – Wide compatibility for varied job requirements.
Specifications
| Specification | Details |
|---|---|
| Max Sheet Size | 29.9” x 43.3” |
| Min Sheet Size | 12.6” x 9.8” |
| Paper Weight | 115 – 600 gsm |
| Max Speed | 98.4 ft/min (single & double-sided) |
| Max Performance | 1,700 SPH (SS) / 2,900 SPH (DS) |
| Film Compatibility | BOPP (24–42μm), PET (20–26μm SS / 20–22μm DS), Nylon (24–35μm SS) |
| Feeder Capacity | 15.7" stack height |
| Warm-Up Time | <10 minutes |
| Temperature Range | 80 – 140°C |
| Power Supply | 3-phase, 400V AC, 50–60Hz |
| Power Consumption | 11,300 W |
| Air Requirements | 150 l/min, 6–8 bar (external compressor) |
| Machine Dimensions | 55” x 145.7” (with Jogger) |
| Weight | 1,829.8 lbs |
Applications
📦 Commercial Print Lamination – Books, covers, posters, packaging, and promotional items.
🖨 Digital & Offset Print Finishing – High-volume or variable-size print runs.
🎁 Premium Packaging – Finishes for folding cartons, sleeves, and display graphics.
📄 Document Protection – High-quality gloss or matte laminates for signage, menus, and more.
Available Options
📍 Jogger 760 – Adjustable vibrating stacker for neat laminated sheet collection.
📍 Foliant Foiler – Applies metallic foil (gold, silver, red, etc.) or spot varnish film over digital toner.
📍 Film Loader/Manipulator – Electric lift for heavy film rolls up to 275.5 lbs.
📍 Pallet Stacker – Optional for long unattended runs and bulk output stacking.
Benefits
✅ Simultaneous double-sided lamination saves time and boosts throughput.
✅ High-speed performance with accurate separation and flat sheet delivery.
✅ Versatile film and stock handling for wide production flexibility.
✅ Quick setup and job changeovers thanks to intuitive controls and air shaft system.
✅ Compact industrial footprint with options to expand into full in-line finishing workflows.
